| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57864cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57864cztM0_level2_quad_clean.evt |
| Size (bytes) | 710,706,240 | 99,020,160 |
| Size | 677.8 MB | 94.4 MB |
| Events in quadrant A | 3,406,141 | 711,437 |
| Events in quadrant B | 3,697,595 | 759,037 |
| Events in quadrant C | 13,623,046 | 369,598 |
| Events in quadrant D | 4,992,877 | 630,351 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15816 | 0 |
| B | 0 | 16619 | 0 |
| C | 0 | 45728 | 0 |
| D | 0 | 20075 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7582 | 19 | 0.250594% |
| B | 7582 | 101 | 1.332102% |
| C | 7582 | 3917 | 51.661831% |
| D | 7582 | 83 | 1.094698% |

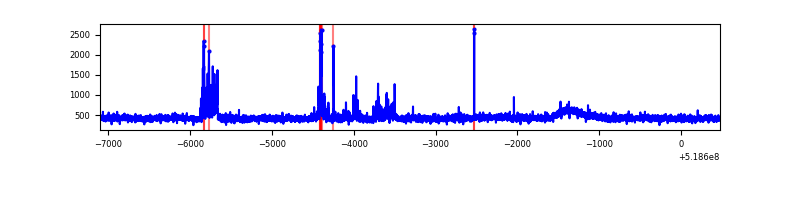

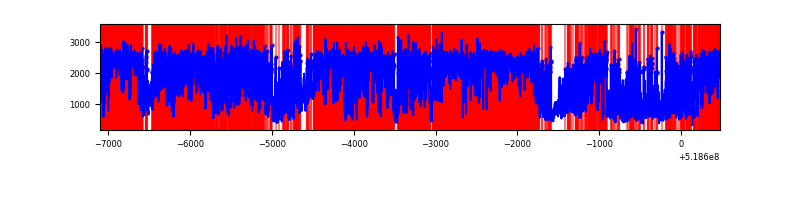

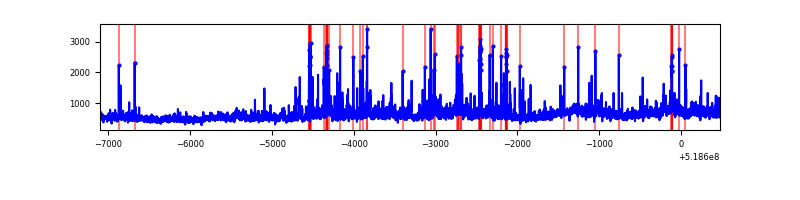

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 7582 | 13 | 13 | 0.17% | 0.17% |  |
| B | 7582 | 7582 | 41 | 41 | 0.54% | 0.54% |  |
| C | 7581 | 7581 | 3649 | 3649 | 48.13% | 48.13% |  |
| D | 7582 | 7582 | 74 | 74 | 0.98% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 229173 | 1152.41 | 803 | 782 | 198.2 |
| A | 3 | 128 | 29618 | 145.5 | 803 | 782 | 198.2 |
| A | 4 | 44 | 18798 | 90.9 | 803 | 782 | 198.2 |
| B | 0 | 245 | 161492 | 952.74 | 792 | 761 | 168.7 |
| B | 5 | 185 | 160086 | 944.41 | 792 | 761 | 168.7 |
| B | 10 | 246 | 84012 | 493.47 | 792 | 761 | 168.7 |
| C | 9 | 38 | 6669866 | 38863.64 | 632 | 626 | 171.6 |
| C | 15 | 224 | 4088911 | 23823.65 | 632 | 626 | 171.6 |
| C | 6 | 223 | 133929 | 776.8 | 632 | 626 | 171.6 |
| D | 12 | 110 | 1136504 | 5213.74 | 776 | 741 | 217.8 |
| D | 3 | 12 | 202177 | 924.7 | 776 | 741 | 217.8 |
| D | 3 | 224 | 116761 | 532.59 | 776 | 741 | 217.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

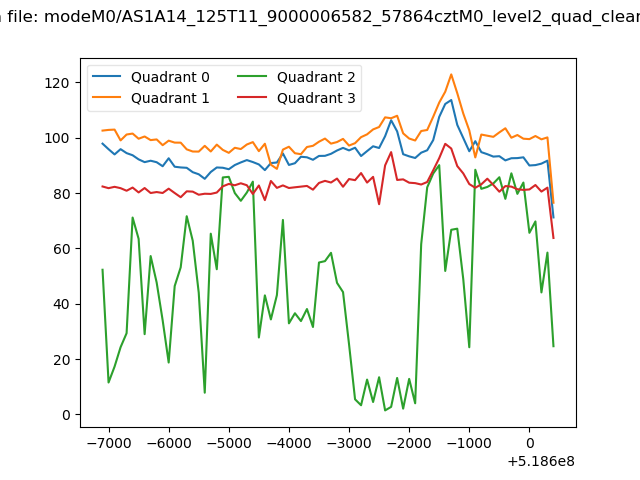

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

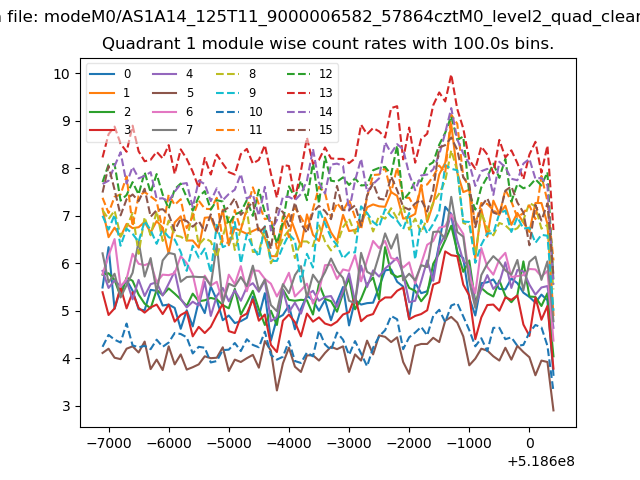

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

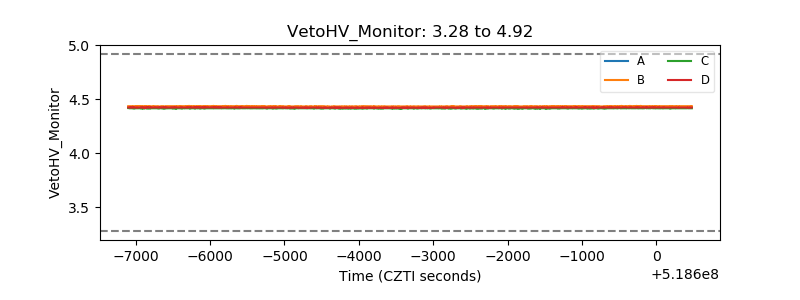

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
