| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57867cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57867cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,671,019,200 | 248,402,880 |
| Size | 1.6 GB | 236.9 MB |
| Events in quadrant A | 9,075,535 | 1,733,977 |
| Events in quadrant B | 10,381,045 | 1,807,398 |
| Events in quadrant C | 29,236,773 | 1,101,042 |
| Events in quadrant D | 11,696,237 | 1,572,094 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40870 | 3 |
| B | 0 | 44519 | 3 |
| C | 0 | 100035 | 3 |
| D | 0 | 47469 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18961 | 457 | 2.410210% |
| B | 18962 | 1001 | 5.278979% |
| C | 18962 | 6973 | 36.773547% |
| D | 18962 | 422 | 2.225504% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

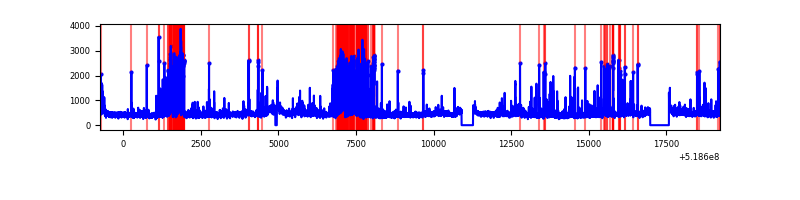

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19986 | 18961 | 102 | 102 | 0.51% | 0.54% |  |
| B | 19987 | 18962 | 443 | 443 | 2.22% | 2.34% |  |
| C | 19987 | 18962 | 6363 | 6363 | 31.84% | 33.56% |  |
| D | 19987 | 18963 | 126 | 126 | 0.63% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 698511 | 1388.81 | 2037 | 1983 | 501.5 |
| A | 13 | 248 | 407303 | 808.17 | 2037 | 1983 | 501.5 |
| A | 3 | 128 | 45828 | 87.42 | 2037 | 1983 | 501.5 |
| B | 2 | 249 | 1105221 | 2622.76 | 1981 | 1903 | 420.7 |
| B | 10 | 247 | 377944 | 893.91 | 1981 | 1903 | 420.7 |
| B | 0 | 245 | 187439 | 441.05 | 1981 | 1903 | 420.7 |
| C | 9 | 38 | 15133745 | 32785.37 | 1698 | 1676 | 461.5 |
| C | 15 | 224 | 4779079 | 10350.79 | 1698 | 1676 | 461.5 |
| C | 2 | 12 | 1001951 | 2167.21 | 1698 | 1676 | 461.5 |
| D | 12 | 110 | 2340417 | 4212.22 | 1982 | 1893 | 555.2 |
| D | 3 | 12 | 404152 | 724.56 | 1982 | 1893 | 555.2 |
| D | 3 | 224 | 179653 | 320.19 | 1982 | 1893 | 555.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

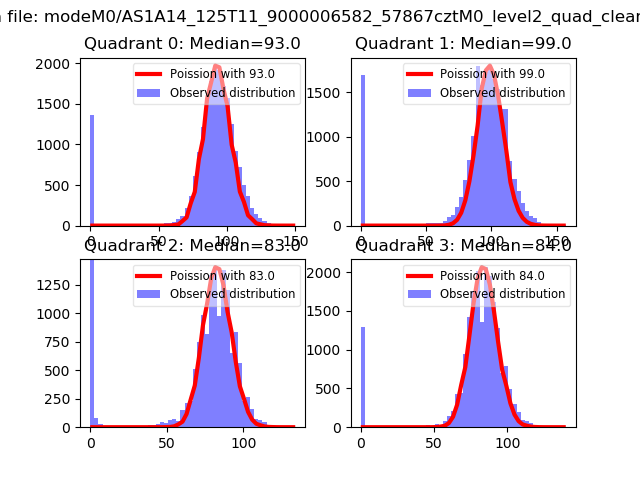

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

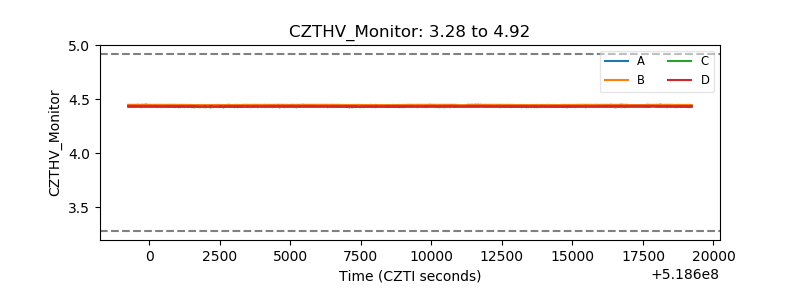

| CZT HV Monitor |  |
| D_VDD |  |

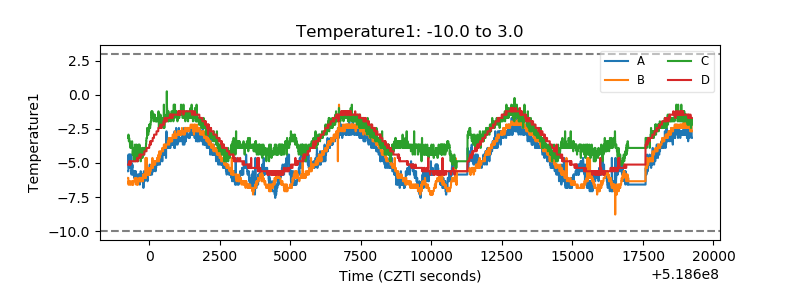

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

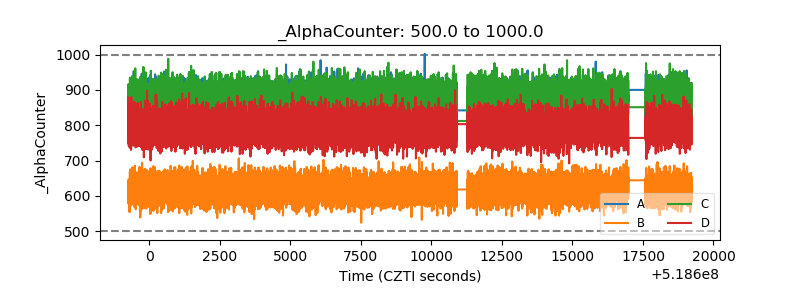

| Alpha Counter |  |

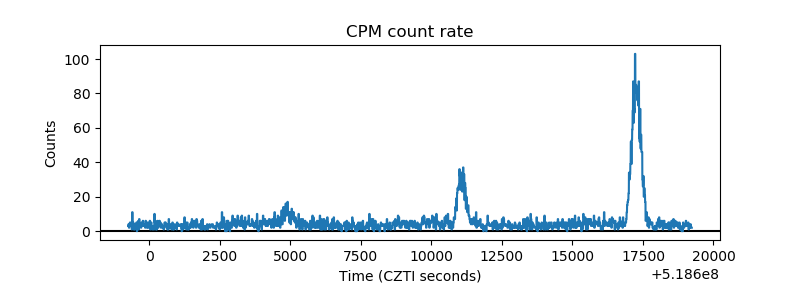

| _CPM_Rate |  |

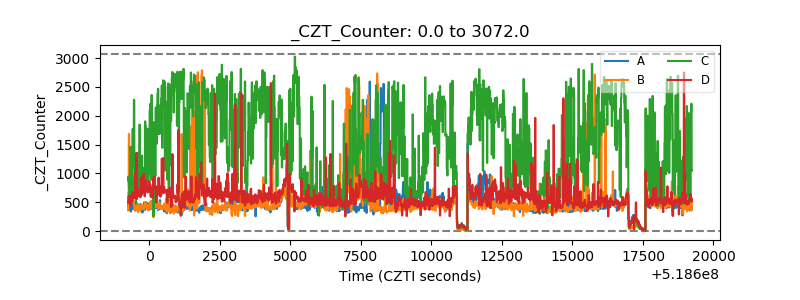

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

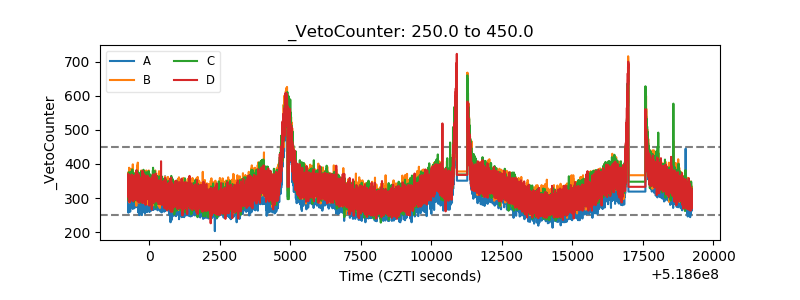

| Veto Counter |  |
