| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57868cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57868cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,469,120 | 83,612,160 |
| Size | 571.7 MB | 79.7 MB |
| Events in quadrant A | 2,694,891 | 602,856 |
| Events in quadrant B | 3,195,162 | 637,810 |
| Events in quadrant C | 11,558,135 | 313,463 |
| Events in quadrant D | 4,249,509 | 535,107 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12855 | 1 |
| B | 0 | 13987 | 1 |
| C | 0 | 38713 | 1 |
| D | 0 | 16816 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6340 | 47 | 0.741325% |
| B | 6341 | 93 | 1.466646% |
| C | 6341 | 3218 | 50.749093% |
| D | 6341 | 178 | 2.807128% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

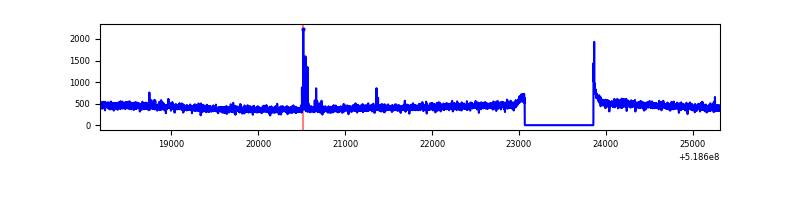

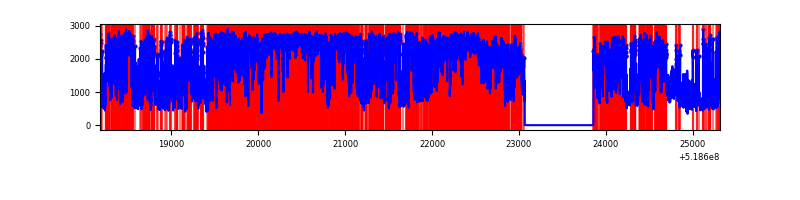

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7130 | 6340 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7131 | 6341 | 17 | 17 | 0.24% | 0.27% |  |
| C | 7131 | 6341 | 3188 | 3188 | 44.71% | 50.28% |  |
| D | 7131 | 6342 | 155 | 155 | 2.17% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 18178 | 103.55 | 682 | 665 | 169.1 |
| A | 3 | 128 | 13778 | 77.53 | 682 | 665 | 169.1 |
| A | 7 | 64 | 12804 | 71.77 | 682 | 665 | 169.1 |
| B | 5 | 172 | 223943 | 1547.31 | 666 | 640 | 144.3 |
| B | 4 | 158 | 73969 | 508.11 | 666 | 640 | 144.3 |
| B | 7 | 252 | 50555 | 345.87 | 666 | 640 | 144.3 |
| C | 9 | 38 | 7809644 | 55719.33 | 511 | 505 | 140.2 |
| C | 15 | 224 | 834996 | 5954.21 | 511 | 505 | 140.2 |
| C | 2 | 12 | 734467 | 5236.92 | 511 | 505 | 140.2 |
| D | 12 | 110 | 862132 | 4671.63 | 651 | 621 | 184.4 |
| D | 2 | 153 | 380448 | 2059.65 | 651 | 621 | 184.4 |
| D | 2 | 31 | 227330 | 1229.35 | 651 | 621 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

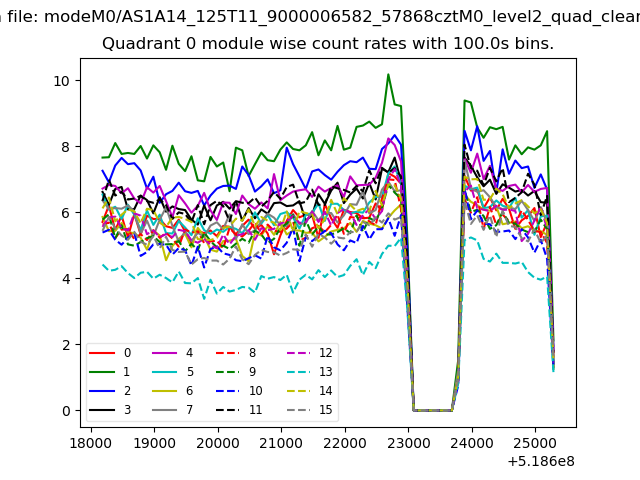

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

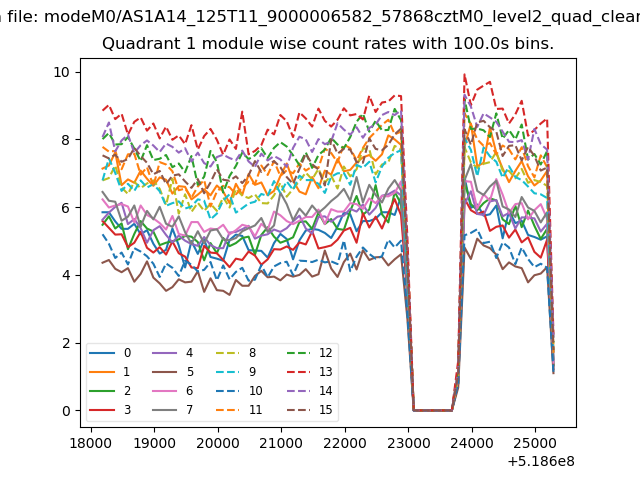

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

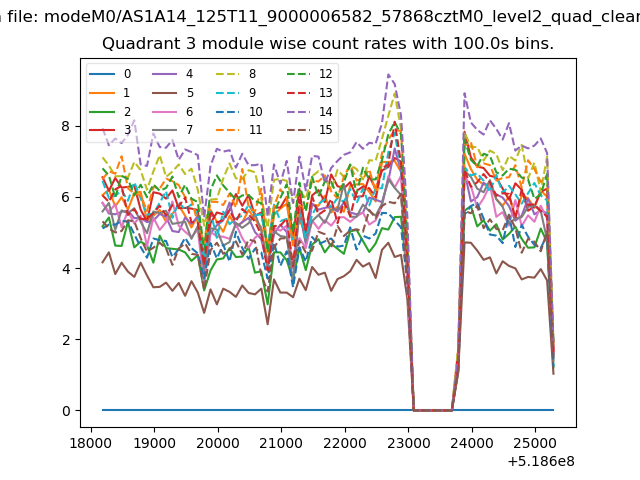

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

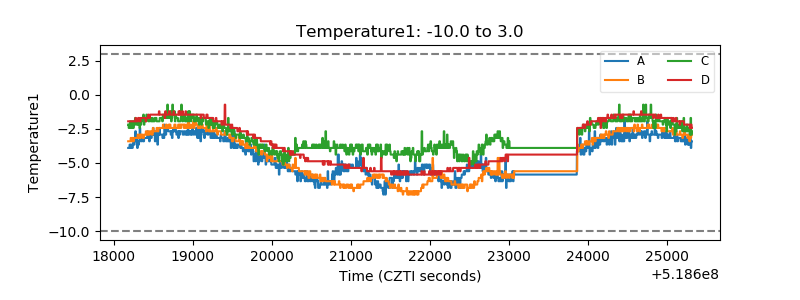

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

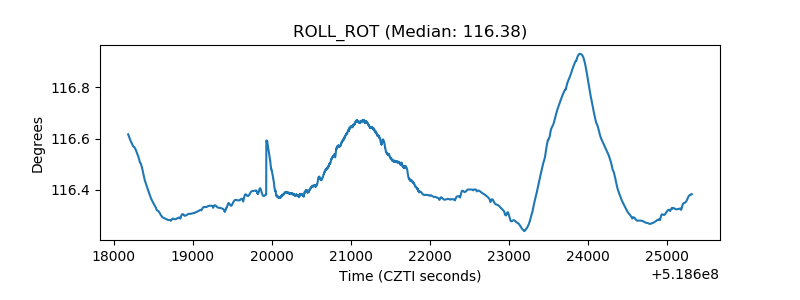

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
