| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57871cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57871cztM0_level2_quad_clean.evt |
| Size (bytes) | 594,786,240 | 88,594,560 |
| Size | 567.2 MB | 84.5 MB |
| Events in quadrant A | 2,857,612 | 643,415 |
| Events in quadrant B | 8,825,689 | 458,543 |
| Events in quadrant C | 5,769,303 | 553,305 |
| Events in quadrant D | 4,058,202 | 572,799 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13366 | 2 |
| B | 0 | 30724 | 5 |
| C | 0 | 21800 | 2 |
| D | 0 | 16583 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6515 | 16 | 0.245587% |
| B | 6513 | 2521 | 38.707201% |
| C | 6516 | 718 | 11.019030% |
| D | 6515 | 58 | 0.890253% |

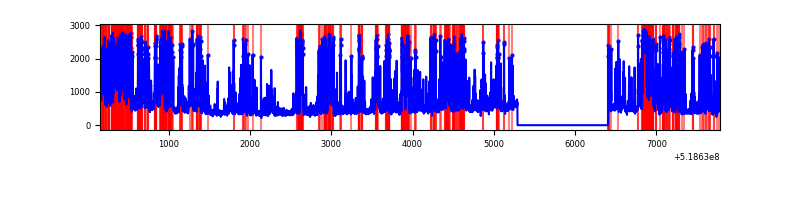

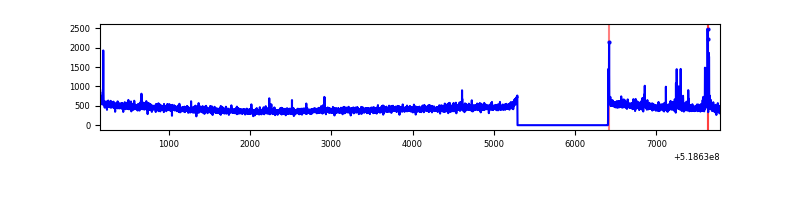

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7629 | 6515 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7629 | 6514 | 2263 | 2263 | 29.66% | 34.74% |  |
| C | 7630 | 6516 | 700 | 700 | 9.17% | 10.74% |  |
| D | 7629 | 6515 | 71 | 71 | 0.93% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 101130 | 581.37 | 704 | 687 | 172.8 |
| A | 4 | 3 | 11836 | 64.53 | 704 | 687 | 172.8 |
| A | 3 | 128 | 10896 | 59.09 | 704 | 687 | 172.8 |
| B | 5 | 172 | 5596797 | 41346.94 | 630 | 607 | 135.3 |
| B | 4 | 158 | 259938 | 1916.04 | 630 | 607 | 135.3 |
| B | 5 | 185 | 245028 | 1805.88 | 630 | 607 | 135.3 |
| C | 15 | 224 | 1661837 | 9419.53 | 642 | 636 | 176.4 |
| C | 2 | 12 | 1466281 | 8310.67 | 642 | 636 | 176.4 |
| C | 6 | 223 | 45296 | 253.24 | 642 | 636 | 176.4 |
| D | 12 | 110 | 871264 | 4594.21 | 669 | 639 | 189.5 |
| D | 2 | 31 | 161851 | 850.7 | 669 | 639 | 189.5 |
| D | 3 | 12 | 135410 | 711.17 | 669 | 639 | 189.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

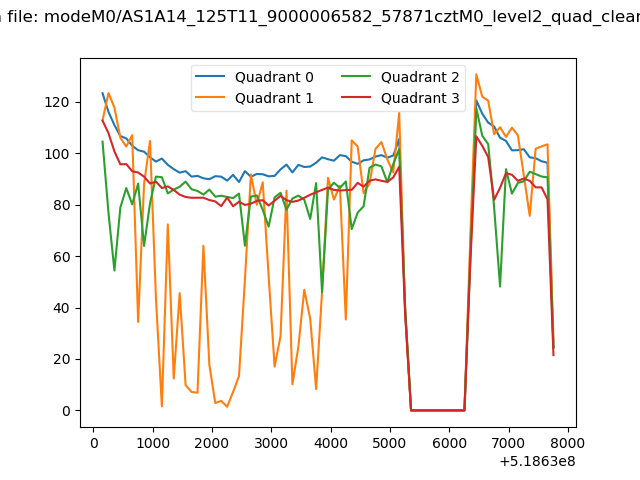

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

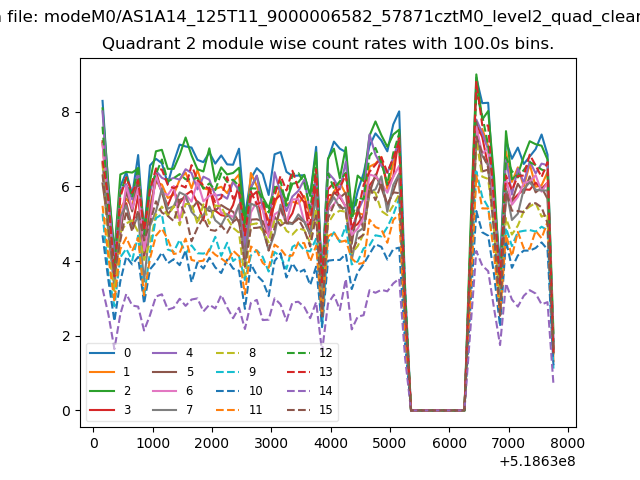

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

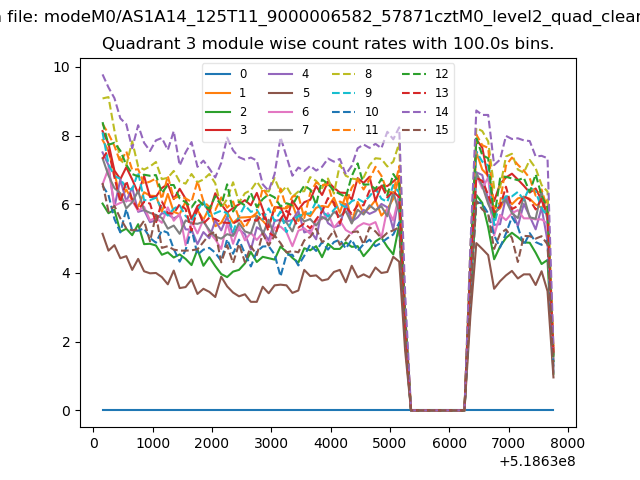

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

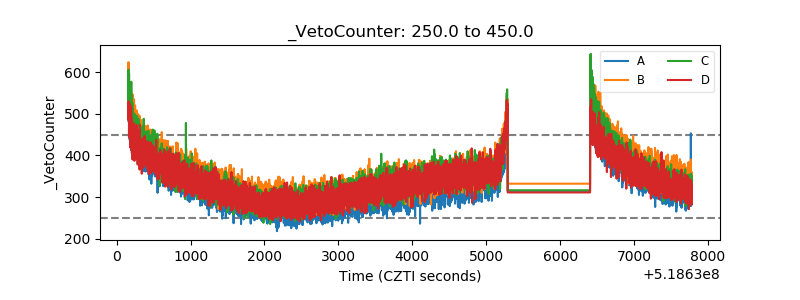

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

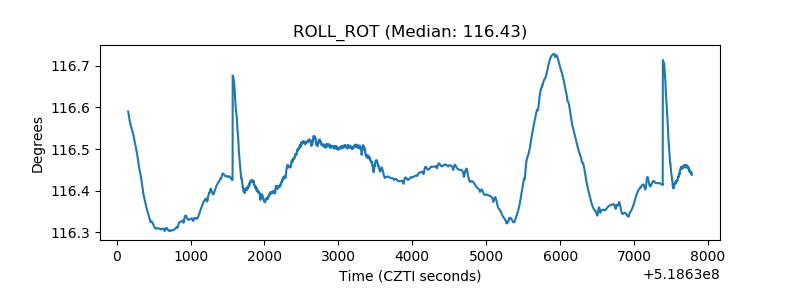

| _ROLL_ROT |  |

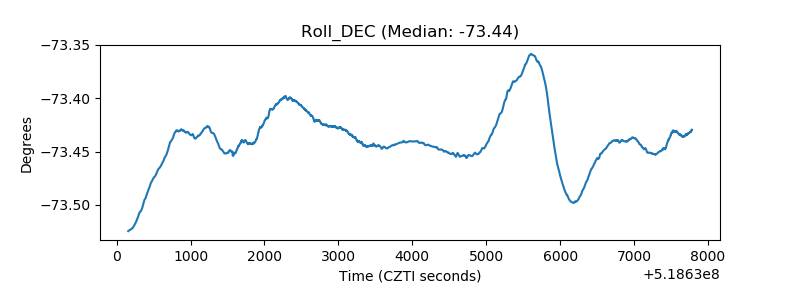

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
