| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57872cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57872cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,539,200 | 93,314,880 |
| Size | 403.0 MB | 89.0 MB |
| Events in quadrant A | 2,800,137 | 625,816 |
| Events in quadrant B | 3,177,534 | 661,284 |
| Events in quadrant C | 4,186,895 | 571,073 |
| Events in quadrant D | 4,993,804 | 534,177 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12799 | 2 |
| B | 0 | 13963 | 2 |
| C | 0 | 16847 | 2 |
| D | 0 | 19105 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6209 | 7 | 0.112740% |
| B | 6209 | 95 | 1.530037% |
| C | 6209 | 247 | 3.978096% |
| D | 6209 | 302 | 4.863907% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

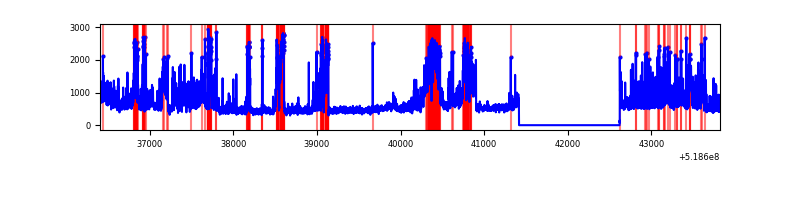

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7414 | 6210 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7414 | 6210 | 72 | 72 | 0.97% | 1.16% |  |
| C | 7414 | 6210 | 261 | 261 | 3.52% | 4.20% |  |
| D | 7414 | 6210 | 333 | 333 | 4.49% | 5.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 122428 | 734.7 | 672 | 657 | 165.7 |
| A | 3 | 128 | 32911 | 194.6 | 672 | 657 | 165.7 |
| A | 3 | 14 | 18779 | 109.34 | 672 | 657 | 165.7 |
| B | 5 | 185 | 215143 | 1512.99 | 663 | 639 | 141.8 |
| B | 5 | 172 | 130897 | 918.77 | 663 | 639 | 141.8 |
| B | 0 | 63 | 58398 | 407.4 | 663 | 639 | 141.8 |
| C | 15 | 224 | 1225411 | 7088.79 | 632 | 623 | 172.8 |
| C | 2 | 12 | 267979 | 1547.4 | 632 | 623 | 172.8 |
| C | 6 | 223 | 98814 | 568.31 | 632 | 623 | 172.8 |
| D | 2 | 153 | 1138880 | 6352.04 | 630 | 599 | 179.2 |
| D | 12 | 110 | 849462 | 4736.98 | 630 | 599 | 179.2 |
| D | 3 | 12 | 193589 | 1076.96 | 630 | 599 | 179.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

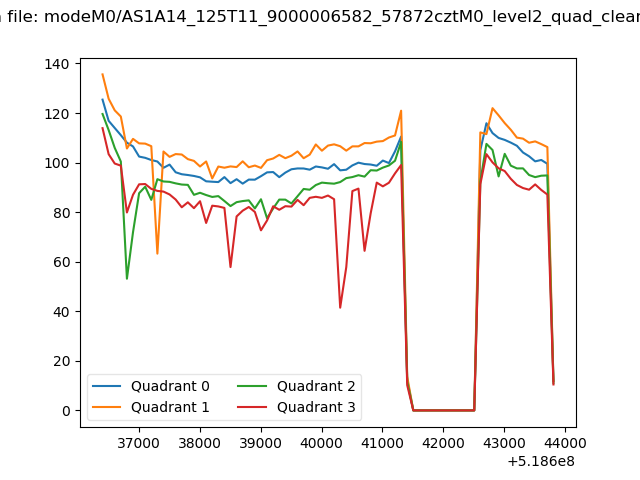

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

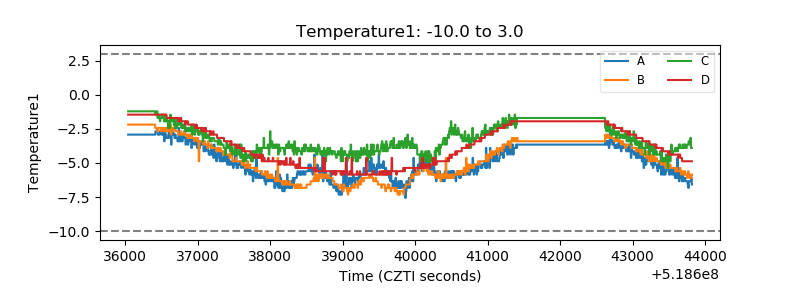

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

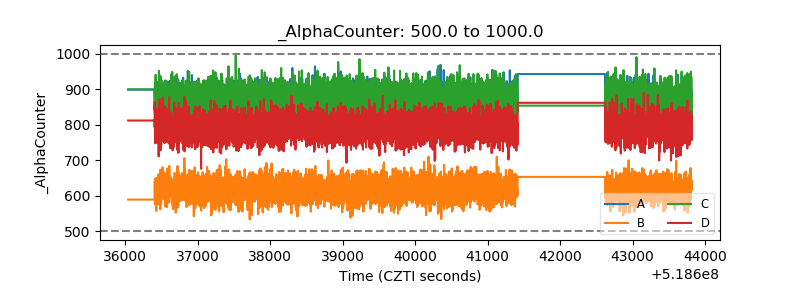

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

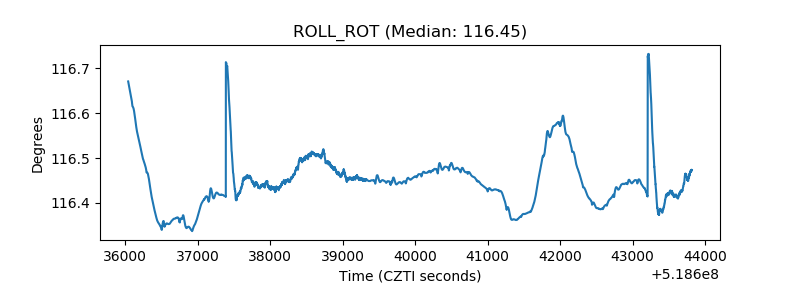

| _ROLL_ROT |  |

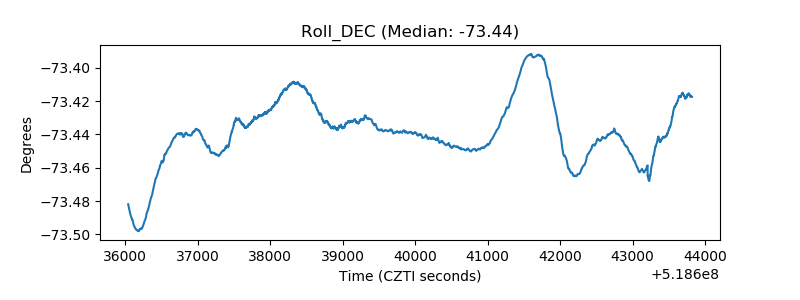

| _Roll_DEC |  |
| _Roll_RA |  |

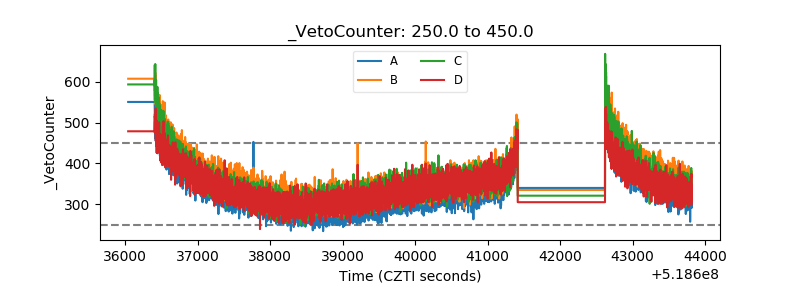

| Veto Counter |  |
