| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57873cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57873cztM0_level2_quad_clean.evt |
| Size (bytes) | 381,614,400 | 96,272,640 |
| Size | 363.9 MB | 91.8 MB |
| Events in quadrant A | 2,764,186 | 639,315 |
| Events in quadrant B | 3,108,609 | 679,143 |
| Events in quadrant C | 3,662,609 | 591,070 |
| Events in quadrant D | 4,097,829 | 563,488 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12893 | 2 |
| B | 0 | 13784 | 2 |
| C | 0 | 15394 | 2 |
| D | 0 | 16415 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 34 | 0.536701% |
| B | 6334 | 103 | 1.626145% |
| C | 6334 | 158 | 2.494474% |
| D | 6334 | 66 | 1.041996% |

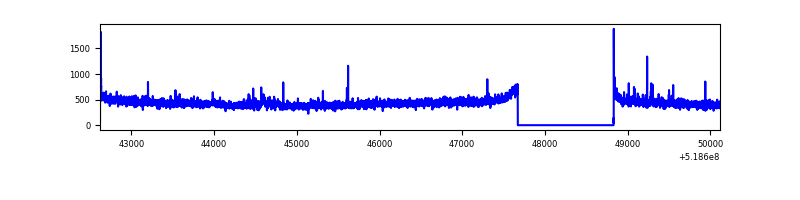

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7494 | 6335 | 26 | 26 | 0.35% | 0.41% |  |
| C | 7494 | 6335 | 130 | 130 | 1.73% | 2.05% |  |
| D | 7494 | 6335 | 59 | 59 | 0.79% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 66249 | 388.23 | 689 | 671 | 168.9 |
| A | 3 | 245 | 11361 | 63.29 | 689 | 671 | 168.9 |
| A | 3 | 128 | 9083 | 49.8 | 689 | 671 | 168.9 |
| B | 5 | 172 | 103768 | 711.41 | 681 | 655 | 144.9 |
| B | 7 | 252 | 47493 | 323.15 | 681 | 655 | 144.9 |
| B | 0 | 63 | 46637 | 317.24 | 681 | 655 | 144.9 |
| C | 15 | 224 | 722596 | 4039.01 | 653 | 646 | 178.7 |
| C | 6 | 223 | 117220 | 652.18 | 653 | 646 | 178.7 |
| C | 12 | 252 | 76002 | 421.59 | 653 | 646 | 178.7 |
| D | 12 | 110 | 694578 | 3777.85 | 653 | 623 | 183.7 |
| D | 2 | 153 | 478351 | 2600.72 | 653 | 623 | 183.7 |
| D | 3 | 12 | 127574 | 691.11 | 653 | 623 | 183.7 |

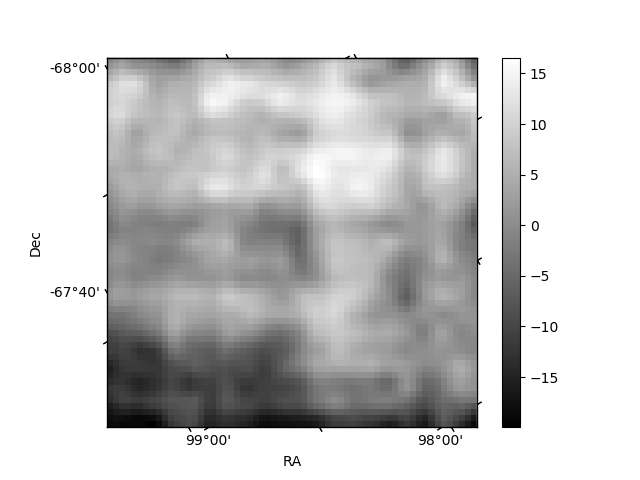

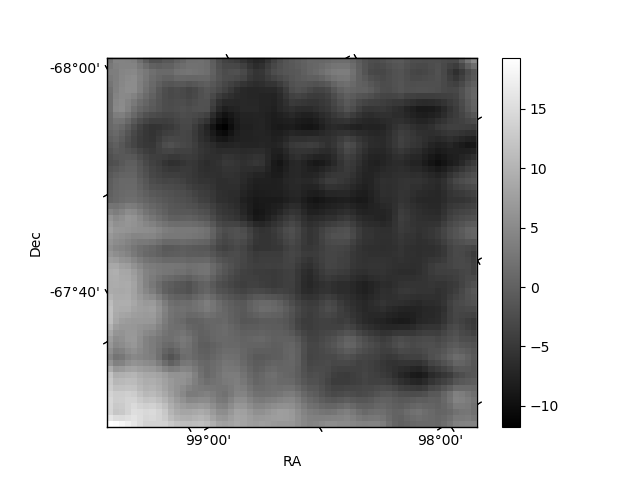

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

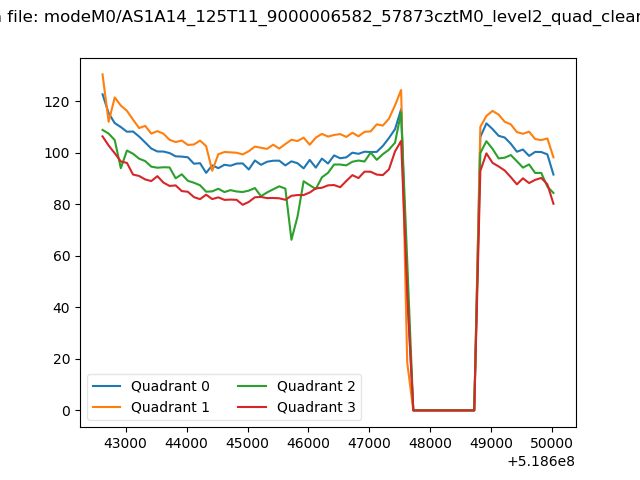

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

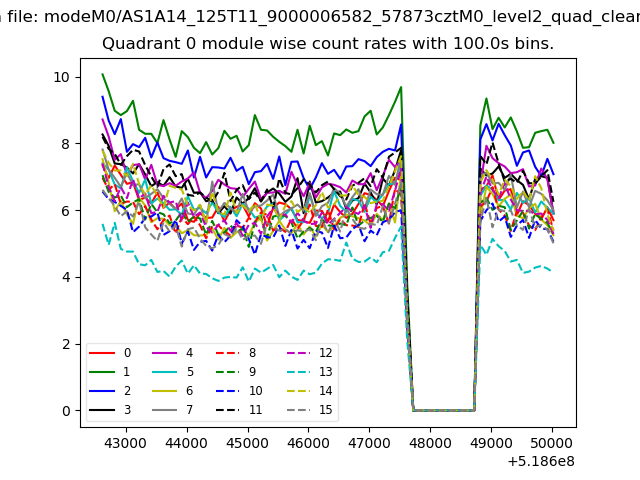

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

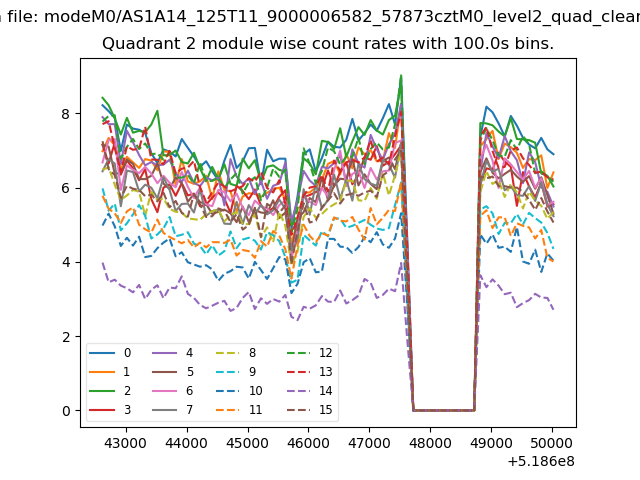

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

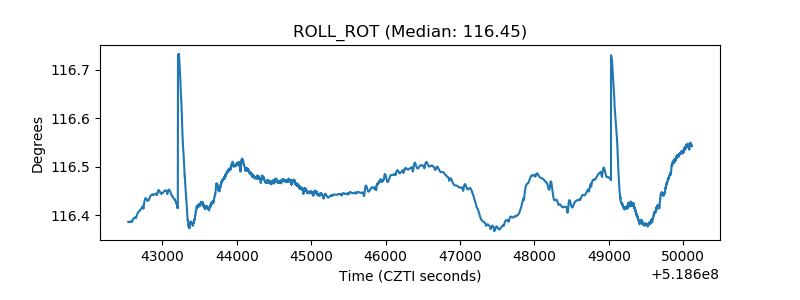

| _ROLL_ROT |  |

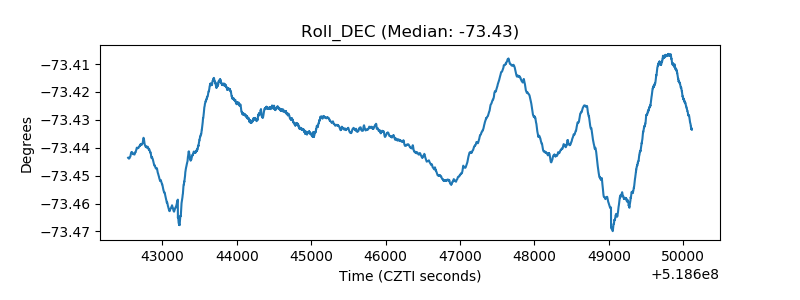

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
