| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57874cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57874cztM0_level2_quad_clean.evt |
| Size (bytes) | 377,815,680 | 86,201,280 |
| Size | 360.3 MB | 82.2 MB |
| Events in quadrant A | 2,817,646 | 553,917 |
| Events in quadrant B | 3,117,275 | 605,891 |
| Events in quadrant C | 3,872,424 | 518,559 |
| Events in quadrant D | 3,673,702 | 479,593 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13347 | 2 |
| B | 0 | 13898 | 2 |
| C | 0 | 16118 | 3 |
| D | 0 | 15023 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6483 | 42 | 0.647848% |
| B | 6483 | 86 | 1.326546% |
| C | 6482 | 178 | 2.746066% |
| D | 6482 | 73 | 1.126196% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7865 | 6766 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7865 | 6766 | 12 | 12 | 0.15% | 0.18% |  |
| C | 7864 | 6765 | 125 | 125 | 1.59% | 1.85% |  |
| D | 7864 | 6765 | 38 | 38 | 0.48% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 45226 | 259.31 | 697 | 680 | 171.8 |
| A | 7 | 64 | 37851 | 216.38 | 697 | 680 | 171.8 |
| A | 3 | 245 | 32271 | 183.89 | 697 | 680 | 171.8 |
| B | 5 | 172 | 150596 | 1020.72 | 690 | 664 | 146.9 |
| B | 0 | 63 | 40413 | 270.61 | 690 | 664 | 146.9 |
| B | 2 | 249 | 31022 | 206.67 | 690 | 664 | 146.9 |
| C | 15 | 224 | 494494 | 2724.55 | 667 | 659 | 181.3 |
| C | 6 | 13 | 200631 | 1103.27 | 667 | 659 | 181.3 |
| C | 12 | 2 | 197175 | 1084.2 | 667 | 659 | 181.3 |
| D | 12 | 110 | 653302 | 3487.89 | 665 | 635 | 187.1 |
| D | 2 | 31 | 126119 | 670.59 | 665 | 635 | 187.1 |
| D | 3 | 12 | 108885 | 578.49 | 665 | 635 | 187.1 |

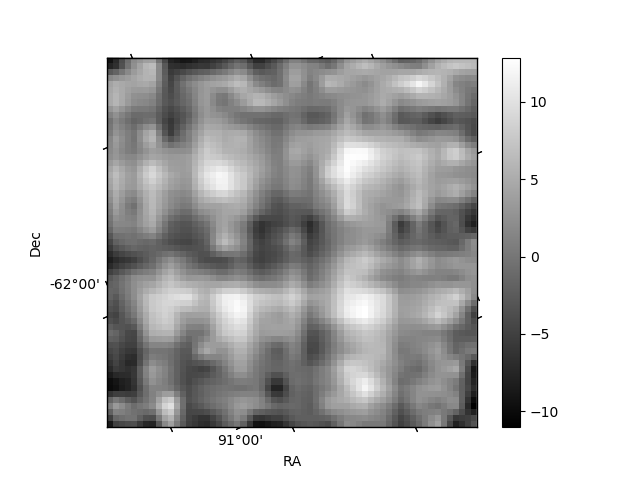

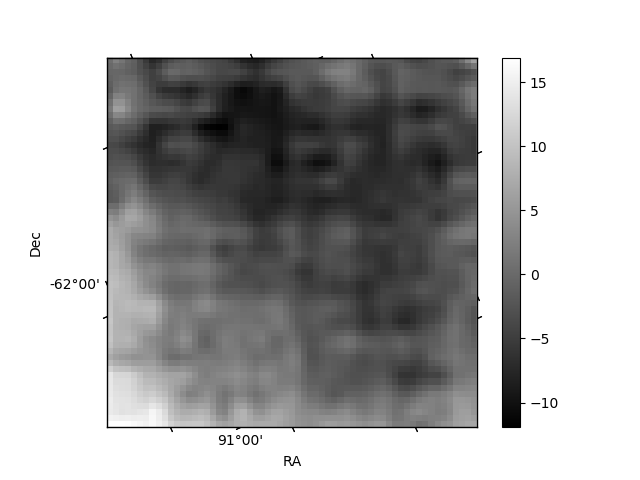

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

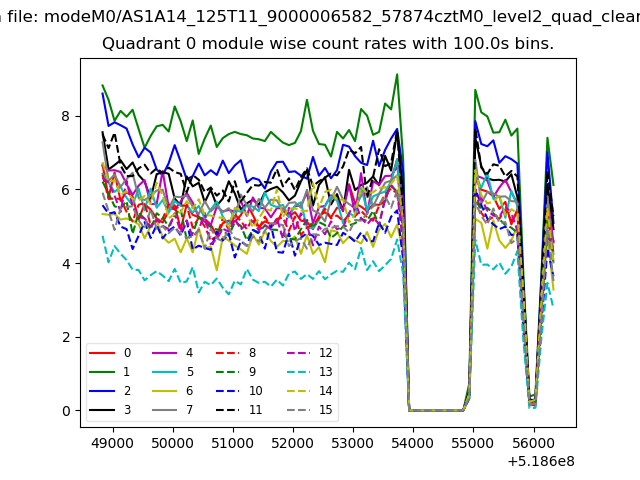

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

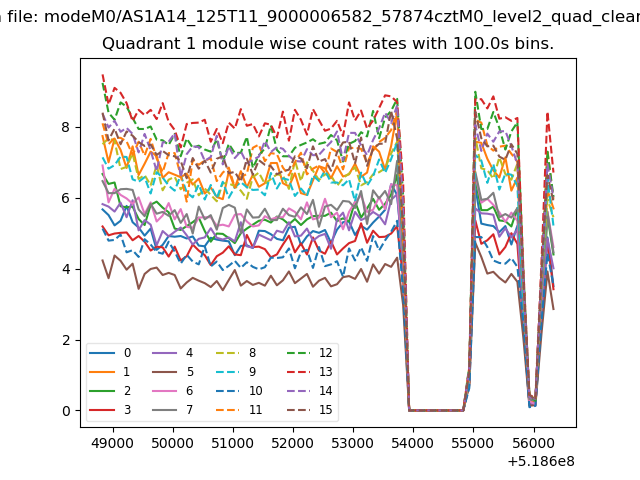

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

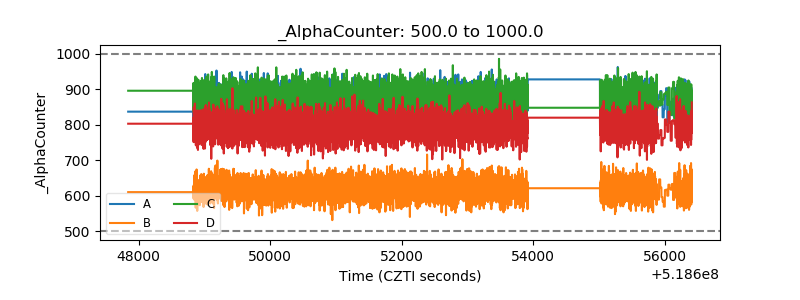

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

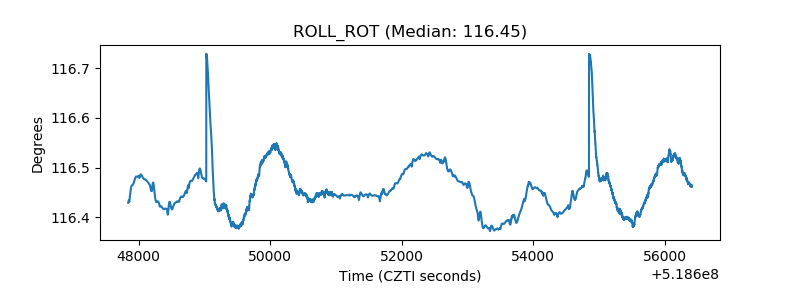

| _ROLL_ROT |  |
| _Roll_DEC |  |

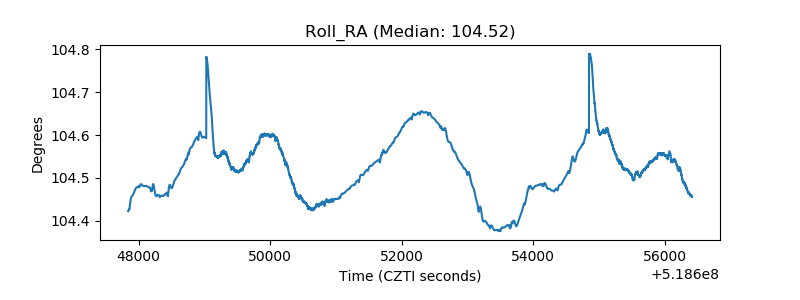

| _Roll_RA |  |
| Veto Counter |  |
