| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57875cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57875cztM0_level2_quad_clean.evt |
| Size (bytes) | 385,292,160 | 87,462,720 |
| Size | 367.4 MB | 83.4 MB |
| Events in quadrant A | 2,885,524 | 560,520 |
| Events in quadrant B | 3,058,469 | 610,765 |
| Events in quadrant C | 4,418,192 | 522,726 |
| Events in quadrant D | 3,377,998 | 486,756 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13769 | 2 |
| B | 0 | 14066 | 2 |
| C | 0 | 17897 | 2 |
| D | 0 | 14538 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6706 | 25 | 0.372800% |
| B | 6706 | 57 | 0.849985% |
| C | 6706 | 225 | 3.355204% |
| D | 6706 | 48 | 0.715777% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

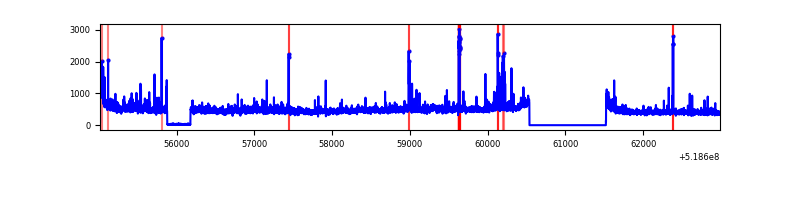

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7973 | 6989 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7973 | 6989 | 9 | 9 | 0.11% | 0.13% |  |
| C | 7973 | 6989 | 195 | 195 | 2.45% | 2.79% |  |
| D | 7973 | 6989 | 32 | 32 | 0.40% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 62640 | 354.81 | 710 | 692 | 174.6 |
| A | 3 | 14 | 44745 | 252.32 | 710 | 692 | 174.6 |
| A | 3 | 245 | 24632 | 137.12 | 710 | 692 | 174.6 |
| B | 5 | 172 | 66859 | 440.41 | 706 | 680 | 150.3 |
| B | 0 | 153 | 36286 | 236.95 | 706 | 680 | 150.3 |
| B | 10 | 247 | 30368 | 197.57 | 706 | 680 | 150.3 |
| C | 15 | 224 | 850102 | 4568.98 | 682 | 676 | 185.9 |
| C | 12 | 2 | 296278 | 1590.02 | 682 | 676 | 185.9 |
| C | 6 | 13 | 288083 | 1545.94 | 682 | 676 | 185.9 |
| D | 12 | 110 | 366105 | 1879.28 | 684 | 651 | 194.5 |
| D | 12 | 248 | 85979 | 438.78 | 684 | 651 | 194.5 |
| D | 3 | 12 | 81897 | 417.79 | 684 | 651 | 194.5 |

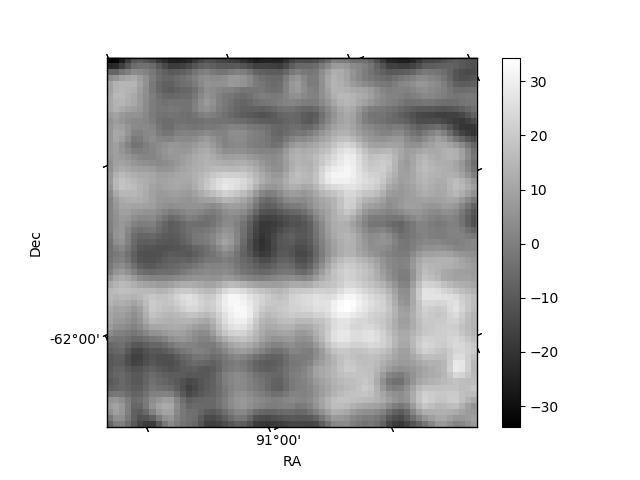

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

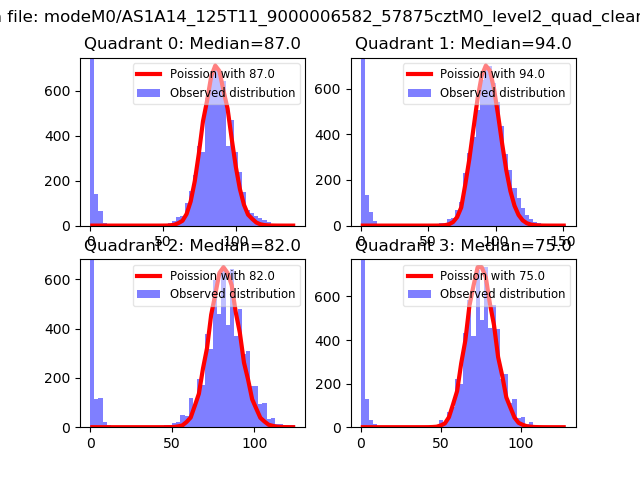

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

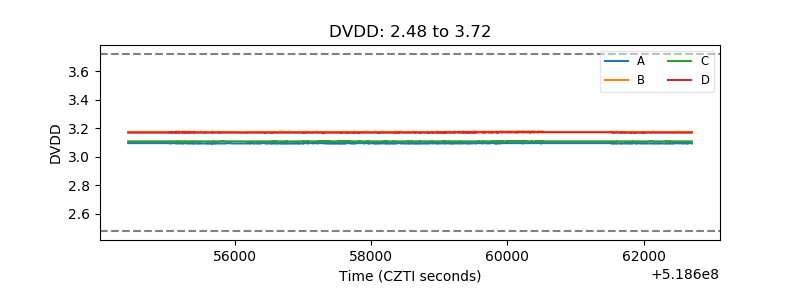

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

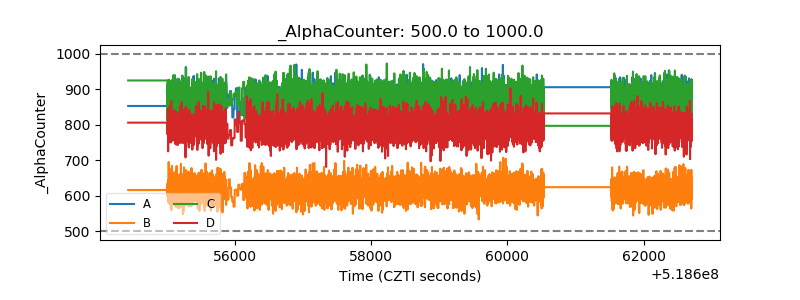

| Alpha Counter |  |
| _CPM_Rate |  |

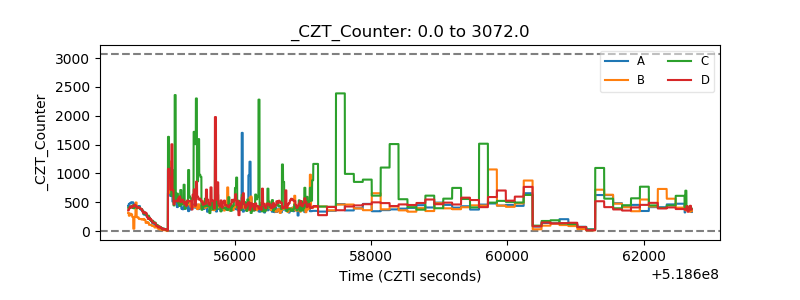

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

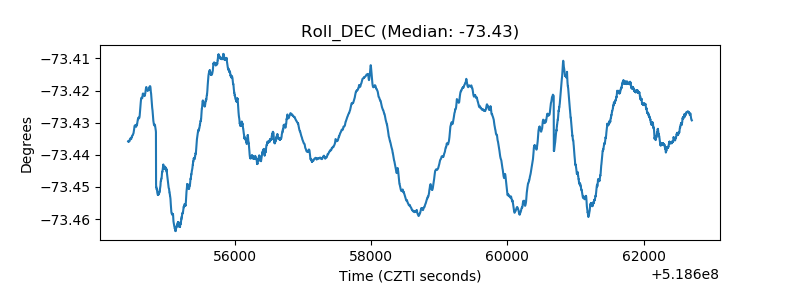

| _Roll_DEC |  |

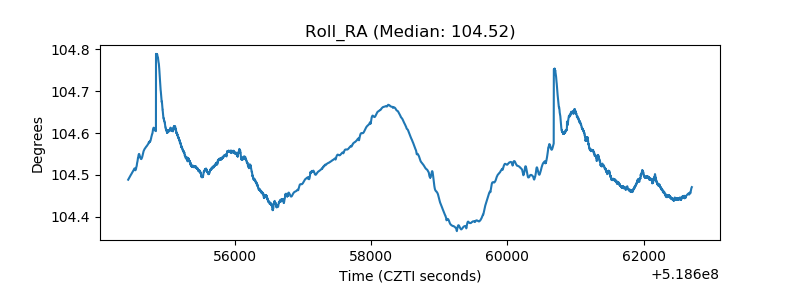

| _Roll_RA |  |
| Veto Counter |  |
