| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57876cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57876cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,044,160 | 108,722,880 |
| Size | 406.3 MB | 103.7 MB |
| Events in quadrant A | 3,361,458 | 715,884 |
| Events in quadrant B | 3,585,097 | 754,034 |
| Events in quadrant C | 4,182,494 | 665,929 |
| Events in quadrant D | 4,055,925 | 632,749 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15528 | 2 |
| B | 0 | 16299 | 2 |
| C | 0 | 17823 | 2 |
| D | 0 | 17315 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7528 | 77 | 1.022848% |
| B | 7528 | 213 | 2.829437% |
| C | 7528 | 178 | 2.364506% |
| D | 7528 | 116 | 1.540914% |

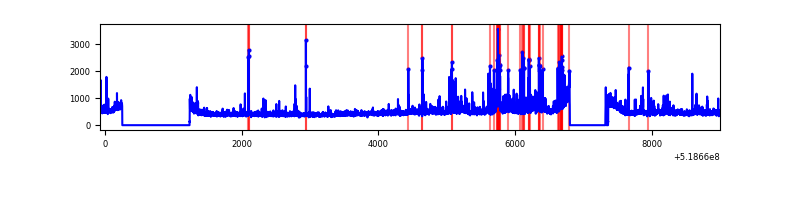

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9058 | 7531 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9058 | 7531 | 32 | 32 | 0.35% | 0.42% |  |
| C | 9058 | 7531 | 64 | 64 | 0.71% | 0.85% |  |
| D | 9058 | 7531 | 57 | 57 | 0.63% | 0.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 191837 | 967.44 | 810 | 792 | 197.5 |
| A | 4 | 3 | 15286 | 73.4 | 810 | 792 | 197.5 |
| A | 3 | 31 | 10378 | 48.54 | 810 | 792 | 197.5 |
| B | 5 | 185 | 96335 | 560.47 | 798 | 766 | 170.5 |
| B | 7 | 252 | 88808 | 516.33 | 798 | 766 | 170.5 |
| B | 10 | 16 | 34492 | 197.79 | 798 | 766 | 170.5 |
| C | 15 | 224 | 742286 | 3508.39 | 783 | 774 | 211.4 |
| C | 12 | 2 | 145567 | 685.07 | 783 | 774 | 211.4 |
| C | 6 | 13 | 65269 | 305.15 | 783 | 774 | 211.4 |
| D | 12 | 110 | 328171 | 1504.87 | 782 | 748 | 217.6 |
| D | 3 | 12 | 162798 | 744.8 | 782 | 748 | 217.6 |
| D | 8 | 240 | 139926 | 639.68 | 782 | 748 | 217.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

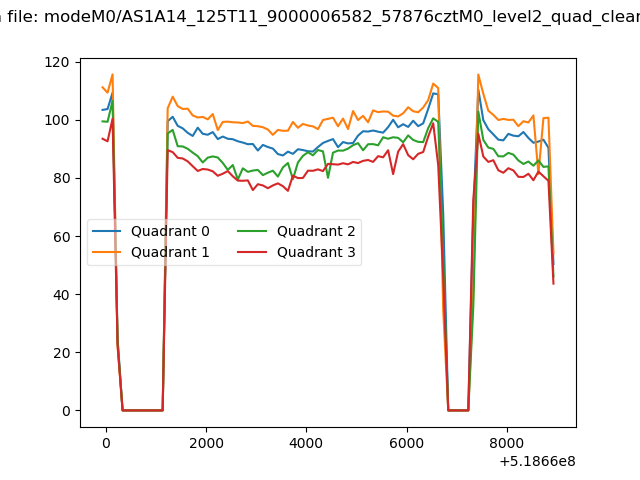

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

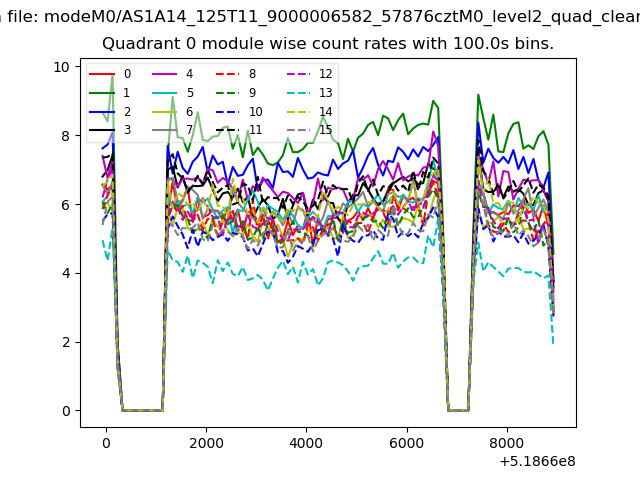

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

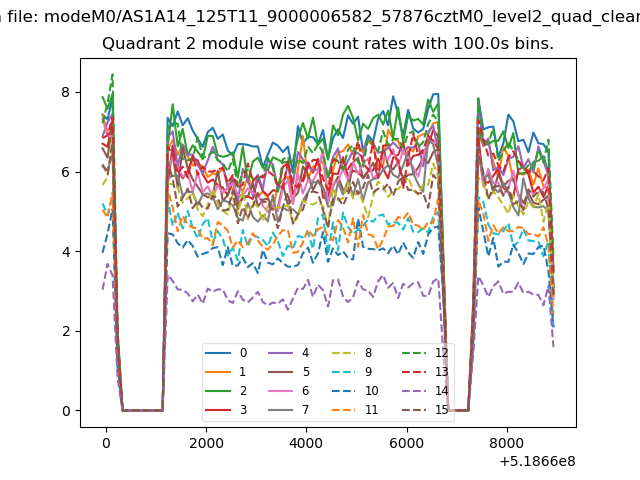

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

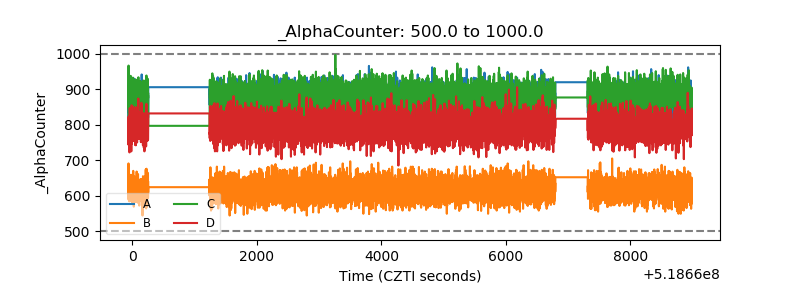

| Alpha Counter |  |
| _CPM_Rate |  |

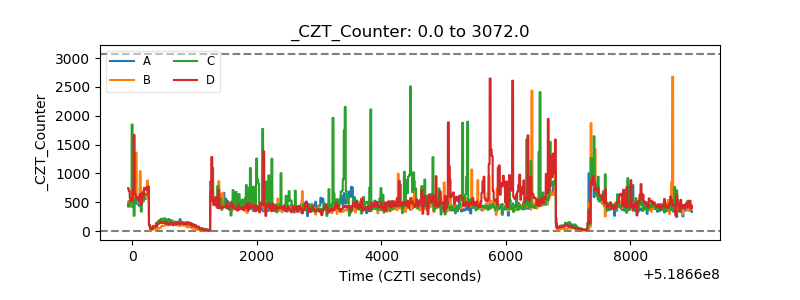

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

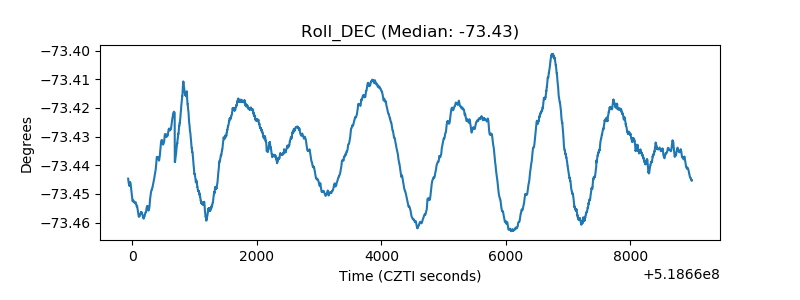

| _Roll_DEC |  |

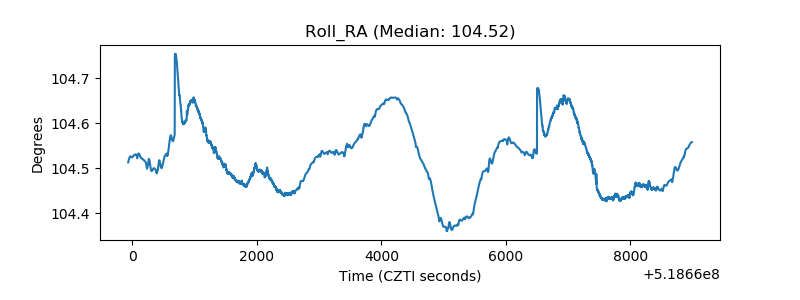

| _Roll_RA |  |
| Veto Counter |  |
