| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57877cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57877cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,613,760 | 112,832,640 |
| Size | 442.1 MB | 107.6 MB |
| Events in quadrant A | 3,367,526 | 750,233 |
| Events in quadrant B | 3,808,709 | 792,492 |
| Events in quadrant C | 5,488,577 | 656,154 |
| Events in quadrant D | 3,878,990 | 666,063 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16344 | 1 |
| B | 0 | 17246 | 1 |
| C | 0 | 22066 | 1 |
| D | 0 | 17294 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7935 | 76 | 0.957782% |
| B | 7936 | 250 | 3.150202% |
| C | 7936 | 728 | 9.173387% |
| D | 7936 | 105 | 1.323085% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

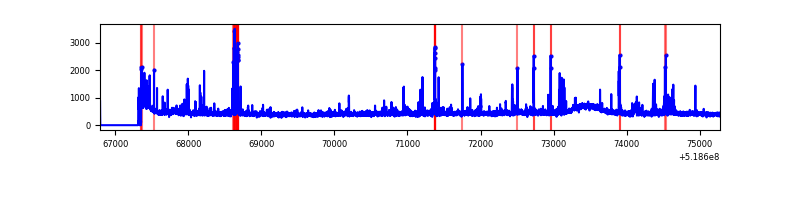

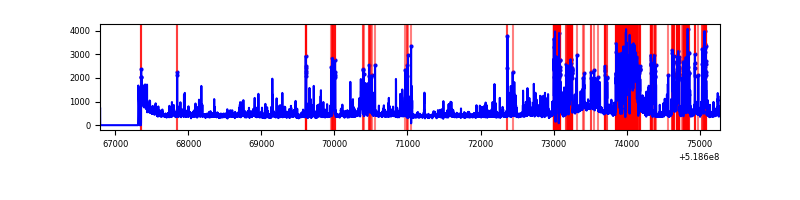

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8480 | 7937 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8481 | 7938 | 39 | 39 | 0.46% | 0.49% |  |
| C | 8481 | 7938 | 457 | 457 | 5.39% | 5.76% |  |
| D | 8481 | 7938 | 52 | 52 | 0.61% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 25142 | 114.7 | 861 | 838 | 211.9 |
| A | 3 | 137 | 10670 | 46.4 | 861 | 838 | 211.9 |
| A | 13 | 254 | 8274 | 35.09 | 861 | 838 | 211.9 |
| B | 7 | 252 | 122008 | 669.22 | 849 | 816 | 181.1 |
| B | 5 | 185 | 93676 | 512.77 | 849 | 816 | 181.1 |
| B | 10 | 247 | 52731 | 286.67 | 849 | 816 | 181.1 |
| C | 15 | 224 | 1471929 | 6834.73 | 800 | 790 | 215.2 |
| C | 6 | 223 | 244004 | 1129.94 | 800 | 790 | 215.2 |
| C | 12 | 252 | 214257 | 991.74 | 800 | 790 | 215.2 |
| D | 3 | 12 | 224528 | 976.77 | 830 | 792 | 229.1 |
| D | 12 | 110 | 145124 | 630.11 | 830 | 792 | 229.1 |
| D | 2 | 31 | 91351 | 395.35 | 830 | 792 | 229.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

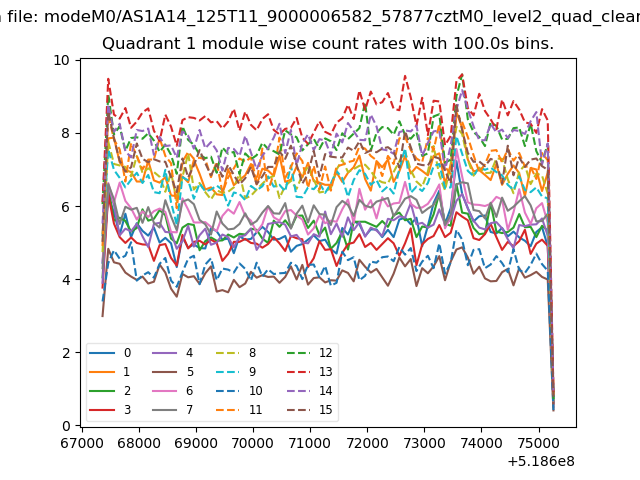

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

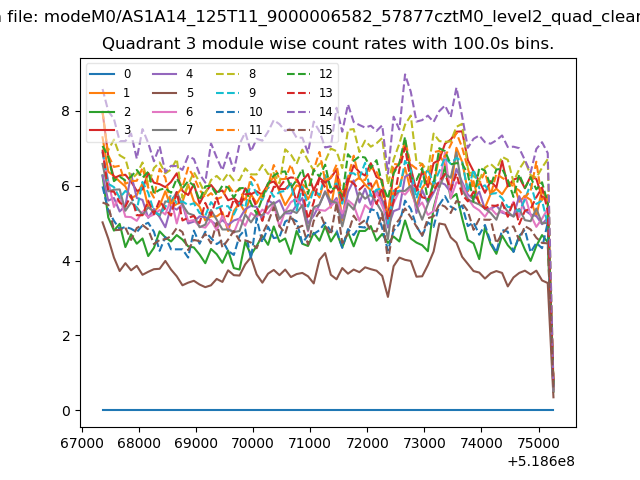

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

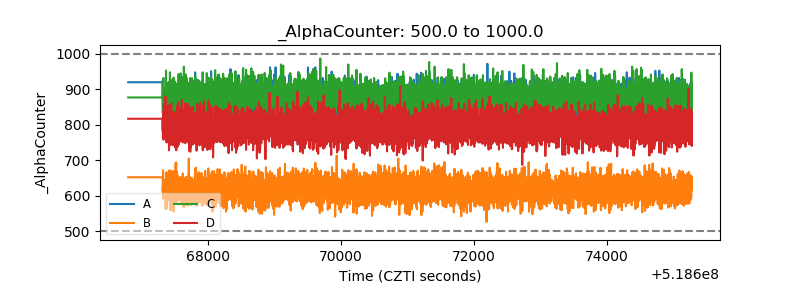

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

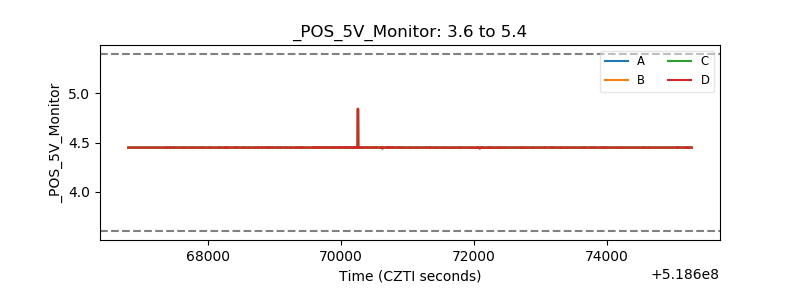

| +5 Volts monitor |  |

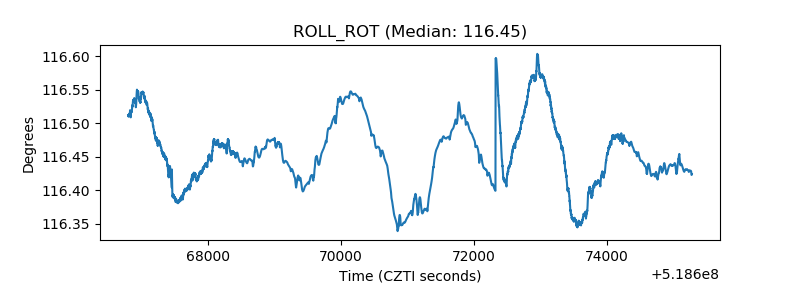

| _ROLL_ROT |  |
| _Roll_DEC |  |

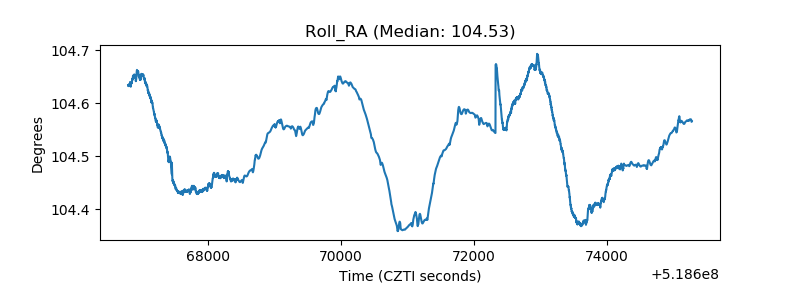

| _Roll_RA |  |
| Veto Counter |  |
