| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57878cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57878cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,613,760 | 107,144,640 |
| Size | 467.9 MB | 102.2 MB |
| Events in quadrant A | 3,150,889 | 721,349 |
| Events in quadrant B | 3,564,782 | 769,486 |
| Events in quadrant C | 7,534,535 | 576,943 |
| Events in quadrant D | 3,314,235 | 642,983 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15408 | 0 |
| B | 0 | 16209 | 0 |
| C | 0 | 27587 | 0 |
| D | 0 | 15740 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7668 | 7 | 0.091288% |
| B | 7668 | 58 | 0.756390% |
| C | 7669 | 1276 | 16.638414% |
| D | 7669 | 15 | 0.195593% |

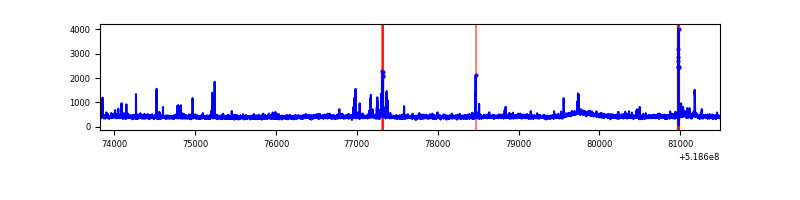

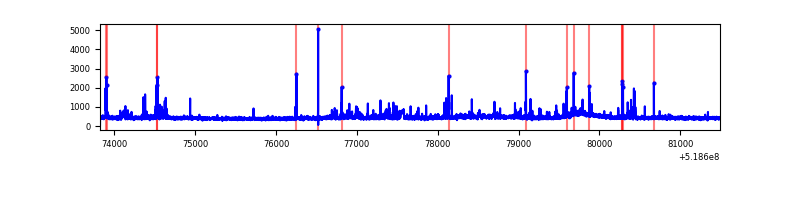

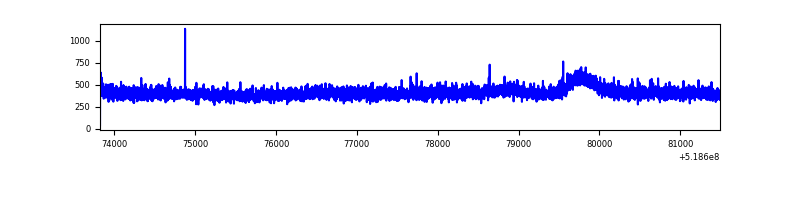

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 7668 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7668 | 7668 | 16 | 16 | 0.21% | 0.21% |  |
| C | 7669 | 7669 | 988 | 988 | 12.88% | 12.88% |  |
| D | 7669 | 7669 | 13 | 13 | 0.17% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 19286 | 91.87 | 809 | 787 | 201.4 |
| A | 4 | 3 | 12040 | 55.88 | 809 | 787 | 201.4 |
| A | 3 | 137 | 9916 | 45.34 | 809 | 787 | 201.4 |
| B | 7 | 252 | 95719 | 555.23 | 801 | 770 | 171.0 |
| B | 7 | 0 | 79058 | 457.8 | 801 | 770 | 171.0 |
| B | 5 | 185 | 58035 | 334.87 | 801 | 770 | 171.0 |
| C | 15 | 224 | 2789588 | 14208.99 | 722 | 714 | 196.3 |
| C | 12 | 2 | 1134991 | 5779.01 | 722 | 714 | 196.3 |
| C | 2 | 12 | 401775 | 2043.36 | 722 | 714 | 196.3 |
| D | 2 | 31 | 59734 | 269.53 | 783 | 747 | 218.9 |
| D | 5 | 173 | 58535 | 264.05 | 783 | 747 | 218.9 |
| D | 3 | 12 | 53267 | 239.98 | 783 | 747 | 218.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

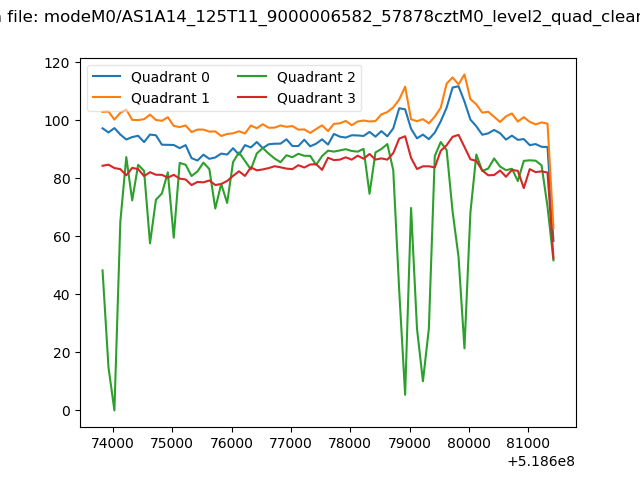

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

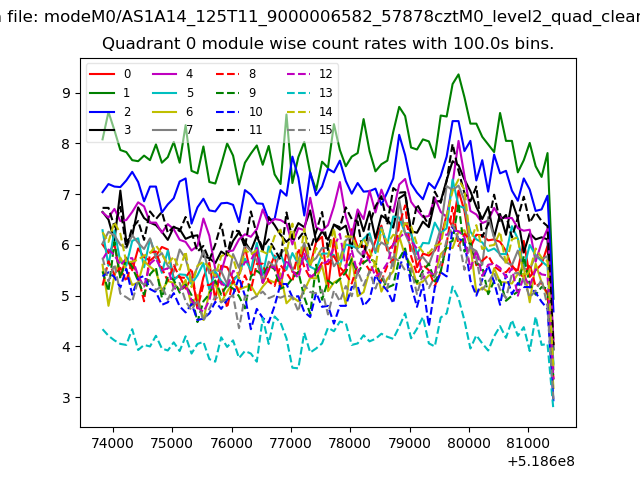

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

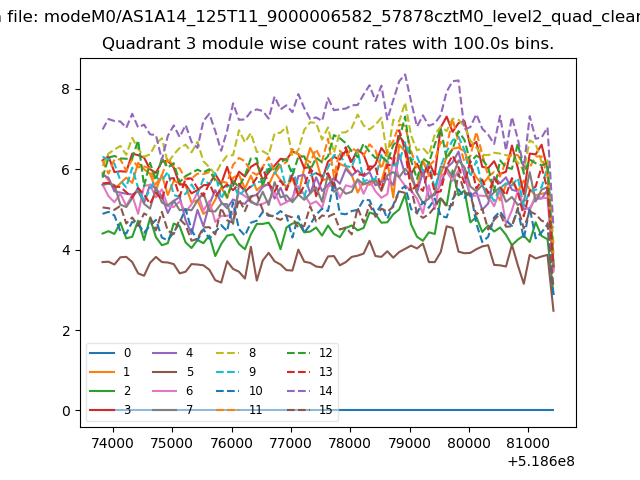

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

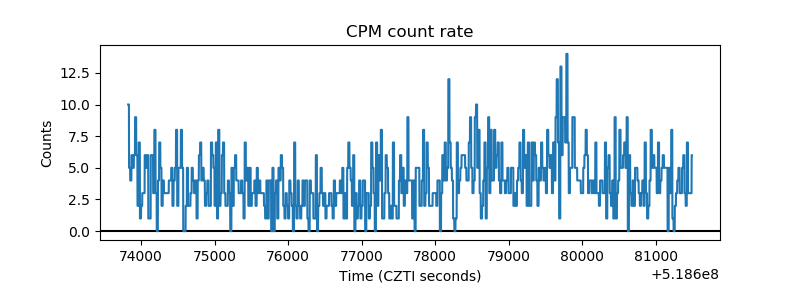

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

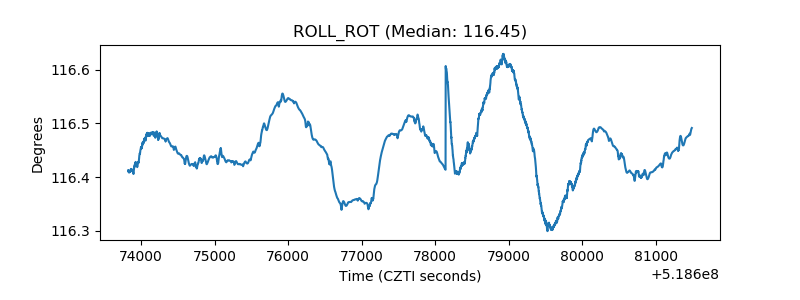

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
