| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57882cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57882cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,463,725,440 | 356,022,720 |
| Size | 1.4 GB | 339.5 MB |
| Events in quadrant A | 10,811,393 | 2,333,885 |
| Events in quadrant B | 11,721,153 | 2,475,768 |
| Events in quadrant C | 17,127,255 | 2,152,157 |
| Events in quadrant D | 12,592,829 | 2,103,944 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 504 | 0 |
| B | 0 | 504 | 0 |
| C | 0 | 504 | 0 |
| D | 0 | 504 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51311 | 3 |
| B | 0 | 52966 | 3 |
| C | 0 | 68564 | 3 |
| D | 0 | 54755 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24909 | 359 | 1.441246% |
| B | 24909 | 585 | 2.348549% |
| C | 24909 | 1409 | 5.656590% |
| D | 24909 | 404 | 1.621904% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

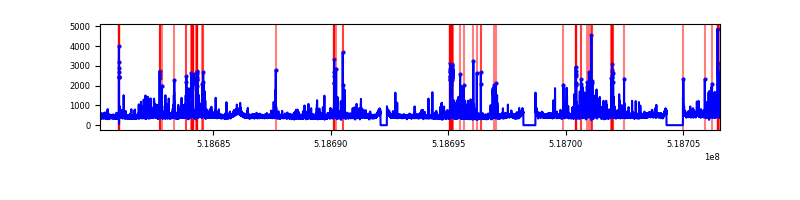

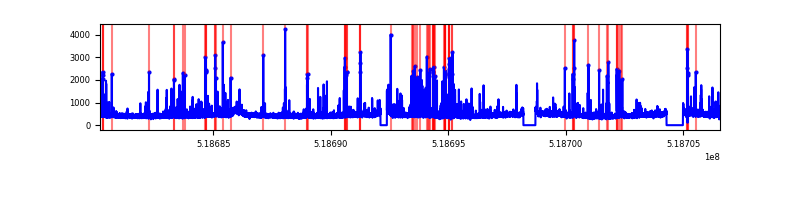

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26399 | 24912 | 15 | 15 | 0.06% | 0.06% |  |
| B | 26399 | 24912 | 83 | 83 | 0.31% | 0.33% |  |
| C | 26399 | 24911 | 897 | 897 | 3.40% | 3.60% |  |
| D | 26399 | 24912 | 154 | 154 | 0.58% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 222705 | 334.56 | 2677 | 2610 | 657.9 |
| A | 3 | 245 | 133928 | 199.61 | 2677 | 2610 | 657.9 |
| A | 3 | 137 | 33454 | 46.89 | 2677 | 2610 | 657.9 |
| B | 7 | 252 | 235875 | 414.36 | 2635 | 2532 | 563.1 |
| B | 0 | 213 | 187110 | 327.76 | 2635 | 2532 | 563.1 |
| B | 10 | 247 | 156361 | 273.16 | 2635 | 2532 | 563.1 |
| C | 15 | 224 | 5247218 | 7630.65 | 2540 | 2513 | 687.3 |
| C | 2 | 12 | 971438 | 1409.71 | 2540 | 2513 | 687.3 |
| C | 12 | 252 | 316326 | 456.57 | 2540 | 2513 | 687.3 |
| D | 8 | 240 | 420650 | 577.1 | 2590 | 2472 | 724.6 |
| D | 12 | 110 | 393523 | 539.66 | 2590 | 2472 | 724.6 |
| D | 2 | 249 | 368662 | 505.35 | 2590 | 2472 | 724.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

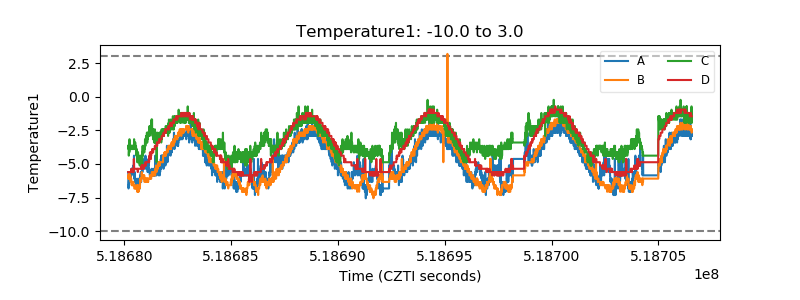

| Temperature 1 |  |
| Veto HV Monitor |  |

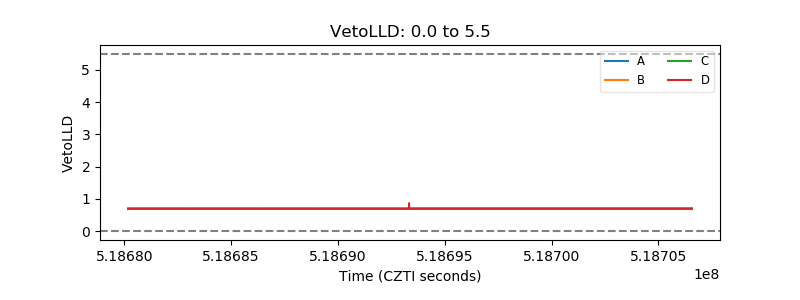

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

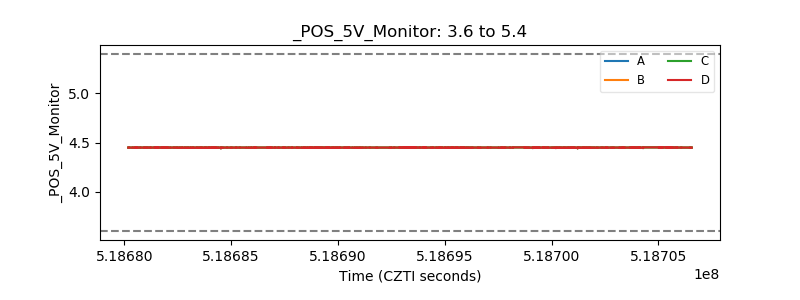

| +5 Volts monitor |  |

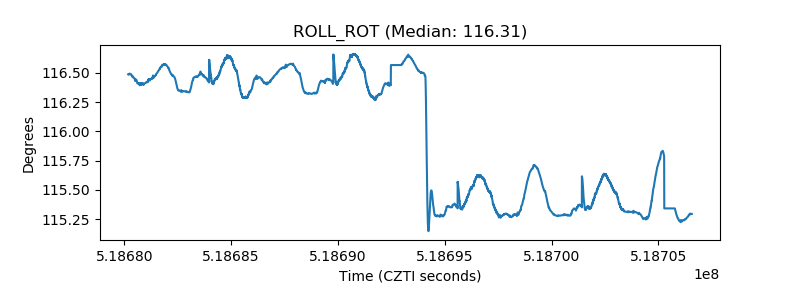

| _ROLL_ROT |  |
| _Roll_DEC |  |

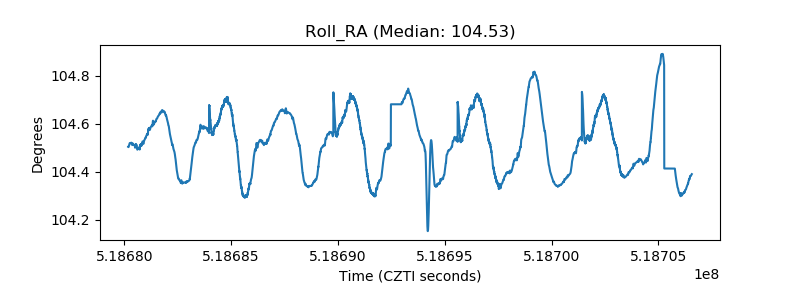

| _Roll_RA |  |

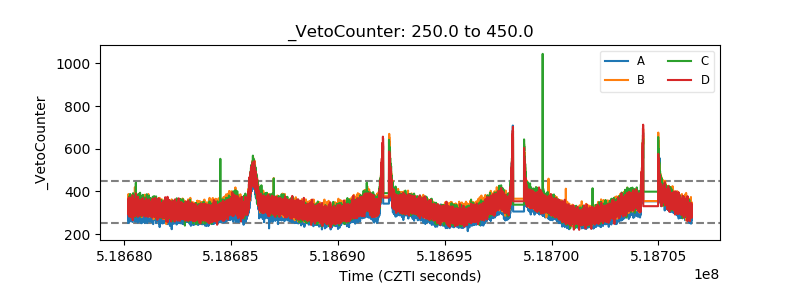

| Veto Counter |  |
