| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57883cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57883cztM0_level2_quad_clean.evt |
| Size (bytes) | 387,699,840 | 94,351,680 |
| Size | 369.7 MB | 90.0 MB |
| Events in quadrant A | 2,837,619 | 623,950 |
| Events in quadrant B | 3,451,092 | 645,258 |
| Events in quadrant C | 3,899,256 | 581,800 |
| Events in quadrant D | 3,662,652 | 557,150 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13238 | 1 |
| B | 0 | 14808 | 1 |
| C | 0 | 16252 | 1 |
| D | 0 | 15103 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6434 | 24 | 0.373018% |
| B | 6435 | 190 | 2.952603% |
| C | 6435 | 166 | 2.579643% |
| D | 6435 | 111 | 1.724942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

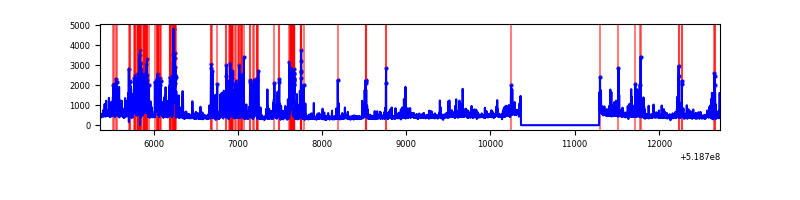

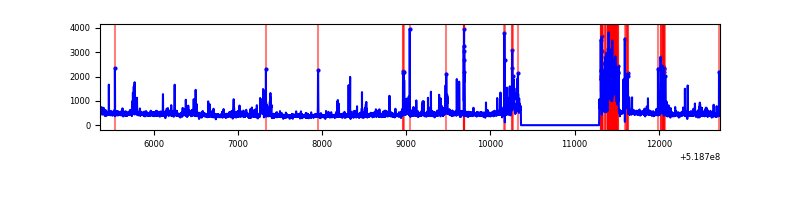

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7364 | 6435 | 13 | 13 | 0.18% | 0.20% |  |
| B | 7365 | 6436 | 101 | 101 | 1.37% | 1.57% |  |
| C | 7365 | 6435 | 160 | 160 | 2.17% | 2.49% |  |
| D | 7365 | 6436 | 70 | 70 | 0.95% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 84263 | 492.04 | 690 | 674 | 169.9 |
| A | 3 | 245 | 74209 | 432.86 | 690 | 674 | 169.9 |
| A | 3 | 137 | 8328 | 45.05 | 690 | 674 | 169.9 |
| B | 2 | 249 | 412390 | 2836.81 | 670 | 645 | 145.1 |
| B | 5 | 185 | 83562 | 571.28 | 670 | 645 | 145.1 |
| B | 0 | 63 | 72536 | 495.31 | 670 | 645 | 145.1 |
| C | 15 | 224 | 914158 | 5086.4 | 656 | 647 | 179.6 |
| C | 2 | 12 | 220295 | 1222.99 | 656 | 647 | 179.6 |
| C | 14 | 254 | 87488 | 483.53 | 656 | 647 | 179.6 |
| D | 8 | 240 | 444600 | 2381.15 | 661 | 632 | 186.5 |
| D | 12 | 110 | 181490 | 970.0 | 661 | 632 | 186.5 |
| D | 2 | 31 | 83412 | 443.98 | 661 | 632 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

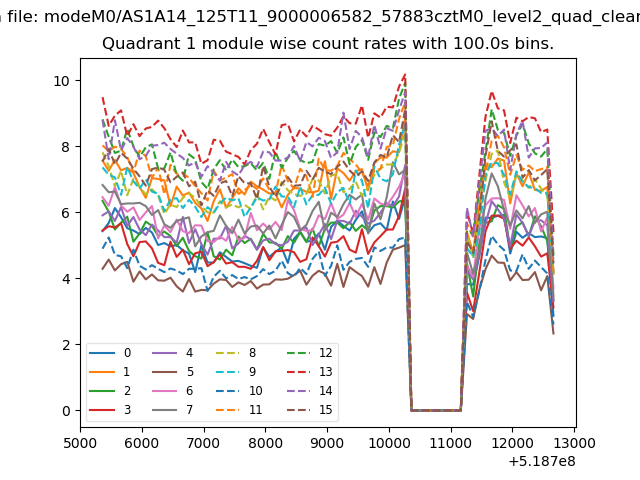

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

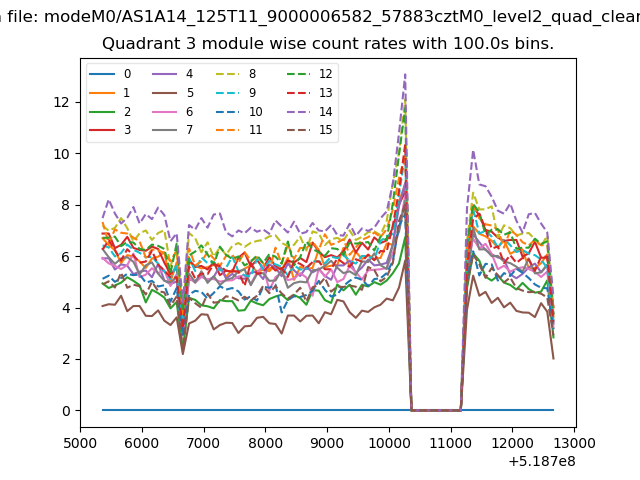

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

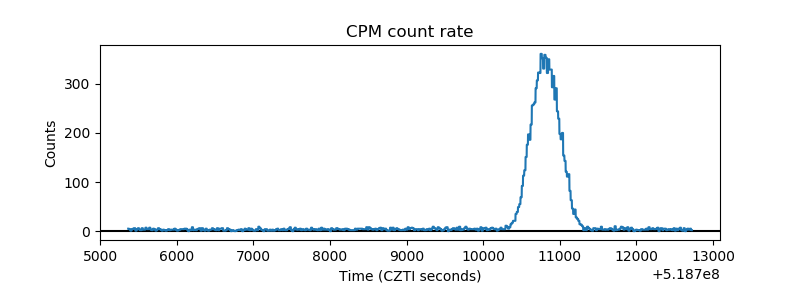

| _CPM_Rate |  |

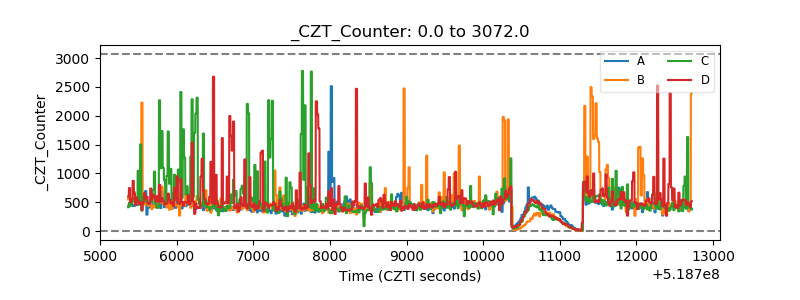

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

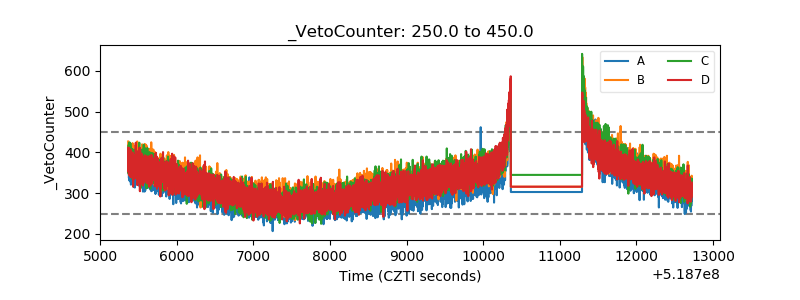

| Veto Counter |  |
