| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57885cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57885cztM0_level2_quad_clean.evt |
| Size (bytes) | 379,874,880 | 89,187,840 |
| Size | 362.3 MB | 85.1 MB |
| Events in quadrant A | 2,623,074 | 590,878 |
| Events in quadrant B | 3,993,169 | 601,861 |
| Events in quadrant C | 3,458,540 | 553,255 |
| Events in quadrant D | 3,513,280 | 529,922 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12486 | 1 |
| B | 0 | 16213 | 1 |
| C | 0 | 14710 | 1 |
| D | 0 | 14303 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6084 | 35 | 0.575279% |
| B | 6084 | 400 | 6.574622% |
| C | 6085 | 124 | 2.037798% |
| D | 6085 | 79 | 1.298274% |

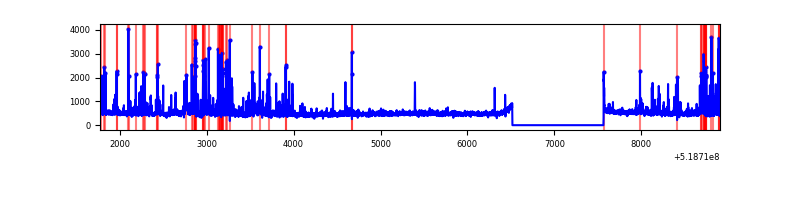

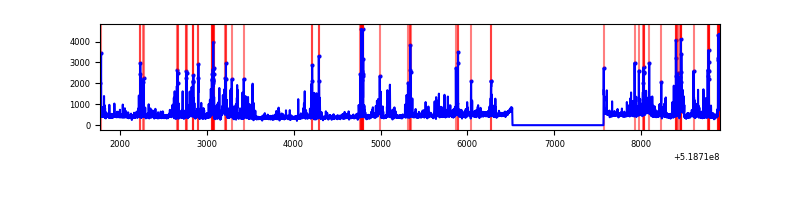

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7134 | 6085 | 10 | 10 | 0.14% | 0.16% |  |
| B | 7134 | 6085 | 214 | 214 | 3.00% | 3.52% |  |
| C | 7135 | 6086 | 102 | 102 | 1.43% | 1.68% |  |
| D | 7135 | 6086 | 72 | 72 | 1.01% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 69688 | 434.02 | 648 | 631 | 159.1 |
| A | 10 | 251 | 18678 | 113.42 | 648 | 631 | 159.1 |
| A | 7 | 64 | 13591 | 81.45 | 648 | 631 | 159.1 |
| B | 2 | 249 | 1198832 | 8942.36 | 625 | 602 | 134.0 |
| B | 5 | 185 | 96506 | 715.73 | 625 | 602 | 134.0 |
| B | 10 | 247 | 56568 | 417.67 | 625 | 602 | 134.0 |
| C | 15 | 224 | 542916 | 3216.21 | 616 | 609 | 168.6 |
| C | 2 | 12 | 237956 | 1407.61 | 616 | 609 | 168.6 |
| C | 14 | 254 | 119899 | 707.46 | 616 | 609 | 168.6 |
| D | 8 | 240 | 359264 | 2061.47 | 619 | 593 | 174.0 |
| D | 12 | 110 | 212953 | 1220.54 | 619 | 593 | 174.0 |
| D | 2 | 31 | 181817 | 1041.59 | 619 | 593 | 174.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

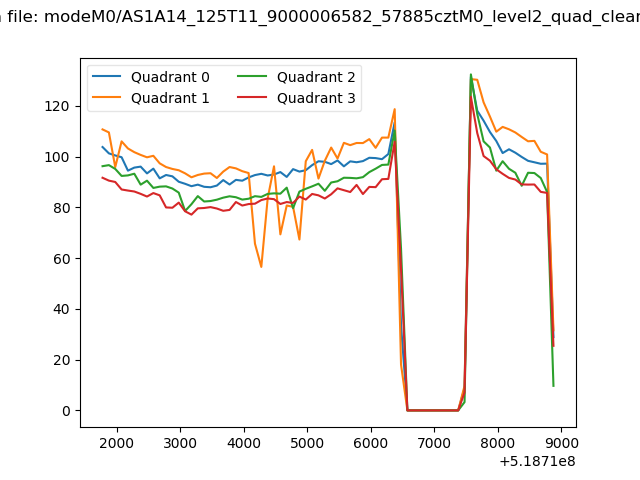

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

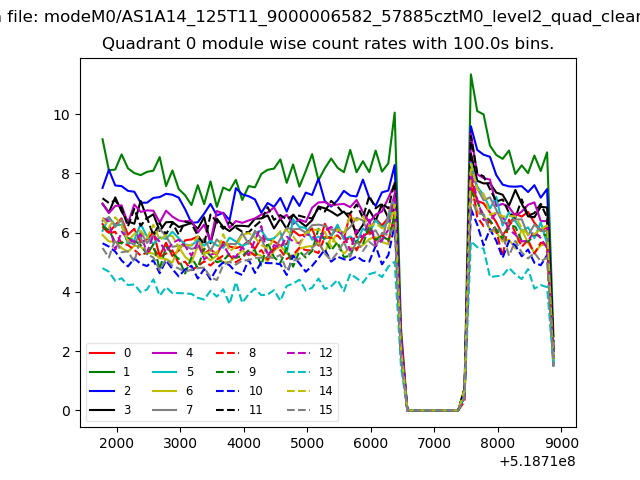

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

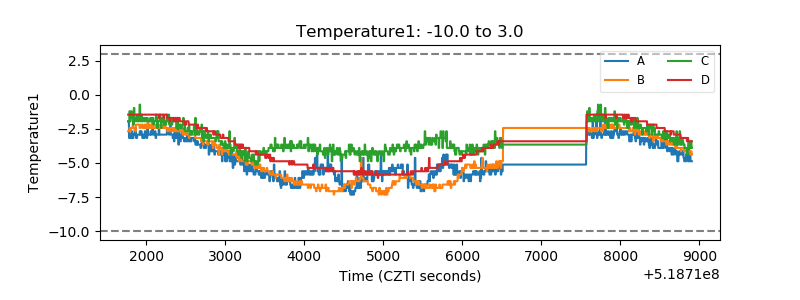

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

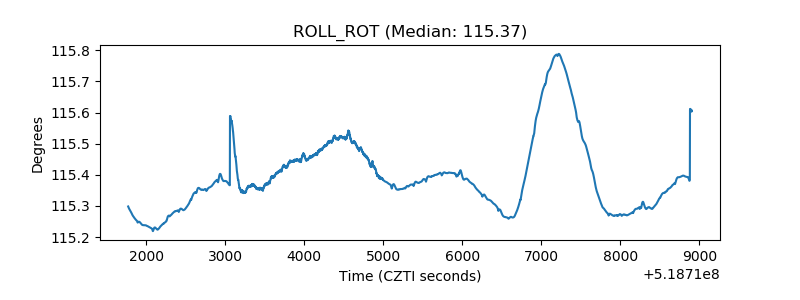

| _ROLL_ROT |  |
| _Roll_DEC |  |

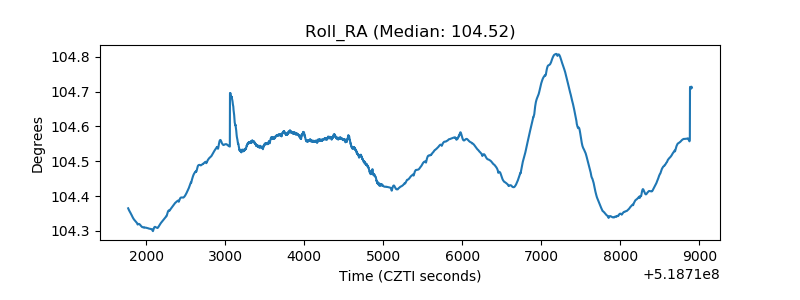

| _Roll_RA |  |

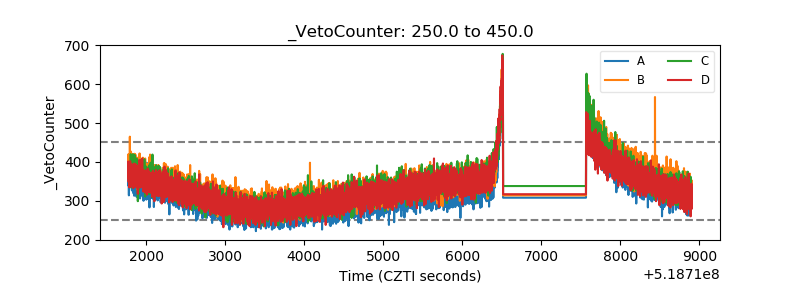

| Veto Counter |  |
