| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57886cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57886cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,104,000 | 95,987,520 |
| Size | 398.7 MB | 91.5 MB |
| Events in quadrant A | 2,877,111 | 647,115 |
| Events in quadrant B | 3,208,981 | 686,197 |
| Events in quadrant C | 5,294,896 | 557,029 |
| Events in quadrant D | 3,596,229 | 568,785 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13226 | 2 |
| B | 0 | 14137 | 2 |
| C | 0 | 20164 | 2 |
| D | 0 | 14946 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6421 | 18 | 0.280330% |
| B | 6421 | 65 | 1.012303% |
| C | 6421 | 670 | 10.434512% |
| D | 6420 | 122 | 1.900312% |

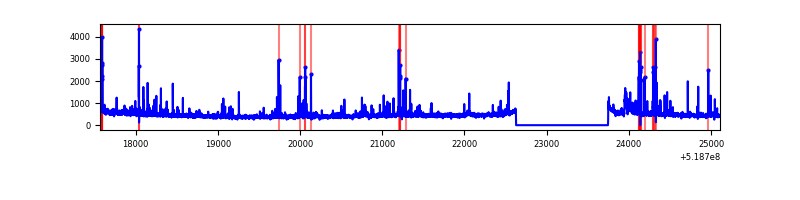

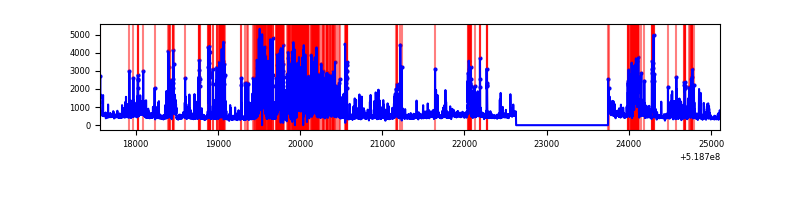

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7541 | 6422 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7541 | 6422 | 32 | 32 | 0.42% | 0.50% |  |
| C | 7541 | 6422 | 520 | 520 | 6.90% | 8.10% |  |
| D | 7540 | 6421 | 94 | 94 | 1.25% | 1.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 93121 | 539.87 | 697 | 680 | 171.2 |
| A | 8 | 9 | 53443 | 308.14 | 697 | 680 | 171.2 |
| A | 10 | 251 | 15016 | 83.72 | 697 | 680 | 171.2 |
| B | 10 | 247 | 78866 | 534.63 | 687 | 661 | 146.3 |
| B | 0 | 63 | 76180 | 516.27 | 687 | 661 | 146.3 |
| B | 7 | 252 | 65636 | 444.19 | 687 | 661 | 146.3 |
| C | 2 | 12 | 1510623 | 8699.86 | 636 | 631 | 173.6 |
| C | 15 | 224 | 1090697 | 6280.45 | 636 | 631 | 173.6 |
| C | 14 | 254 | 66753 | 380.96 | 636 | 631 | 173.6 |
| D | 8 | 240 | 456778 | 2426.75 | 661 | 631 | 188.0 |
| D | 12 | 110 | 198811 | 1054.34 | 661 | 631 | 188.0 |
| D | 2 | 62 | 73637 | 388.4 | 661 | 631 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

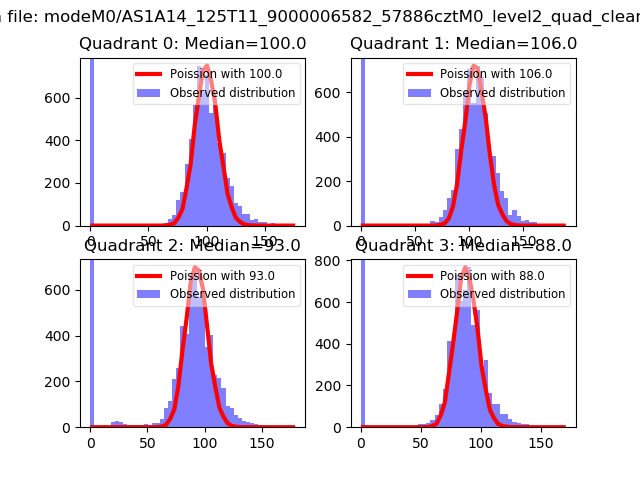

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

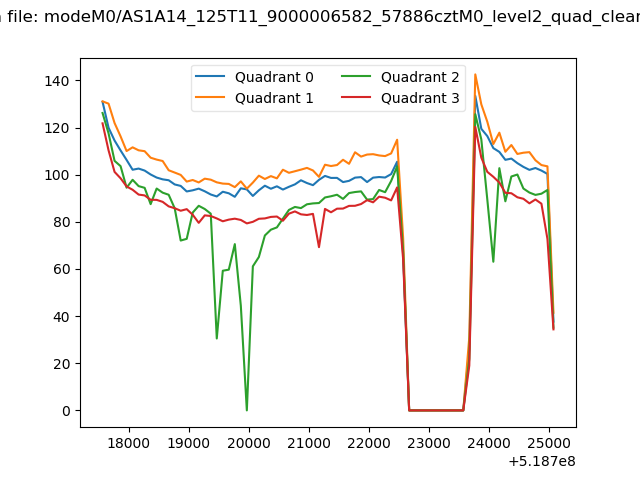

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

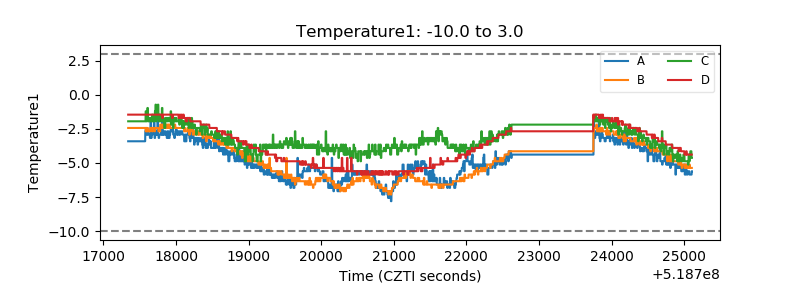

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

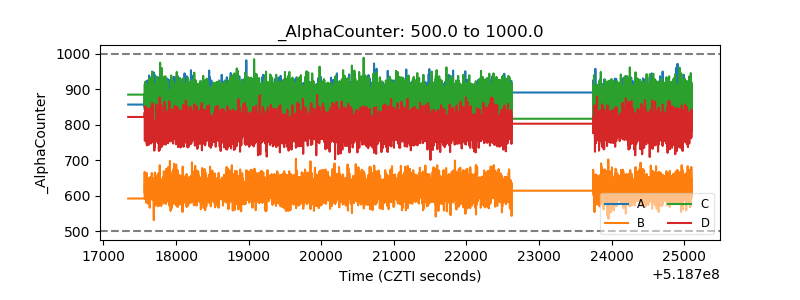

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

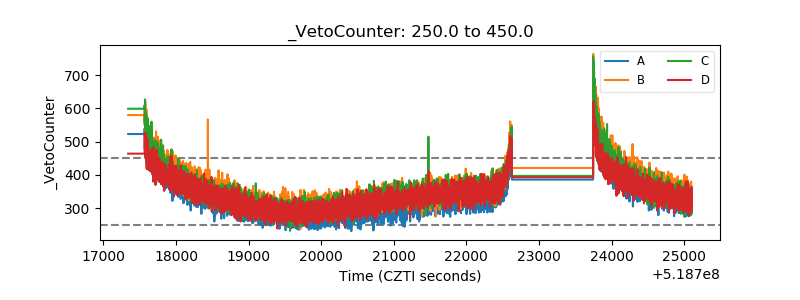

| Veto Counter |  |
