| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57887cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57887cztM0_level2_quad_clean.evt |
| Size (bytes) | 388,347,840 | 96,217,920 |
| Size | 370.4 MB | 91.8 MB |
| Events in quadrant A | 2,730,303 | 644,087 |
| Events in quadrant B | 3,178,374 | 683,867 |
| Events in quadrant C | 4,079,325 | 586,698 |
| Events in quadrant D | 3,895,320 | 557,868 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12826 | 2 |
| B | 0 | 13853 | 2 |
| C | 0 | 16623 | 2 |
| D | 0 | 15855 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6321 | 7 | 0.110742% |
| B | 6321 | 66 | 1.044139% |
| C | 6321 | 246 | 3.891789% |
| D | 6322 | 183 | 2.894654% |

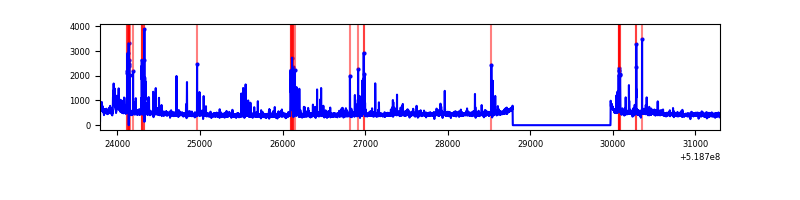

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7506 | 6322 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7506 | 6322 | 37 | 37 | 0.49% | 0.59% |  |
| C | 7506 | 6322 | 199 | 199 | 2.65% | 3.15% |  |
| D | 7507 | 6323 | 152 | 152 | 2.02% | 2.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 45582 | 263.54 | 689 | 673 | 170.4 |
| A | 3 | 14 | 9686 | 52.89 | 689 | 673 | 170.4 |
| A | 3 | 137 | 8259 | 44.52 | 689 | 673 | 170.4 |
| B | 2 | 249 | 79148 | 544.18 | 679 | 655 | 144.2 |
| B | 0 | 63 | 70515 | 484.33 | 679 | 655 | 144.2 |
| B | 10 | 247 | 69609 | 478.05 | 679 | 655 | 144.2 |
| C | 15 | 224 | 1181335 | 6659.35 | 649 | 643 | 177.3 |
| C | 14 | 254 | 104164 | 583.88 | 649 | 643 | 177.3 |
| C | 2 | 12 | 96799 | 542.34 | 649 | 643 | 177.3 |
| D | 8 | 240 | 618924 | 3352.25 | 647 | 616 | 184.4 |
| D | 12 | 110 | 168858 | 912.15 | 647 | 616 | 184.4 |
| D | 11 | 129 | 138271 | 746.32 | 647 | 616 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

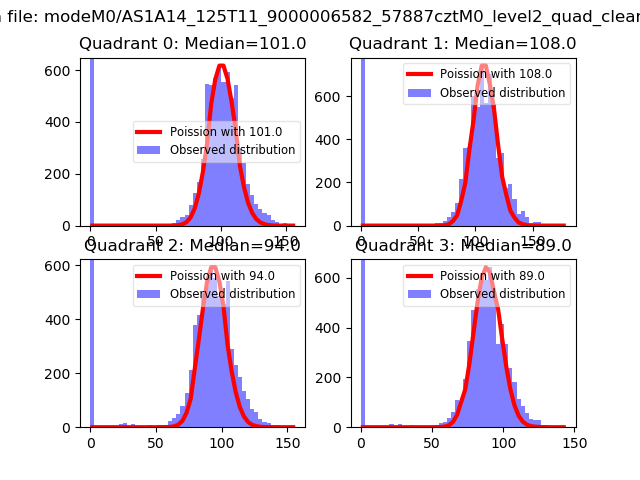

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

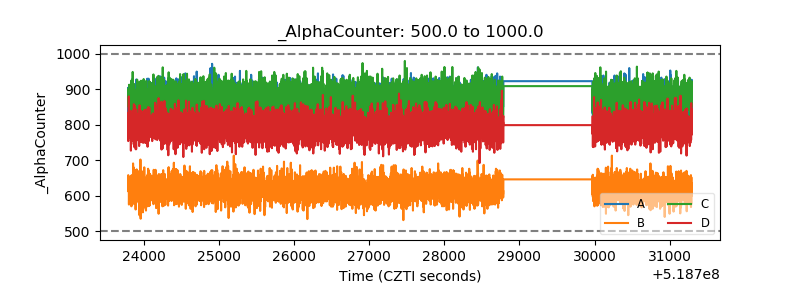

| Alpha Counter |  |
| _CPM_Rate |  |

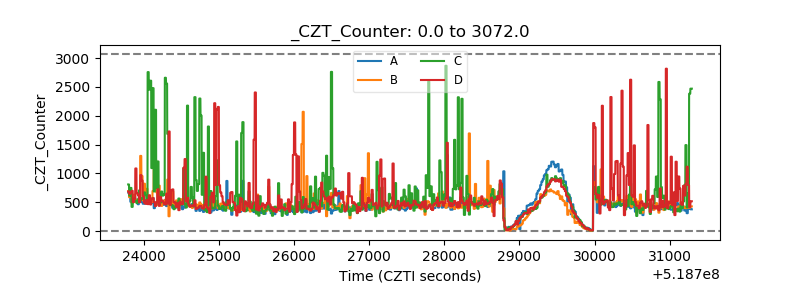

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

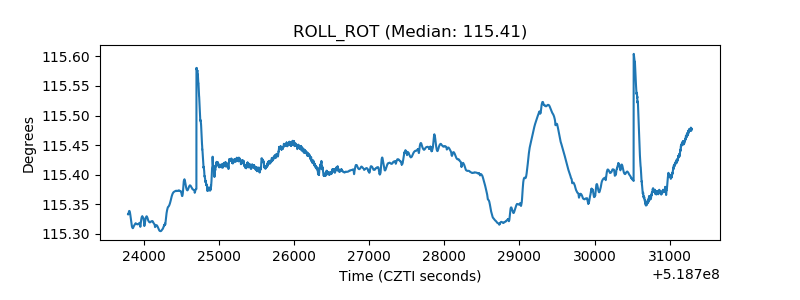

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

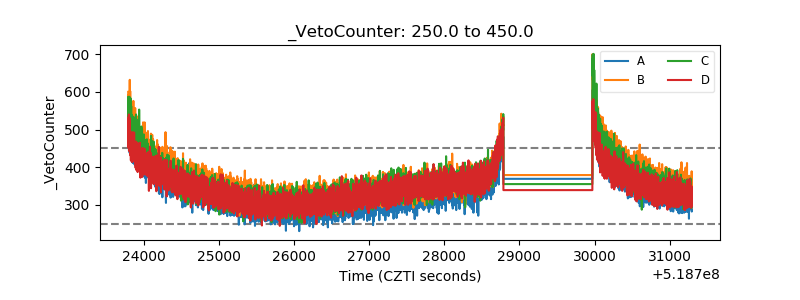

| Veto Counter |  |
