| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57888cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57888cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,246,720 | 97,084,800 |
| Size | 383.6 MB | 92.6 MB |
| Events in quadrant A | 2,781,591 | 650,705 |
| Events in quadrant B | 3,142,752 | 694,371 |
| Events in quadrant C | 3,627,096 | 601,434 |
| Events in quadrant D | 4,835,487 | 542,974 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13163 | 2 |
| B | 0 | 13969 | 2 |
| C | 0 | 15439 | 2 |
| D | 0 | 18934 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6459 | 16 | 0.247716% |
| B | 6459 | 71 | 1.099241% |
| C | 6459 | 143 | 2.213965% |
| D | 6458 | 479 | 7.417157% |

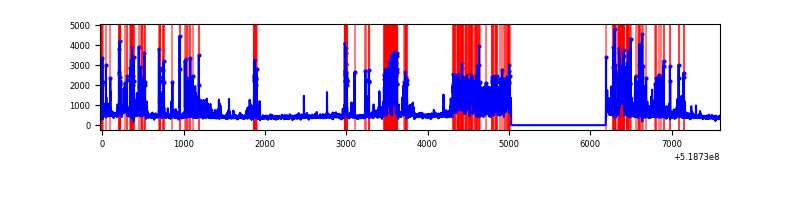

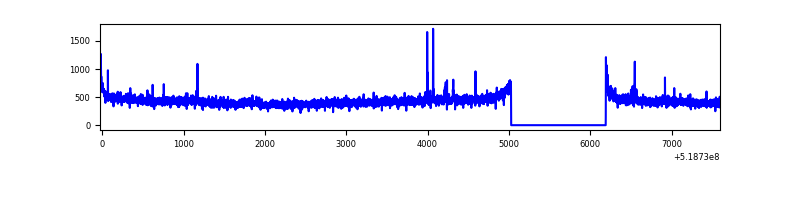

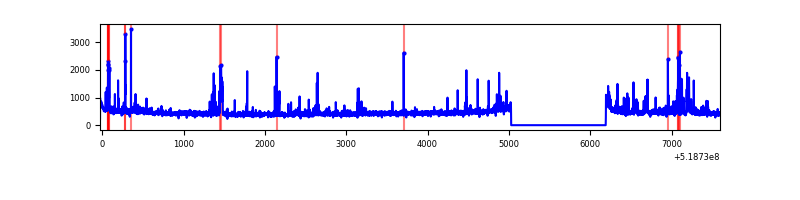

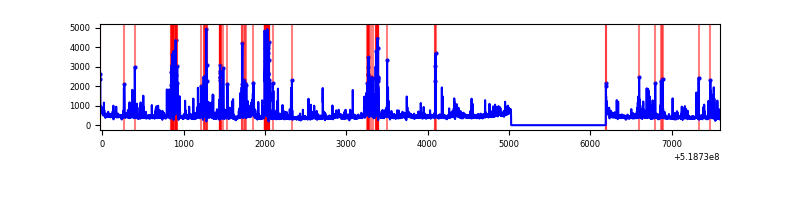

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7624 | 6460 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7624 | 6460 | 18 | 18 | 0.24% | 0.28% |  |
| C | 7624 | 6460 | 114 | 114 | 1.50% | 1.76% |  |
| D | 7623 | 6459 | 380 | 380 | 4.98% | 5.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 30353 | 170.37 | 700 | 683 | 174.1 |
| A | 7 | 64 | 29261 | 164.1 | 700 | 683 | 174.1 |
| A | 3 | 14 | 10825 | 58.24 | 700 | 683 | 174.1 |
| B | 5 | 172 | 103073 | 703.3 | 692 | 668 | 145.6 |
| B | 0 | 63 | 59688 | 405.34 | 692 | 668 | 145.6 |
| B | 4 | 201 | 54367 | 368.79 | 692 | 668 | 145.6 |
| C | 15 | 224 | 561994 | 3085.25 | 665 | 660 | 181.9 |
| C | 14 | 254 | 271242 | 1487.19 | 665 | 660 | 181.9 |
| C | 2 | 12 | 58485 | 317.82 | 665 | 660 | 181.9 |
| D | 12 | 110 | 657015 | 3556.35 | 649 | 621 | 184.6 |
| D | 8 | 240 | 609889 | 3301.02 | 649 | 621 | 184.6 |
| D | 2 | 31 | 533268 | 2885.88 | 649 | 621 | 184.6 |

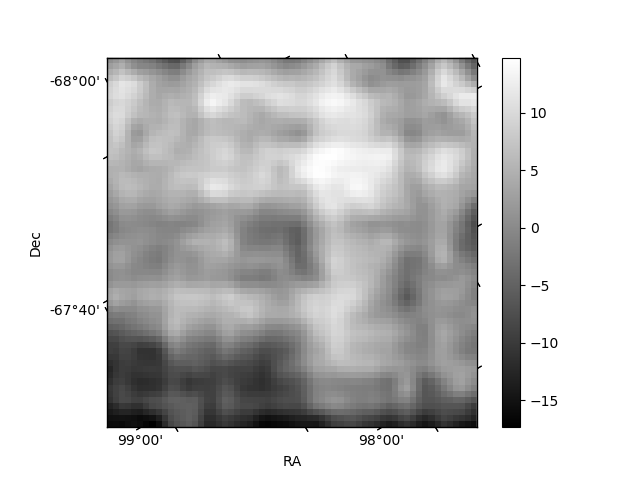

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

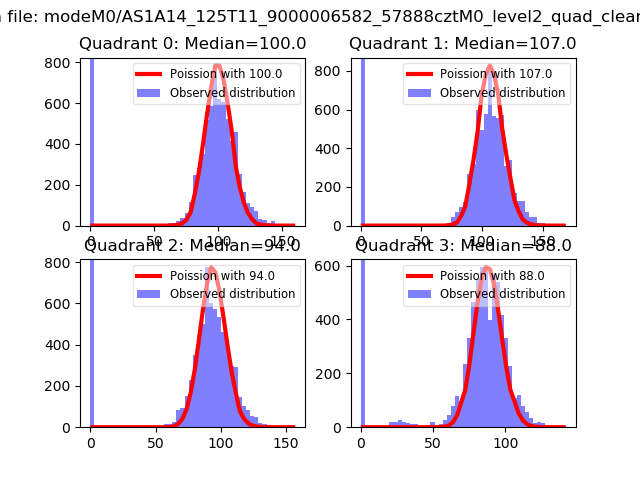

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

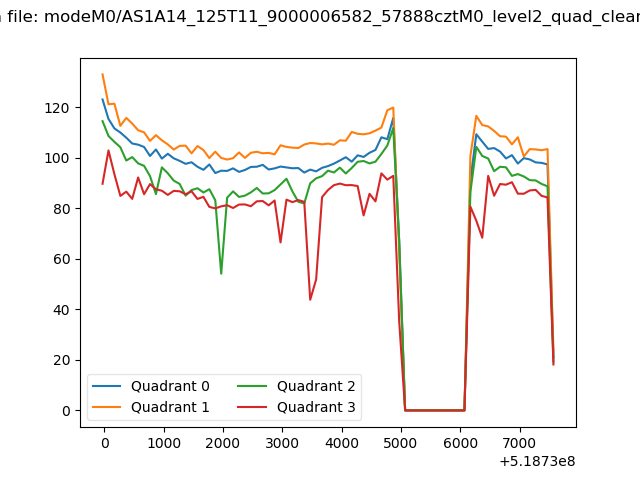

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

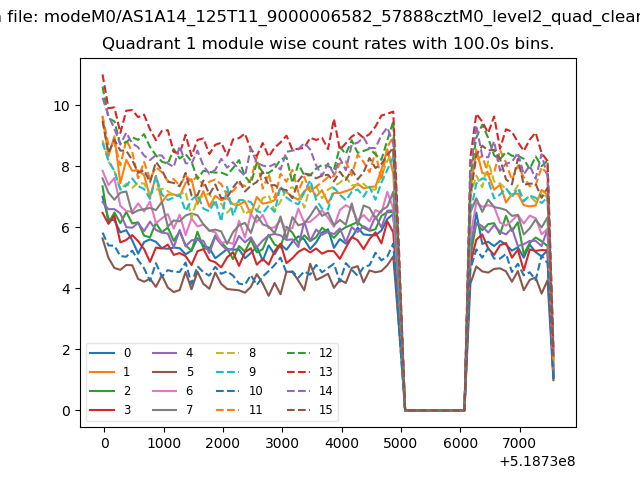

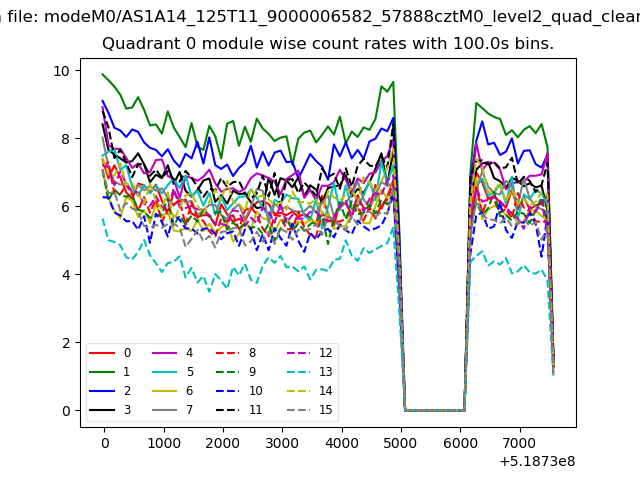

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

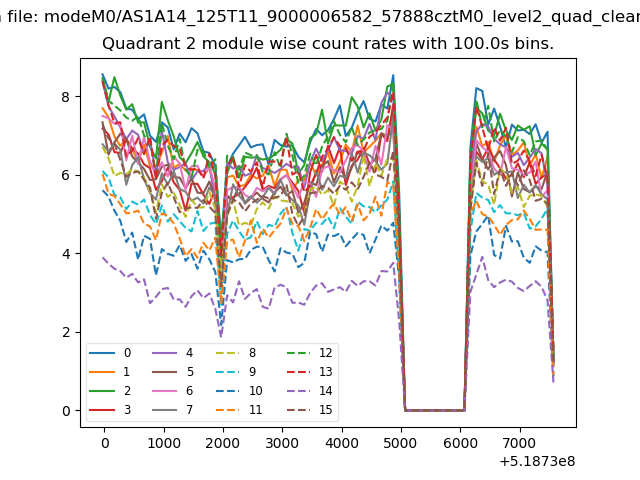

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

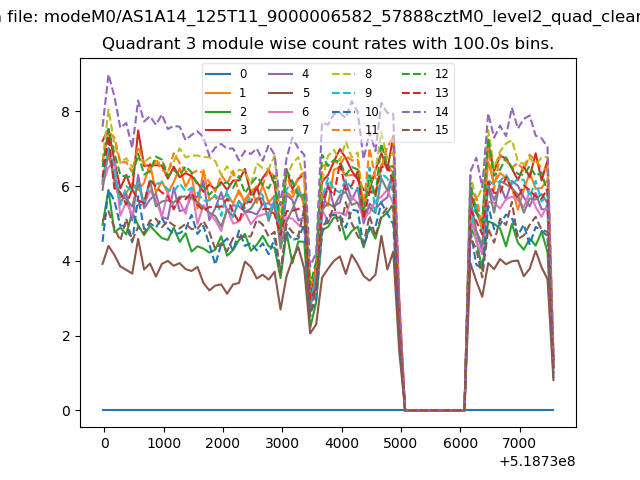

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

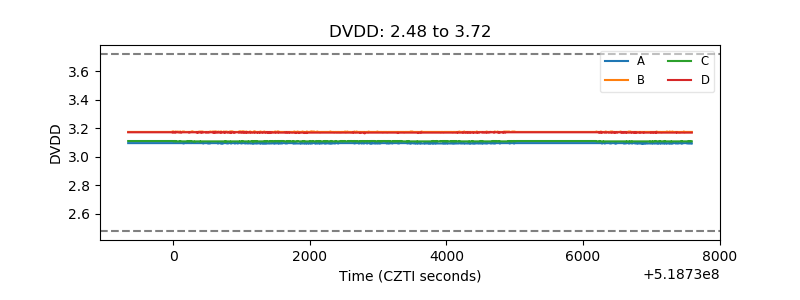

| D_VDD |  |

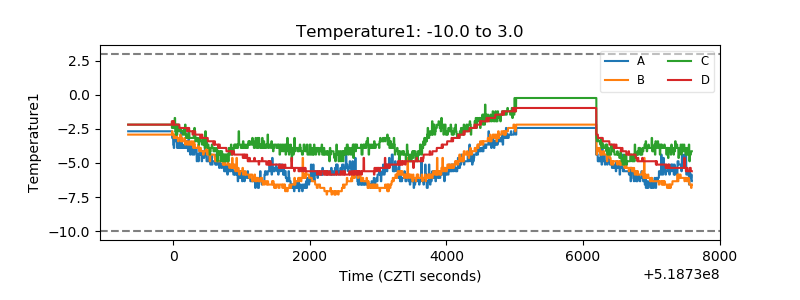

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

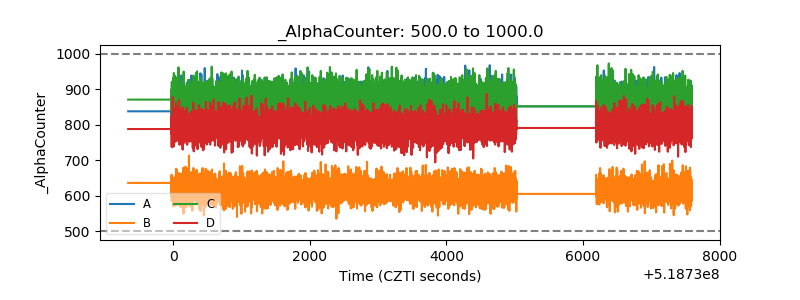

| Alpha Counter |  |

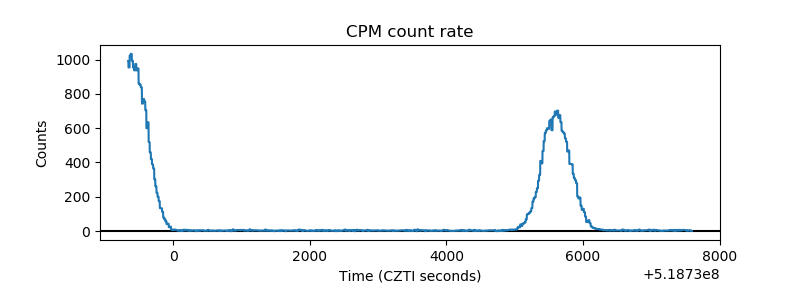

| _CPM_Rate |  |

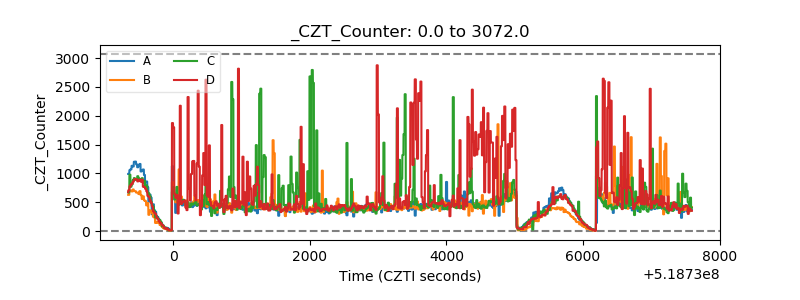

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

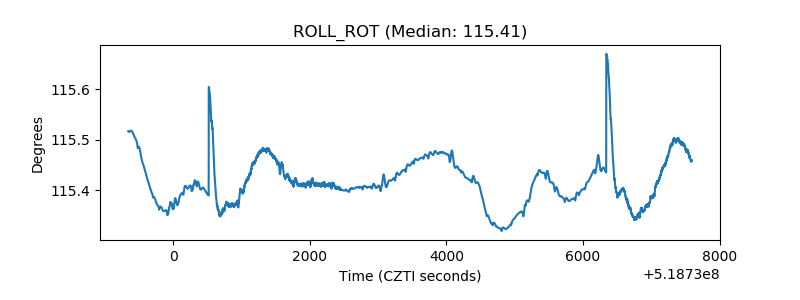

| _ROLL_ROT |  |
| _Roll_DEC |  |

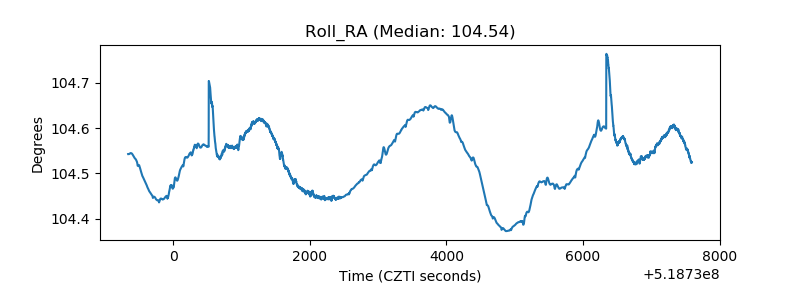

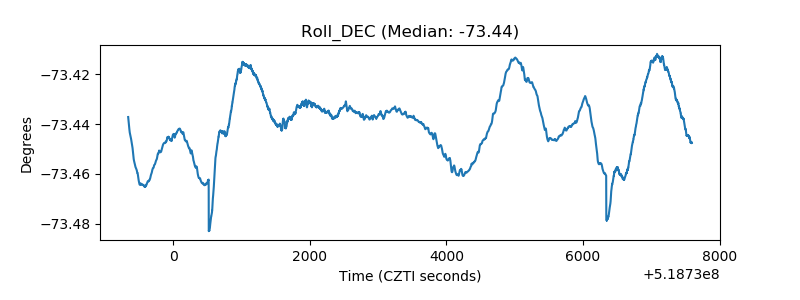

| _Roll_RA |  |

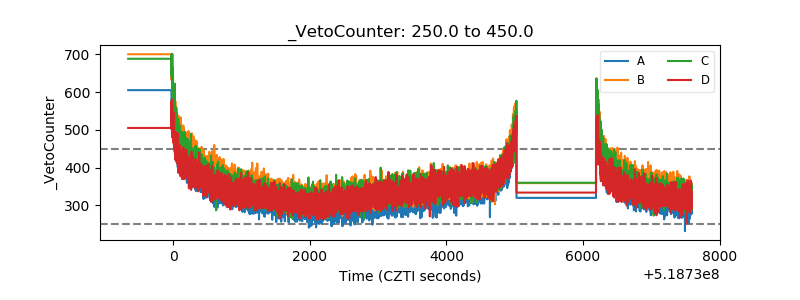

| Veto Counter |  |
