| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57890cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57890cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,962,560 | 86,469,120 |
| Size | 575.0 MB | 82.5 MB |
| Events in quadrant A | 2,845,419 | 641,298 |
| Events in quadrant B | 3,105,652 | 682,569 |
| Events in quadrant C | 4,142,559 | 587,667 |
| Events in quadrant D | 11,702,445 | 237,811 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13823 | 1 |
| B | 0 | 14225 | 1 |
| C | 0 | 17302 | 1 |
| D | 0 | 39582 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6725 | 54 | 0.802974% |
| B | 6726 | 90 | 1.338091% |
| C | 6726 | 253 | 3.761522% |
| D | 6725 | 3955 | 58.810409% |

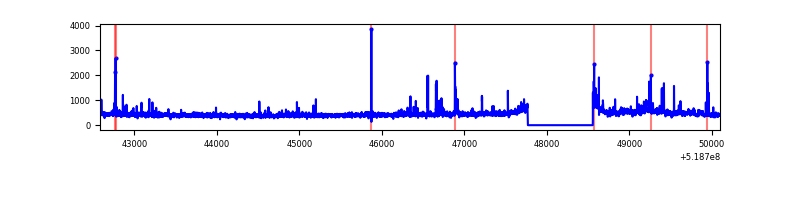

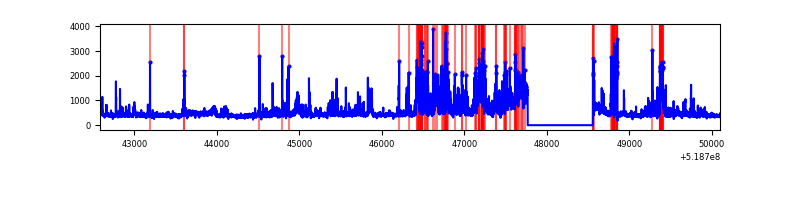

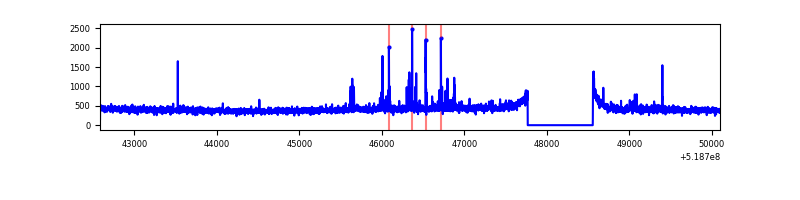

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6726 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7516 | 6727 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7516 | 6727 | 144 | 144 | 1.92% | 2.14% |  |
| D | 7515 | 6726 | 3861 | 3861 | 51.38% | 57.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 236 | 54496 | 309.31 | 708 | 690 | 174.0 |
| A | 3 | 245 | 20297 | 112.71 | 708 | 690 | 174.0 |
| A | 7 | 64 | 17525 | 96.78 | 708 | 690 | 174.0 |
| B | 5 | 172 | 110166 | 740.15 | 700 | 673 | 147.9 |
| B | 7 | 252 | 34121 | 226.1 | 700 | 673 | 147.9 |
| B | 0 | 63 | 26089 | 171.81 | 700 | 673 | 147.9 |
| C | 9 | 38 | 1065313 | 5755.53 | 678 | 669 | 185.0 |
| C | 15 | 224 | 261142 | 1408.13 | 678 | 669 | 185.0 |
| C | 15 | 208 | 65342 | 349.63 | 678 | 669 | 185.0 |
| D | 12 | 110 | 8857272 | 58407.96 | 534 | 506 | 151.6 |
| D | 8 | 160 | 292510 | 1925.69 | 534 | 506 | 151.6 |
| D | 8 | 240 | 176848 | 1162.93 | 534 | 506 | 151.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

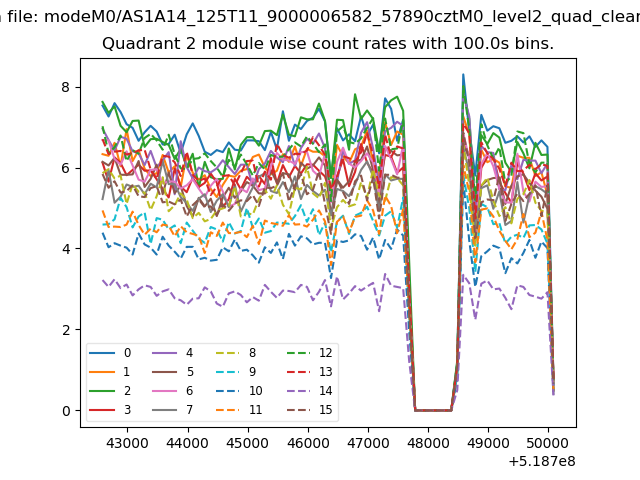

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

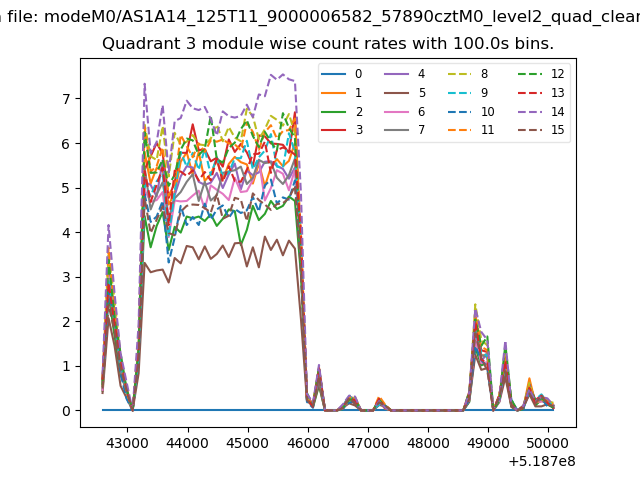

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

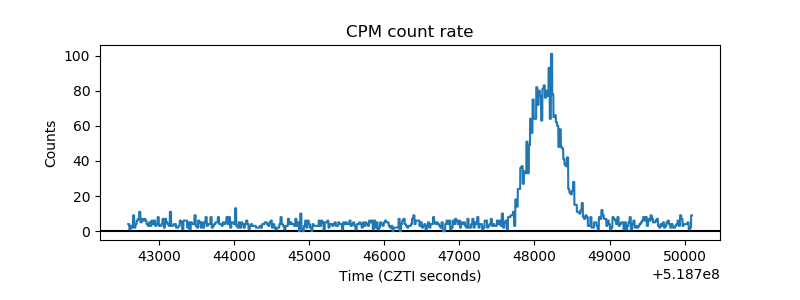

| _CPM_Rate |  |

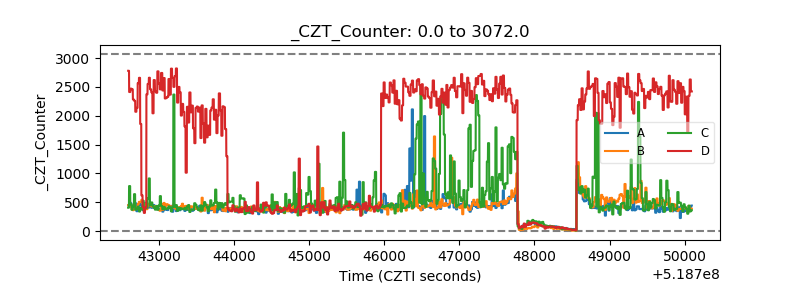

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
