| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57892cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57892cztM0_level2_quad_clean.evt |
| Size (bytes) | 830,816,640 | 93,096,000 |
| Size | 792.3 MB | 88.8 MB |
| Events in quadrant A | 5,204,061 | 709,522 |
| Events in quadrant B | 3,516,749 | 773,740 |
| Events in quadrant C | 4,440,484 | 676,690 |
| Events in quadrant D | 16,996,435 | 124,729 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20850 | 0 |
| B | 0 | 16260 | 0 |
| C | 0 | 18787 | 0 |
| D | 0 | 55678 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7676 | 252 | 3.282960% |
| B | 7676 | 76 | 0.990099% |
| C | 7676 | 125 | 1.628452% |
| D | 7675 | 6347 | 82.697068% |

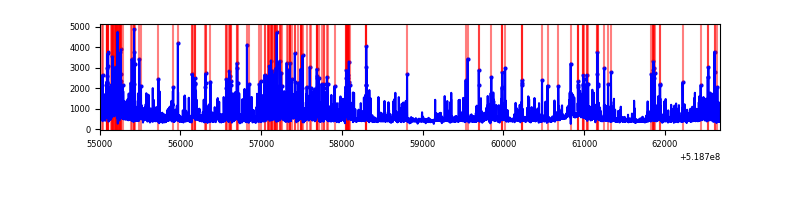

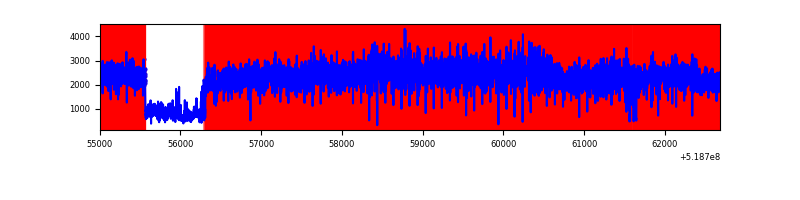

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7676 | 7676 | 199 | 199 | 2.59% | 2.59% |  |
| B | 7676 | 7676 | 24 | 24 | 0.31% | 0.31% |  |
| C | 7676 | 7676 | 106 | 106 | 1.38% | 1.38% |  |
| D | 7675 | 7675 | 6000 | 6000 | 78.18% | 78.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 2015661 | 10182.08 | 800 | 780 | 197.9 |
| A | 4 | 236 | 65828 | 328.72 | 800 | 780 | 197.9 |
| A | 10 | 251 | 18079 | 87.42 | 800 | 780 | 197.9 |
| B | 7 | 252 | 106577 | 619.6 | 802 | 771 | 170.8 |
| B | 10 | 247 | 97689 | 567.56 | 802 | 771 | 170.8 |
| B | 12 | 111 | 21642 | 122.22 | 802 | 771 | 170.8 |
| C | 15 | 224 | 897951 | 4223.68 | 786 | 779 | 212.4 |
| C | 14 | 254 | 228190 | 1070.6 | 786 | 779 | 212.4 |
| C | 12 | 252 | 103986 | 485.87 | 786 | 779 | 212.4 |
| D | 12 | 110 | 13642058 | 89449.51 | 536 | 511 | 152.5 |
| D | 2 | 120 | 593009 | 3885.09 | 536 | 511 | 152.5 |
| D | 8 | 160 | 508685 | 3332.17 | 536 | 511 | 152.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

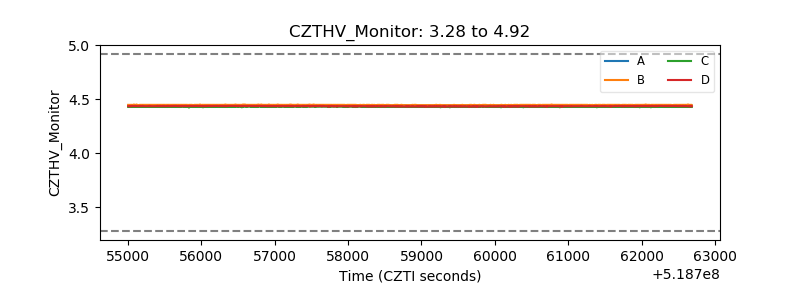

| CZT HV Monitor |  |
| D_VDD |  |

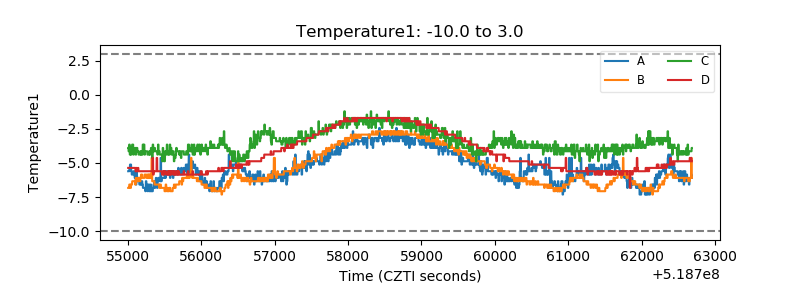

| Temperature 1 |  |

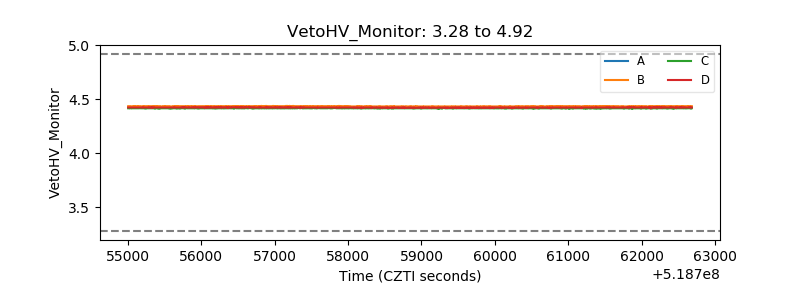

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

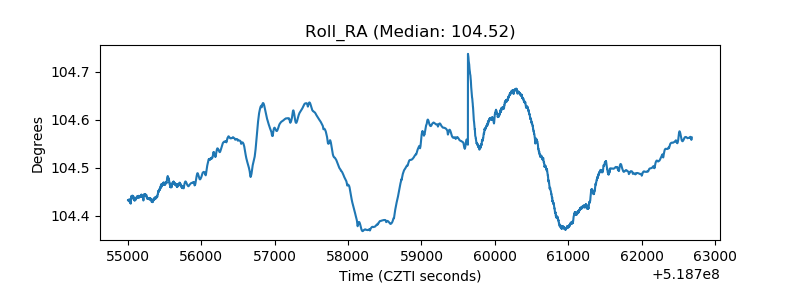

| _Roll_DEC |  |
| _Roll_RA |  |

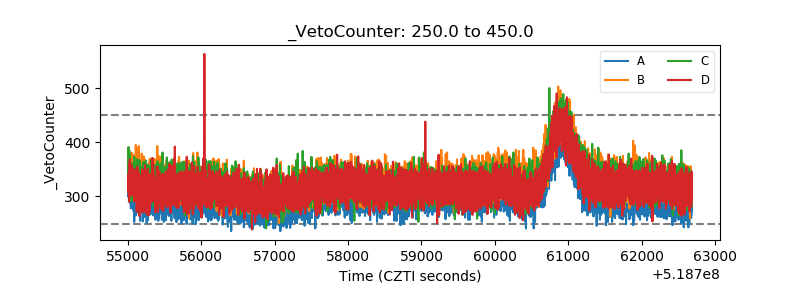

| Veto Counter |  |
