| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57893cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57893cztM0_level2_quad_clean.evt |
| Size (bytes) | 801,648,000 | 92,681,280 |
| Size | 764.5 MB | 88.4 MB |
| Events in quadrant A | 3,970,684 | 706,625 |
| Events in quadrant B | 3,439,376 | 760,241 |
| Events in quadrant C | 4,977,096 | 658,555 |
| Events in quadrant D | 16,700,296 | 155,058 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17334 | 0 |
| B | 0 | 15920 | 0 |
| C | 0 | 20213 | 0 |
| D | 0 | 54703 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7552 | 66 | 0.873941% |
| B | 7553 | 88 | 1.165100% |
| C | 7552 | 257 | 3.403072% |
| D | 7552 | 6060 | 80.243644% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

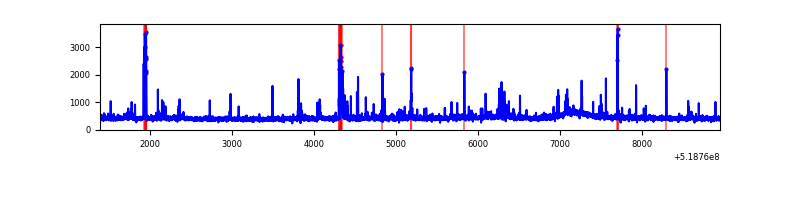

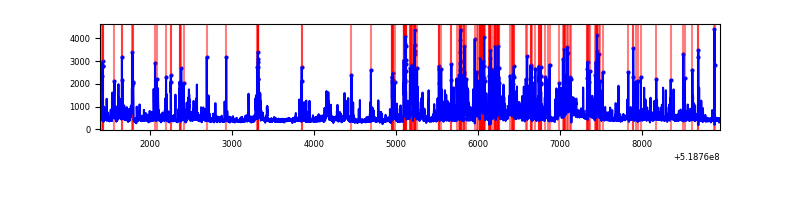

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 7552 | 41 | 41 | 0.54% | 0.54% |  |
| B | 7553 | 7553 | 25 | 25 | 0.33% | 0.33% |  |
| C | 7552 | 7552 | 200 | 200 | 2.65% | 2.65% |  |
| D | 7552 | 7552 | 5729 | 5729 | 75.86% | 75.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 822855 | 4172.54 | 797 | 774 | 197.0 |
| A | 4 | 236 | 36592 | 181.8 | 797 | 774 | 197.0 |
| A | 3 | 14 | 18502 | 89.98 | 797 | 774 | 197.0 |
| B | 7 | 252 | 91693 | 537.84 | 791 | 761 | 169.1 |
| B | 2 | 249 | 57855 | 337.7 | 791 | 761 | 169.1 |
| B | 10 | 247 | 40522 | 235.18 | 791 | 761 | 169.1 |
| C | 15 | 224 | 1009438 | 4798.85 | 773 | 765 | 210.2 |
| C | 12 | 252 | 604789 | 2873.7 | 773 | 765 | 210.2 |
| C | 14 | 254 | 302868 | 1437.28 | 773 | 765 | 210.2 |
| D | 12 | 110 | 13740700 | 82494.9 | 590 | 561 | 166.6 |
| D | 8 | 160 | 298413 | 1788.28 | 590 | 561 | 166.6 |
| D | 8 | 240 | 101519 | 606.14 | 590 | 561 | 166.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

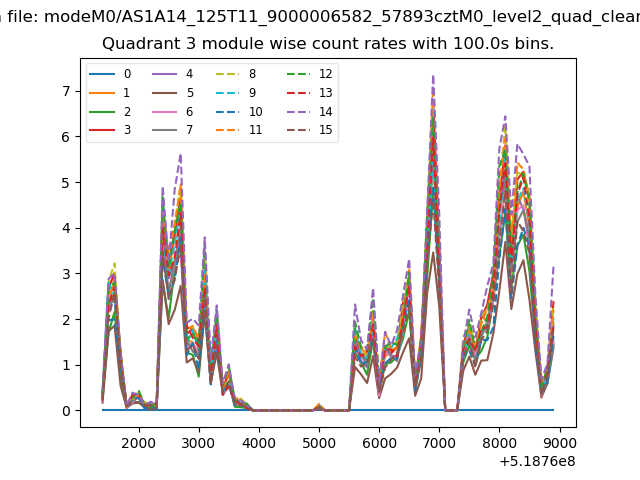

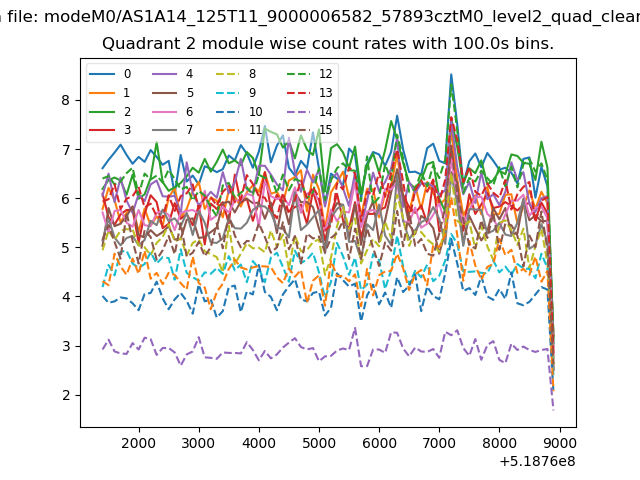

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

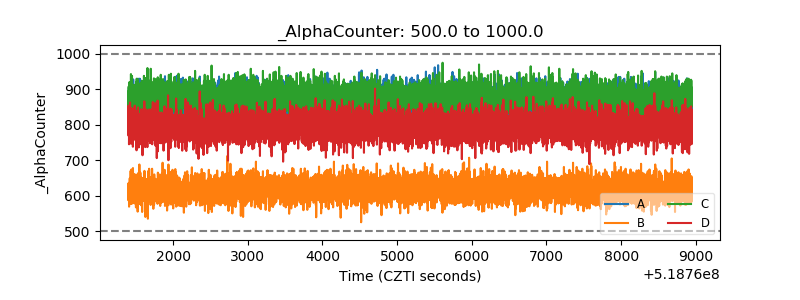

| Alpha Counter |  |

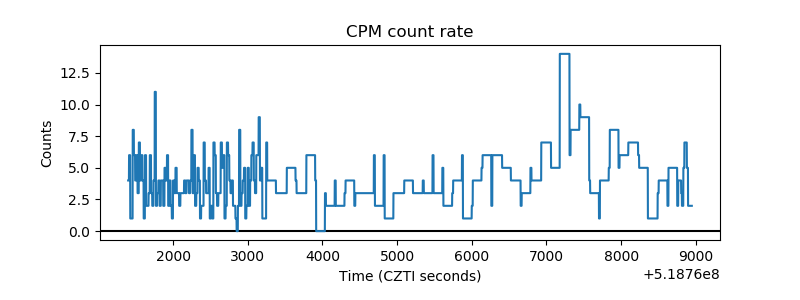

| _CPM_Rate |  |

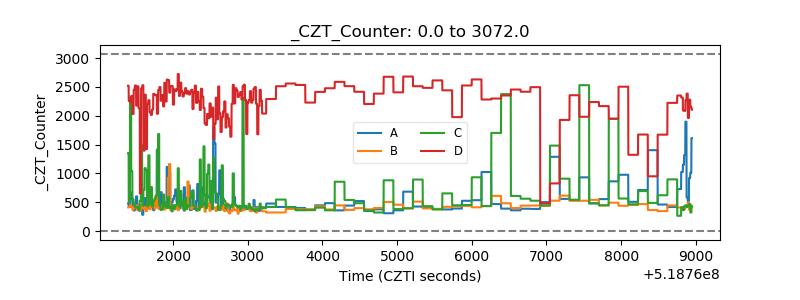

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

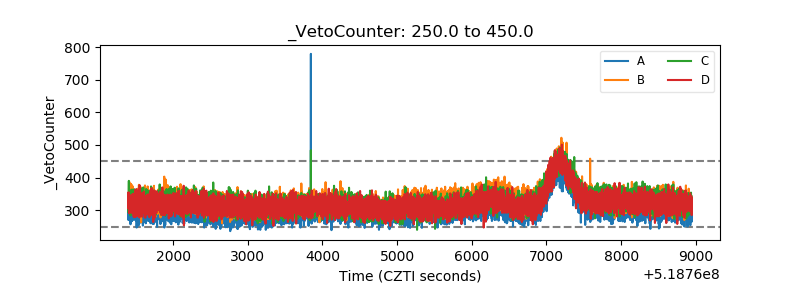

| Veto Counter |  |
