| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57896cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57896cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,424,315,520 | 248,702,400 |
| Size | 1.3 GB | 237.2 MB |
| Events in quadrant A | 9,415,947 | 1,704,937 |
| Events in quadrant B | 9,913,785 | 1,761,622 |
| Events in quadrant C | 13,207,924 | 1,578,012 |
| Events in quadrant D | 18,749,228 | 1,206,288 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41468 | 3 |
| B | 0 | 42915 | 3 |
| C | 0 | 52155 | 3 |
| D | 0 | 68716 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18556 | 506 | 2.726881% |
| B | 18557 | 928 | 5.000808% |
| C | 18557 | 1263 | 6.806057% |
| D | 18557 | 3885 | 20.935496% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

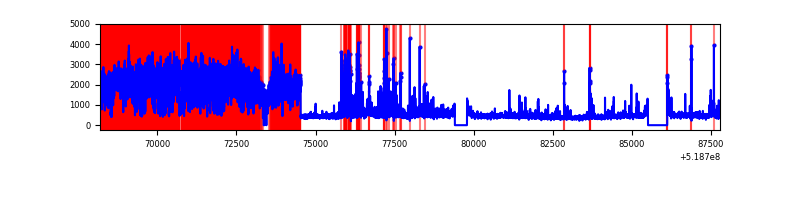

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19596 | 18560 | 78 | 78 | 0.40% | 0.42% |  |
| B | 19597 | 18561 | 396 | 396 | 2.02% | 2.13% |  |
| C | 19597 | 18561 | 791 | 791 | 4.04% | 4.26% |  |
| D | 19597 | 18561 | 3314 | 3314 | 16.91% | 17.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1316186 | 2675.26 | 1999 | 1949 | 491.3 |
| A | 4 | 236 | 258628 | 522.49 | 1999 | 1949 | 491.3 |
| A | 3 | 14 | 62671 | 123.61 | 1999 | 1949 | 491.3 |
| B | 2 | 249 | 1004669 | 2400.98 | 1944 | 1864 | 417.7 |
| B | 10 | 247 | 315260 | 750.35 | 1944 | 1864 | 417.7 |
| B | 5 | 172 | 309406 | 736.34 | 1944 | 1864 | 417.7 |
| C | 15 | 224 | 3849542 | 7473.17 | 1906 | 1888 | 514.9 |
| C | 2 | 12 | 915076 | 1773.66 | 1906 | 1888 | 514.9 |
| C | 12 | 252 | 395945 | 765.36 | 1906 | 1888 | 514.9 |
| D | 12 | 110 | 9612269 | 18589.17 | 1846 | 1769 | 517.0 |
| D | 2 | 153 | 594894 | 1147.26 | 1846 | 1769 | 517.0 |
| D | 8 | 160 | 363883 | 700.42 | 1846 | 1769 | 517.0 |

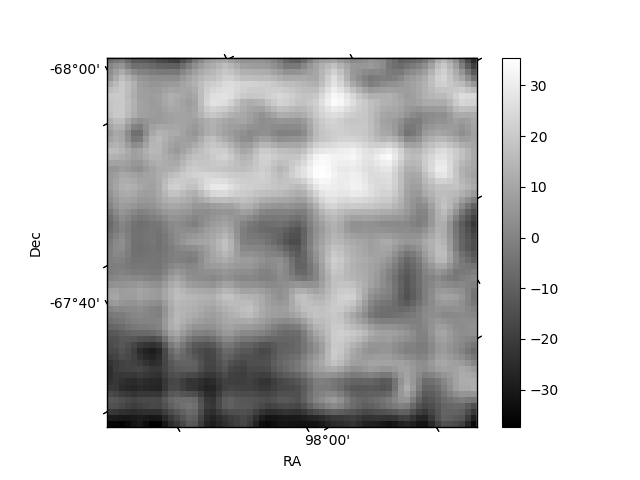

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

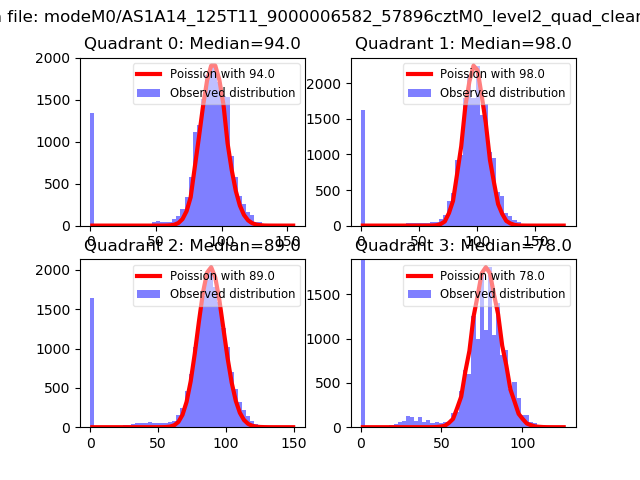

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

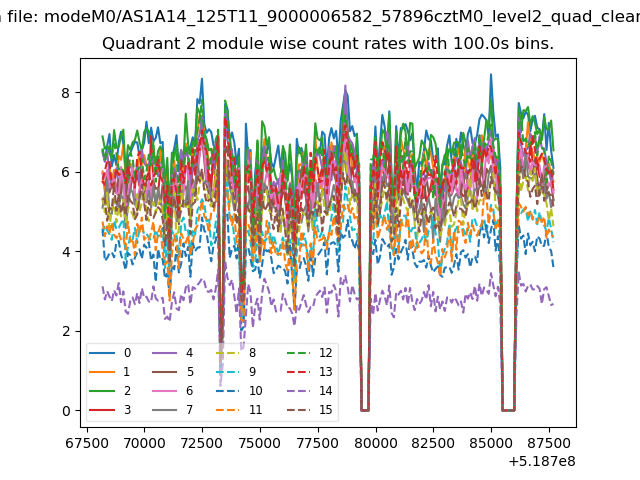

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

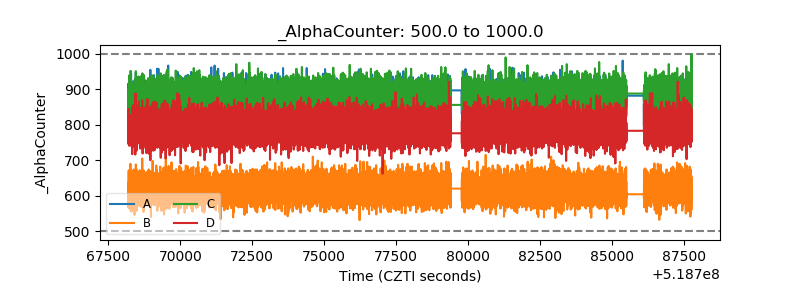

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

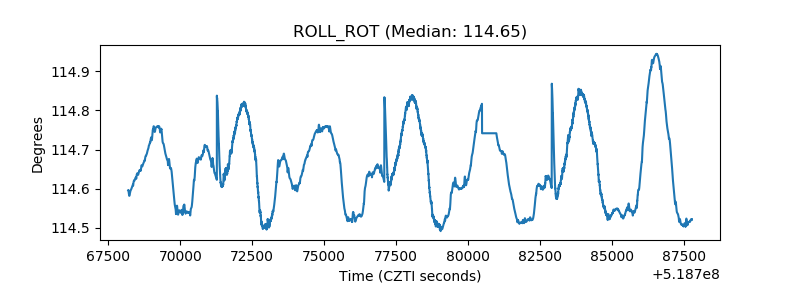

| _ROLL_ROT |  |

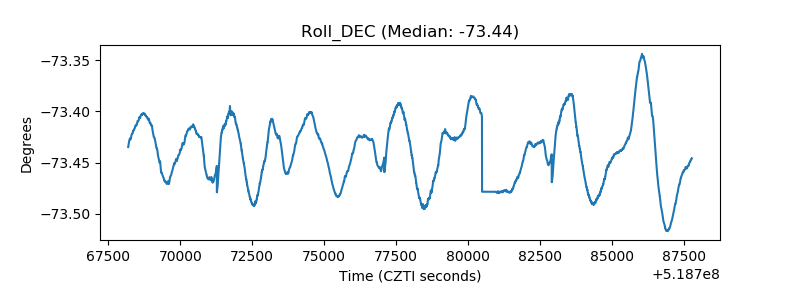

| _Roll_DEC |  |
| _Roll_RA |  |

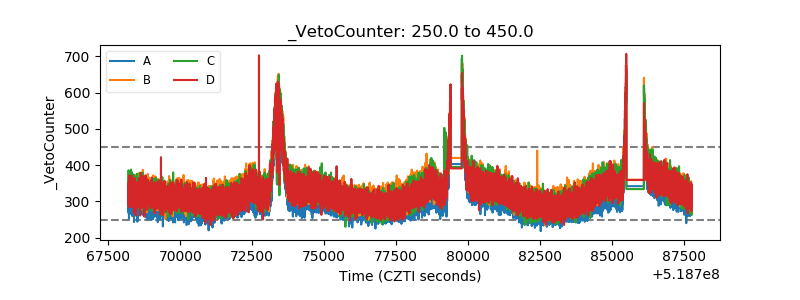

| Veto Counter |  |
