| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57897cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57897cztM0_level2_quad_clean.evt |
| Size (bytes) | 368,000,640 | 92,810,880 |
| Size | 351.0 MB | 88.5 MB |
| Events in quadrant A | 2,799,594 | 608,454 |
| Events in quadrant B | 3,334,413 | 637,862 |
| Events in quadrant C | 3,185,722 | 577,909 |
| Events in quadrant D | 3,806,751 | 541,916 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13014 | 1 |
| B | 0 | 14436 | 1 |
| C | 0 | 14262 | 1 |
| D | 0 | 15748 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6361 | 34 | 0.534507% |
| B | 6362 | 141 | 2.216284% |
| C | 6362 | 57 | 0.895945% |
| D | 6362 | 154 | 2.420622% |

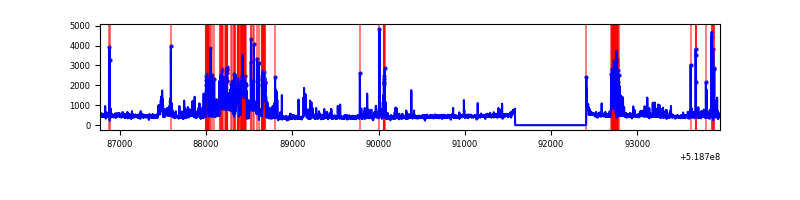

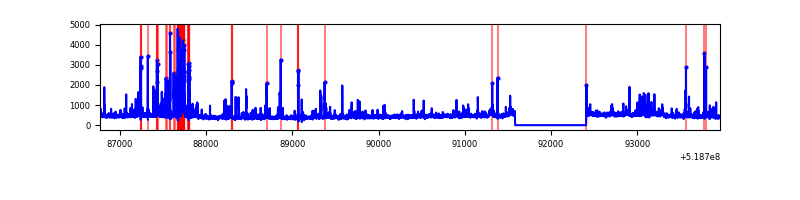

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

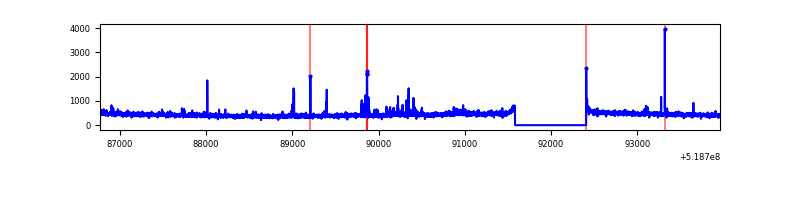

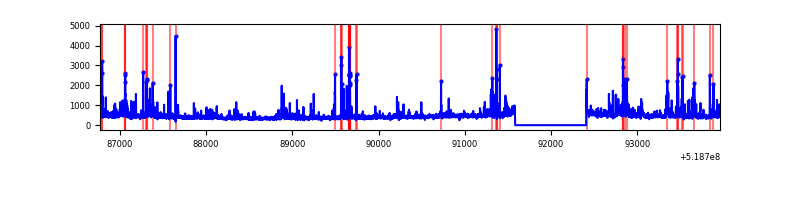

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7186 | 6362 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7187 | 6363 | 76 | 76 | 1.06% | 1.19% |  |
| C | 7187 | 6363 | 48 | 48 | 0.67% | 0.75% |  |
| D | 7187 | 6363 | 163 | 163 | 2.27% | 2.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 236 | 65630 | 383.36 | 685 | 667 | 169.5 |
| A | 7 | 64 | 42405 | 246.31 | 685 | 667 | 169.5 |
| A | 3 | 14 | 20055 | 114.41 | 685 | 667 | 169.5 |
| B | 10 | 247 | 296101 | 2081.13 | 666 | 643 | 142.0 |
| B | 5 | 172 | 60805 | 423.77 | 666 | 643 | 142.0 |
| B | 0 | 63 | 54055 | 376.22 | 666 | 643 | 142.0 |
| C | 15 | 224 | 385757 | 2140.49 | 655 | 647 | 179.9 |
| C | 12 | 252 | 143700 | 795.11 | 655 | 647 | 179.9 |
| C | 2 | 12 | 36151 | 197.34 | 655 | 647 | 179.9 |
| D | 8 | 160 | 659111 | 3499.46 | 657 | 627 | 188.2 |
| D | 2 | 249 | 148217 | 784.36 | 657 | 627 | 188.2 |
| D | 3 | 12 | 125338 | 662.77 | 657 | 627 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

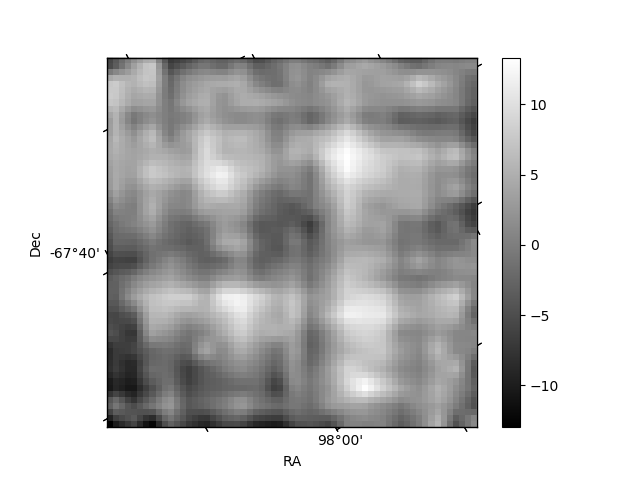

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

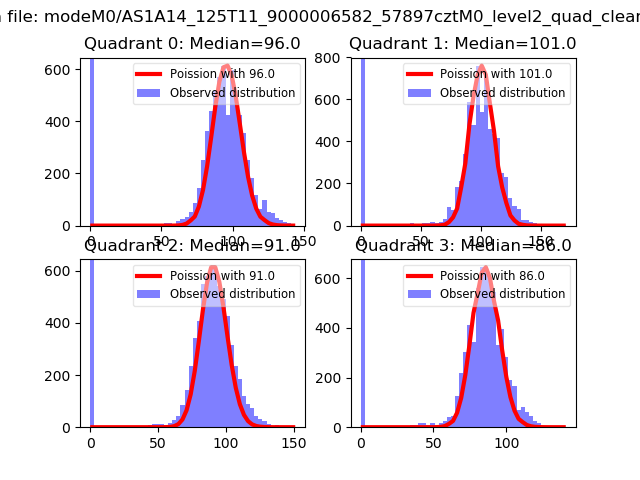

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

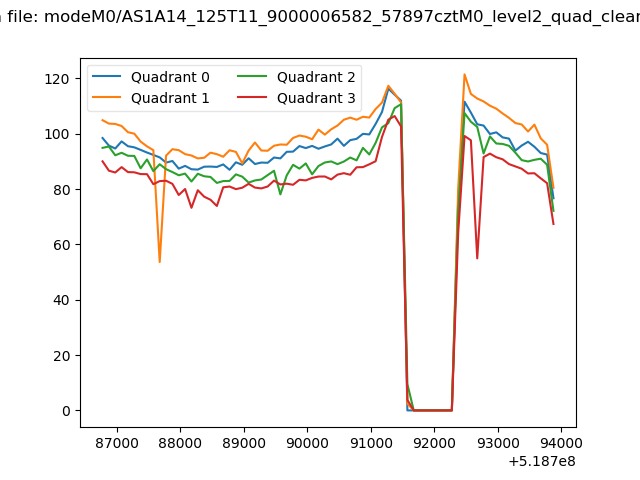

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

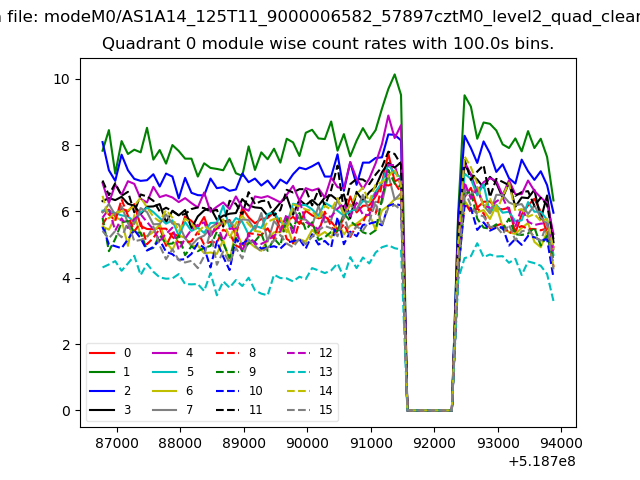

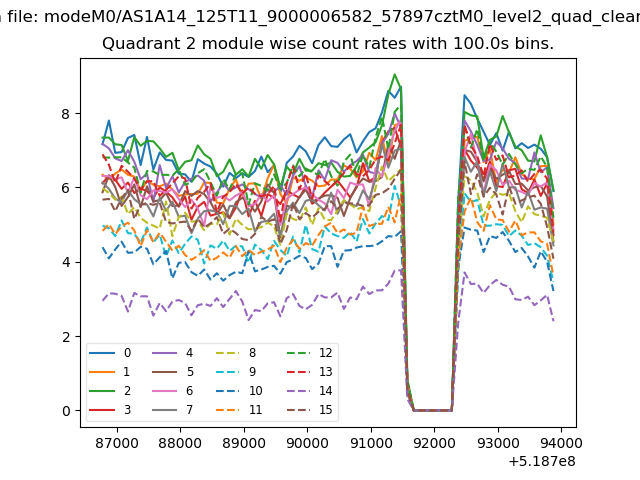

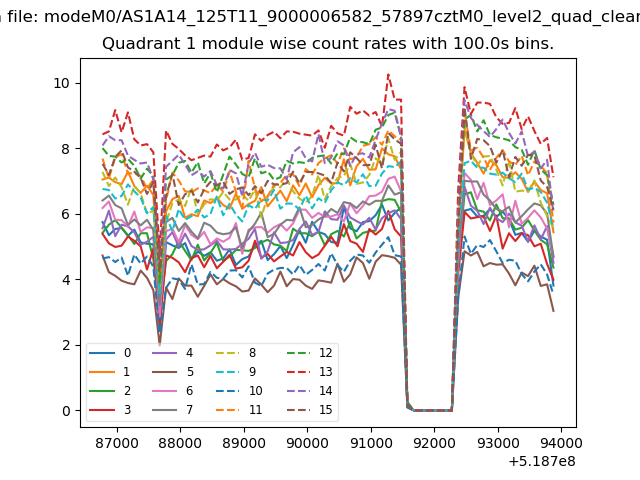

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

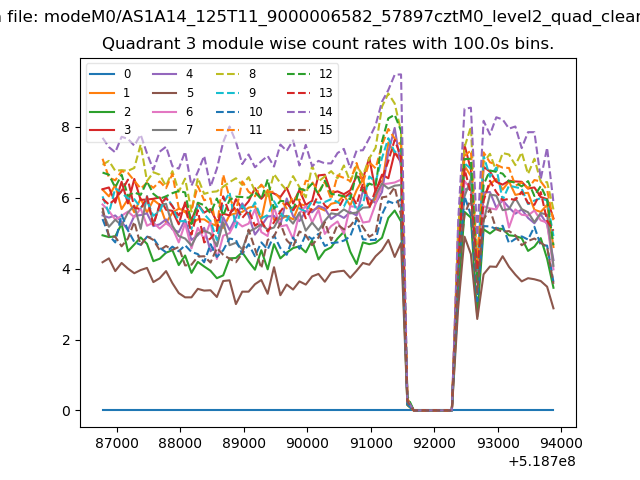

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

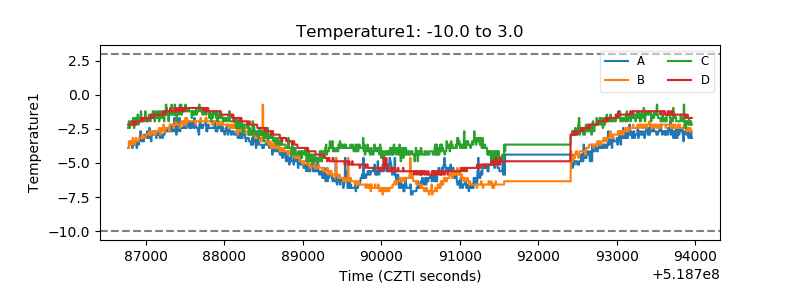

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

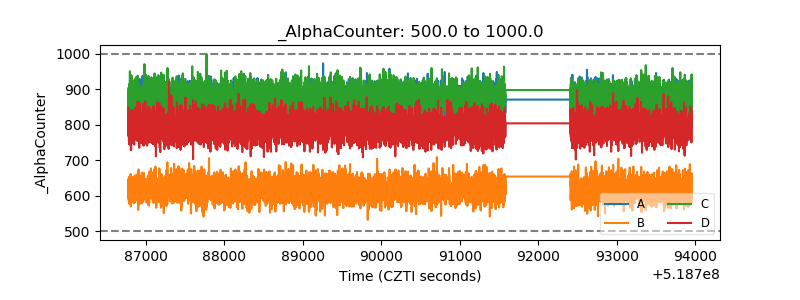

| Alpha Counter |  |

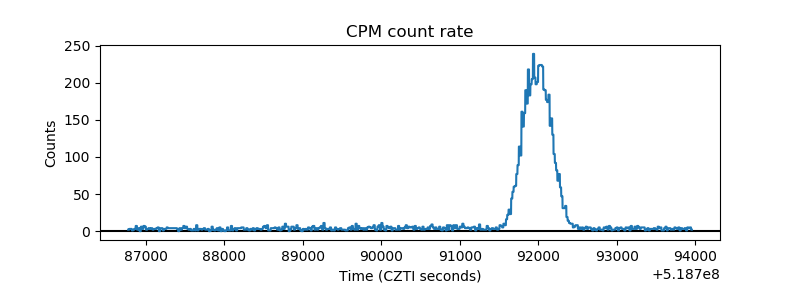

| _CPM_Rate |  |

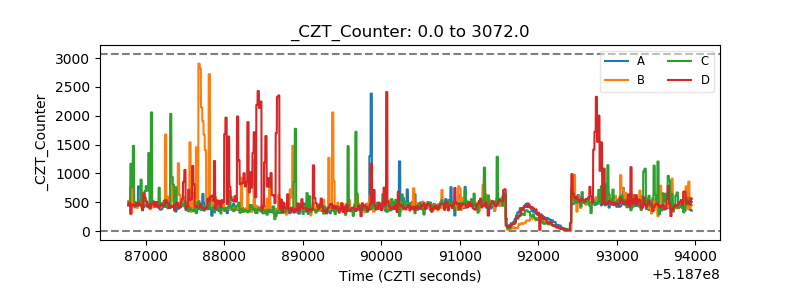

| CZT Counter |  |
| +2.5 Volts monitor |  |

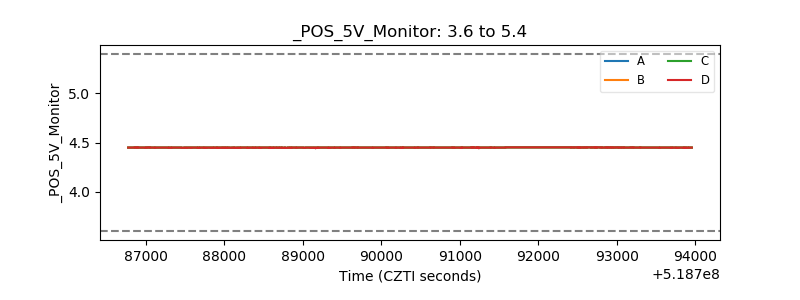

| +5 Volts monitor |  |

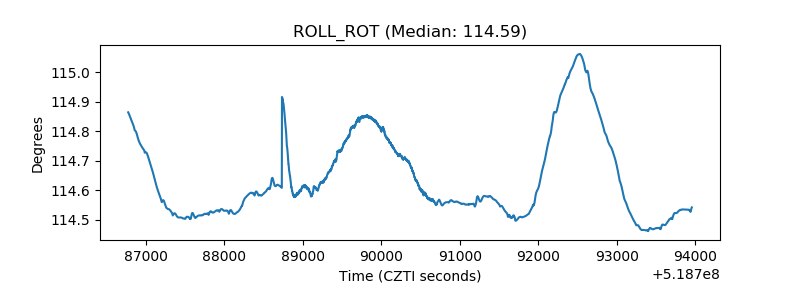

| _ROLL_ROT |  |

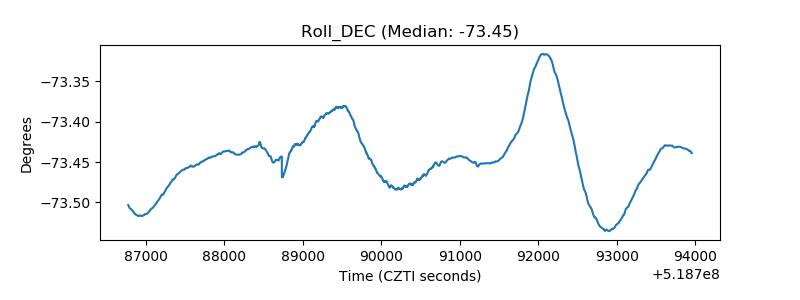

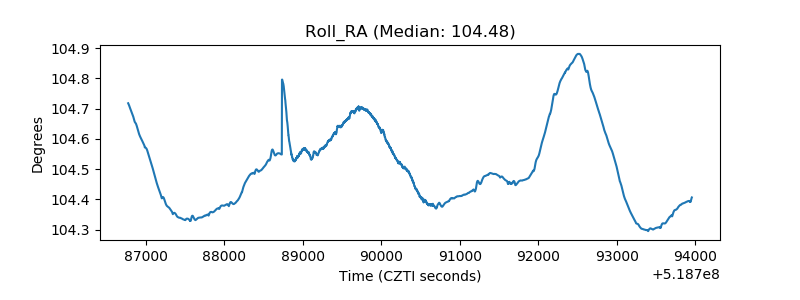

| _Roll_DEC |  |
| _Roll_RA |  |

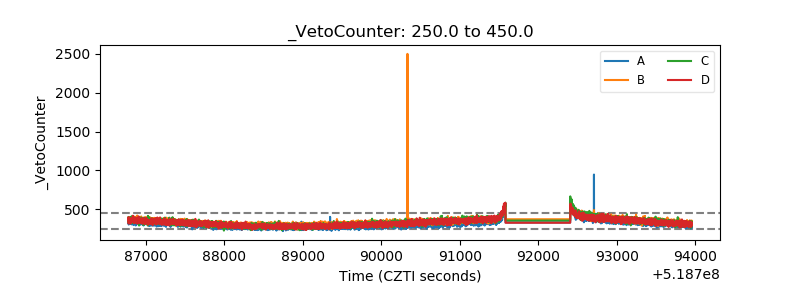

| Veto Counter |  |
