| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57899cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57899cztM0_level2_quad_clean.evt |
| Size (bytes) | 378,979,200 | 87,600,960 |
| Size | 361.4 MB | 83.5 MB |
| Events in quadrant A | 2,710,999 | 579,875 |
| Events in quadrant B | 2,871,851 | 613,720 |
| Events in quadrant C | 3,290,586 | 550,028 |
| Events in quadrant D | 4,684,763 | 486,997 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12490 | 1 |
| B | 0 | 13013 | 1 |
| C | 0 | 14216 | 2 |
| D | 0 | 18326 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6042 | 40 | 0.662032% |
| B | 6042 | 79 | 1.307514% |
| C | 6042 | 69 | 1.142006% |
| D | 6042 | 476 | 7.878186% |

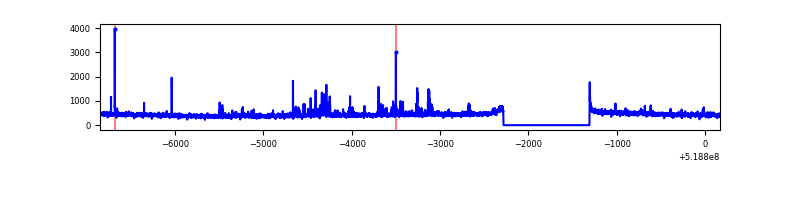

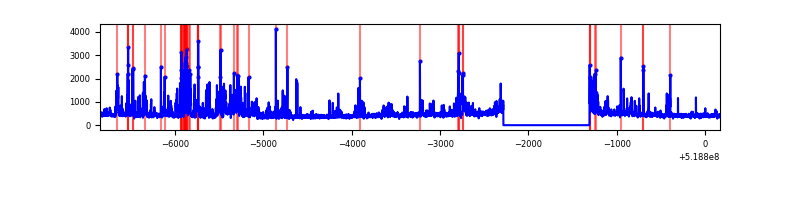

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7017 | 6043 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7017 | 6042 | 28 | 28 | 0.40% | 0.46% |  |
| C | 7017 | 6043 | 55 | 55 | 0.78% | 0.91% |  |
| D | 7017 | 6043 | 407 | 407 | 5.80% | 6.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 76309 | 475.3 | 645 | 628 | 159.2 |
| A | 4 | 236 | 61856 | 384.53 | 645 | 628 | 159.2 |
| A | 2 | 79 | 41329 | 255.61 | 645 | 628 | 159.2 |
| B | 5 | 185 | 102343 | 751.28 | 630 | 608 | 135.4 |
| B | 10 | 16 | 62772 | 459.06 | 630 | 608 | 135.4 |
| B | 0 | 63 | 29070 | 210.18 | 630 | 608 | 135.4 |
| C | 12 | 252 | 479621 | 2860.66 | 615 | 609 | 167.4 |
| C | 15 | 224 | 303137 | 1806.69 | 615 | 609 | 167.4 |
| C | 14 | 254 | 32035 | 187.67 | 615 | 609 | 167.4 |
| D | 8 | 160 | 1295824 | 7501.68 | 603 | 574 | 172.7 |
| D | 2 | 120 | 447530 | 2588.63 | 603 | 574 | 172.7 |
| D | 3 | 12 | 210748 | 1217.26 | 603 | 574 | 172.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

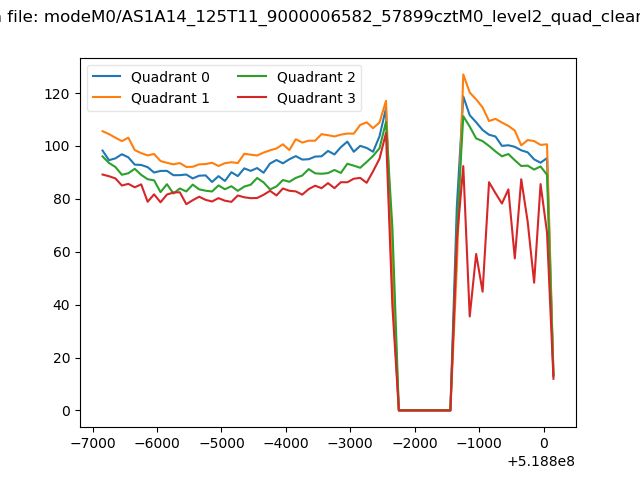

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

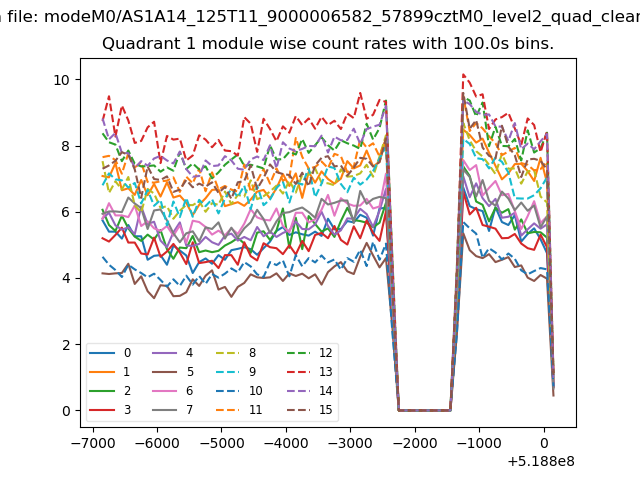

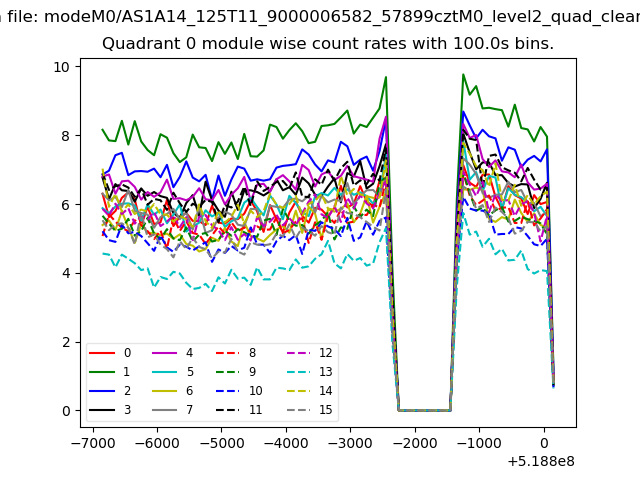

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

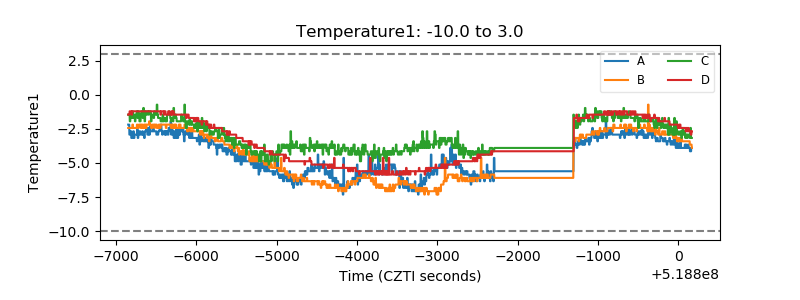

| Temperature 1 |  |
| Veto HV Monitor |  |

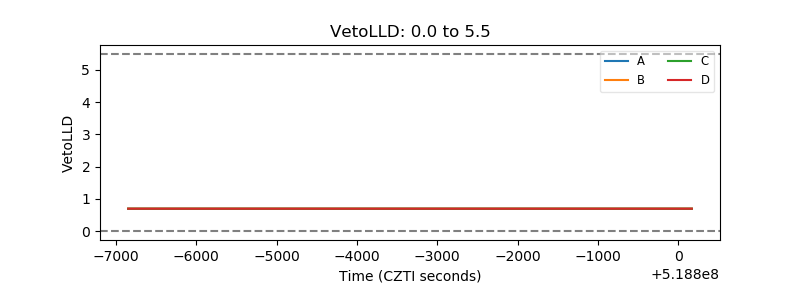

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
