| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57901cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57901cztM0_level2_quad_clean.evt |
| Size (bytes) | 418,242,240 | 92,407,680 |
| Size | 398.9 MB | 88.1 MB |
| Events in quadrant A | 2,677,254 | 622,907 |
| Events in quadrant B | 3,008,556 | 659,209 |
| Events in quadrant C | 3,991,392 | 570,043 |
| Events in quadrant D | 5,323,654 | 514,254 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12560 | 1 |
| B | 0 | 13363 | 1 |
| C | 0 | 16274 | 1 |
| D | 0 | 20273 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6183 | 9 | 0.145560% |
| B | 6183 | 56 | 0.905709% |
| C | 6184 | 213 | 3.444373% |
| D | 6184 | 510 | 8.247089% |

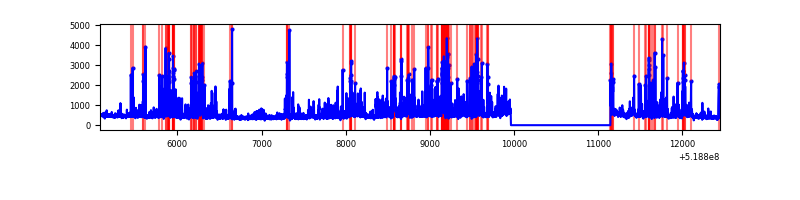

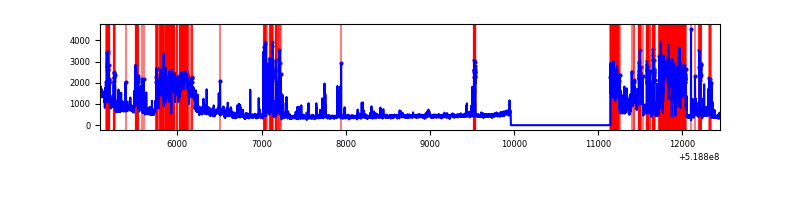

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7368 | 6184 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7368 | 6184 | 34 | 34 | 0.46% | 0.55% |  |
| C | 7369 | 6185 | 172 | 172 | 2.33% | 2.78% |  |
| D | 7369 | 6185 | 615 | 615 | 8.35% | 9.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 56463 | 336.15 | 671 | 654 | 166.0 |
| A | 3 | 245 | 14770 | 85.02 | 671 | 654 | 166.0 |
| A | 13 | 254 | 9431 | 52.87 | 671 | 654 | 166.0 |
| B | 10 | 247 | 85763 | 607.12 | 659 | 635 | 140.2 |
| B | 5 | 185 | 56423 | 397.87 | 659 | 635 | 140.2 |
| B | 0 | 245 | 52451 | 369.54 | 659 | 635 | 140.2 |
| C | 15 | 224 | 1303495 | 7557.16 | 630 | 626 | 172.4 |
| C | 12 | 252 | 86530 | 498.28 | 630 | 626 | 172.4 |
| C | 14 | 254 | 60452 | 347.01 | 630 | 626 | 172.4 |
| D | 8 | 160 | 2249954 | 12650.51 | 621 | 591 | 177.8 |
| D | 3 | 224 | 208532 | 1169.47 | 621 | 591 | 177.8 |
| D | 8 | 240 | 152173 | 852.5 | 621 | 591 | 177.8 |

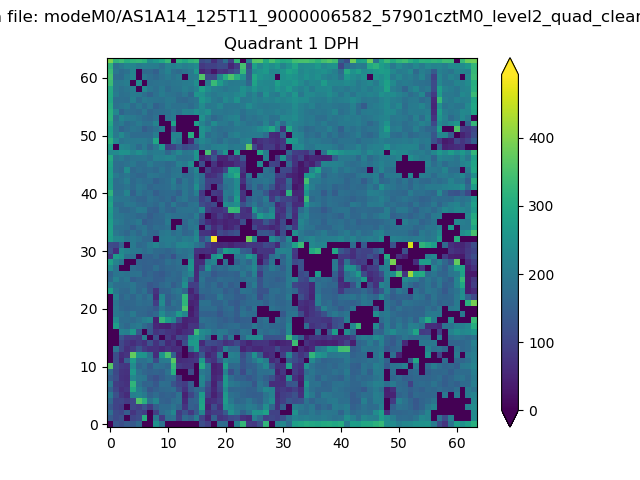

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

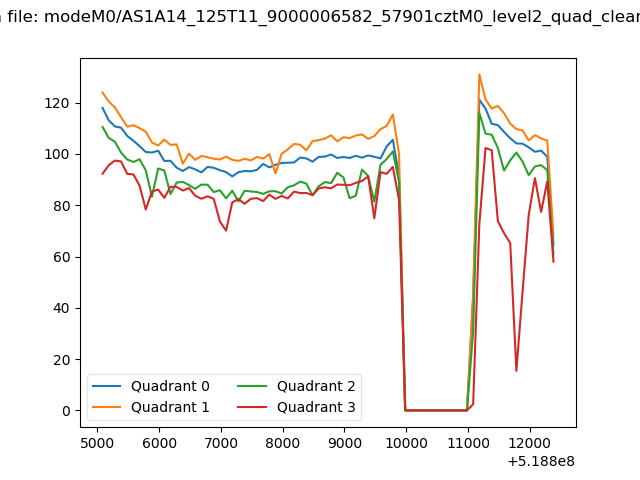

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

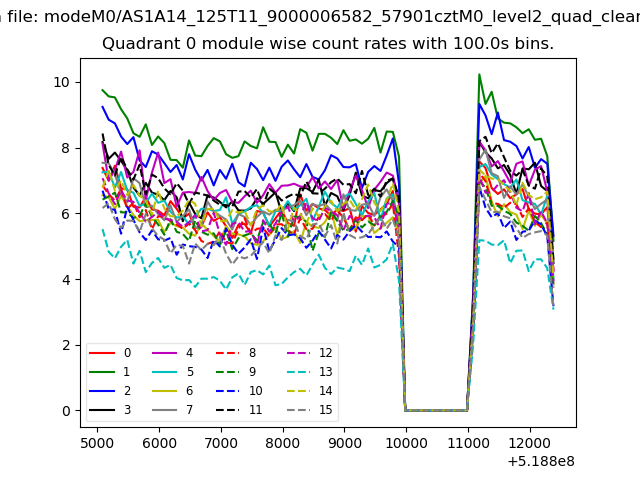

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

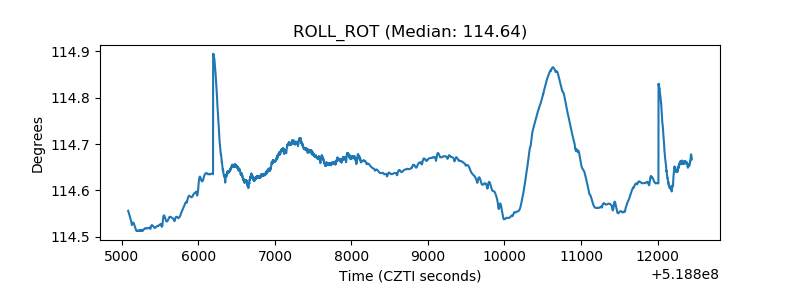

| _ROLL_ROT |  |

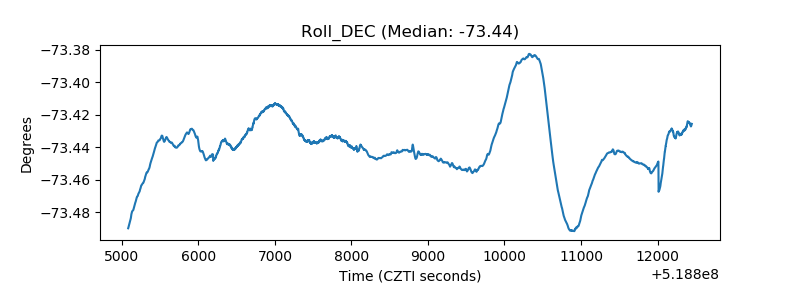

| _Roll_DEC |  |

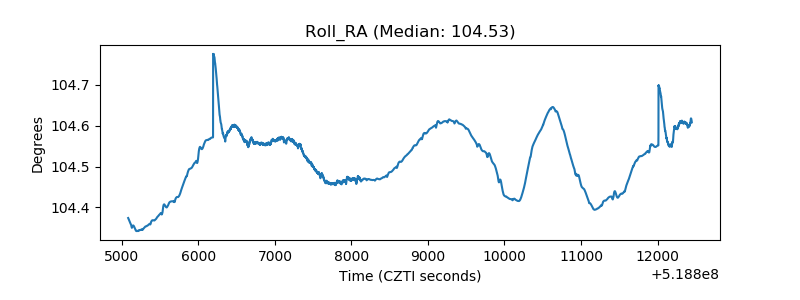

| _Roll_RA |  |
| Veto Counter |  |
