| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57902cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57902cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,656,320 | 96,160,320 |
| Size | 365.9 MB | 91.7 MB |
| Events in quadrant A | 2,761,810 | 643,692 |
| Events in quadrant B | 3,347,385 | 686,197 |
| Events in quadrant C | 3,451,584 | 598,229 |
| Events in quadrant D | 4,145,880 | 540,768 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12960 | 2 |
| B | 0 | 14476 | 2 |
| C | 0 | 14915 | 2 |
| D | 0 | 17062 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 9 | 0.141509% |
| B | 6360 | 69 | 1.084906% |
| C | 6360 | 115 | 1.808176% |
| D | 6359 | 382 | 6.007234% |

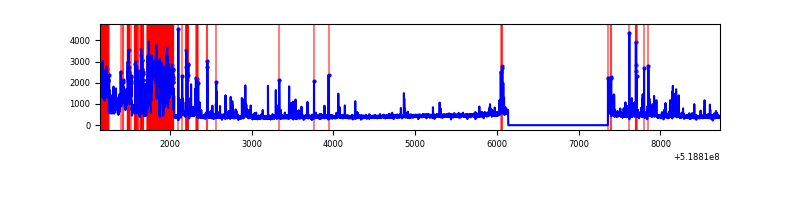

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6361 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7580 | 6361 | 32 | 32 | 0.42% | 0.50% |  |
| C | 7580 | 6361 | 84 | 84 | 1.11% | 1.32% |  |
| D | 7579 | 6360 | 371 | 371 | 4.90% | 5.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 77309 | 446.02 | 691 | 675 | 171.8 |
| A | 13 | 254 | 8738 | 46.93 | 691 | 675 | 171.8 |
| A | 3 | 137 | 8300 | 44.38 | 691 | 675 | 171.8 |
| B | 10 | 128 | 220852 | 1523.37 | 681 | 658 | 144.5 |
| B | 7 | 252 | 92428 | 634.89 | 681 | 658 | 144.5 |
| B | 2 | 249 | 69615 | 477.07 | 681 | 658 | 144.5 |
| C | 15 | 224 | 650167 | 3624.19 | 655 | 648 | 179.2 |
| C | 12 | 252 | 88517 | 490.29 | 655 | 648 | 179.2 |
| C | 14 | 254 | 79074 | 437.6 | 655 | 648 | 179.2 |
| D | 8 | 160 | 1112729 | 6074.09 | 645 | 616 | 183.1 |
| D | 8 | 240 | 200254 | 1090.37 | 645 | 616 | 183.1 |
| D | 2 | 31 | 103324 | 560.97 | 645 | 616 | 183.1 |

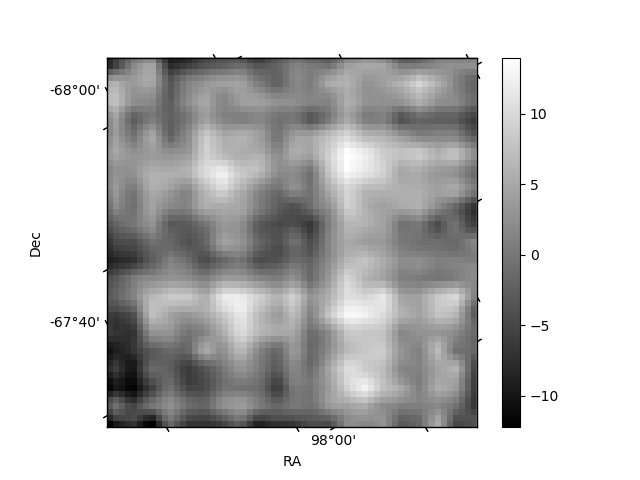

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

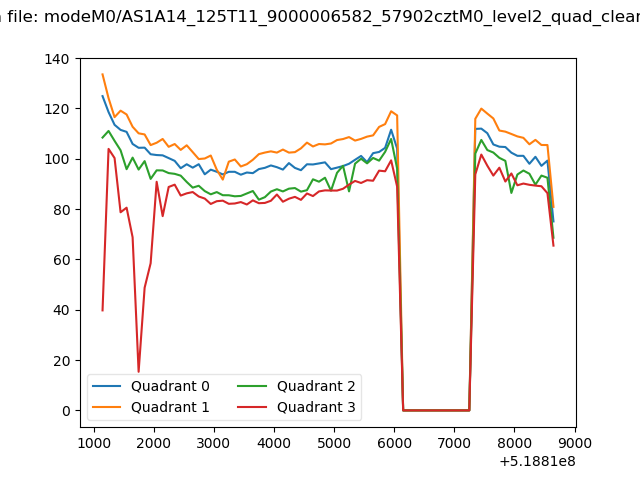

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

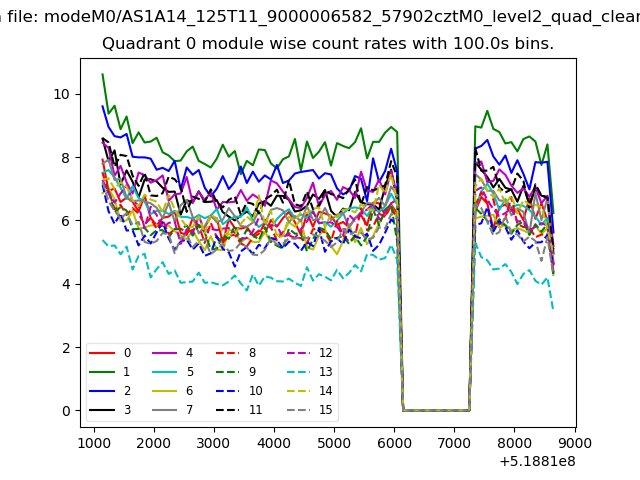

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

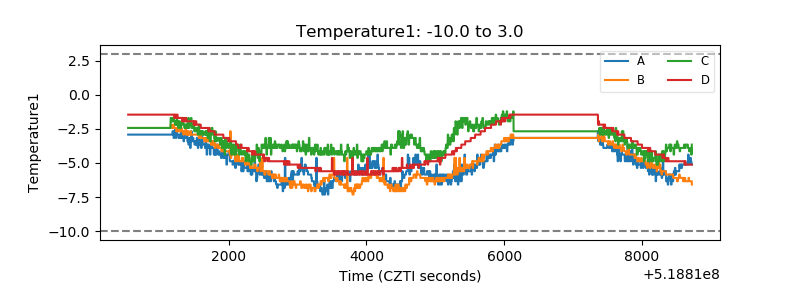

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

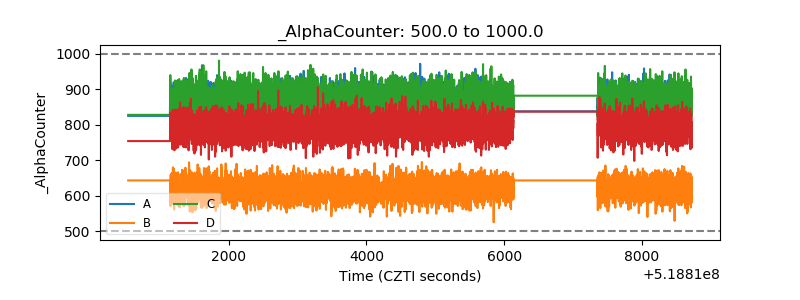

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

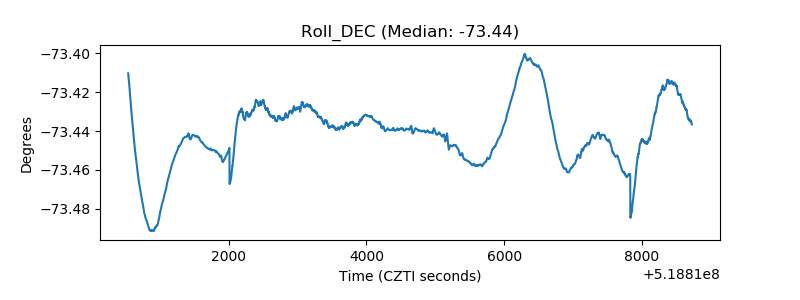

| _Roll_DEC |  |
| _Roll_RA |  |

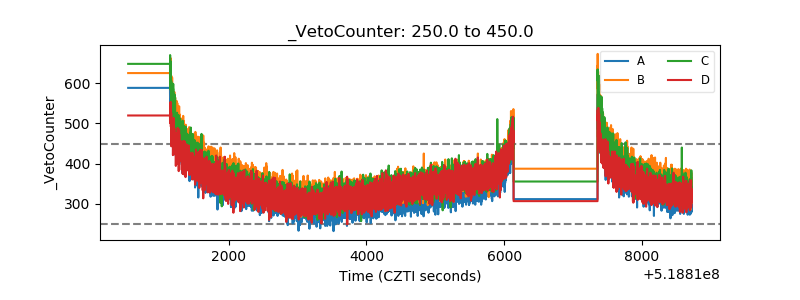

| Veto Counter |  |
