| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57905cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57905cztM0_level2_quad_clean.evt |
| Size (bytes) | 395,841,600 | 100,802,880 |
| Size | 377.5 MB | 96.1 MB |
| Events in quadrant A | 2,921,728 | 667,291 |
| Events in quadrant B | 3,308,228 | 707,150 |
| Events in quadrant C | 4,620,250 | 600,984 |
| Events in quadrant D | 3,258,538 | 589,633 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14214 | 2 |
| B | 0 | 14990 | 2 |
| C | 0 | 18787 | 2 |
| D | 0 | 15036 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6987 | 20 | 0.286246% |
| B | 6987 | 76 | 1.087734% |
| C | 6987 | 394 | 5.639044% |
| D | 6987 | 39 | 0.558179% |

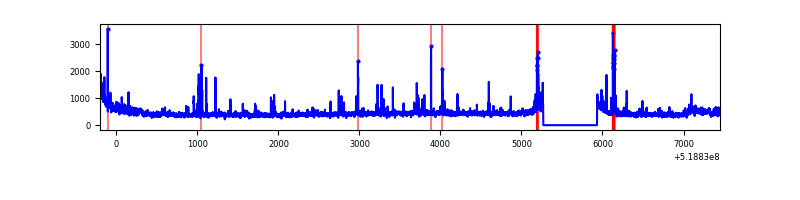

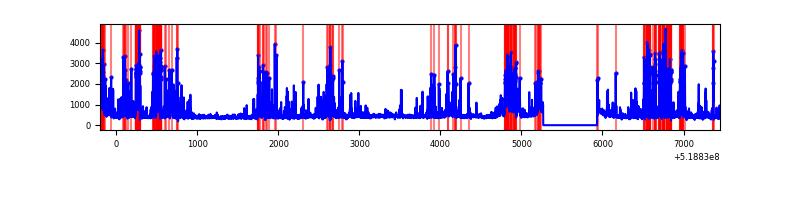

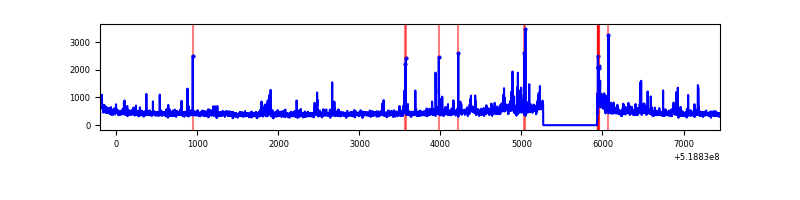

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7652 | 6988 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7652 | 6988 | 14 | 14 | 0.18% | 0.20% |  |
| C | 7652 | 6988 | 341 | 341 | 4.46% | 4.88% |  |
| D | 7652 | 6988 | 24 | 24 | 0.31% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 47351 | 259.0 | 735 | 716 | 180.1 |
| A | 3 | 245 | 14989 | 79.27 | 735 | 716 | 180.1 |
| A | 3 | 137 | 9146 | 46.82 | 735 | 716 | 180.1 |
| B | 10 | 128 | 83032 | 535.95 | 726 | 696 | 153.6 |
| B | 0 | 63 | 38938 | 248.93 | 726 | 696 | 153.6 |
| B | 5 | 185 | 38707 | 247.42 | 726 | 696 | 153.6 |
| C | 15 | 224 | 1431763 | 7618.28 | 694 | 686 | 187.8 |
| C | 12 | 252 | 357585 | 1899.94 | 694 | 686 | 187.8 |
| C | 1 | 16 | 39310 | 205.61 | 694 | 686 | 187.8 |
| D | 8 | 160 | 122274 | 612.08 | 707 | 674 | 198.7 |
| D | 2 | 31 | 72844 | 363.27 | 707 | 674 | 198.7 |
| D | 12 | 248 | 52568 | 261.21 | 707 | 674 | 198.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

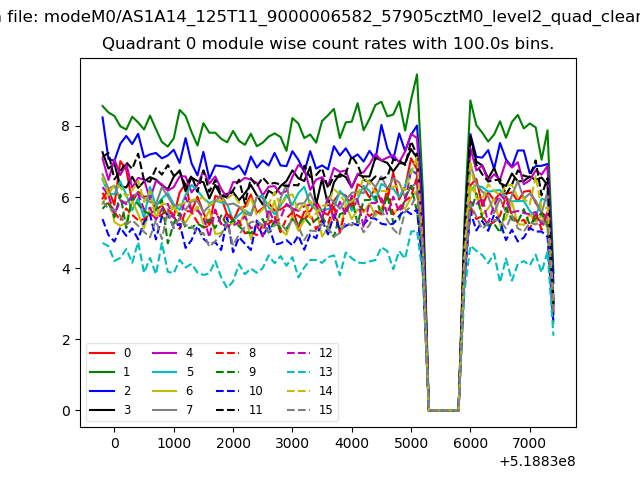

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

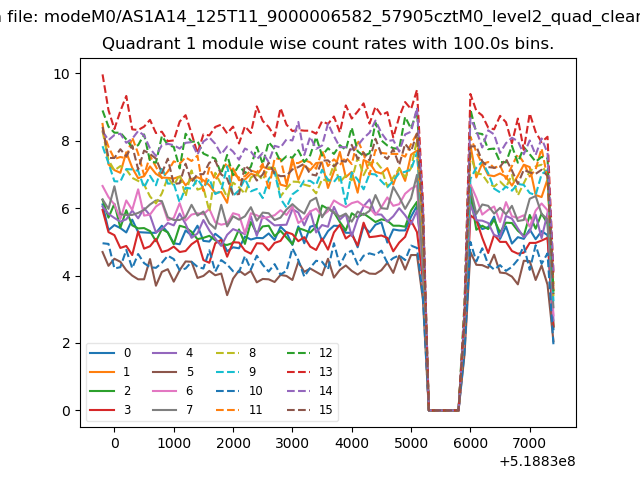

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

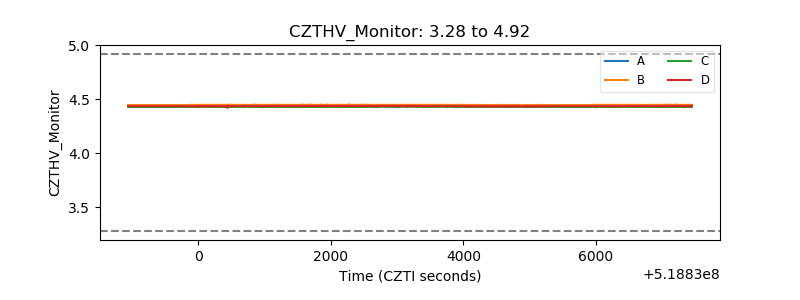

| CZT HV Monitor |  |
| D_VDD |  |

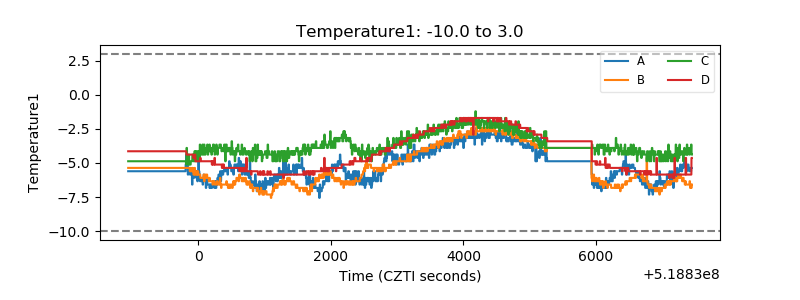

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

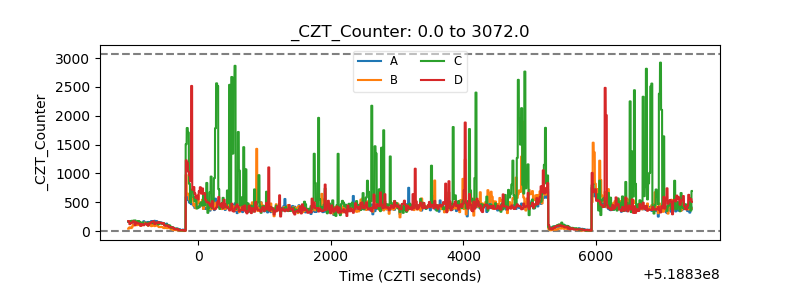

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
