| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57906cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57906cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,688,094,720 | 410,823,360 |
| Size | 1.6 GB | 391.8 MB |
| Events in quadrant A | 11,903,424 | 2,742,678 |
| Events in quadrant B | 15,704,023 | 2,869,552 |
| Events in quadrant C | 18,930,955 | 2,479,800 |
| Events in quadrant D | 13,761,709 | 2,405,019 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 572 | 0 |
| B | 0 | 572 | 0 |
| C | 0 | 572 | 0 |
| D | 0 | 572 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 57573 | 4 |
| B | 0 | 67260 | 4 |
| C | 0 | 76783 | 4 |
| D | 0 | 62377 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 41 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28251 | 93 | 0.329192% |
| B | 28252 | 945 | 3.344896% |
| C | 28251 | 1526 | 5.401579% |
| D | 28251 | 403 | 1.426498% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

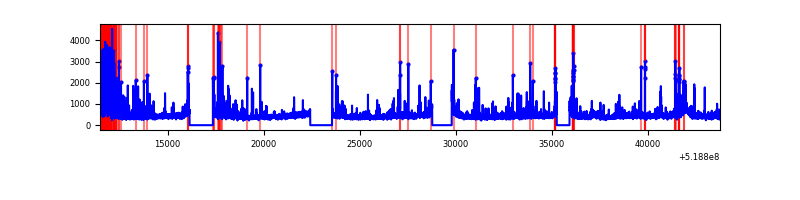

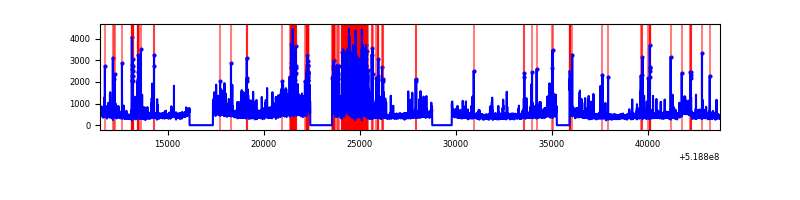

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 32296 | 28255 | 3 | 3 | 0.01% | 0.01% |  |
| B | 32297 | 28256 | 445 | 445 | 1.38% | 1.57% |  |
| C | 32296 | 28255 | 1199 | 1199 | 3.71% | 4.24% |  |
| D | 32296 | 28255 | 361 | 361 | 1.12% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 190350 | 254.25 | 3018 | 2944 | 737.1 |
| A | 3 | 137 | 36956 | 46.14 | 3018 | 2944 | 737.1 |
| A | 3 | 245 | 31507 | 38.75 | 3018 | 2944 | 737.1 |
| B | 10 | 128 | 2845079 | 4594.8 | 2956 | 2842 | 618.6 |
| B | 7 | 252 | 261919 | 418.83 | 2956 | 2842 | 618.6 |
| B | 2 | 249 | 158014 | 250.85 | 2956 | 2842 | 618.6 |
| C | 15 | 224 | 6496870 | 8447.99 | 2854 | 2823 | 768.7 |
| C | 12 | 252 | 497007 | 642.88 | 2854 | 2823 | 768.7 |
| C | 14 | 254 | 176648 | 226.13 | 2854 | 2823 | 768.7 |
| D | 8 | 160 | 989021 | 1225.52 | 2895 | 2762 | 804.8 |
| D | 2 | 31 | 255948 | 314.61 | 2895 | 2762 | 804.8 |
| D | 8 | 240 | 247355 | 303.93 | 2895 | 2762 | 804.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

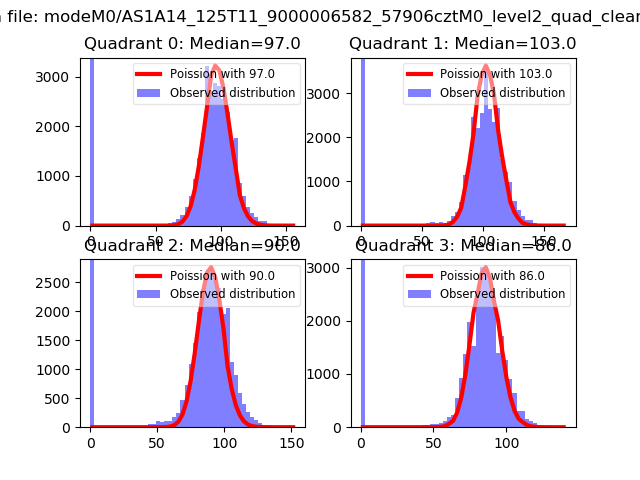

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

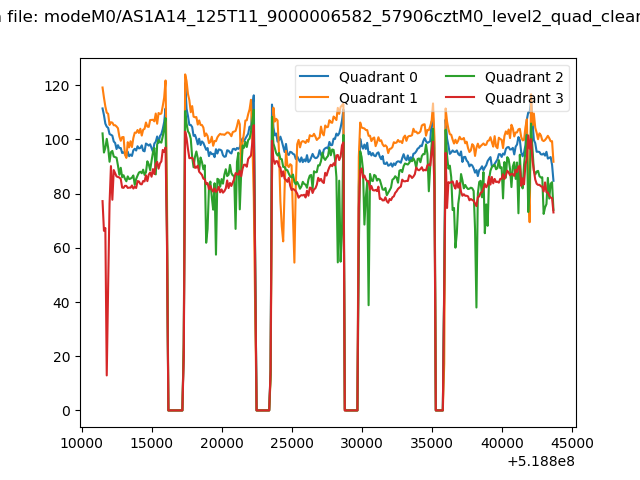

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

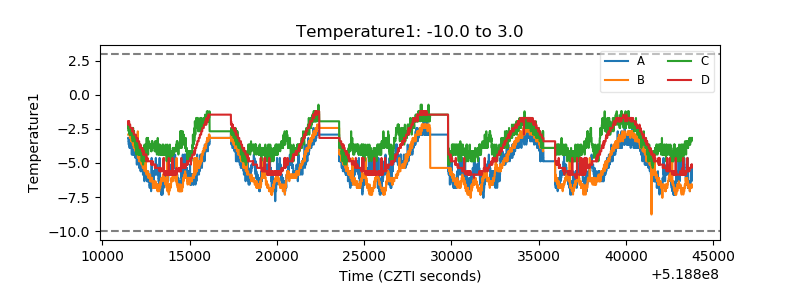

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

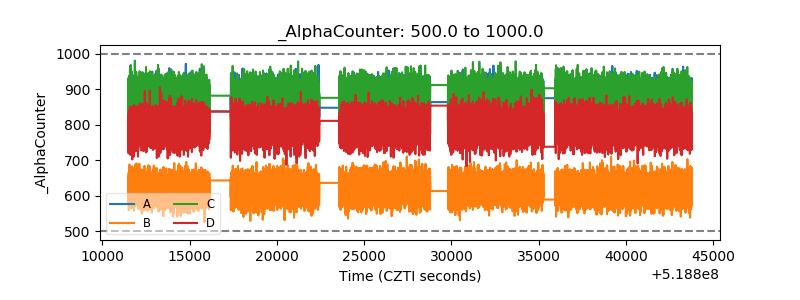

| Alpha Counter |  |

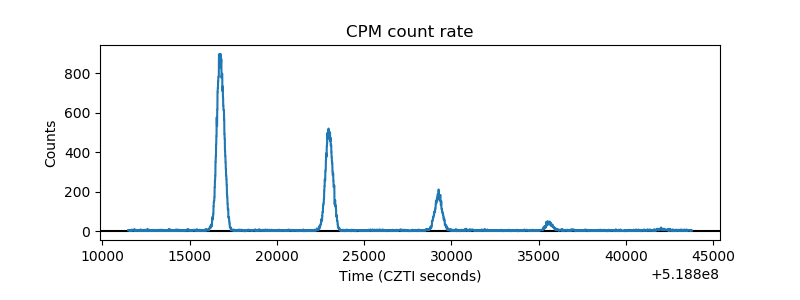

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

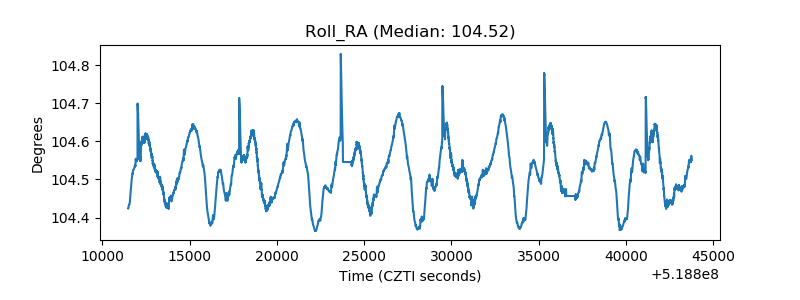

| _Roll_RA |  |
| Veto Counter |  |
