| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57907cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57907cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,154,560 | 108,835,200 |
| Size | 469.4 MB | 103.8 MB |
| Events in quadrant A | 3,856,778 | 715,033 |
| Events in quadrant B | 4,206,543 | 758,928 |
| Events in quadrant C | 6,128,274 | 646,711 |
| Events in quadrant D | 3,431,014 | 641,937 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17483 | 0 |
| B | 0 | 18262 | 0 |
| C | 0 | 23578 | 0 |
| D | 0 | 15942 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7661 | 59 | 0.770134% |
| B | 7662 | 233 | 3.040981% |
| C | 7662 | 528 | 6.891151% |
| D | 7662 | 21 | 0.274080% |

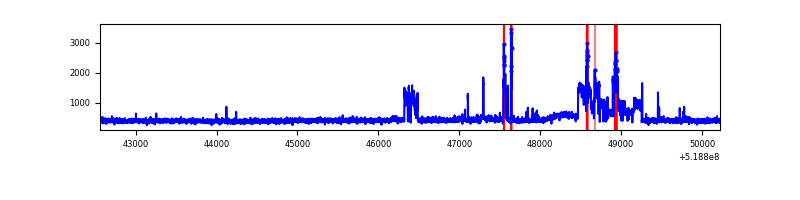

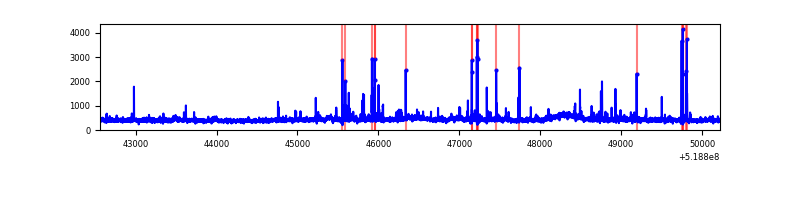

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 7661 | 33 | 33 | 0.43% | 0.43% |  |
| B | 7662 | 7662 | 125 | 125 | 1.63% | 1.63% |  |
| C | 7662 | 7662 | 418 | 418 | 5.46% | 5.46% |  |
| D | 7662 | 7662 | 19 | 19 | 0.25% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 714963 | 3599.15 | 803 | 781 | 198.4 |
| A | 7 | 64 | 20376 | 98.75 | 803 | 781 | 198.4 |
| A | 10 | 251 | 13625 | 64.73 | 803 | 781 | 198.4 |
| B | 3 | 238 | 619975 | 3630.45 | 794 | 761 | 170.6 |
| B | 9 | 251 | 141103 | 822.83 | 794 | 761 | 170.6 |
| B | 5 | 185 | 135077 | 787.5 | 794 | 761 | 170.6 |
| C | 15 | 224 | 2362471 | 11384.38 | 766 | 757 | 207.5 |
| C | 15 | 208 | 615004 | 2960.91 | 766 | 757 | 207.5 |
| C | 12 | 252 | 48905 | 232.09 | 766 | 757 | 207.5 |
| D | 12 | 248 | 115248 | 522.47 | 780 | 740 | 219.2 |
| D | 3 | 12 | 61083 | 275.33 | 780 | 740 | 219.2 |
| D | 5 | 173 | 55016 | 247.64 | 780 | 740 | 219.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

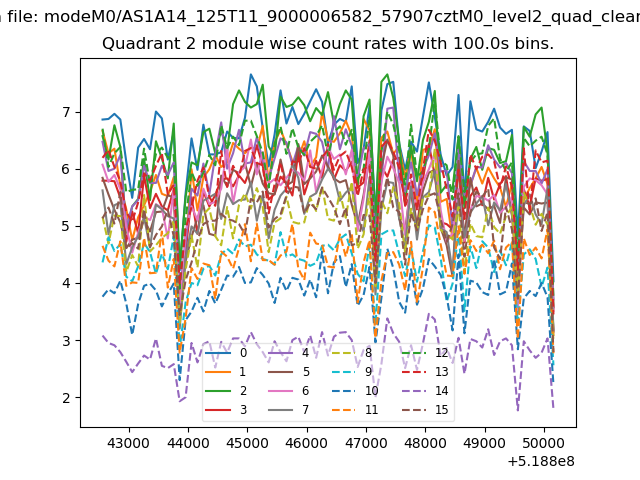

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

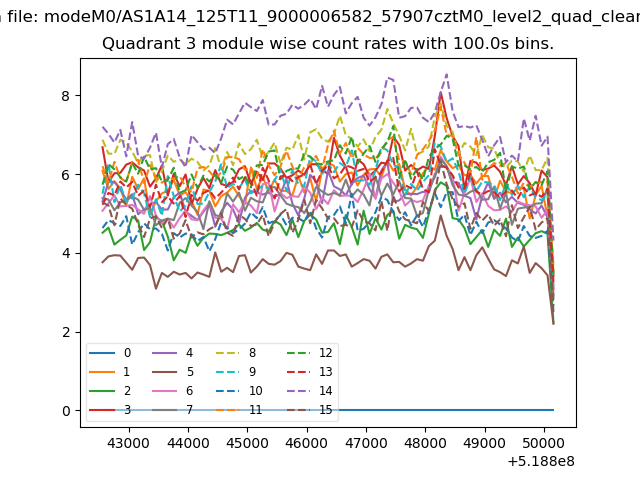

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

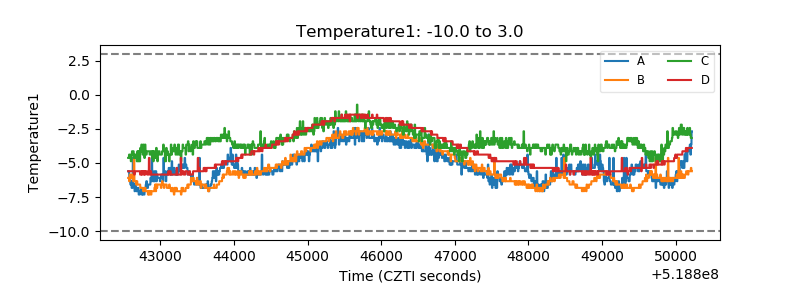

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

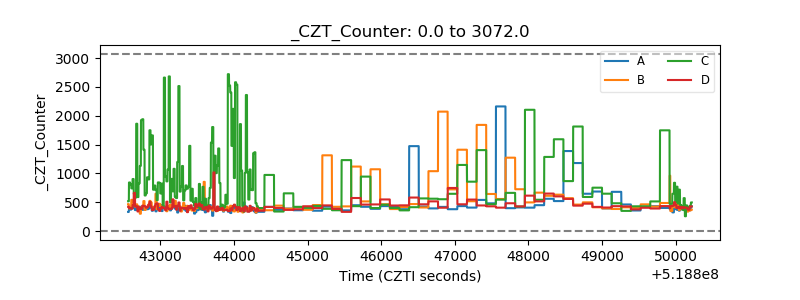

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

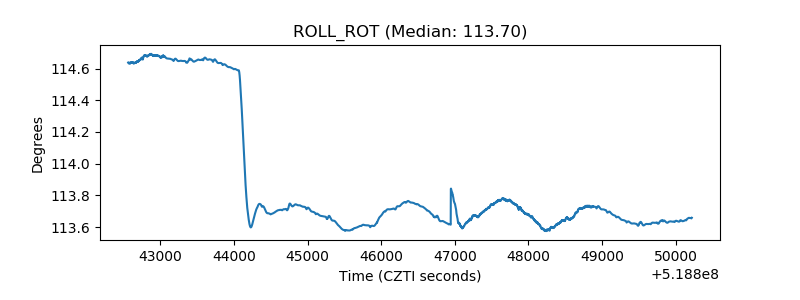

| _ROLL_ROT |  |

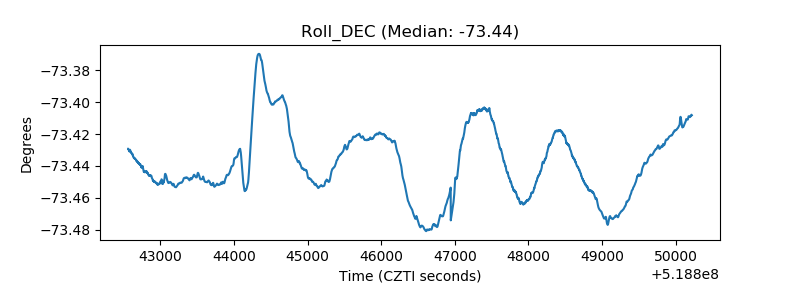

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
