| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57908cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57908cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,228,160 | 106,940,160 |
| Size | 488.5 MB | 102.0 MB |
| Events in quadrant A | 3,550,742 | 714,213 |
| Events in quadrant B | 3,725,821 | 757,234 |
| Events in quadrant C | 7,388,800 | 592,966 |
| Events in quadrant D | 3,701,803 | 641,896 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16495 | 0 |
| B | 0 | 16794 | 0 |
| C | 0 | 27273 | 0 |
| D | 0 | 16767 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7638 | 83 | 1.086672% |
| B | 7638 | 219 | 2.867243% |
| C | 7638 | 1201 | 15.724012% |
| D | 7639 | 92 | 1.204346% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

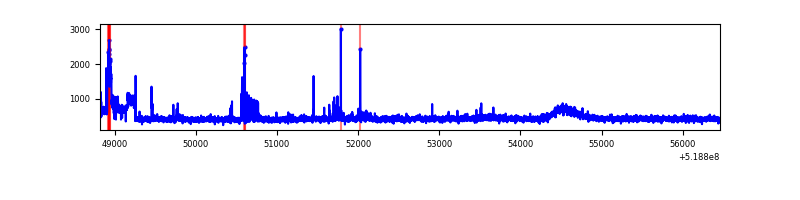

| A | 7638 | 7638 | 17 | 17 | 0.22% | 0.22% |  |
| B | 7638 | 7638 | 43 | 43 | 0.56% | 0.56% |  |

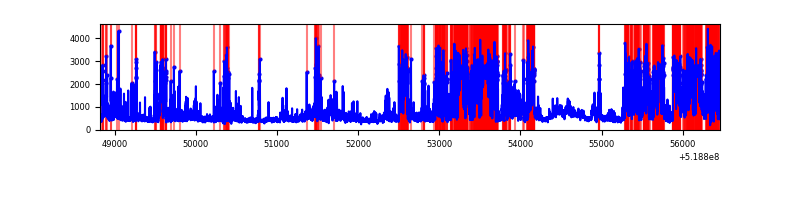

| C | 7638 | 7638 | 1019 | 1019 | 13.34% | 13.34% |  |

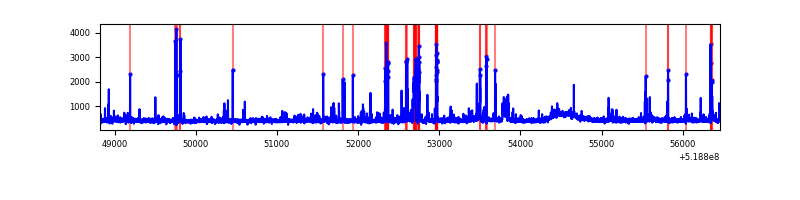

| D | 7639 | 7639 | 65 | 65 | 0.85% | 0.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 315077 | 1551.93 | 818 | 796 | 202.5 |
| A | 10 | 251 | 26378 | 126.32 | 818 | 796 | 202.5 |
| A | 7 | 64 | 21441 | 101.95 | 818 | 796 | 202.5 |
| B | 3 | 238 | 342076 | 1986.36 | 806 | 774 | 171.8 |
| B | 7 | 252 | 45178 | 258.43 | 806 | 774 | 171.8 |
| B | 4 | 201 | 27137 | 153.43 | 806 | 774 | 171.8 |
| C | 15 | 224 | 3938736 | 19661.61 | 746 | 738 | 200.3 |
| C | 15 | 208 | 228841 | 1138.87 | 746 | 738 | 200.3 |
| C | 6 | 223 | 129904 | 644.9 | 746 | 738 | 200.3 |
| D | 2 | 31 | 211349 | 939.15 | 796 | 758 | 224.2 |
| D | 3 | 12 | 111230 | 492.66 | 796 | 758 | 224.2 |
| D | 12 | 248 | 108072 | 478.58 | 796 | 758 | 224.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

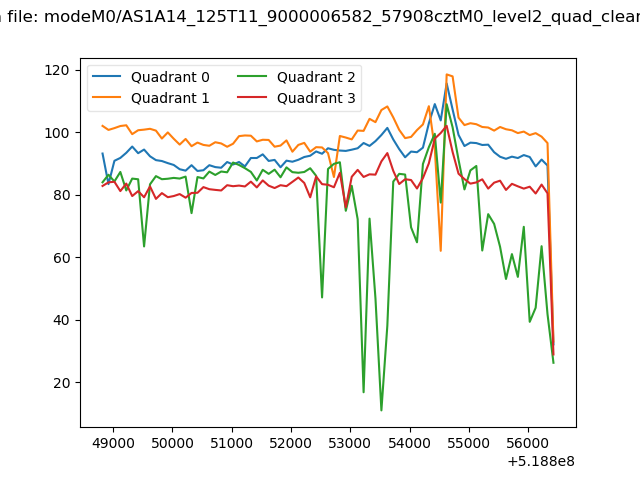

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

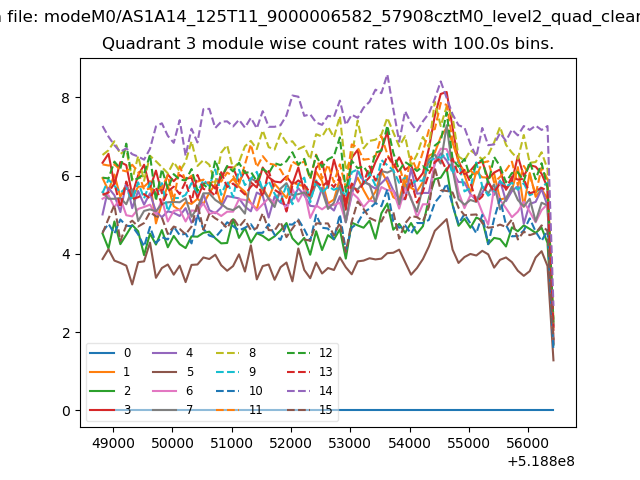

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

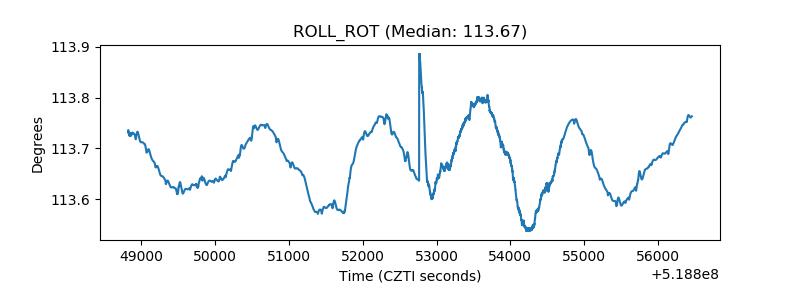

| _ROLL_ROT |  |

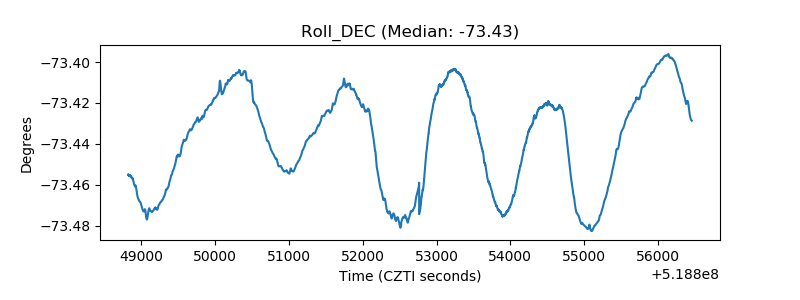

| _Roll_DEC |  |
| _Roll_RA |  |

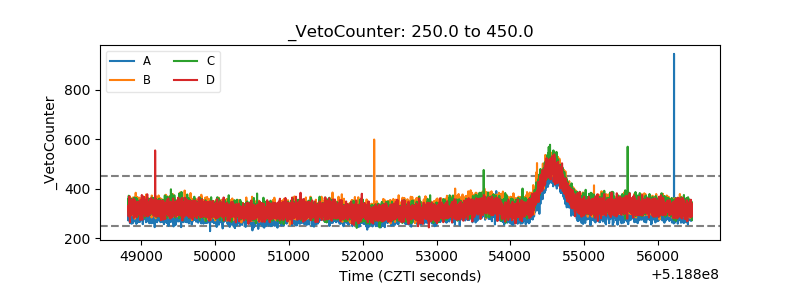

| Veto Counter |  |
