| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57911cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57911cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,139,106,240 | 252,213,120 |
| Size | 1.1 GB | 240.5 MB |
| Events in quadrant A | 8,474,709 | 1,666,892 |
| Events in quadrant B | 9,812,751 | 1,728,690 |
| Events in quadrant C | 13,969,104 | 1,486,910 |
| Events in quadrant D | 8,511,223 | 1,509,930 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 368 | 0 |
| B | 0 | 368 | 0 |
| C | 0 | 368 | 0 |
| D | 0 | 368 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38672 | 4 |
| B | 0 | 41902 | 4 |
| C | 0 | 54153 | 4 |
| D | 0 | 38509 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18042 | 313 | 1.734841% |
| B | 18043 | 739 | 4.095771% |
| C | 18043 | 1489 | 8.252508% |
| D | 18043 | 266 | 1.474256% |

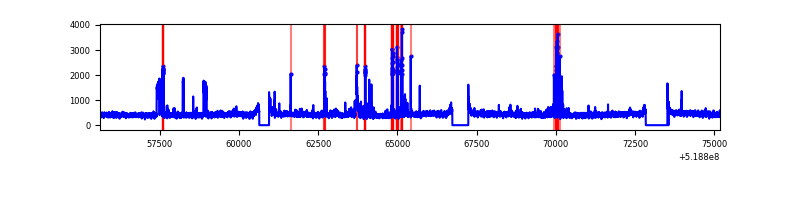

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19557 | 18043 | 83 | 83 | 0.42% | 0.46% |  |
| B | 19558 | 18045 | 364 | 364 | 1.86% | 2.02% |  |
| C | 19558 | 18045 | 1189 | 1189 | 6.08% | 6.59% |  |
| D | 19558 | 18044 | 82 | 82 | 0.42% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 545934 | 1136.24 | 1938 | 1888 | 478.8 |
| A | 9 | 108 | 125947 | 259.1 | 1938 | 1888 | 478.8 |
| A | 7 | 64 | 106474 | 218.43 | 1938 | 1888 | 478.8 |
| B | 8 | 234 | 713403 | 1768.16 | 1886 | 1812 | 402.4 |
| B | 10 | 128 | 577003 | 1429.23 | 1886 | 1812 | 402.4 |
| B | 3 | 238 | 184842 | 454.79 | 1886 | 1812 | 402.4 |
| C | 15 | 224 | 6030215 | 12237.48 | 1822 | 1797 | 492.6 |
| C | 12 | 252 | 353798 | 714.55 | 1822 | 1797 | 492.6 |
| C | 6 | 223 | 122916 | 245.87 | 1822 | 1797 | 492.6 |
| D | 3 | 12 | 186576 | 350.43 | 1884 | 1805 | 527.3 |
| D | 5 | 32 | 160315 | 300.62 | 1884 | 1805 | 527.3 |
| D | 12 | 248 | 135375 | 253.32 | 1884 | 1805 | 527.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

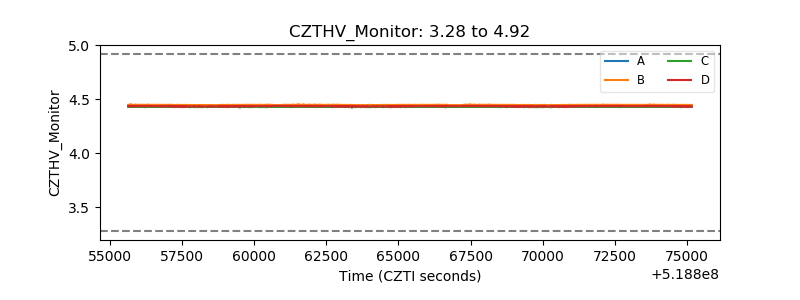

| CZT HV Monitor |  |
| D_VDD |  |

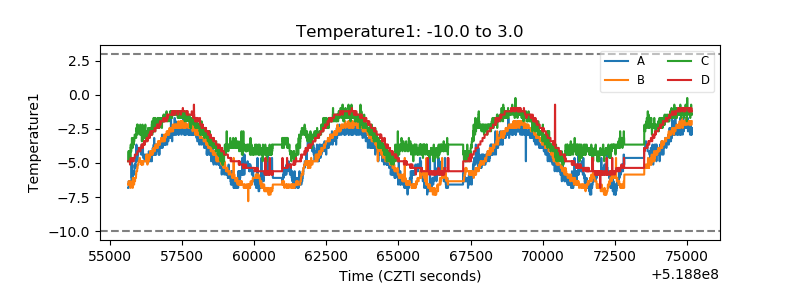

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

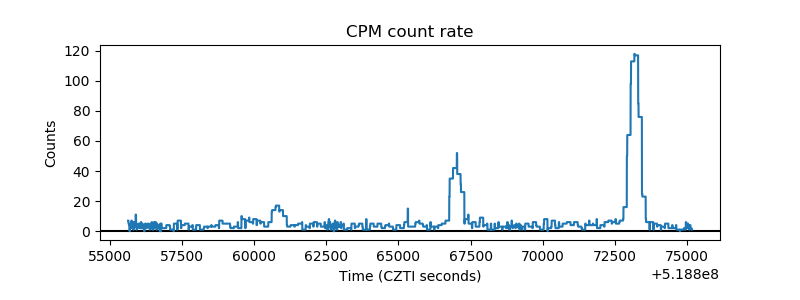

| _CPM_Rate |  |

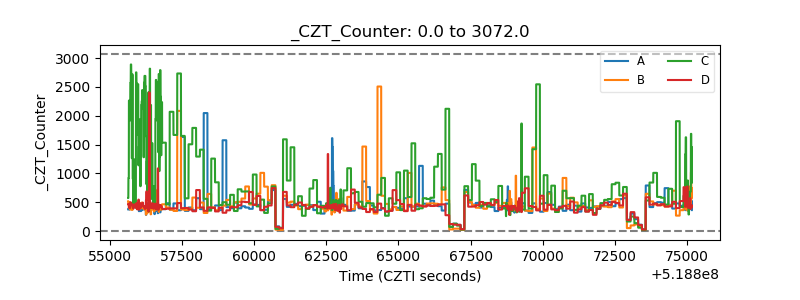

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

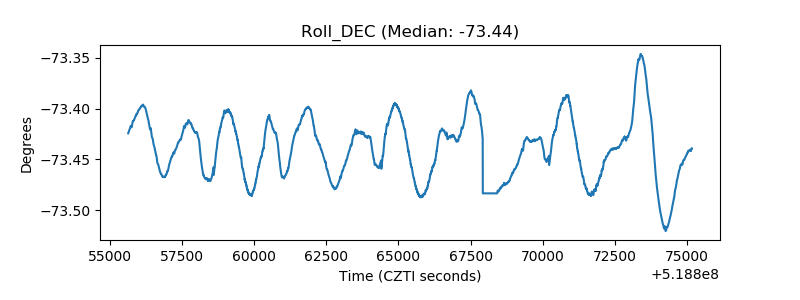

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
