| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57912cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57912cztM0_level2_quad_clean.evt |
| Size (bytes) | 387,915,840 | 94,559,040 |
| Size | 369.9 MB | 90.2 MB |
| Events in quadrant A | 2,940,727 | 619,548 |
| Events in quadrant B | 3,087,322 | 656,987 |
| Events in quadrant C | 4,147,748 | 581,636 |
| Events in quadrant D | 3,682,452 | 556,187 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13392 | 1 |
| B | 0 | 13870 | 1 |
| C | 0 | 16788 | 1 |
| D | 0 | 15707 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 64 | 0.994098% |
| B | 6438 | 95 | 1.475614% |
| C | 6438 | 203 | 3.153153% |
| D | 6438 | 178 | 2.764834% |

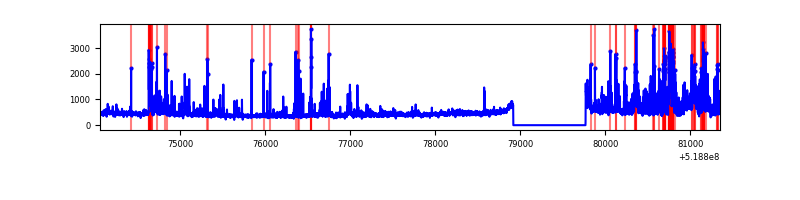

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7288 | 6439 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7288 | 6438 | 19 | 19 | 0.26% | 0.30% |  |
| C | 7288 | 6439 | 156 | 156 | 2.14% | 2.42% |  |
| D | 7288 | 6439 | 124 | 124 | 1.70% | 1.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 176047 | 1010.82 | 698 | 677 | 173.5 |
| A | 3 | 14 | 34520 | 195.07 | 698 | 677 | 173.5 |
| A | 3 | 245 | 15695 | 86.56 | 698 | 677 | 173.5 |
| B | 0 | 153 | 108146 | 735.96 | 682 | 657 | 146.1 |
| B | 10 | 247 | 58769 | 397.89 | 682 | 657 | 146.1 |
| B | 5 | 185 | 48030 | 324.36 | 682 | 657 | 146.1 |
| C | 15 | 224 | 1301695 | 7153.19 | 666 | 660 | 181.9 |
| C | 12 | 252 | 128128 | 700.83 | 666 | 660 | 181.9 |
| C | 15 | 208 | 36252 | 195.69 | 666 | 660 | 181.9 |
| D | 2 | 249 | 375781 | 1953.38 | 673 | 641 | 192.0 |
| D | 8 | 160 | 367408 | 1909.78 | 673 | 641 | 192.0 |
| D | 5 | 32 | 57282 | 294.93 | 673 | 641 | 192.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

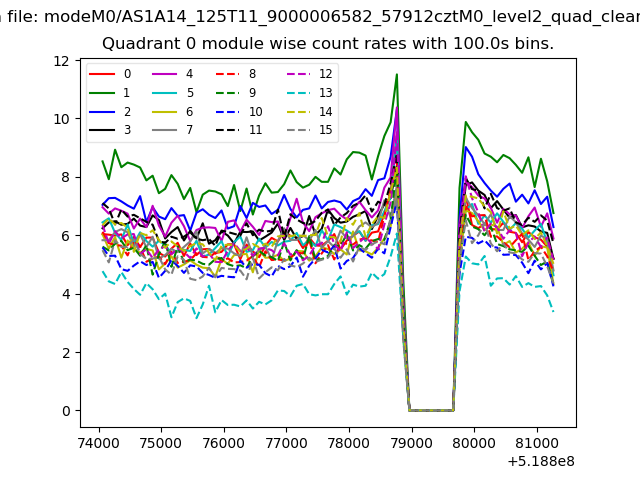

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

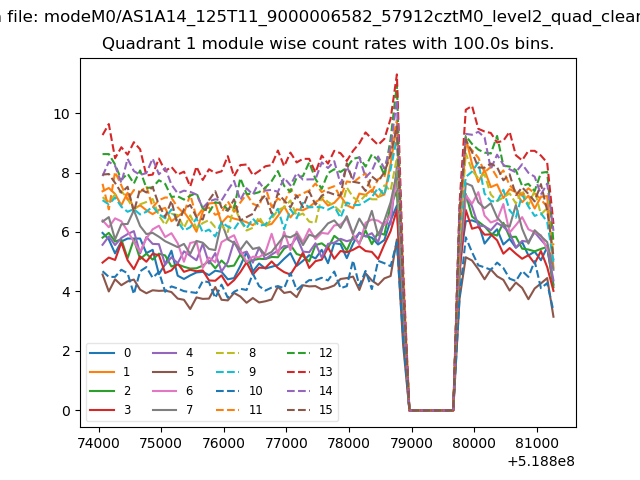

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

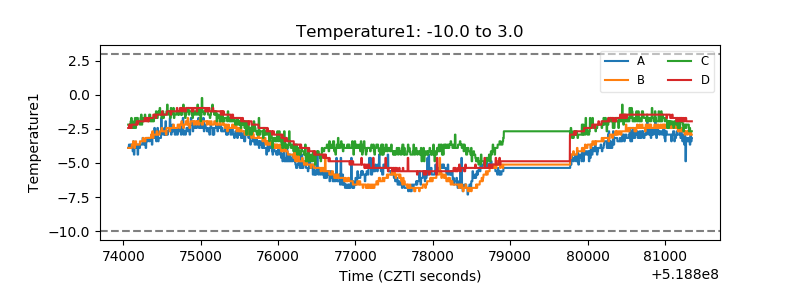

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

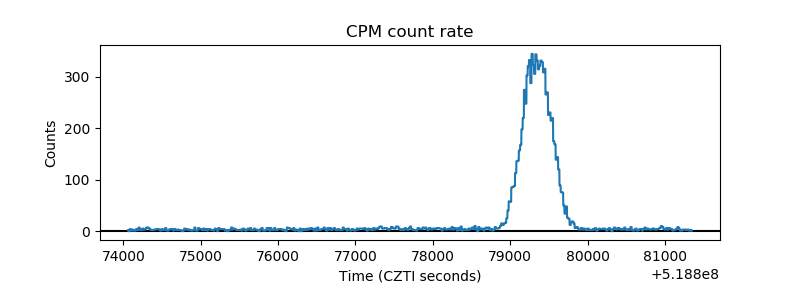

| _CPM_Rate |  |

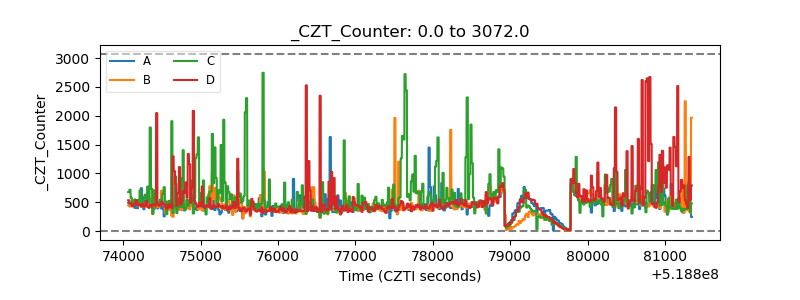

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

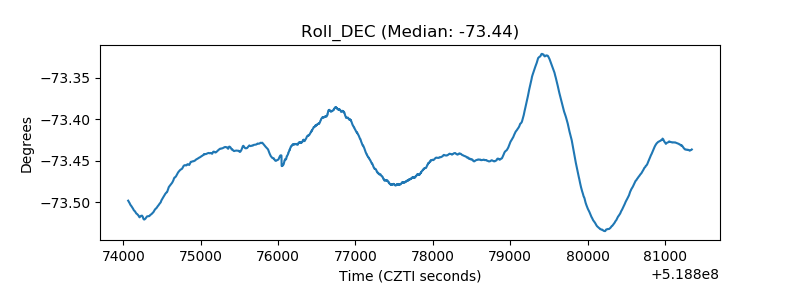

| _Roll_DEC |  |
| _Roll_RA |  |

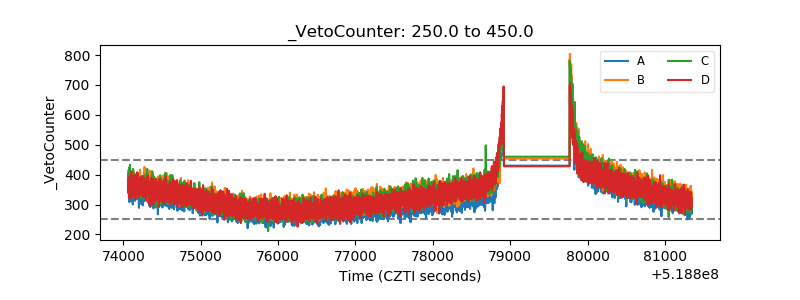

| Veto Counter |  |
