| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57914cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57914cztM0_level2_quad_clean.evt |
| Size (bytes) | 380,070,720 | 90,915,840 |
| Size | 362.5 MB | 86.7 MB |
| Events in quadrant A | 2,721,766 | 603,933 |
| Events in quadrant B | 3,189,410 | 623,242 |
| Events in quadrant C | 3,777,657 | 563,749 |
| Events in quadrant D | 3,906,686 | 537,241 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12640 | 1 |
| B | 0 | 13917 | 1 |
| C | 0 | 15600 | 1 |
| D | 0 | 16095 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6082 | 41 | 0.674120% |
| B | 6083 | 137 | 2.252178% |
| C | 6083 | 140 | 2.301496% |
| D | 6082 | 206 | 3.387044% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7112 | 6082 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7113 | 6083 | 53 | 53 | 0.75% | 0.87% |  |
| C | 7113 | 6084 | 122 | 122 | 1.72% | 2.01% |  |
| D | 7112 | 6083 | 197 | 197 | 2.77% | 3.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 155464 | 948.35 | 656 | 639 | 163.3 |
| A | 3 | 14 | 20583 | 122.16 | 656 | 639 | 163.3 |
| A | 3 | 137 | 7976 | 44.94 | 656 | 639 | 163.3 |
| B | 4 | 142 | 407779 | 2970.52 | 639 | 616 | 137.1 |
| B | 0 | 63 | 55638 | 401.42 | 639 | 616 | 137.1 |
| B | 10 | 247 | 54374 | 392.2 | 639 | 616 | 137.1 |
| C | 15 | 224 | 901948 | 5296.46 | 621 | 614 | 170.2 |
| C | 2 | 12 | 294349 | 1726.06 | 621 | 614 | 170.2 |
| C | 12 | 252 | 50546 | 293.41 | 621 | 614 | 170.2 |
| D | 8 | 160 | 873280 | 4844.03 | 626 | 597 | 180.2 |
| D | 2 | 249 | 282247 | 1563.36 | 626 | 597 | 180.2 |
| D | 2 | 31 | 98403 | 542.89 | 626 | 597 | 180.2 |

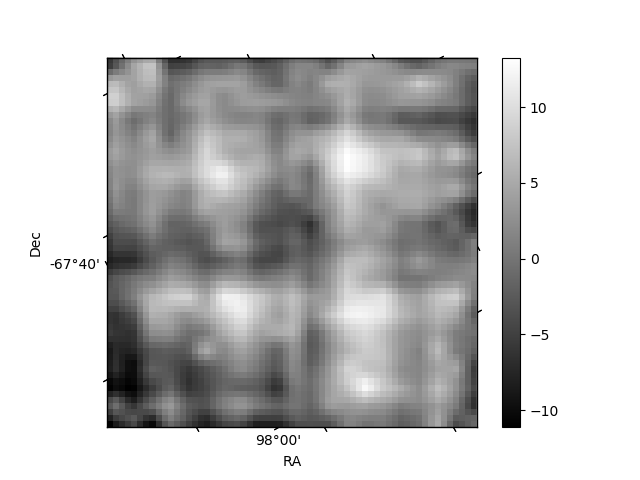

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

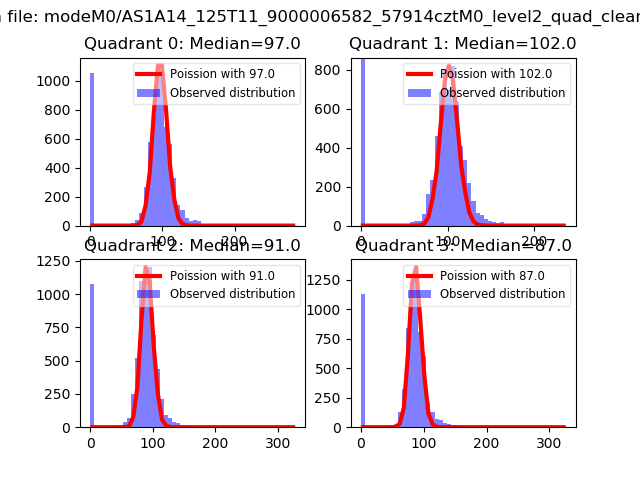

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

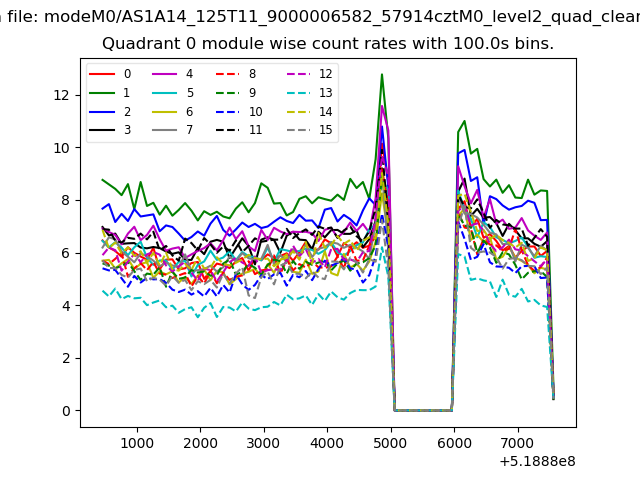

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

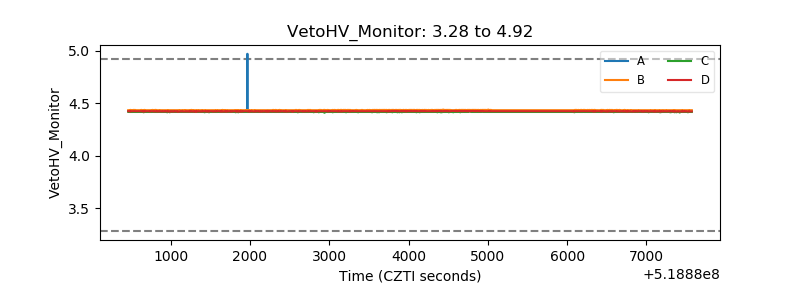

| Veto HV Monitor |  |

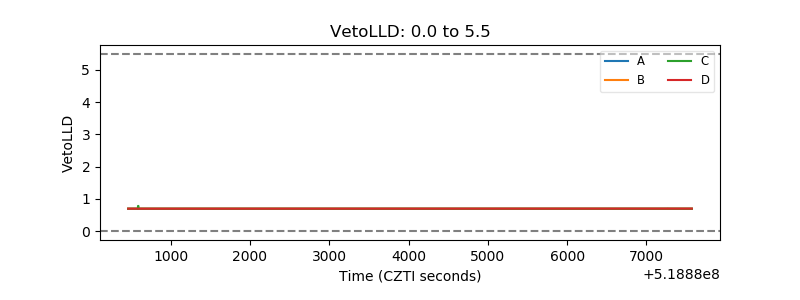

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

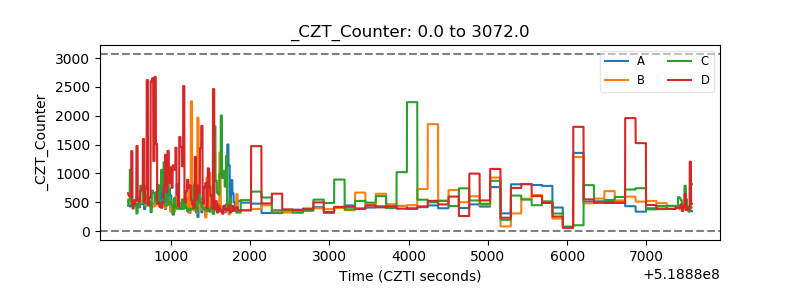

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

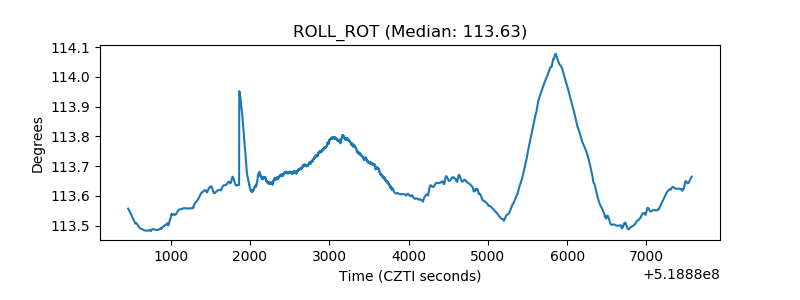

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
