| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57916cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57916cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,327,040 | 90,132,480 |
| Size | 405.6 MB | 86.0 MB |
| Events in quadrant A | 2,643,362 | 612,103 |
| Events in quadrant B | 3,327,653 | 642,783 |
| Events in quadrant C | 4,055,777 | 555,141 |
| Events in quadrant D | 5,248,920 | 497,714 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12267 | 1 |
| B | 0 | 14315 | 1 |
| C | 0 | 16307 | 1 |
| D | 0 | 19899 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6025 | 16 | 0.265560% |
| B | 6025 | 160 | 2.655602% |
| C | 6025 | 248 | 4.116183% |
| D | 6026 | 557 | 9.243279% |

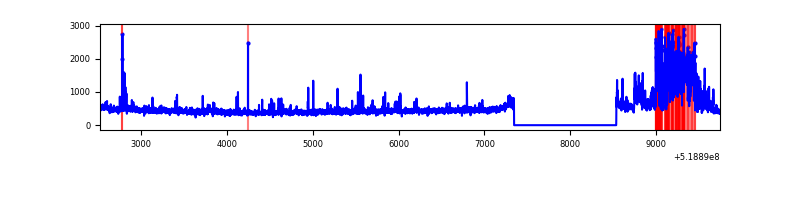

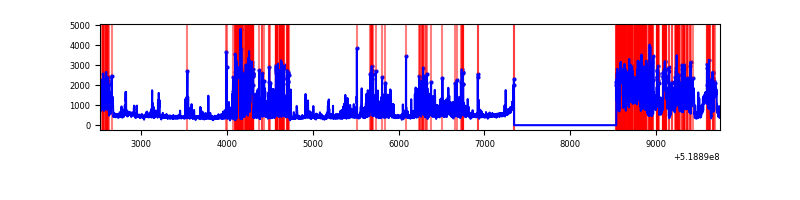

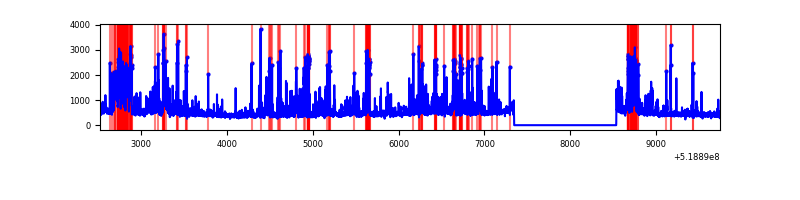

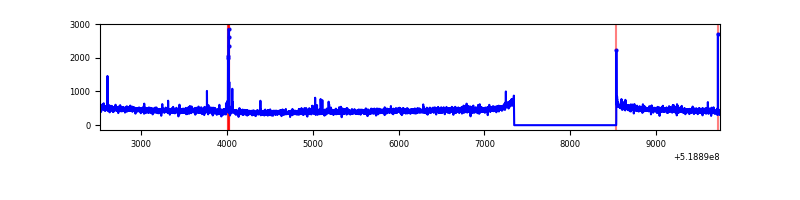

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7215 | 6026 | 7 | 7 | 0.10% | 0.12% |  |
| B | 7215 | 6026 | 90 | 90 | 1.25% | 1.49% |  |
| C | 7215 | 6026 | 247 | 247 | 3.42% | 4.10% |  |
| D | 7216 | 6026 | 570 | 570 | 7.90% | 9.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 40345 | 246.43 | 654 | 639 | 161.1 |
| A | 3 | 14 | 37987 | 231.8 | 654 | 639 | 161.1 |
| A | 3 | 245 | 24445 | 147.75 | 654 | 639 | 161.1 |
| B | 5 | 185 | 675639 | 4891.5 | 644 | 619 | 138.0 |
| B | 7 | 252 | 22816 | 160.85 | 644 | 619 | 138.0 |
| B | 10 | 247 | 19502 | 136.83 | 644 | 619 | 138.0 |
| C | 15 | 224 | 881002 | 5240.38 | 615 | 609 | 168.0 |
| C | 2 | 12 | 476219 | 2830.98 | 615 | 609 | 168.0 |
| C | 6 | 223 | 188479 | 1118.26 | 615 | 609 | 168.0 |
| D | 8 | 160 | 1172205 | 6776.07 | 600 | 571 | 172.9 |
| D | 2 | 249 | 695254 | 4017.65 | 600 | 571 | 172.9 |
| D | 2 | 62 | 438682 | 2533.79 | 600 | 571 | 172.9 |

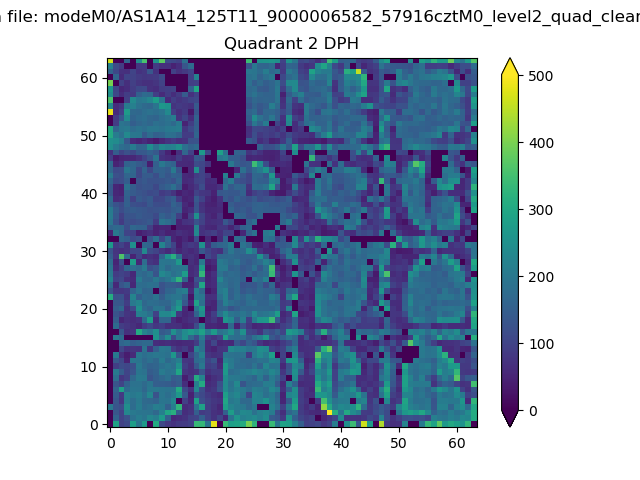

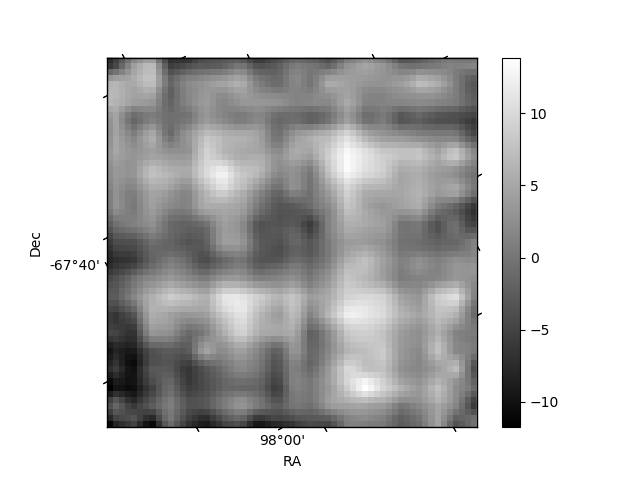

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

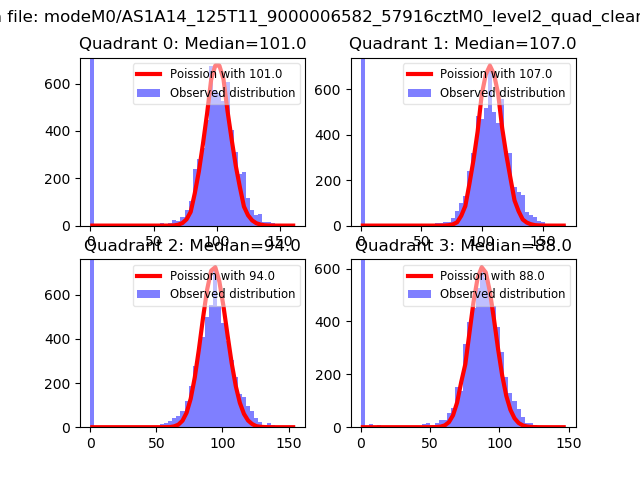

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

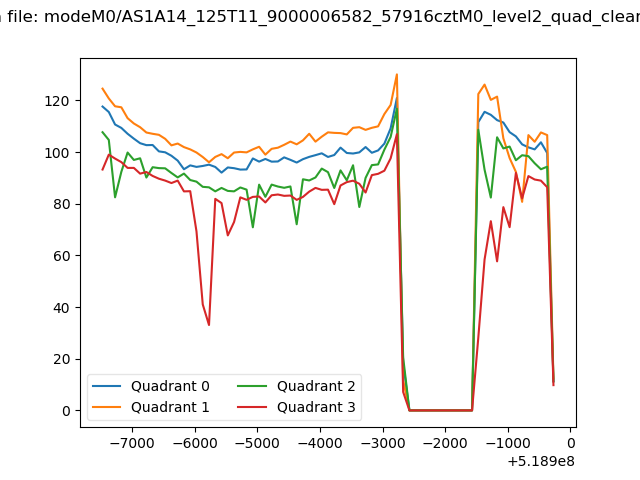

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

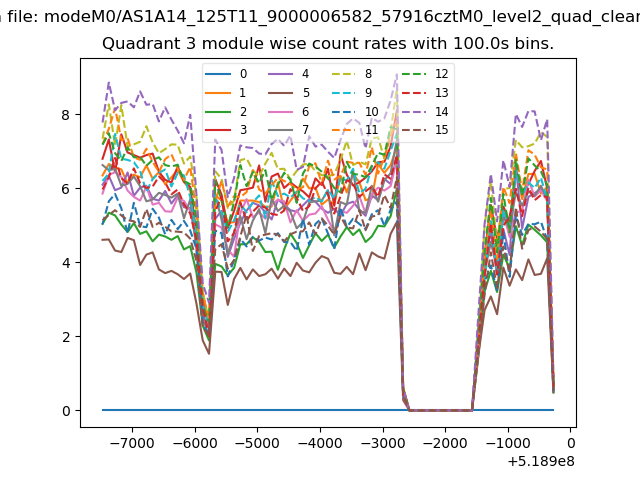

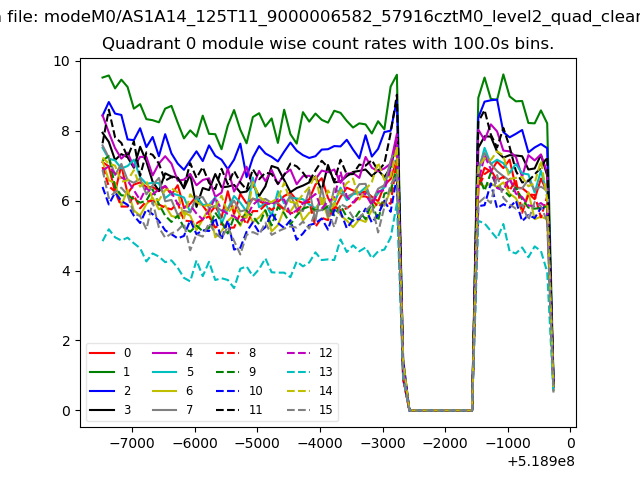

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

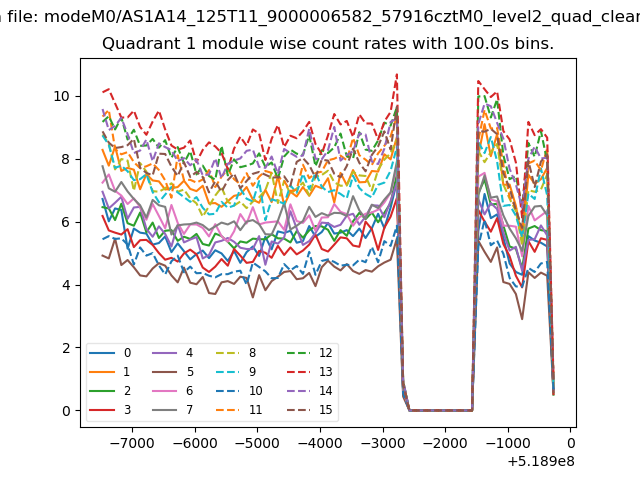

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

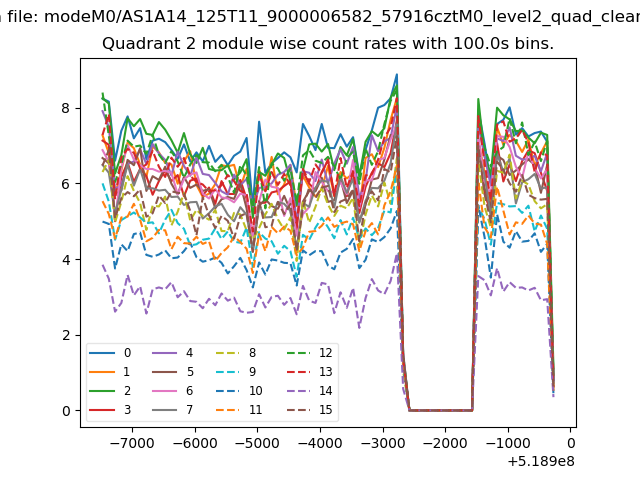

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

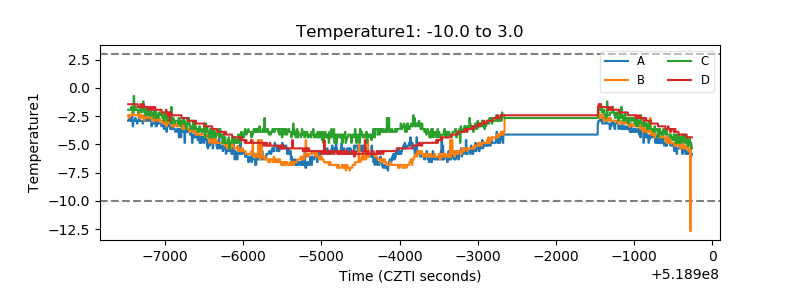

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

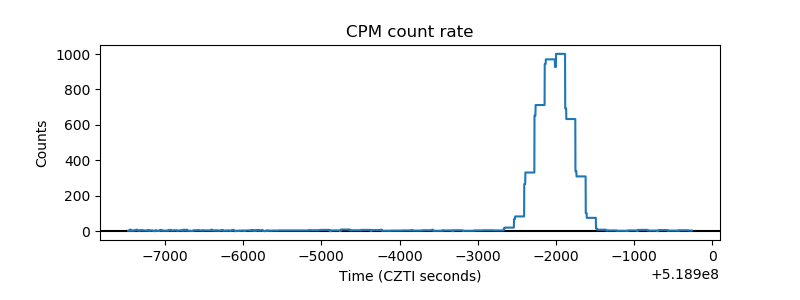

| _CPM_Rate |  |

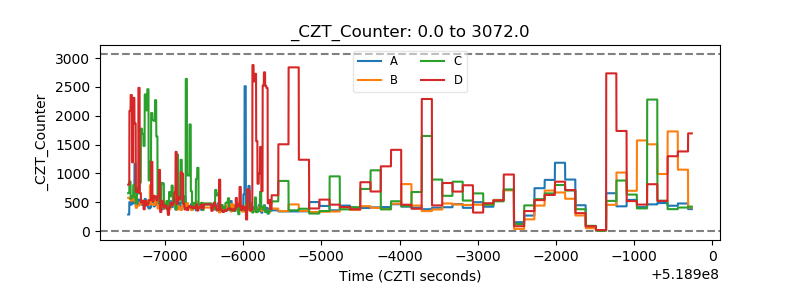

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

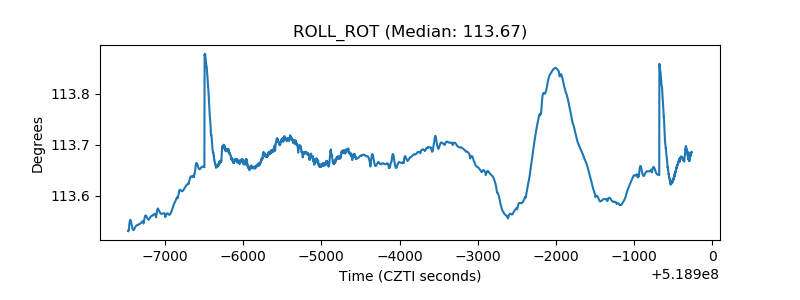

| _ROLL_ROT |  |

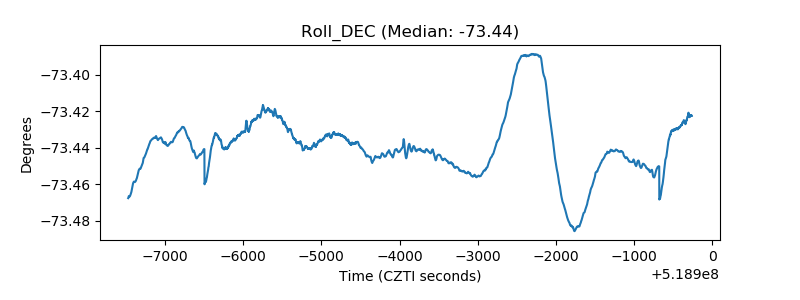

| _Roll_DEC |  |

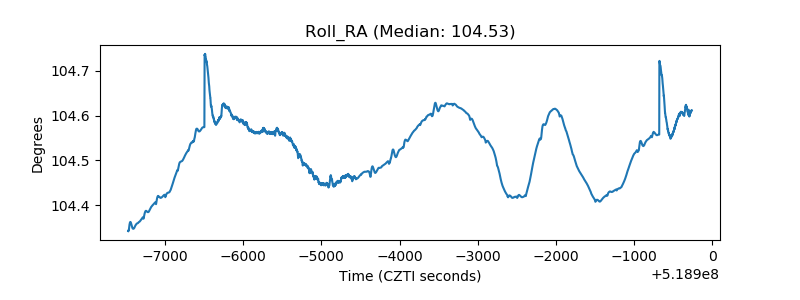

| _Roll_RA |  |

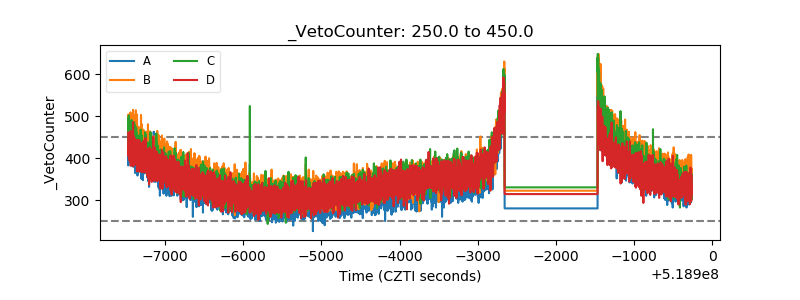

| Veto Counter |  |
