| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57917cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57917cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,094,400 | 94,279,680 |
| Size | 413.0 MB | 89.9 MB |
| Events in quadrant A | 2,891,490 | 637,651 |
| Events in quadrant B | 3,530,540 | 674,694 |
| Events in quadrant C | 3,232,021 | 589,112 |
| Events in quadrant D | 5,887,611 | 513,168 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13208 | 2 |
| B | 0 | 15110 | 2 |
| C | 0 | 14247 | 2 |
| D | 0 | 21974 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6301 | 30 | 0.476115% |
| B | 6301 | 163 | 2.586891% |
| C | 6301 | 104 | 1.650532% |
| D | 6301 | 675 | 10.712585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

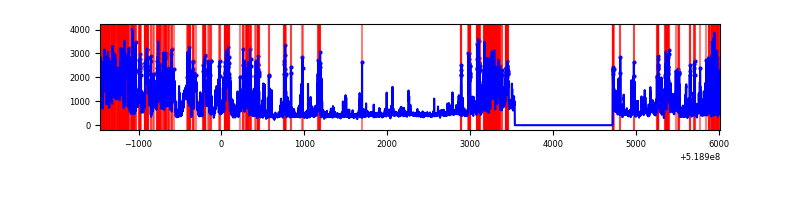

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7481 | 6302 | 21 | 21 | 0.28% | 0.33% |  |
| B | 7481 | 6302 | 93 | 93 | 1.24% | 1.48% |  |
| C | 7481 | 6302 | 87 | 87 | 1.16% | 1.38% |  |
| D | 7481 | 6302 | 698 | 698 | 9.33% | 11.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 146612 | 866.31 | 684 | 667 | 168.5 |
| A | 3 | 14 | 35805 | 208.57 | 684 | 667 | 168.5 |
| A | 7 | 64 | 30647 | 177.96 | 684 | 667 | 168.5 |
| B | 5 | 185 | 665103 | 4577.81 | 676 | 650 | 145.1 |
| B | 7 | 252 | 37455 | 253.57 | 676 | 650 | 145.1 |
| B | 0 | 63 | 26356 | 177.1 | 676 | 650 | 145.1 |
| C | 15 | 224 | 547444 | 3066.88 | 651 | 646 | 178.3 |
| C | 12 | 252 | 69156 | 384.26 | 651 | 646 | 178.3 |
| C | 14 | 254 | 27642 | 151.42 | 651 | 646 | 178.3 |
| D | 8 | 160 | 1393326 | 7877.65 | 623 | 595 | 176.8 |
| D | 3 | 12 | 921287 | 5207.67 | 623 | 595 | 176.8 |
| D | 2 | 249 | 699191 | 3951.44 | 623 | 595 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

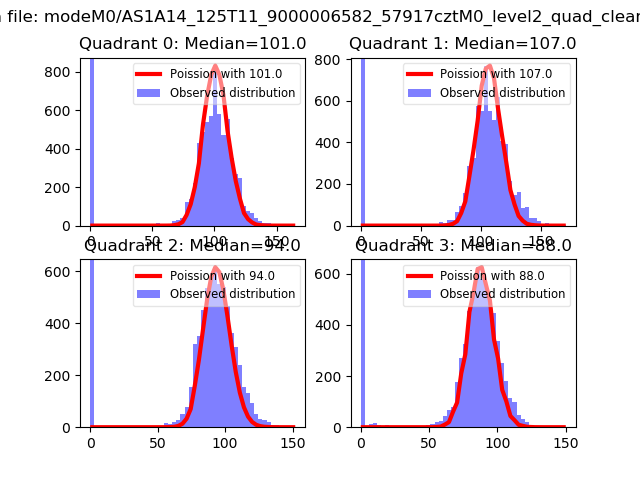

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

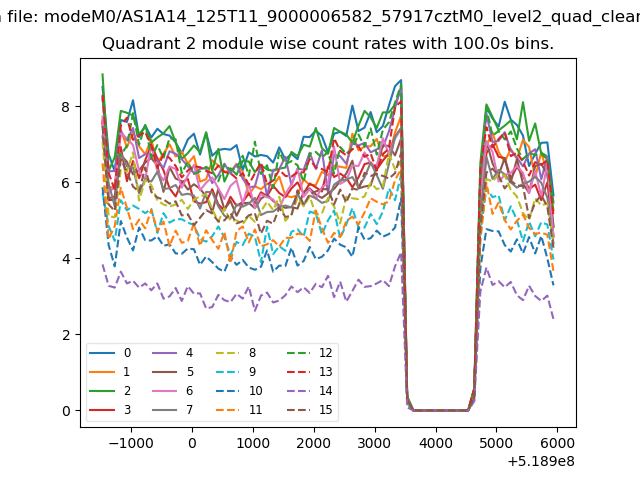

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

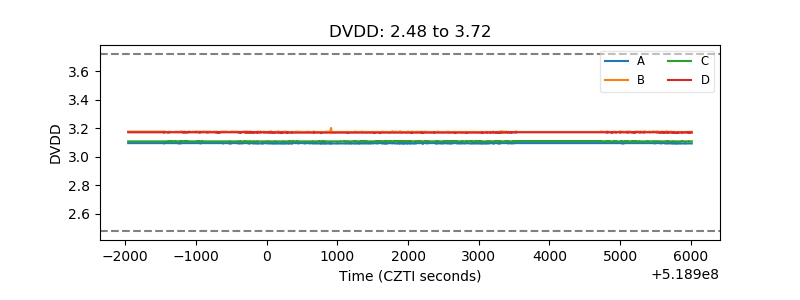

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

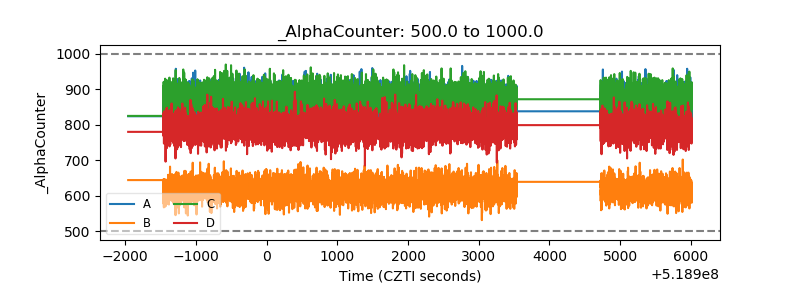

| Alpha Counter |  |

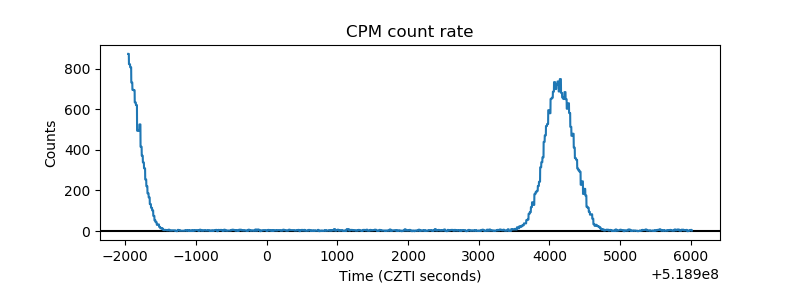

| _CPM_Rate |  |

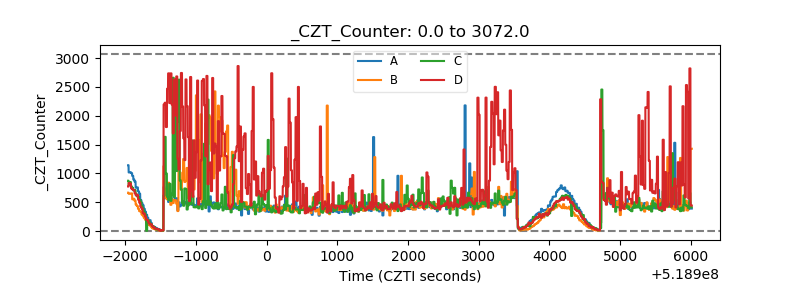

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
