| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57918cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57918cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,711,680 | 93,507,840 |
| Size | 450.8 MB | 89.2 MB |
| Events in quadrant A | 2,859,386 | 635,060 |
| Events in quadrant B | 3,106,106 | 673,563 |
| Events in quadrant C | 3,981,010 | 579,623 |
| Events in quadrant D | 7,051,785 | 493,992 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13342 | 2 |
| B | 0 | 13949 | 2 |
| C | 0 | 16627 | 2 |
| D | 0 | 25448 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6434 | 33 | 0.512900% |
| B | 6434 | 116 | 1.802922% |
| C | 6434 | 258 | 4.009947% |
| D | 6433 | 963 | 14.969688% |

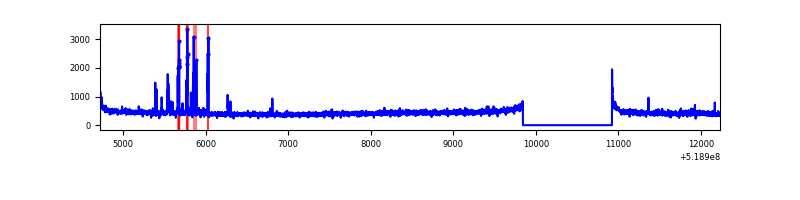

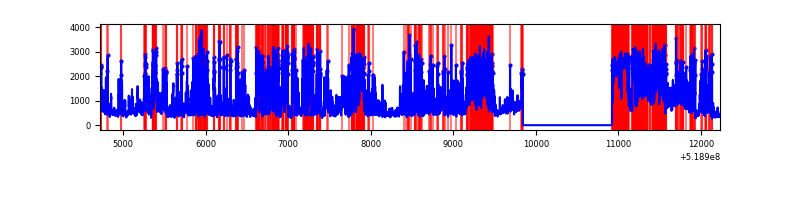

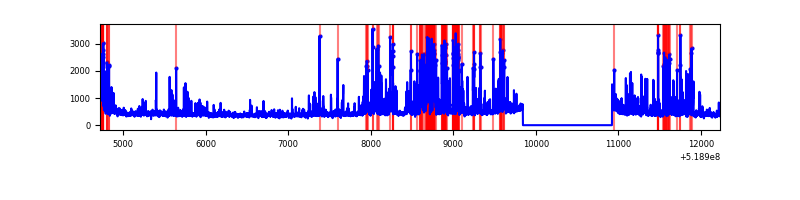

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7514 | 6435 | 15 | 15 | 0.20% | 0.23% |  |
| B | 7514 | 6435 | 46 | 46 | 0.61% | 0.71% |  |
| C | 7514 | 6435 | 219 | 219 | 2.91% | 3.40% |  |
| D | 7513 | 6433 | 1000 | 1000 | 13.31% | 15.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 102919 | 602.05 | 691 | 672 | 169.8 |
| A | 3 | 14 | 41267 | 239.03 | 691 | 672 | 169.8 |
| A | 7 | 64 | 32466 | 187.21 | 691 | 672 | 169.8 |
| B | 7 | 252 | 120661 | 830.76 | 681 | 658 | 144.4 |
| B | 4 | 201 | 62739 | 429.78 | 681 | 658 | 144.4 |
| B | 3 | 238 | 42938 | 292.7 | 681 | 658 | 144.4 |
| C | 15 | 224 | 814272 | 4513.04 | 655 | 647 | 180.3 |
| C | 12 | 252 | 538471 | 2983.22 | 655 | 647 | 180.3 |
| C | 6 | 223 | 51838 | 283.95 | 655 | 647 | 180.3 |
| D | 2 | 249 | 2418571 | 13453.28 | 622 | 592 | 179.7 |
| D | 8 | 160 | 1373581 | 7639.11 | 622 | 592 | 179.7 |
| D | 3 | 12 | 338559 | 1880.4 | 622 | 592 | 179.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

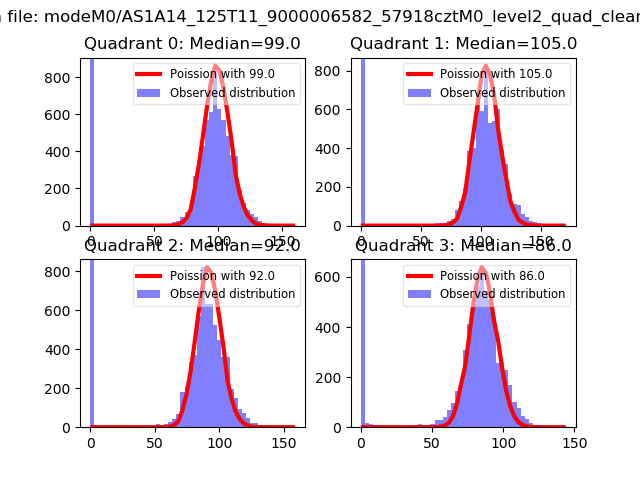

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

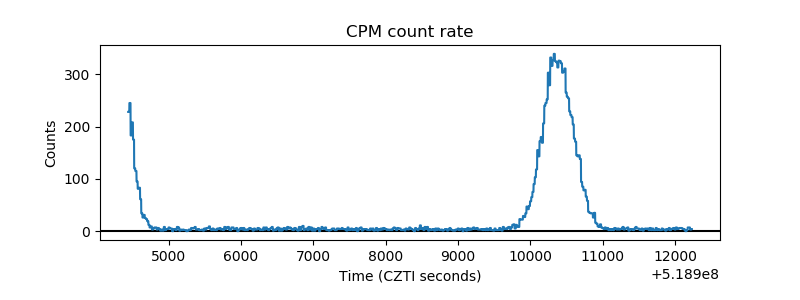

| _CPM_Rate |  |

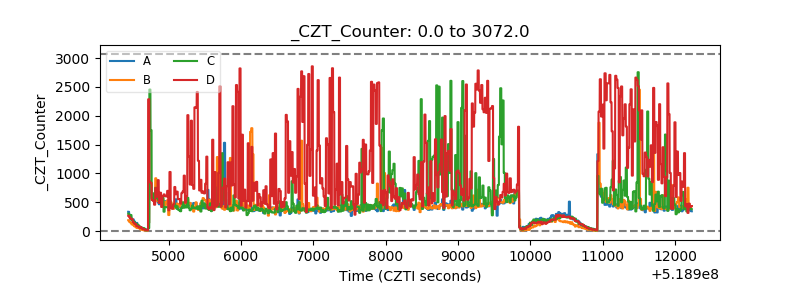

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
