| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57919cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57919cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,597,760 | 102,205,440 |
| Size | 491.7 MB | 97.5 MB |
| Events in quadrant A | 3,074,947 | 710,424 |
| Events in quadrant B | 3,477,238 | 729,902 |
| Events in quadrant C | 5,577,109 | 614,356 |
| Events in quadrant D | 6,406,571 | 547,035 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14640 | 2 |
| B | 0 | 15607 | 2 |
| C | 0 | 21775 | 2 |
| D | 0 | 24083 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7075 | 75 | 1.060071% |
| B | 7076 | 182 | 2.572075% |
| C | 7076 | 622 | 8.790277% |
| D | 7076 | 917 | 12.959299% |

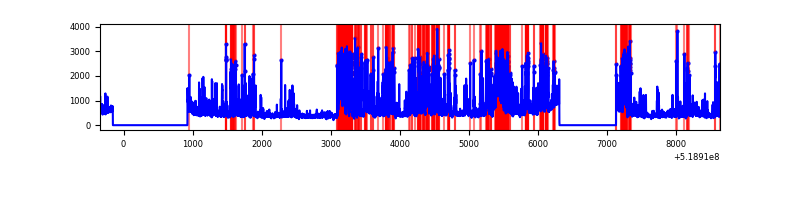

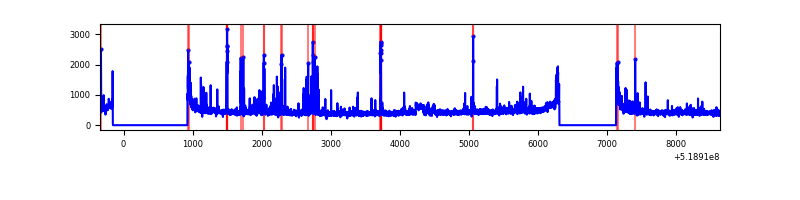

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8975 | 7077 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8976 | 7077 | 31 | 31 | 0.35% | 0.44% |  |
| C | 8976 | 7078 | 541 | 541 | 6.03% | 7.64% |  |
| D | 8976 | 7077 | 900 | 900 | 10.03% | 12.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 39151 | 200.7 | 770 | 750 | 191.3 |
| A | 3 | 14 | 29458 | 150.04 | 770 | 750 | 191.3 |
| A | 3 | 31 | 21558 | 108.75 | 770 | 750 | 191.3 |
| B | 3 | 238 | 116015 | 718.66 | 750 | 722 | 160.4 |
| B | 5 | 185 | 73055 | 450.88 | 750 | 722 | 160.4 |
| B | 4 | 201 | 56441 | 347.32 | 750 | 722 | 160.4 |
| C | 15 | 224 | 2737523 | 13921.05 | 714 | 707 | 196.6 |
| C | 12 | 252 | 38816 | 193.84 | 714 | 707 | 196.6 |
| C | 14 | 67 | 10548 | 50.06 | 714 | 707 | 196.6 |
| D | 8 | 160 | 2131619 | 10722.29 | 693 | 660 | 198.7 |
| D | 2 | 249 | 787657 | 3959.91 | 693 | 660 | 198.7 |
| D | 3 | 12 | 250425 | 1256.74 | 693 | 660 | 198.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

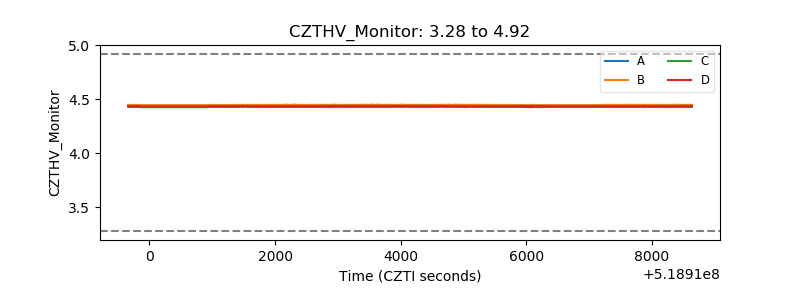

| CZT HV Monitor |  |

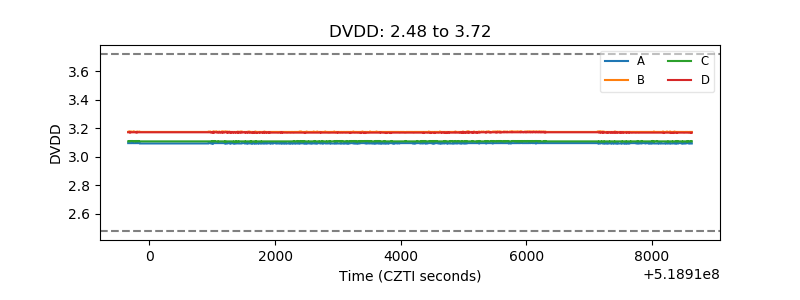

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

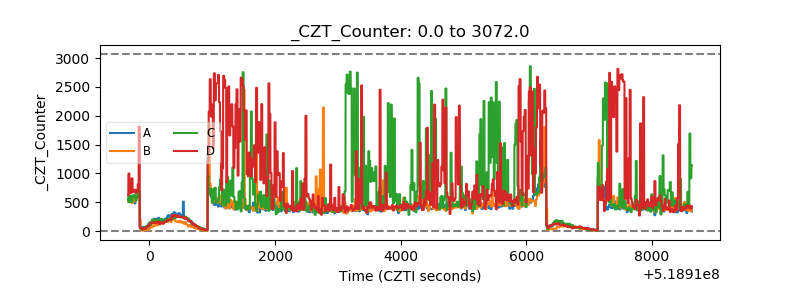

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

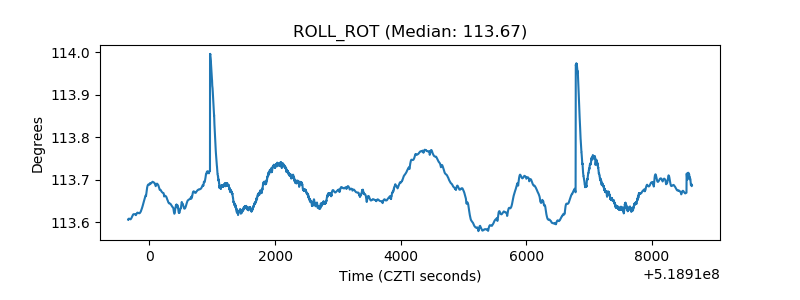

| _ROLL_ROT |  |

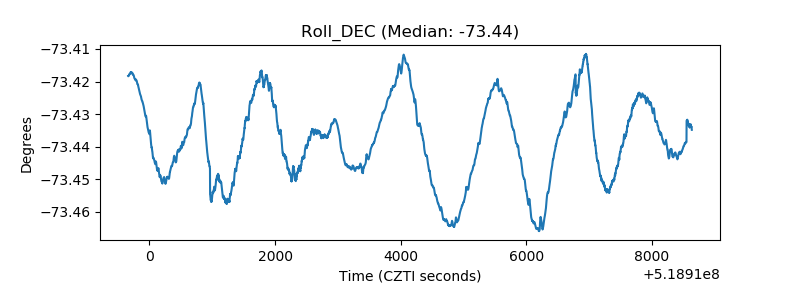

| _Roll_DEC |  |
| _Roll_RA |  |

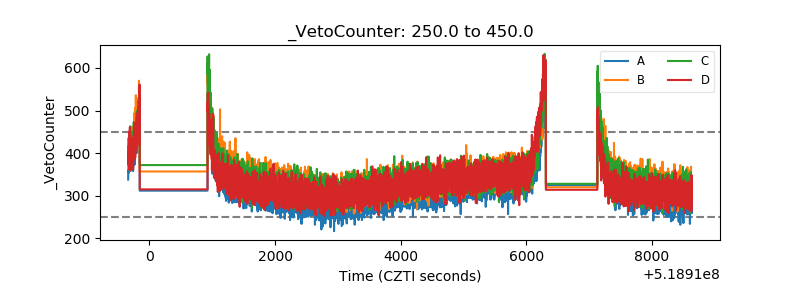

| Veto Counter |  |
