| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57921cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57921cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,290,560 | 121,708,800 |
| Size | 511.4 MB | 116.1 MB |
| Events in quadrant A | 3,887,664 | 811,690 |
| Events in quadrant B | 4,733,645 | 828,152 |
| Events in quadrant C | 5,620,759 | 737,662 |
| Events in quadrant D | 4,946,853 | 715,274 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17930 | 1 |
| B | 0 | 20414 | 1 |
| C | 0 | 22850 | 1 |
| D | 0 | 21019 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8532 | 59 | 0.691514% |
| B | 8533 | 439 | 5.144732% |
| C | 8533 | 421 | 4.933786% |
| D | 8533 | 164 | 1.921950% |

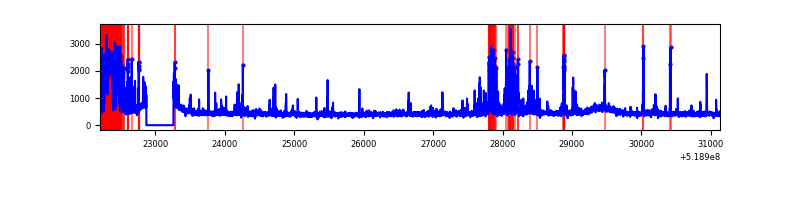

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8922 | 8533 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8923 | 8534 | 254 | 254 | 2.85% | 2.98% |  |
| C | 8923 | 8534 | 363 | 363 | 4.07% | 4.25% |  |
| D | 8923 | 8534 | 160 | 160 | 1.79% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 215435 | 940.39 | 921 | 897 | 228.1 |
| A | 4 | 236 | 46616 | 200.4 | 921 | 897 | 228.1 |
| A | 3 | 14 | 31302 | 133.27 | 921 | 897 | 228.1 |
| B | 3 | 238 | 902094 | 4717.13 | 897 | 863 | 191.1 |
| B | 7 | 252 | 83662 | 433.38 | 897 | 863 | 191.1 |
| B | 10 | 16 | 38458 | 196.78 | 897 | 863 | 191.1 |
| C | 15 | 224 | 1803330 | 7598.88 | 878 | 872 | 237.2 |
| C | 14 | 254 | 210852 | 885.24 | 878 | 872 | 237.2 |
| C | 12 | 252 | 61598 | 256.01 | 878 | 872 | 237.2 |
| D | 3 | 12 | 291993 | 1171.79 | 885 | 846 | 248.5 |
| D | 2 | 62 | 290890 | 1167.35 | 885 | 846 | 248.5 |
| D | 8 | 160 | 248552 | 996.95 | 885 | 846 | 248.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

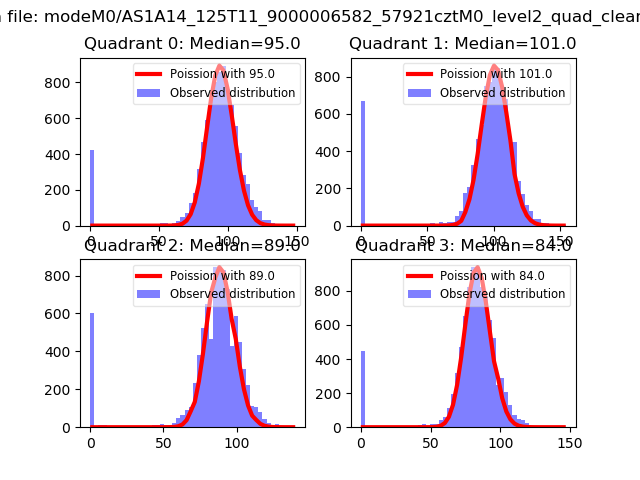

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

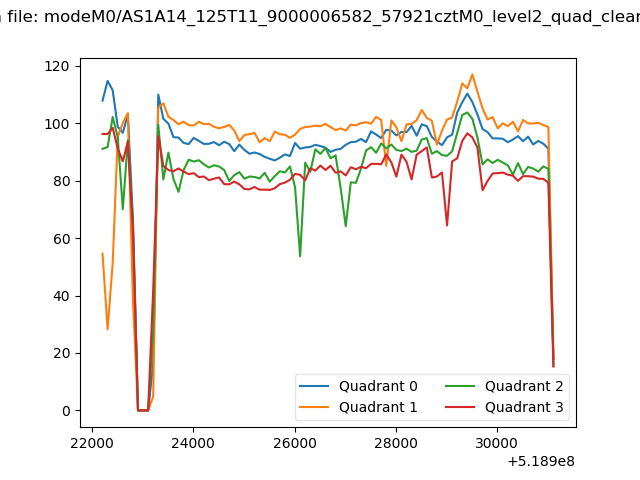

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

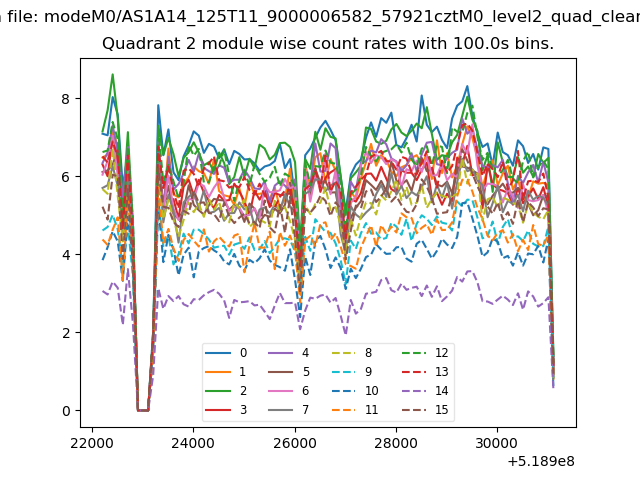

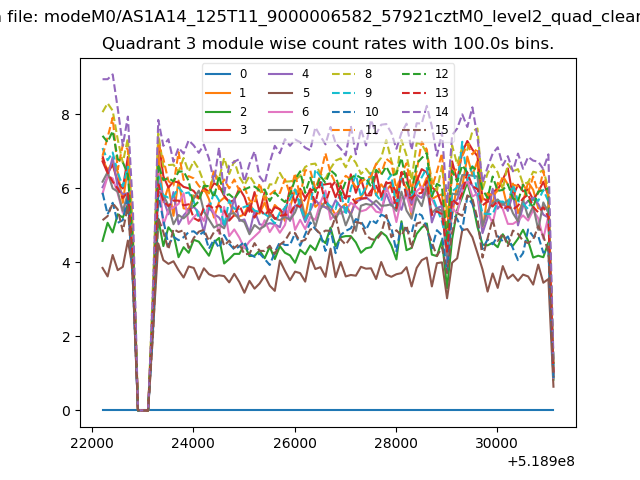

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

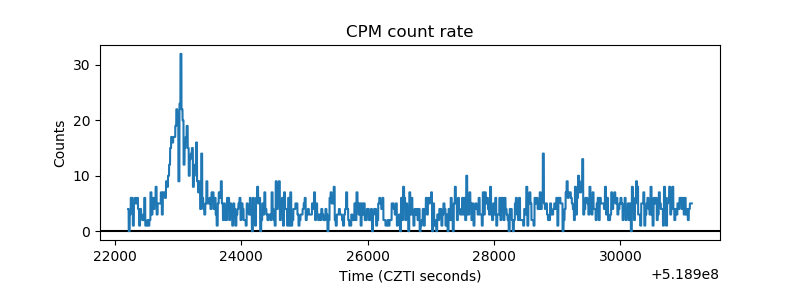

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

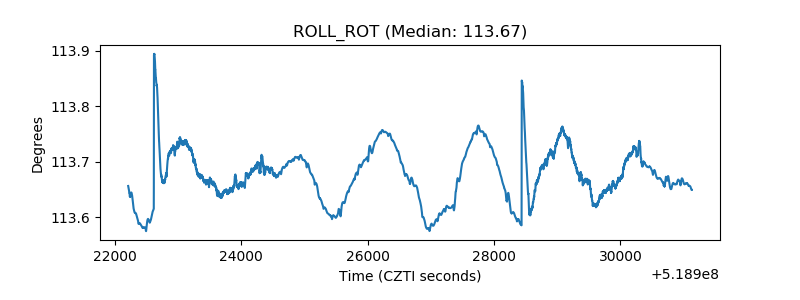

| _ROLL_ROT |  |
| _Roll_DEC |  |

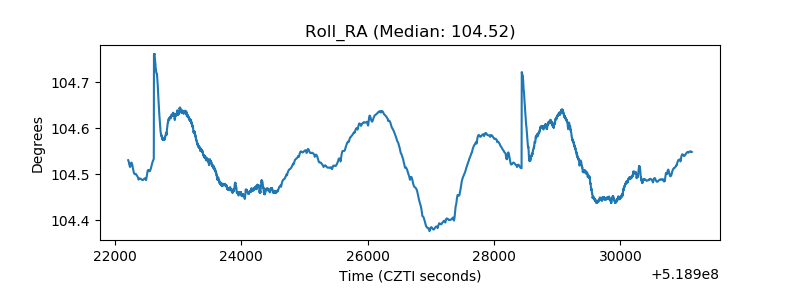

| _Roll_RA |  |
| Veto Counter |  |
