| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57925cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57925cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,202,688,000 | 261,311,040 |
| Size | 1.1 GB | 249.2 MB |
| Events in quadrant A | 8,063,121 | 1,724,371 |
| Events in quadrant B | 9,688,524 | 1,792,557 |
| Events in quadrant C | 13,697,879 | 1,584,473 |
| Events in quadrant D | 11,624,329 | 1,524,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38238 | 1 |
| B | 0 | 42458 | 1 |
| C | 0 | 53751 | 1 |
| D | 0 | 47756 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18666 | 306 | 1.639344% |
| B | 18667 | 757 | 4.055285% |
| C | 18667 | 1144 | 6.128462% |
| D | 18667 | 817 | 4.376708% |

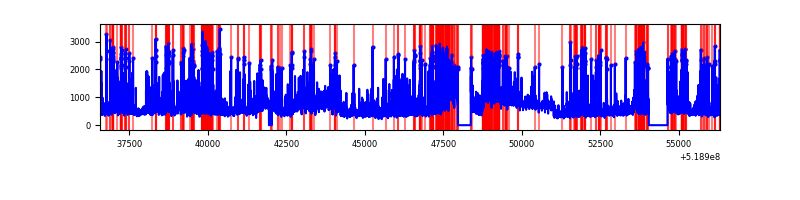

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19746 | 18667 | 4 | 4 | 0.02% | 0.02% |  |
| B | 19747 | 18667 | 257 | 257 | 1.30% | 1.38% |  |
| C | 19747 | 18669 | 734 | 734 | 3.72% | 3.93% |  |
| D | 19747 | 18669 | 597 | 597 | 3.02% | 3.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 236 | 127686 | 253.71 | 2011 | 1958 | 495.6 |
| A | 3 | 245 | 51054 | 99.07 | 2011 | 1958 | 495.6 |
| A | 7 | 64 | 50177 | 97.3 | 2011 | 1958 | 495.6 |
| B | 3 | 238 | 1325074 | 3201.03 | 1961 | 1883 | 413.4 |
| B | 7 | 252 | 125925 | 300.08 | 1961 | 1883 | 413.4 |
| B | 0 | 153 | 72650 | 171.2 | 1961 | 1883 | 413.4 |
| C | 15 | 224 | 3061777 | 5929.36 | 1910 | 1887 | 516.1 |
| C | 1 | 16 | 994570 | 1923.59 | 1910 | 1887 | 516.1 |
| C | 10 | 250 | 741936 | 1434.04 | 1910 | 1887 | 516.1 |
| D | 8 | 160 | 1291823 | 2388.74 | 1933 | 1846 | 540.0 |
| D | 12 | 110 | 869004 | 1605.78 | 1933 | 1846 | 540.0 |
| D | 2 | 249 | 612090 | 1130.03 | 1933 | 1846 | 540.0 |

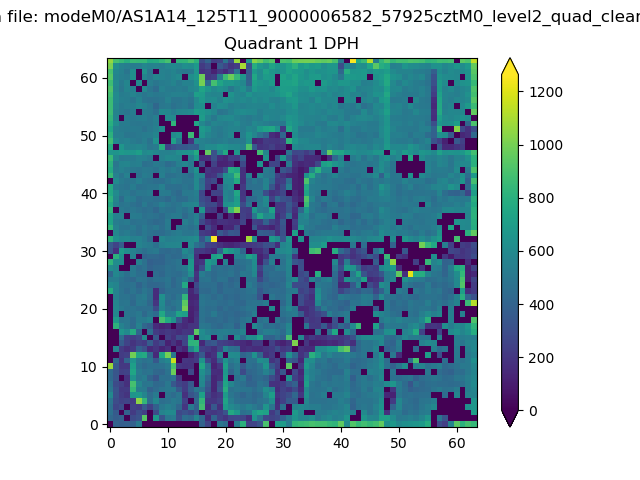

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

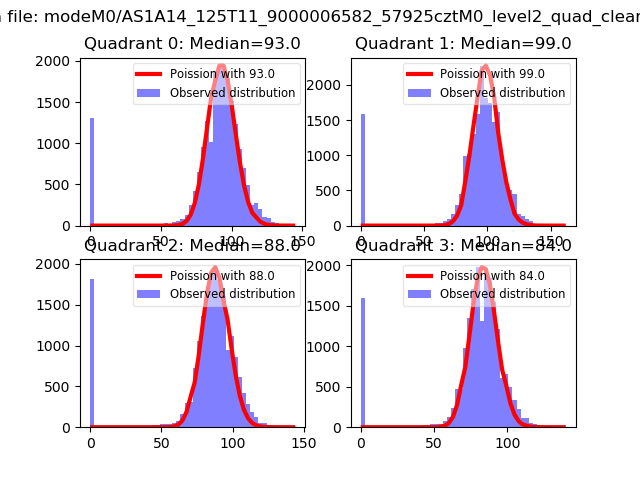

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

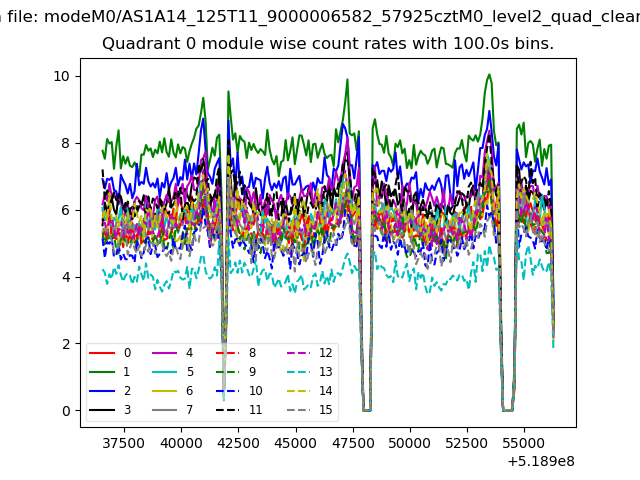

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

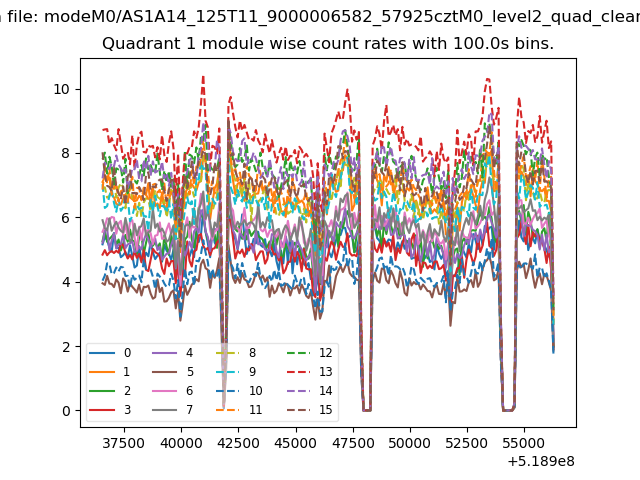

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

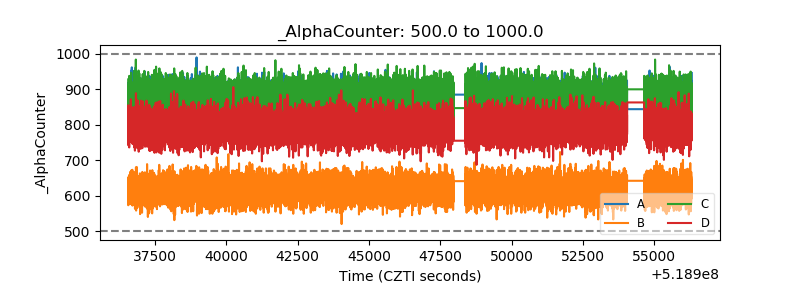

| Alpha Counter |  |

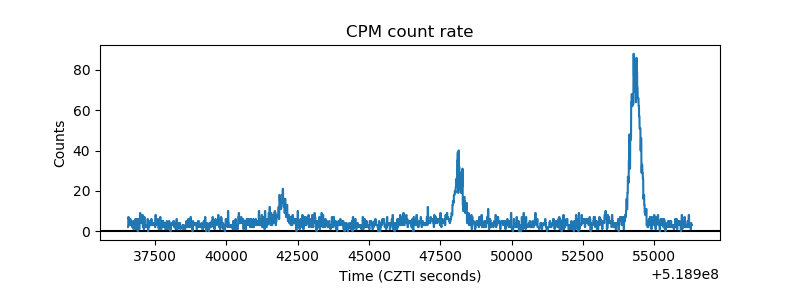

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

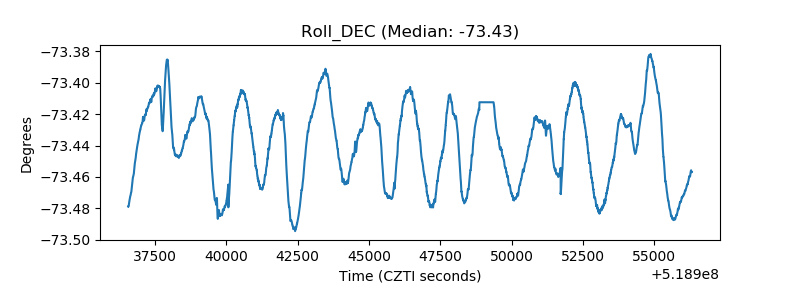

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
