| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57926cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57926cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,942,400 | 94,023,360 |
| Size | 454.8 MB | 89.7 MB |
| Events in quadrant A | 2,887,098 | 637,078 |
| Events in quadrant B | 5,522,210 | 590,016 |
| Events in quadrant C | 4,591,608 | 588,499 |
| Events in quadrant D | 4,132,768 | 563,729 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13581 | 1 |
| B | 0 | 20974 | 1 |
| C | 0 | 18298 | 3 |
| D | 0 | 16925 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6701 | 54 | 0.805850% |
| B | 6702 | 991 | 14.786631% |
| C | 6701 | 362 | 5.402179% |
| D | 6701 | 230 | 3.432324% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7486 | 6701 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7487 | 6702 | 844 | 844 | 11.27% | 12.59% |  |
| C | 7486 | 6701 | 312 | 312 | 4.17% | 4.66% |  |
| D | 7485 | 6700 | 171 | 171 | 2.28% | 2.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 24995 | 135.54 | 724 | 704 | 179.2 |
| A | 3 | 31 | 22449 | 121.34 | 724 | 704 | 179.2 |
| A | 7 | 64 | 18624 | 99.99 | 724 | 704 | 179.2 |
| B | 3 | 238 | 2581305 | 18087.17 | 670 | 647 | 142.7 |
| B | 7 | 252 | 39847 | 274.74 | 670 | 647 | 142.7 |
| B | 5 | 185 | 34718 | 238.79 | 670 | 647 | 142.7 |
| C | 15 | 224 | 1112923 | 5979.11 | 681 | 676 | 186.0 |
| C | 14 | 254 | 394579 | 2117.51 | 681 | 676 | 186.0 |
| C | 2 | 12 | 170206 | 911.34 | 681 | 676 | 186.0 |
| D | 12 | 110 | 653711 | 3325.85 | 696 | 663 | 196.4 |
| D | 8 | 160 | 219353 | 1113.75 | 696 | 663 | 196.4 |
| D | 2 | 31 | 155498 | 788.54 | 696 | 663 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

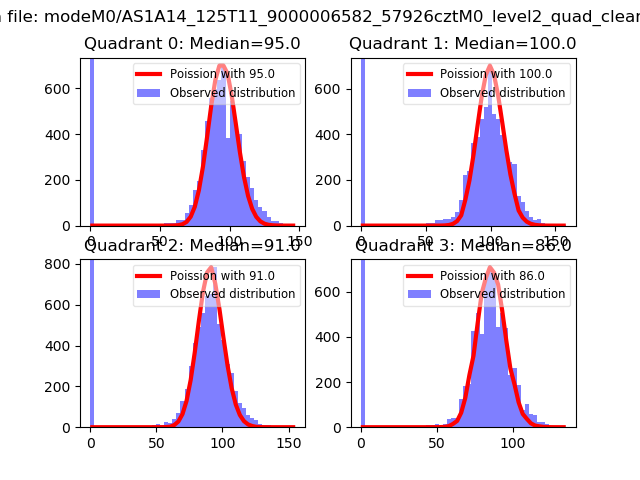

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

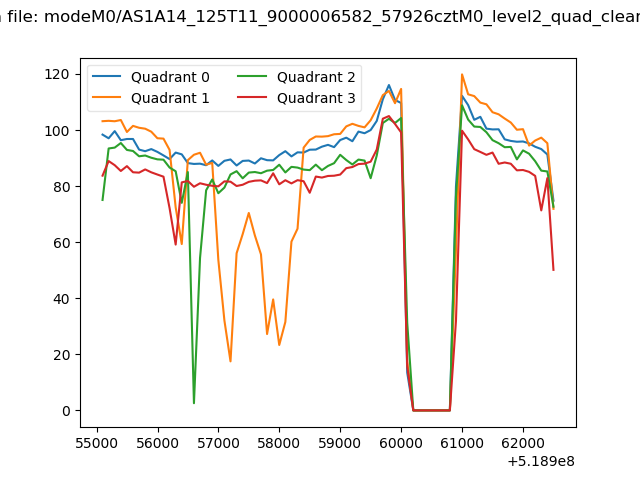

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

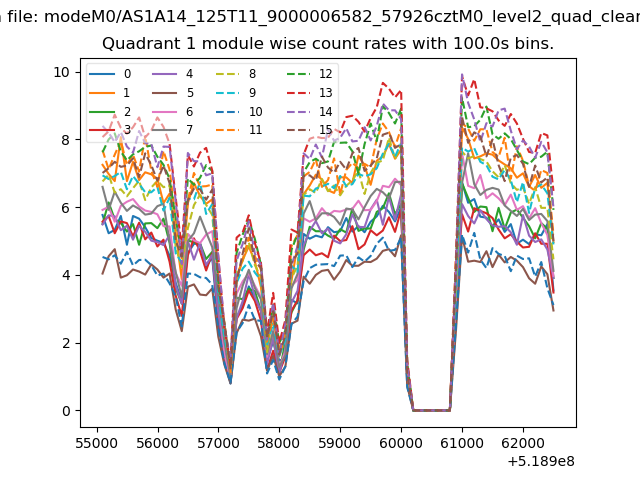

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

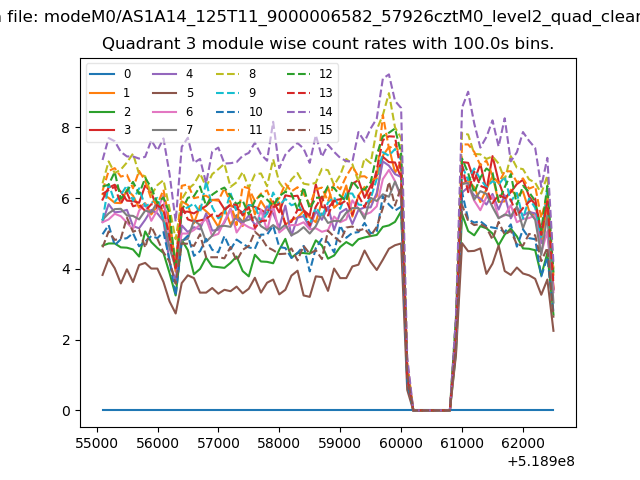

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

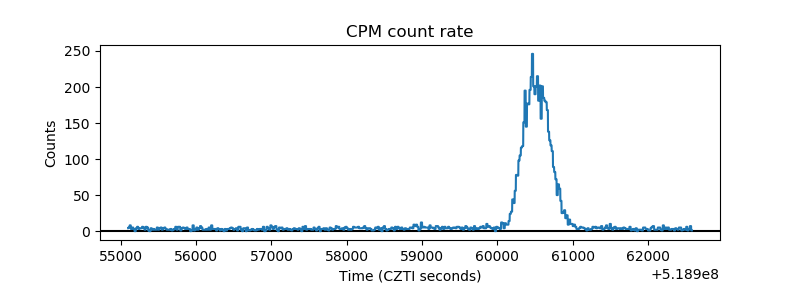

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

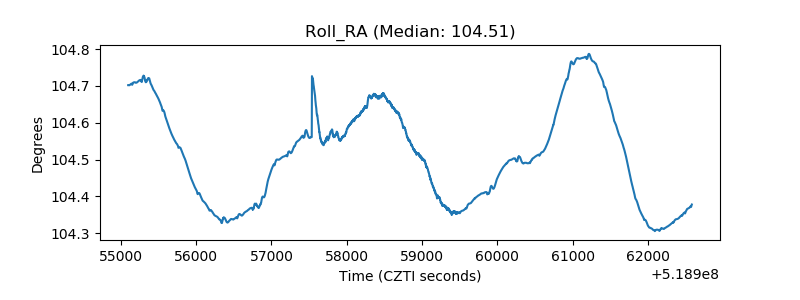

| _Roll_RA |  |
| Veto Counter |  |
