| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57929cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57929cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,558,720 | 90,711,360 |
| Size | 429.7 MB | 86.5 MB |
| Events in quadrant A | 2,710,313 | 612,648 |
| Events in quadrant B | 4,086,636 | 630,384 |
| Events in quadrant C | 4,205,691 | 531,574 |
| Events in quadrant D | 5,193,432 | 539,244 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12693 | 1 |
| B | 0 | 16450 | 1 |
| C | 0 | 16890 | 1 |
| D | 0 | 19749 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6201 | 17 | 0.274149% |
| B | 6202 | 301 | 4.853273% |
| C | 6202 | 547 | 8.819736% |
| D | 6202 | 180 | 2.902290% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

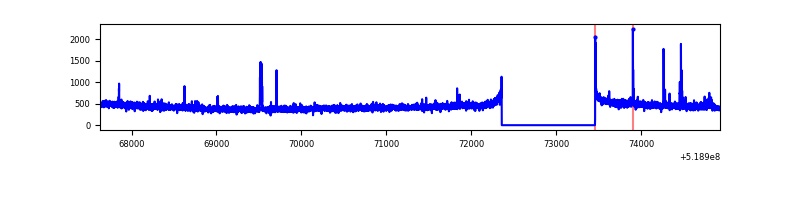

| A | 7300 | 6201 | 2 | 2 | 0.03% | 0.03% |  |

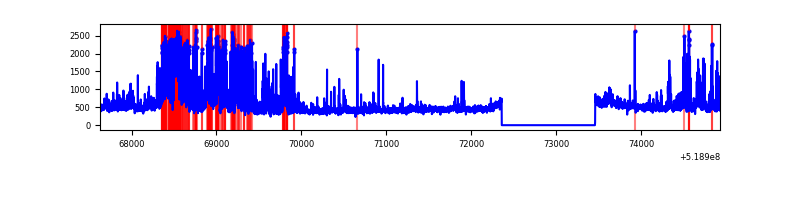

| B | 7301 | 6202 | 223 | 223 | 3.05% | 3.60% |  |

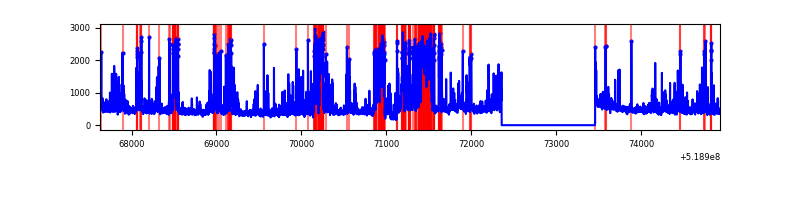

| C | 7301 | 6202 | 311 | 311 | 4.26% | 5.01% |  |

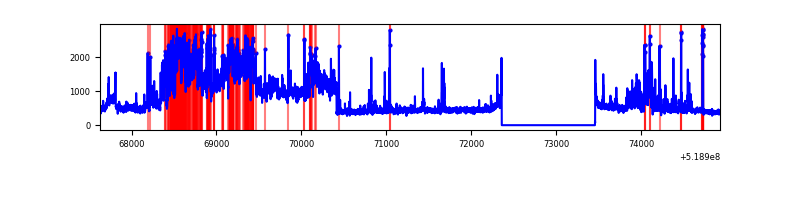

| D | 7301 | 6202 | 321 | 321 | 4.40% | 5.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 42677 | 254.68 | 668 | 652 | 165.0 |
| A | 3 | 31 | 23615 | 139.16 | 668 | 652 | 165.0 |
| A | 0 | 117 | 15684 | 91.1 | 668 | 652 | 165.0 |
| B | 3 | 238 | 1264439 | 9136.42 | 647 | 623 | 138.3 |
| B | 6 | 51 | 42318 | 301.42 | 647 | 623 | 138.3 |
| B | 0 | 63 | 41742 | 297.26 | 647 | 623 | 138.3 |
| C | 15 | 224 | 1614134 | 9691.7 | 602 | 594 | 166.5 |
| C | 14 | 254 | 57689 | 342.94 | 602 | 594 | 166.5 |
| C | 2 | 0 | 57086 | 339.32 | 602 | 594 | 166.5 |
| D | 2 | 62 | 1988415 | 10906.96 | 636 | 606 | 182.3 |
| D | 8 | 240 | 172520 | 943.28 | 636 | 606 | 182.3 |
| D | 8 | 160 | 137143 | 749.17 | 636 | 606 | 182.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

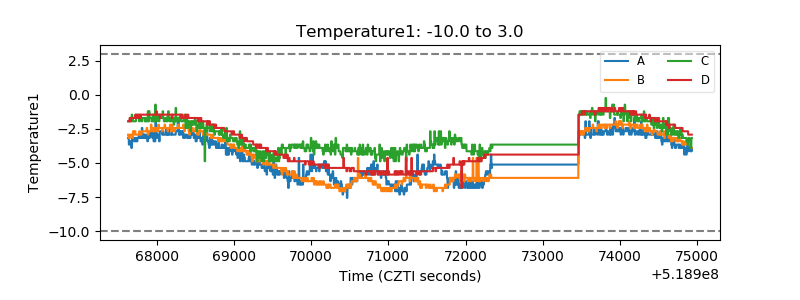

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
