| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57930cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57930cztM0_level2_quad_clean.evt |
| Size (bytes) | 351,898,560 | 90,478,080 |
| Size | 335.6 MB | 86.3 MB |
| Events in quadrant A | 2,621,926 | 601,353 |
| Events in quadrant B | 3,387,153 | 633,745 |
| Events in quadrant C | 3,251,153 | 556,593 |
| Events in quadrant D | 3,299,835 | 530,315 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12217 | 1 |
| B | 0 | 14300 | 1 |
| C | 0 | 13941 | 1 |
| D | 0 | 14196 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5986 | 17 | 0.283996% |
| B | 5987 | 114 | 1.904126% |
| C | 5986 | 85 | 1.419980% |
| D | 5986 | 81 | 1.353157% |

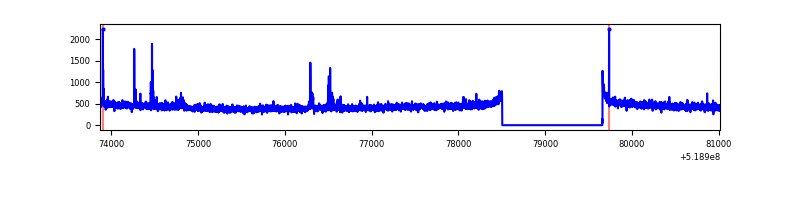

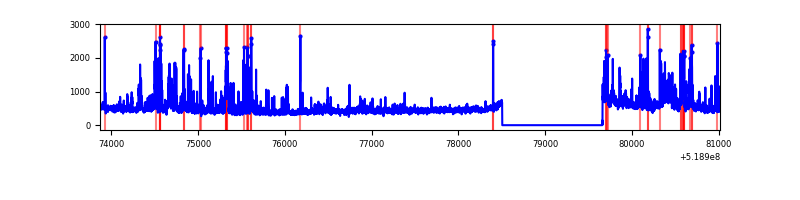

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7141 | 5987 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7142 | 5988 | 43 | 43 | 0.60% | 0.72% |  |
| C | 7141 | 5987 | 76 | 76 | 1.06% | 1.27% |  |
| D | 7141 | 5987 | 86 | 86 | 1.20% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 41727 | 257.83 | 647 | 631 | 159.4 |
| A | 3 | 31 | 22805 | 139.12 | 647 | 631 | 159.4 |
| A | 7 | 64 | 18146 | 109.89 | 647 | 631 | 159.4 |
| B | 3 | 238 | 474839 | 3534.42 | 635 | 613 | 134.2 |
| B | 0 | 63 | 84073 | 622.03 | 635 | 613 | 134.2 |
| B | 0 | 197 | 62073 | 458.06 | 635 | 613 | 134.2 |
| C | 15 | 224 | 704971 | 4153.54 | 615 | 608 | 169.6 |
| C | 14 | 67 | 48778 | 284.05 | 615 | 608 | 169.6 |
| C | 14 | 254 | 32514 | 188.14 | 615 | 608 | 169.6 |
| D | 8 | 240 | 339055 | 1941.53 | 615 | 587 | 174.3 |
| D | 8 | 160 | 174312 | 996.53 | 615 | 587 | 174.3 |
| D | 13 | 138 | 94746 | 540.12 | 615 | 587 | 174.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

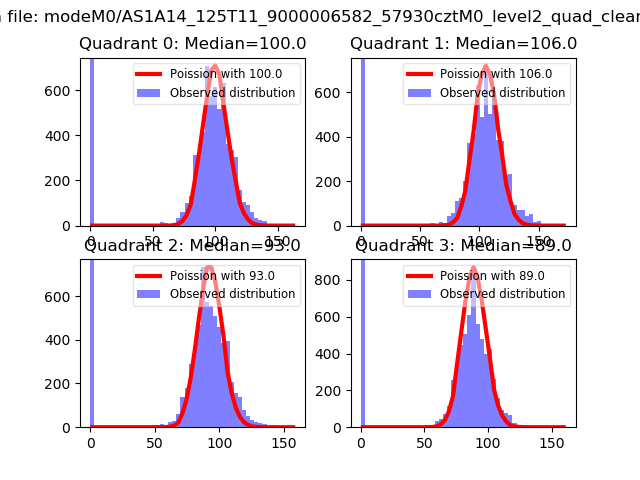

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

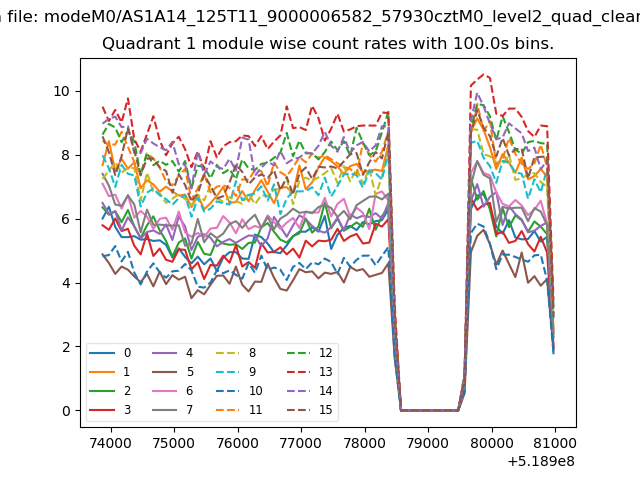

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

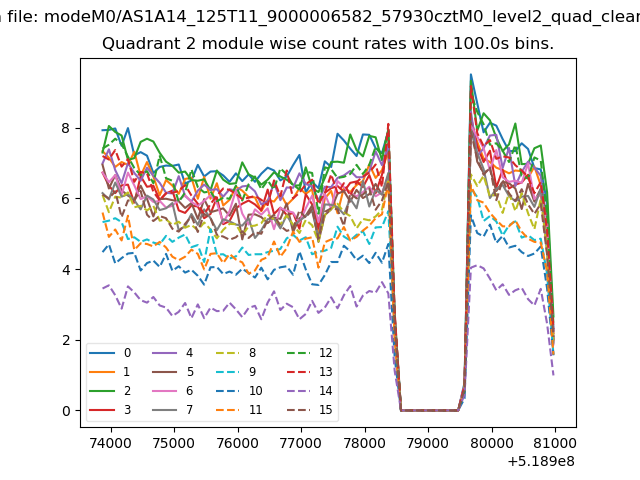

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

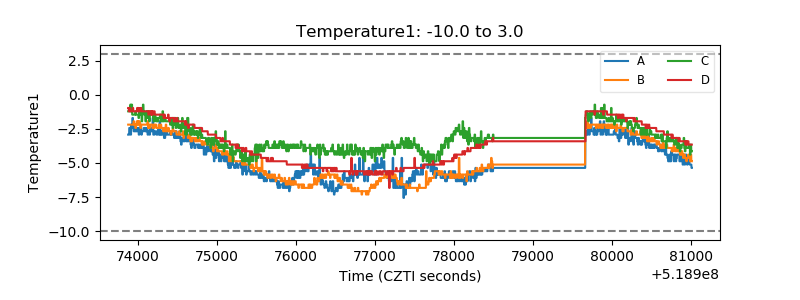

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

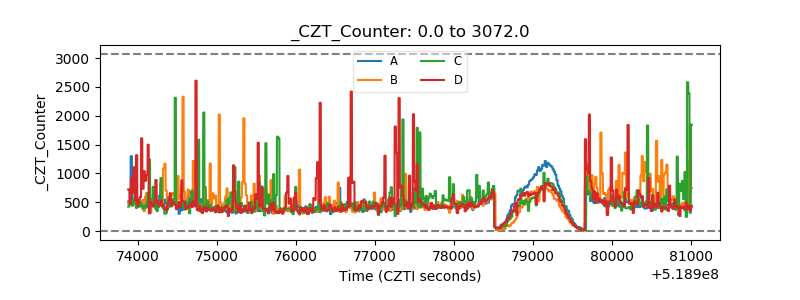

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
