| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57932cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57932cztM0_level2_quad_clean.evt |
| Size (bytes) | 395,314,560 | 90,843,840 |
| Size | 377.0 MB | 86.6 MB |
| Events in quadrant A | 2,756,954 | 603,218 |
| Events in quadrant B | 3,570,906 | 627,331 |
| Events in quadrant C | 4,427,161 | 547,616 |
| Events in quadrant D | 3,376,628 | 522,761 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13106 | 3 |
| B | 0 | 15331 | 2 |
| C | 0 | 17875 | 2 |
| D | 0 | 14851 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6444 | 20 | 0.310366% |
| B | 6445 | 161 | 2.498061% |
| C | 6445 | 250 | 3.878976% |
| D | 6445 | 102 | 1.582622% |

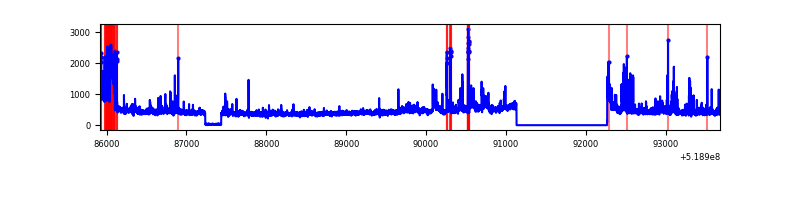

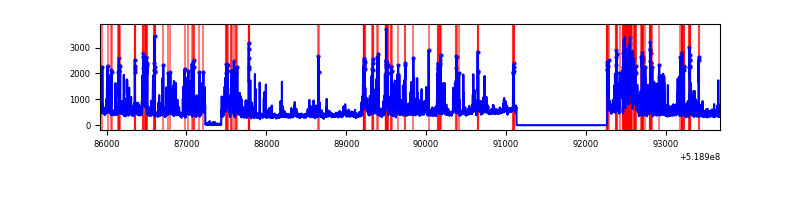

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7762 | 6625 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7763 | 6626 | 54 | 54 | 0.70% | 0.81% |  |
| C | 7763 | 6626 | 241 | 241 | 3.10% | 3.64% |  |
| D | 7763 | 6626 | 90 | 90 | 1.16% | 1.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 22195 | 126.21 | 694 | 677 | 170.5 |
| A | 7 | 64 | 11723 | 64.79 | 694 | 677 | 170.5 |
| A | 13 | 248 | 11446 | 63.17 | 694 | 677 | 170.5 |
| B | 3 | 238 | 349057 | 2384.83 | 684 | 659 | 146.1 |
| B | 0 | 171 | 152673 | 1040.55 | 684 | 659 | 146.1 |
| B | 10 | 16 | 60049 | 406.53 | 684 | 659 | 146.1 |
| C | 15 | 224 | 1709454 | 9479.57 | 653 | 645 | 180.3 |
| C | 6 | 223 | 97948 | 539.78 | 653 | 645 | 180.3 |
| C | 12 | 254 | 20532 | 110.32 | 653 | 645 | 180.3 |
| D | 12 | 110 | 233298 | 1235.89 | 659 | 630 | 188.3 |
| D | 8 | 240 | 141795 | 749.84 | 659 | 630 | 188.3 |
| D | 2 | 62 | 104331 | 550.84 | 659 | 630 | 188.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

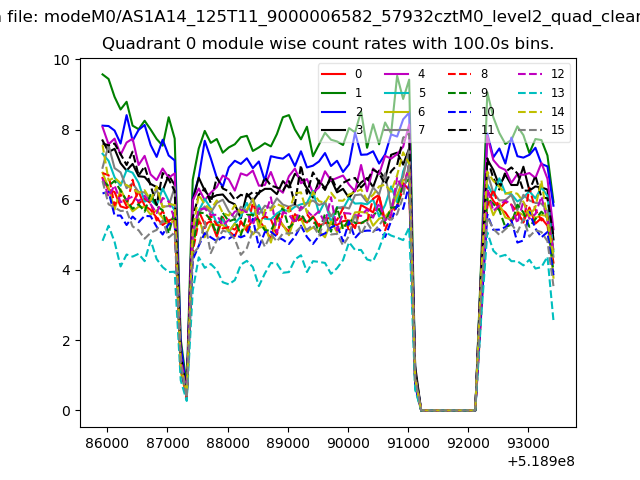

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

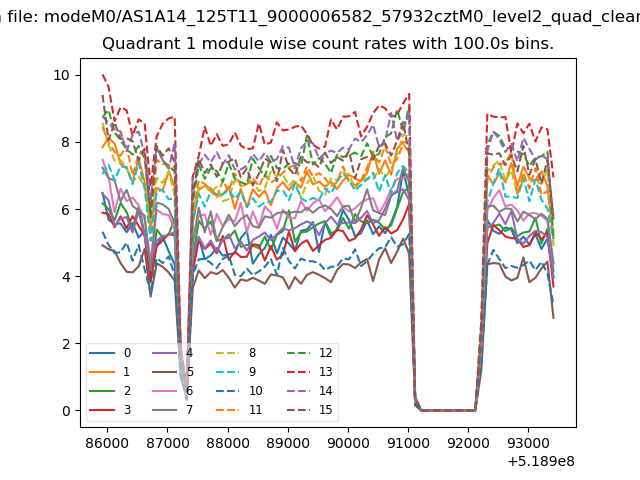

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

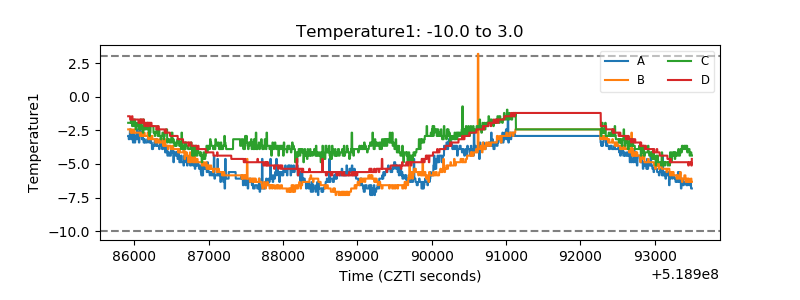

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

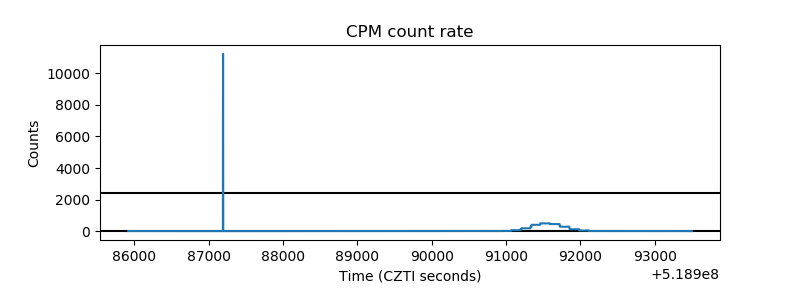

| _CPM_Rate |  |

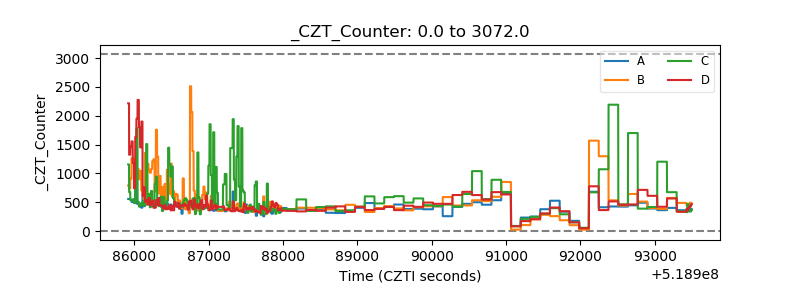

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

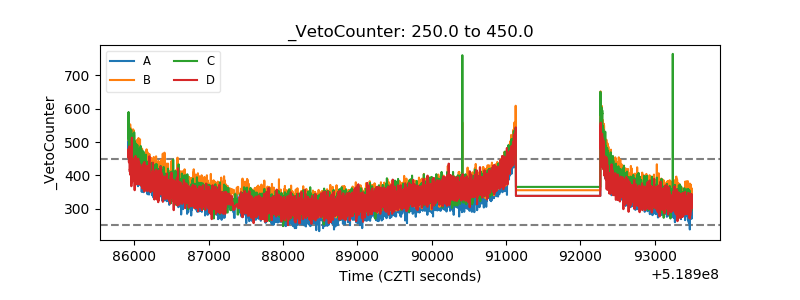

| Veto Counter |  |
