| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57933cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57933cztM0_level2_quad_clean.evt |
| Size (bytes) | 385,015,680 | 93,049,920 |
| Size | 367.2 MB | 88.7 MB |
| Events in quadrant A | 2,770,932 | 616,476 |
| Events in quadrant B | 3,294,555 | 637,190 |
| Events in quadrant C | 4,402,591 | 561,454 |
| Events in quadrant D | 3,272,071 | 543,766 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13378 | 2 |
| B | 0 | 14667 | 2 |
| C | 0 | 17859 | 2 |
| D | 0 | 14458 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6574 | 21 | 0.319440% |
| B | 6574 | 138 | 2.099179% |
| C | 6574 | 253 | 3.848494% |
| D | 6574 | 44 | 0.669303% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7757 | 6758 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7757 | 6758 | 45 | 45 | 0.58% | 0.67% |  |
| C | 7757 | 6758 | 206 | 206 | 2.66% | 3.05% |  |
| D | 7757 | 6758 | 26 | 26 | 0.34% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 22345 | 125.92 | 699 | 682 | 172.0 |
| A | 7 | 64 | 11155 | 60.87 | 699 | 682 | 172.0 |
| A | 13 | 254 | 10413 | 56.56 | 699 | 682 | 172.0 |
| B | 3 | 238 | 150964 | 1019.31 | 689 | 662 | 147.5 |
| B | 10 | 247 | 92468 | 622.61 | 689 | 662 | 147.5 |
| B | 0 | 79 | 63441 | 425.75 | 689 | 662 | 147.5 |
| C | 15 | 224 | 1553709 | 8609.94 | 661 | 652 | 180.4 |
| C | 1 | 16 | 110808 | 610.69 | 661 | 652 | 180.4 |
| C | 6 | 223 | 110447 | 608.69 | 661 | 652 | 180.4 |
| D | 13 | 138 | 154701 | 814.37 | 666 | 634 | 189.2 |
| D | 2 | 62 | 118060 | 620.7 | 666 | 634 | 189.2 |
| D | 2 | 249 | 83675 | 438.94 | 666 | 634 | 189.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

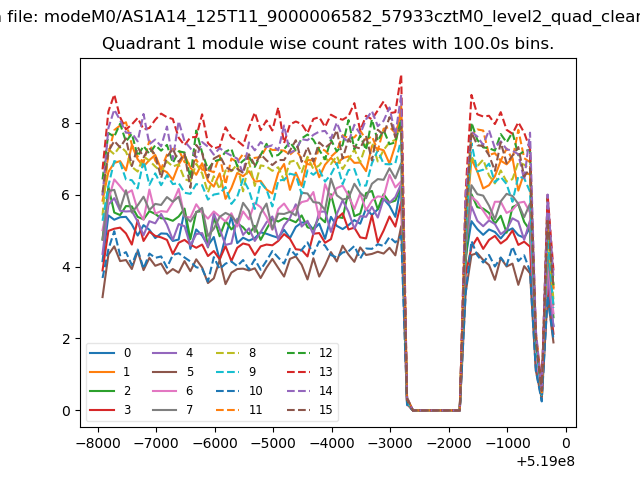

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

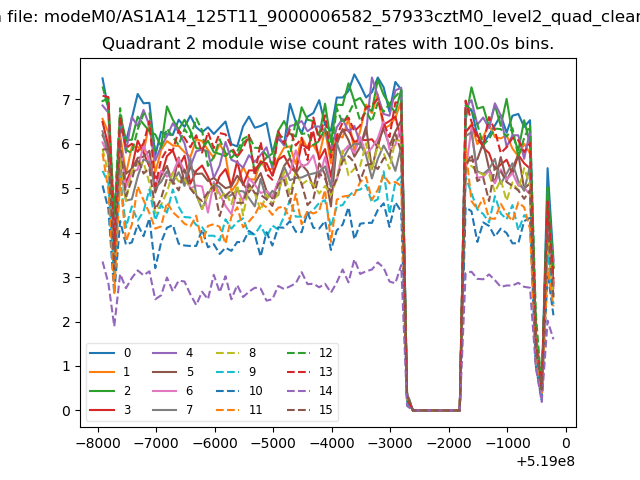

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

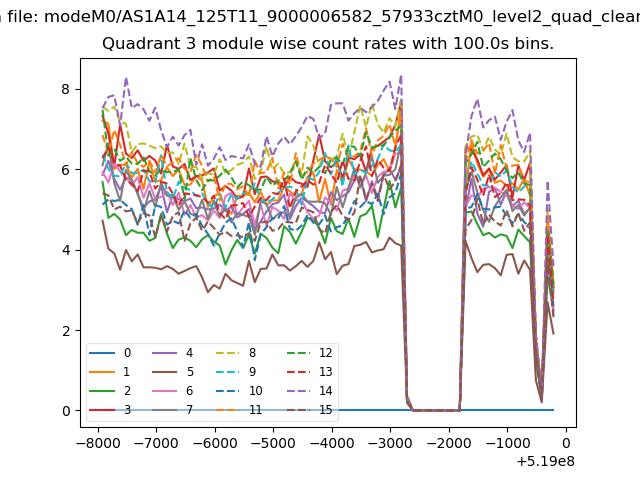

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

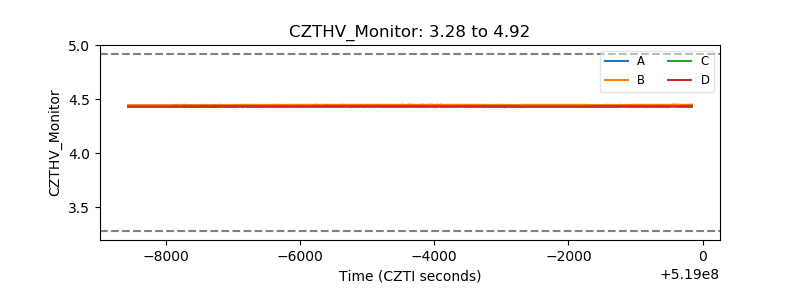

| CZT HV Monitor |  |
| D_VDD |  |

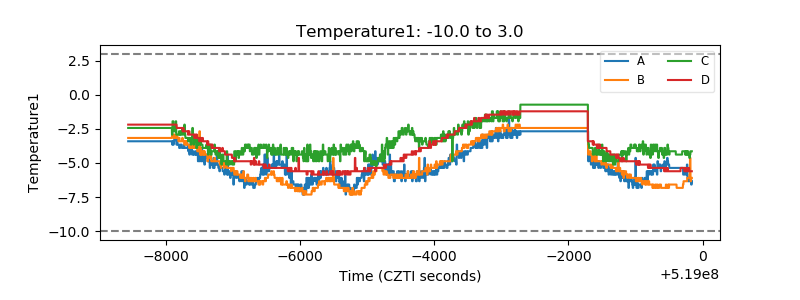

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
