| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57934cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57934cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,340,800 | 101,710,080 |
| Size | 389.4 MB | 97.0 MB |
| Events in quadrant A | 3,150,146 | 664,665 |
| Events in quadrant B | 3,582,567 | 694,908 |
| Events in quadrant C | 4,074,561 | 617,845 |
| Events in quadrant D | 3,737,185 | 592,008 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15057 | 2 |
| B | 0 | 16054 | 2 |
| C | 0 | 17563 | 2 |
| D | 0 | 16095 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7334 | 31 | 0.422689% |
| B | 7335 | 152 | 2.072256% |
| C | 7335 | 148 | 2.017723% |
| D | 7334 | 69 | 0.940824% |

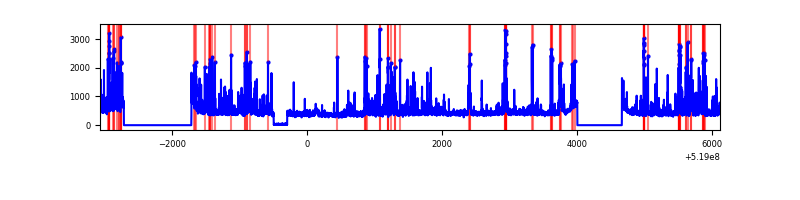

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9176 | 7518 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9178 | 7520 | 55 | 55 | 0.60% | 0.73% |  |
| C | 9178 | 7520 | 100 | 100 | 1.09% | 1.33% |  |
| D | 9177 | 7519 | 38 | 38 | 0.41% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 52726 | 269.26 | 786 | 764 | 193.0 |
| A | 3 | 14 | 28754 | 145.04 | 786 | 764 | 193.0 |
| A | 13 | 254 | 10331 | 49.57 | 786 | 764 | 193.0 |
| B | 3 | 238 | 126155 | 759.39 | 771 | 740 | 165.2 |
| B | 4 | 201 | 117359 | 706.13 | 771 | 740 | 165.2 |
| B | 0 | 63 | 85391 | 512.56 | 771 | 740 | 165.2 |
| C | 15 | 224 | 866125 | 4252.64 | 750 | 741 | 203.5 |
| C | 1 | 16 | 97258 | 474.3 | 750 | 741 | 203.5 |
| C | 6 | 223 | 85710 | 417.55 | 750 | 741 | 203.5 |
| D | 2 | 62 | 349641 | 1640.78 | 752 | 715 | 212.7 |
| D | 13 | 138 | 109373 | 510.95 | 752 | 715 | 212.7 |
| D | 2 | 31 | 95902 | 447.6 | 752 | 715 | 212.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

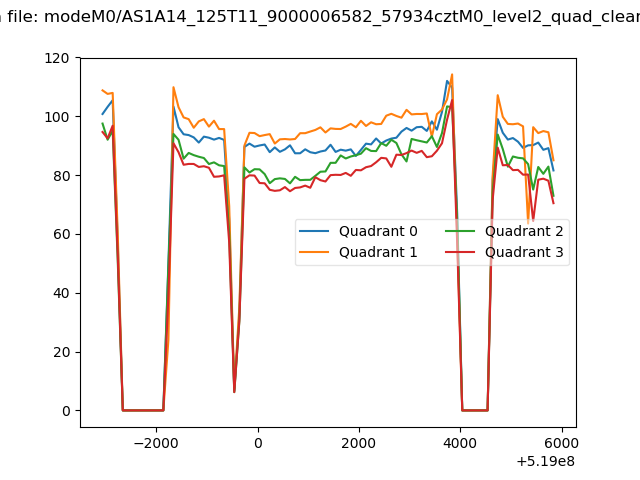

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

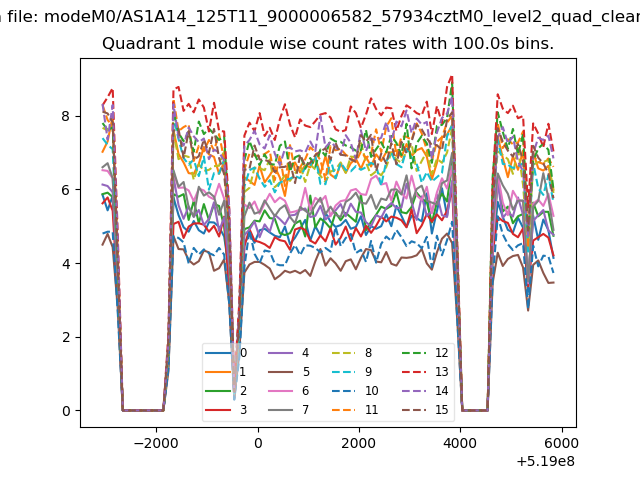

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

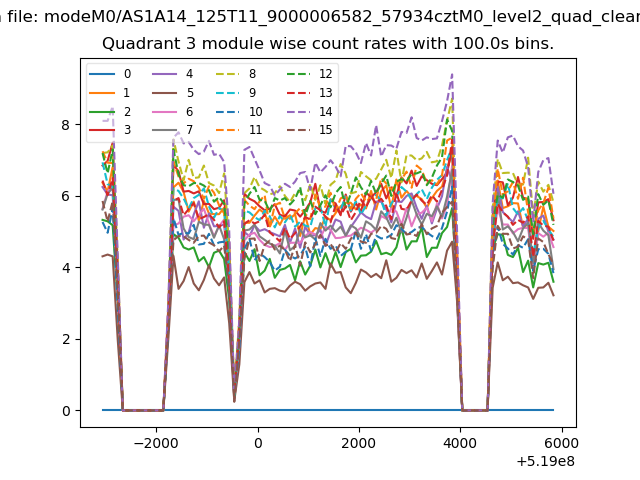

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

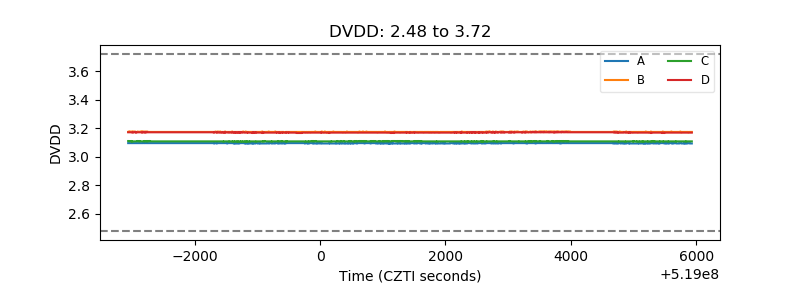

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

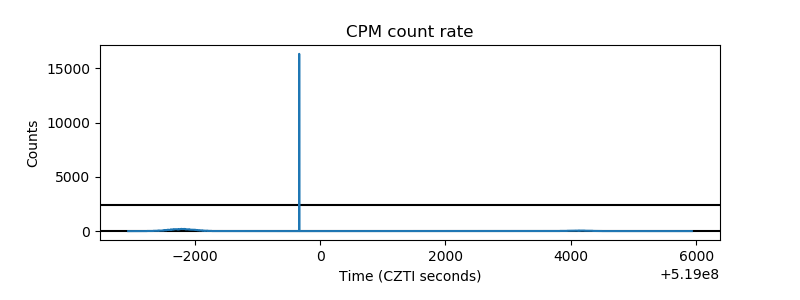

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

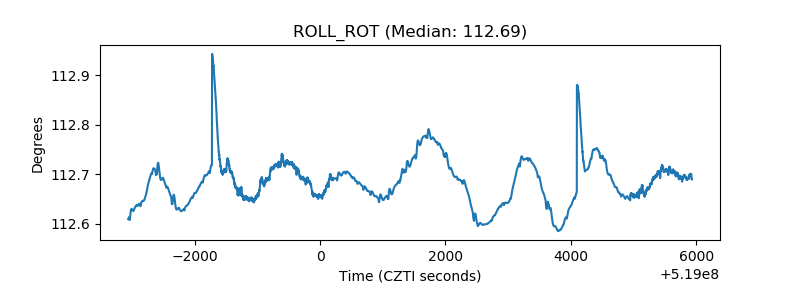

| _ROLL_ROT |  |
| _Roll_DEC |  |

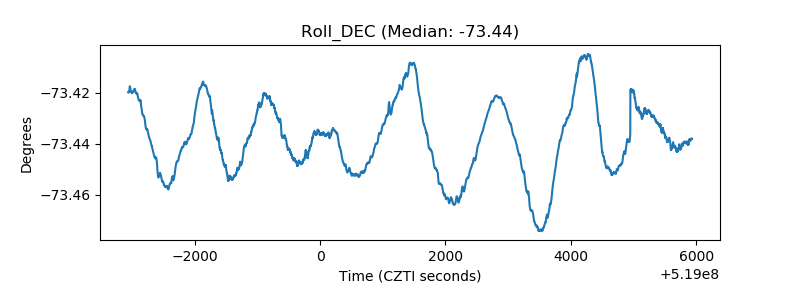

| _Roll_RA |  |
| Veto Counter |  |
