| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57936cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57936cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,305,920 | 120,925,440 |
| Size | 445.7 MB | 115.3 MB |
| Events in quadrant A | 3,733,994 | 794,349 |
| Events in quadrant B | 3,974,625 | 839,399 |
| Events in quadrant C | 4,712,031 | 739,901 |
| Events in quadrant D | 4,225,078 | 705,248 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17455 | 1 |
| B | 0 | 18008 | 1 |
| C | 0 | 19982 | 1 |
| D | 0 | 18660 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8385 | 36 | 0.429338% |
| B | 8385 | 194 | 2.313655% |
| C | 8386 | 180 | 2.146435% |
| D | 8386 | 101 | 1.204388% |

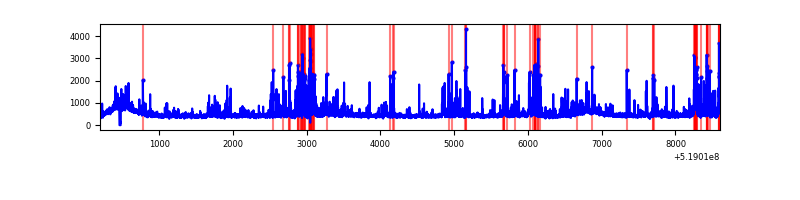

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8405 | 8386 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8405 | 8386 | 32 | 32 | 0.38% | 0.38% |  |
| C | 8406 | 8387 | 94 | 94 | 1.12% | 1.12% |  |
| D | 8406 | 8387 | 62 | 62 | 0.74% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 222 | 97777 | 433.05 | 911 | 887 | 223.7 |
| A | 7 | 64 | 25083 | 108.14 | 911 | 887 | 223.7 |
| A | 3 | 31 | 22637 | 97.21 | 911 | 887 | 223.7 |
| B | 3 | 238 | 68426 | 351.67 | 901 | 866 | 192.1 |
| B | 10 | 247 | 52197 | 267.19 | 901 | 866 | 192.1 |
| B | 10 | 16 | 47167 | 241.01 | 901 | 866 | 192.1 |
| C | 15 | 224 | 1013804 | 4239.96 | 884 | 875 | 238.9 |
| C | 1 | 16 | 79872 | 330.67 | 884 | 875 | 238.9 |
| C | 14 | 254 | 63695 | 262.95 | 884 | 875 | 238.9 |
| D | 2 | 62 | 135094 | 552.45 | 876 | 837 | 243.0 |
| D | 5 | 32 | 122134 | 499.12 | 876 | 837 | 243.0 |
| D | 12 | 251 | 111652 | 455.99 | 876 | 837 | 243.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

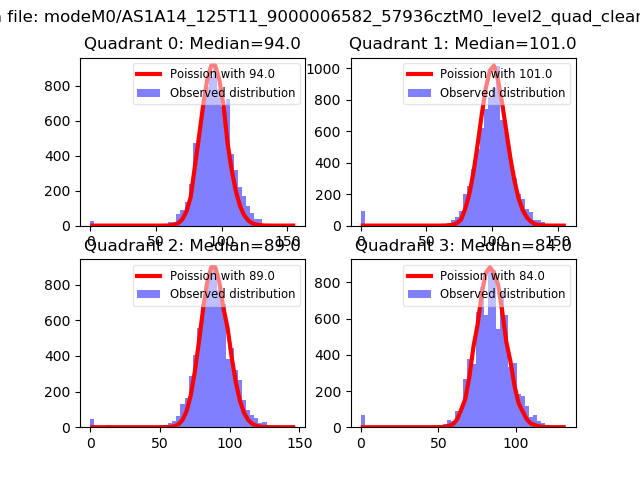

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

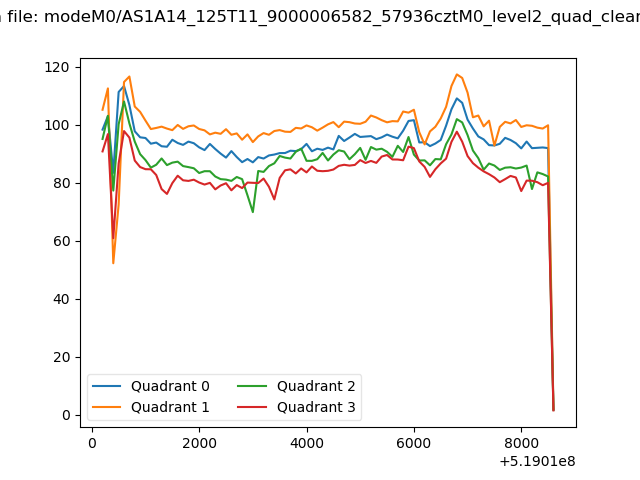

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

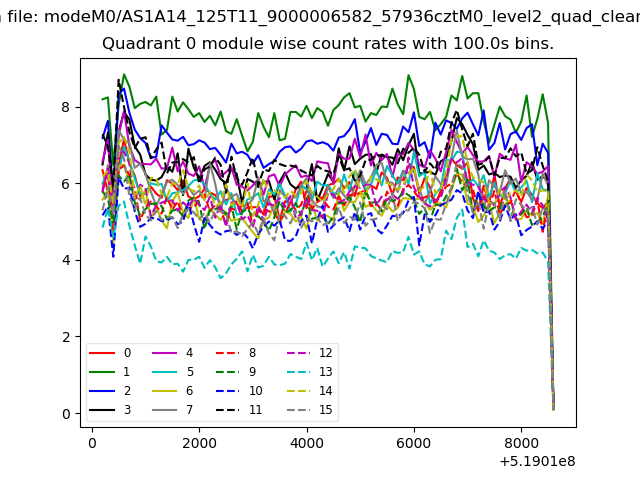

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

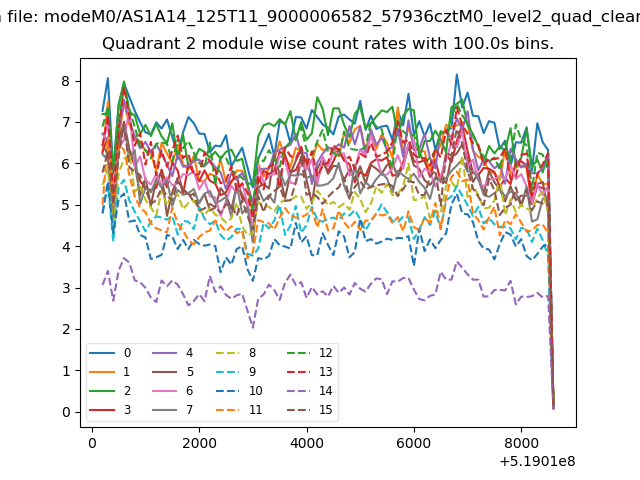

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

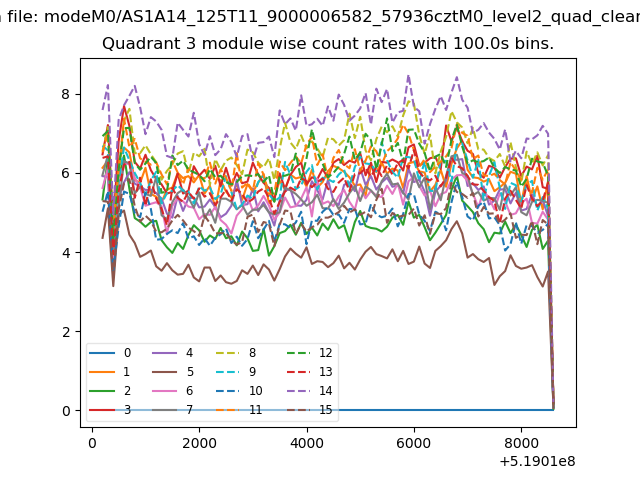

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

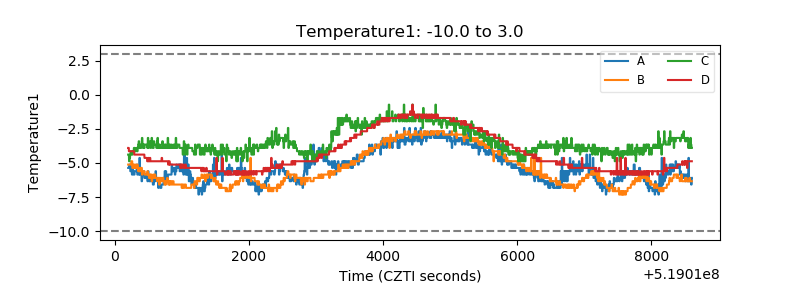

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

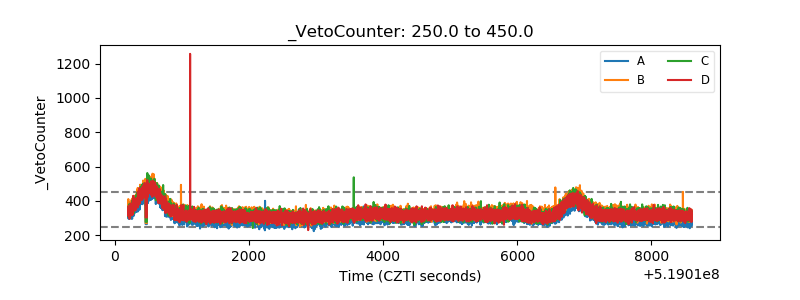

| Veto Counter |  |
