| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57940cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57940cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,087,908,480 | 264,600,000 |
| Size | 1.0 GB | 252.3 MB |
| Events in quadrant A | 8,328,354 | 1,729,373 |
| Events in quadrant B | 9,369,273 | 1,838,435 |
| Events in quadrant C | 11,805,270 | 1,608,180 |
| Events in quadrant D | 9,319,644 | 1,548,561 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38502 | 3 |
| B | 0 | 41277 | 3 |
| C | 0 | 48129 | 3 |
| D | 0 | 41199 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 378 | 0 |
| B | 0 | 378 | 0 |
| C | 0 | 378 | 0 |
| D | 0 | 378 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18681 | 345 | 1.846796% |
| B | 18681 | 681 | 3.645415% |
| C | 18682 | 879 | 4.705064% |
| D | 18682 | 382 | 2.044749% |

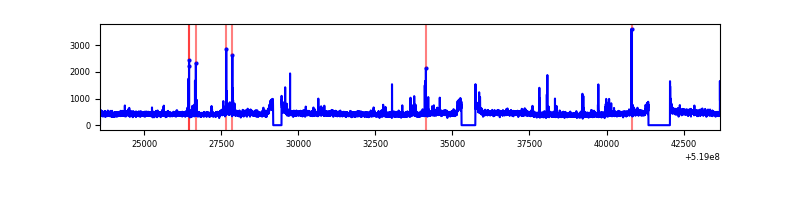

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20106 | 18684 | 7 | 7 | 0.03% | 0.04% |  |
| B | 20106 | 18684 | 141 | 141 | 0.70% | 0.75% |  |
| C | 20107 | 18685 | 511 | 511 | 2.54% | 2.73% |  |
| D | 20107 | 18685 | 103 | 103 | 0.51% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 74239 | 141.68 | 2067 | 2011 | 509.8 |
| A | 4 | 159 | 59324 | 112.42 | 2067 | 2011 | 509.8 |
| A | 3 | 245 | 57460 | 108.76 | 2067 | 2011 | 509.8 |
| B | 3 | 238 | 605959 | 1390.19 | 2015 | 1935 | 434.5 |
| B | 10 | 247 | 174899 | 398.09 | 2015 | 1935 | 434.5 |
| B | 4 | 201 | 123661 | 280.16 | 2015 | 1935 | 434.5 |
| C | 15 | 224 | 3363085 | 6257.04 | 1971 | 1950 | 537.2 |
| C | 12 | 252 | 307582 | 568.96 | 1971 | 1950 | 537.2 |
| C | 1 | 16 | 185363 | 341.44 | 1971 | 1950 | 537.2 |
| D | 2 | 249 | 369203 | 660.25 | 1994 | 1912 | 556.3 |
| D | 12 | 110 | 290158 | 518.16 | 1994 | 1912 | 556.3 |
| D | 12 | 251 | 207476 | 369.53 | 1994 | 1912 | 556.3 |

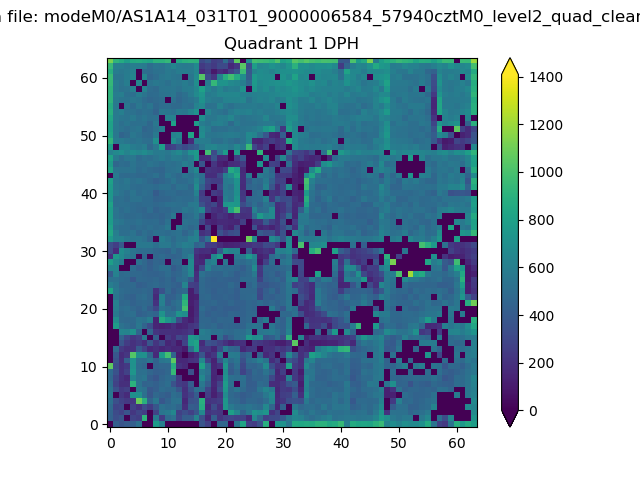

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

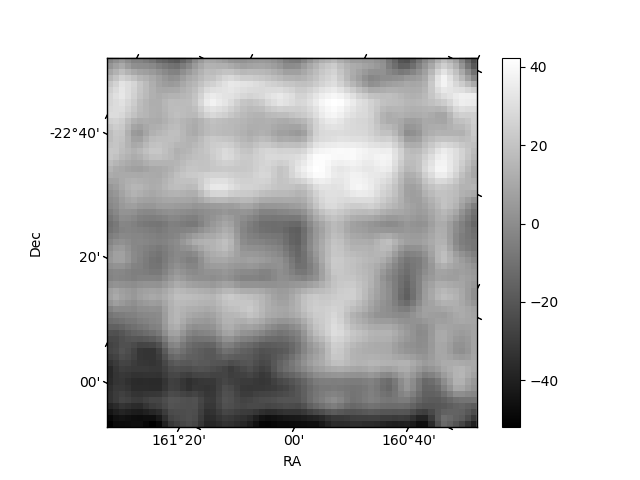

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

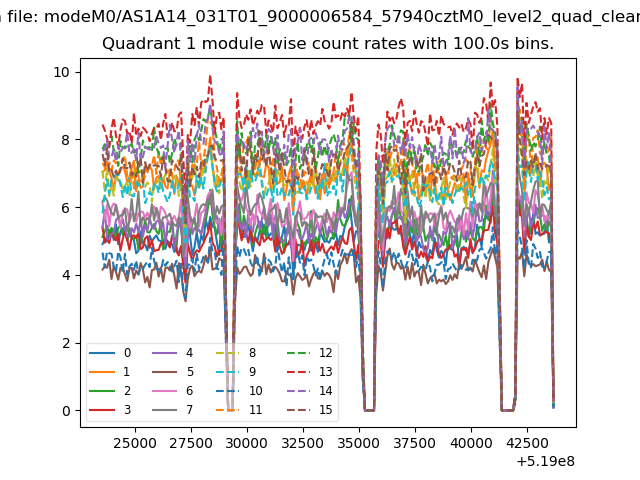

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

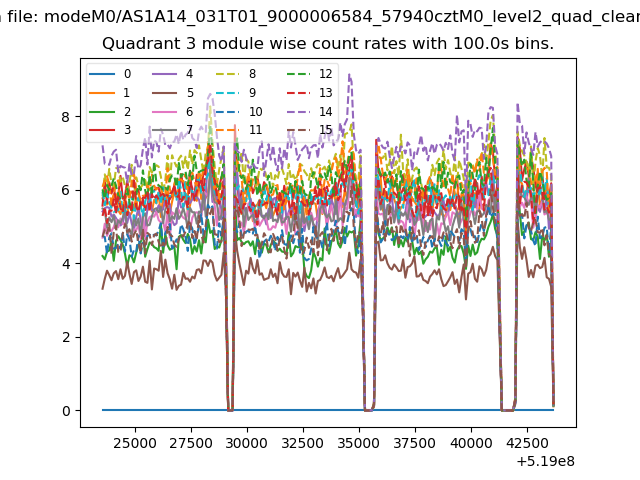

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

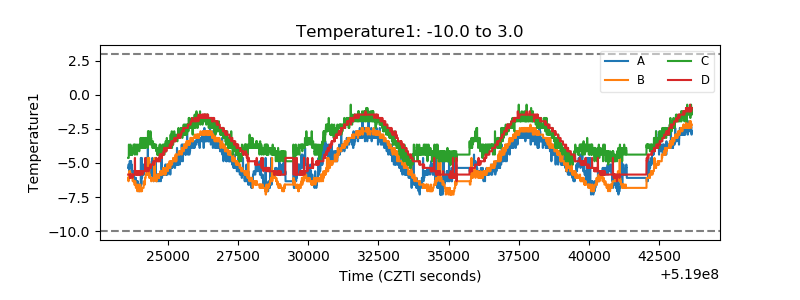

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

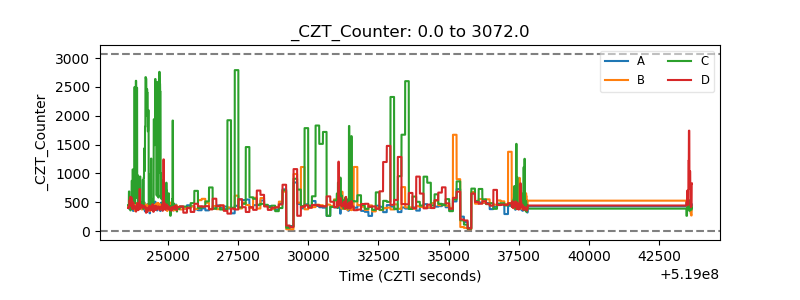

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

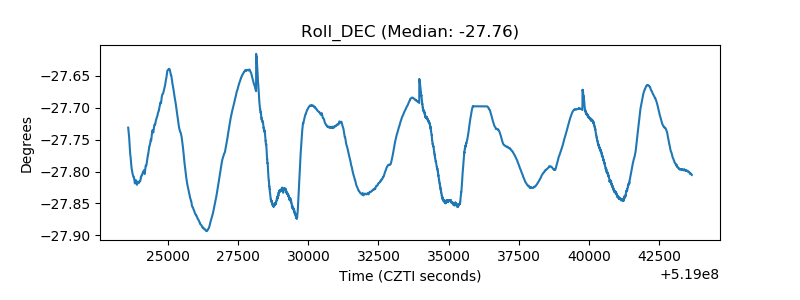

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
