| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57944cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57944cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,039,360 | 92,036,160 |
| Size | 392.0 MB | 87.8 MB |
| Events in quadrant A | 2,805,388 | 628,957 |
| Events in quadrant B | 3,123,913 | 667,823 |
| Events in quadrant C | 5,640,833 | 493,840 |
| Events in quadrant D | 3,155,939 | 558,368 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12872 | 1 |
| B | 0 | 13687 | 2 |
| C | 0 | 21119 | 1 |
| D | 0 | 13865 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6282 | 53 | 0.843680% |
| B | 6282 | 113 | 1.798790% |
| C | 6282 | 1164 | 18.529131% |
| D | 6282 | 95 | 1.512257% |

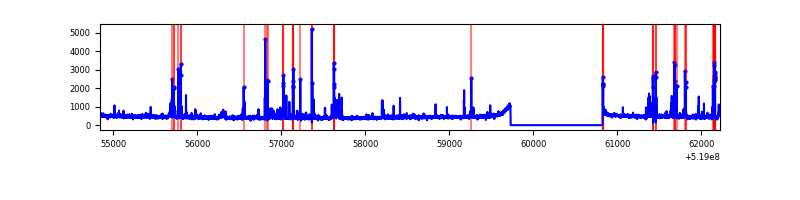

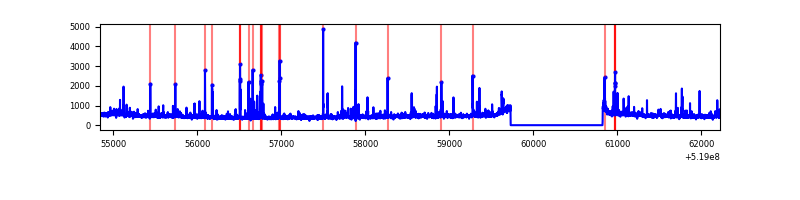

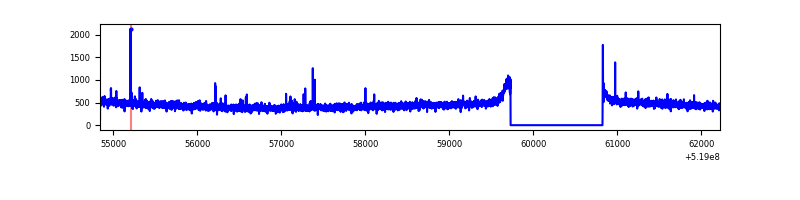

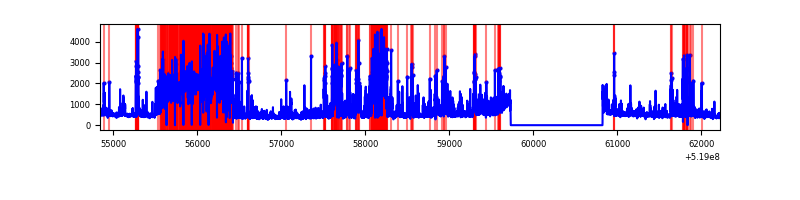

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7377 | 6283 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7377 | 6283 | 26 | 26 | 0.35% | 0.41% |  |
| C | 7377 | 6282 | 691 | 691 | 9.37% | 11.00% |  |
| D | 7377 | 6283 | 56 | 56 | 0.76% | 0.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 25551 | 142.33 | 706 | 688 | 174.7 |
| A | 3 | 14 | 24162 | 134.37 | 706 | 688 | 174.7 |
| A | 13 | 254 | 11879 | 64.06 | 706 | 688 | 174.7 |
| B | 10 | 247 | 79801 | 527.9 | 692 | 666 | 149.9 |
| B | 5 | 185 | 53471 | 352.26 | 692 | 666 | 149.9 |
| B | 3 | 238 | 44850 | 294.75 | 692 | 666 | 149.9 |
| C | 1 | 12 | 1691791 | 10381.68 | 594 | 588 | 162.9 |
| C | 15 | 224 | 1239419 | 7604.73 | 594 | 588 | 162.9 |
| C | 14 | 254 | 173108 | 1059.04 | 594 | 588 | 162.9 |
| D | 5 | 32 | 108328 | 563.34 | 676 | 647 | 191.1 |
| D | 2 | 31 | 100945 | 524.71 | 676 | 647 | 191.1 |
| D | 8 | 240 | 58197 | 301.08 | 676 | 647 | 191.1 |

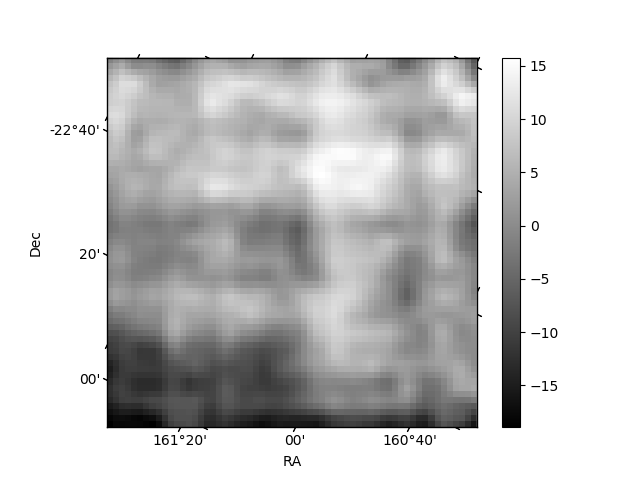

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

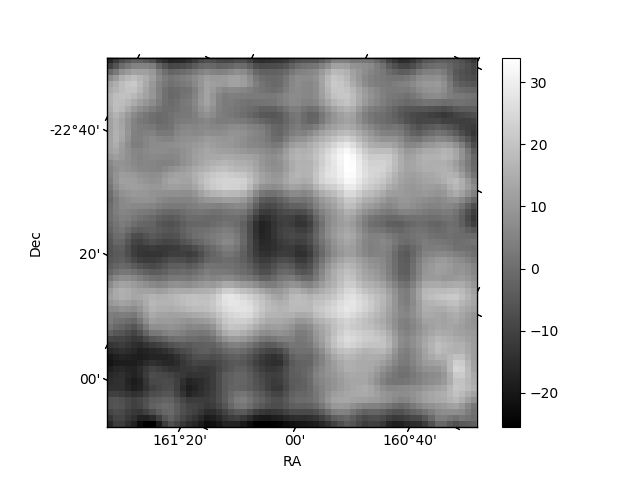

| Plot type | Count rate plots | Images |
|---|---|---|

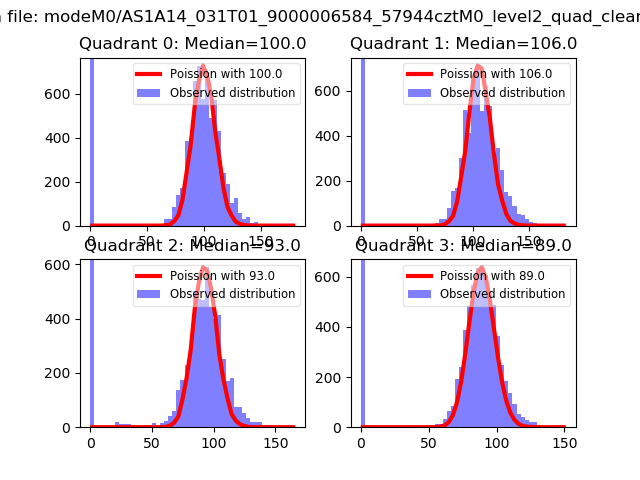

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

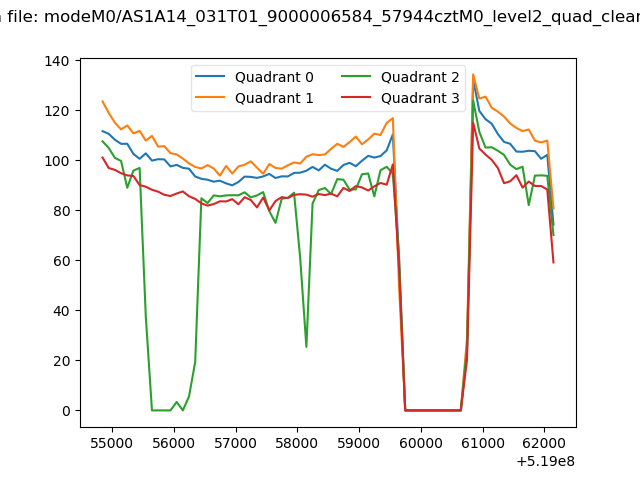

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

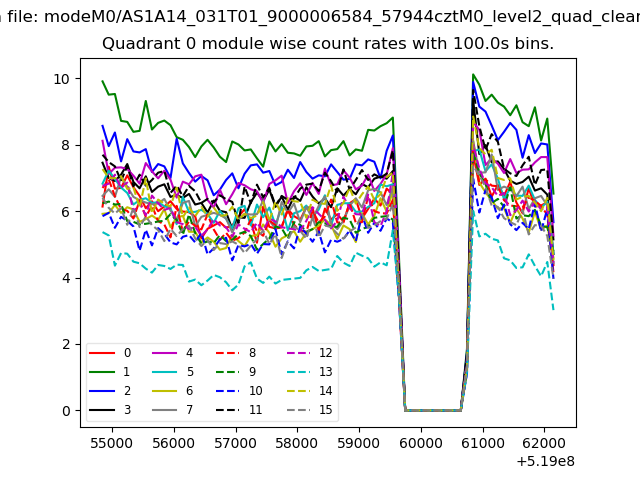

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

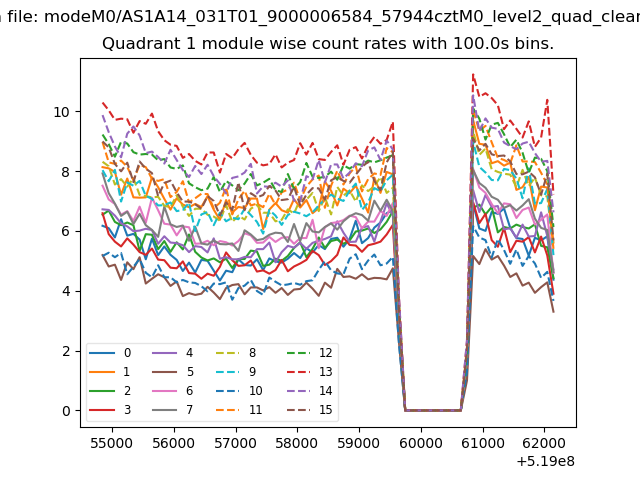

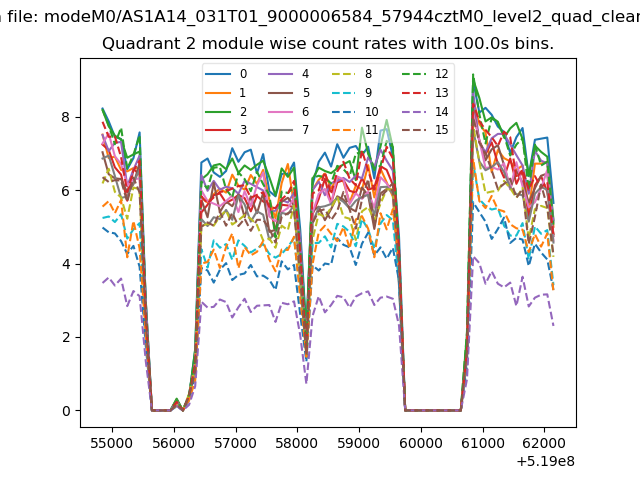

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

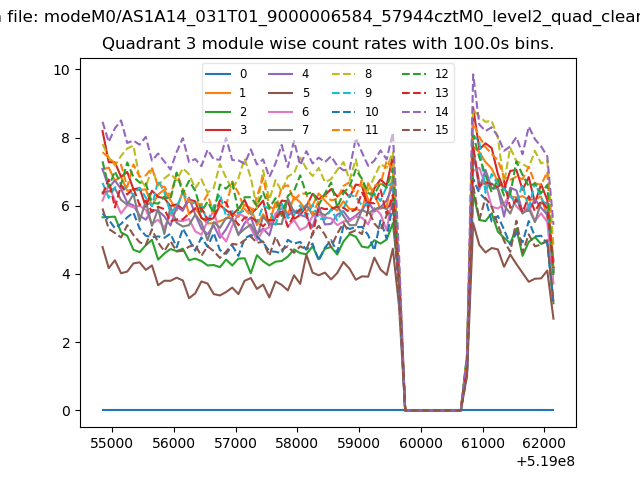

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

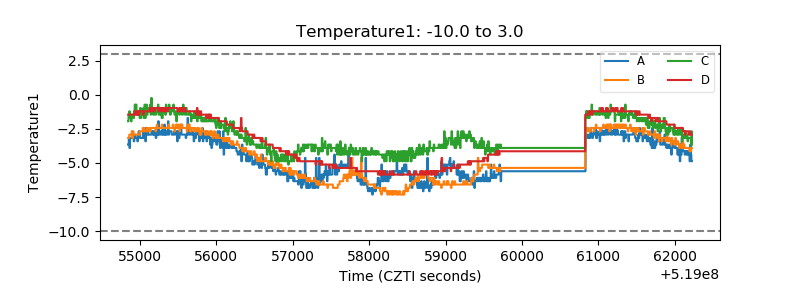

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

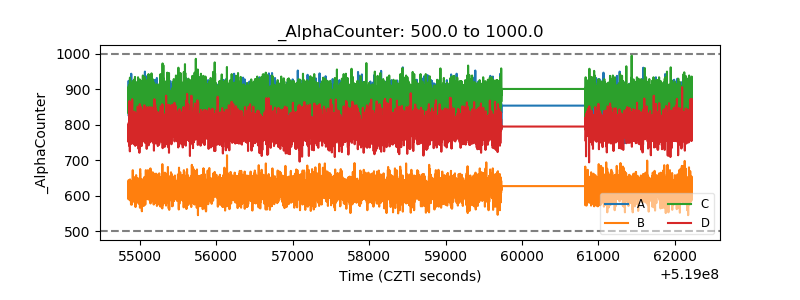

| Alpha Counter |  |
| _CPM_Rate |  |

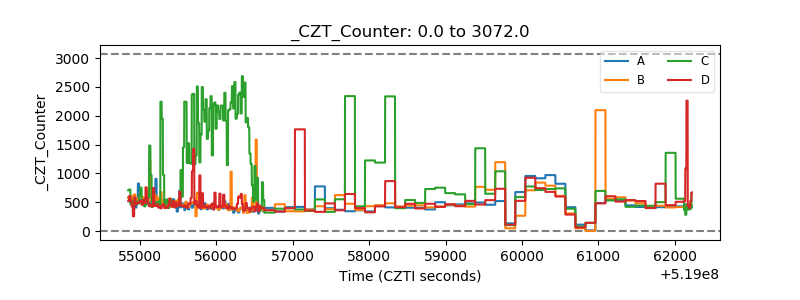

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

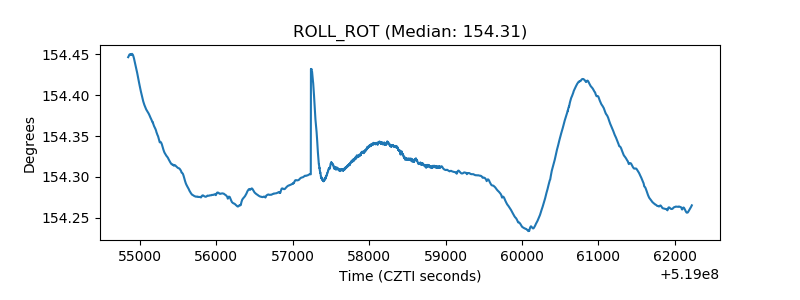

| _ROLL_ROT |  |

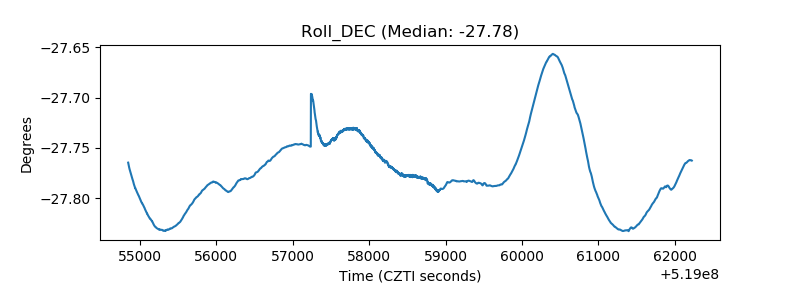

| _Roll_DEC |  |

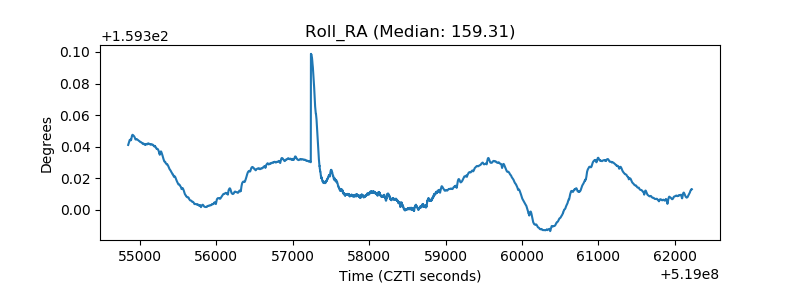

| _Roll_RA |  |

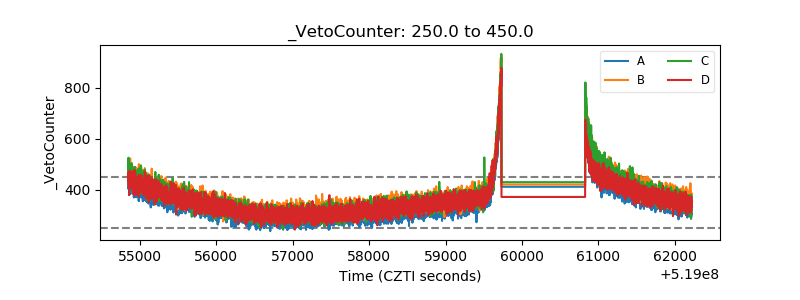

| Veto Counter |  |
