| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57947cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57947cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,205,120 | 96,494,400 |
| Size | 437.0 MB | 92.0 MB |
| Events in quadrant A | 2,971,556 | 645,978 |
| Events in quadrant B | 3,245,463 | 691,492 |
| Events in quadrant C | 5,095,515 | 589,586 |
| Events in quadrant D | 5,138,280 | 537,197 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13705 | 2 |
| B | 0 | 14233 | 2 |
| C | 0 | 19803 | 2 |
| D | 0 | 20033 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6566 | 24 | 0.365519% |
| B | 6566 | 84 | 1.279318% |
| C | 6566 | 358 | 5.452330% |
| D | 6565 | 520 | 7.920792% |

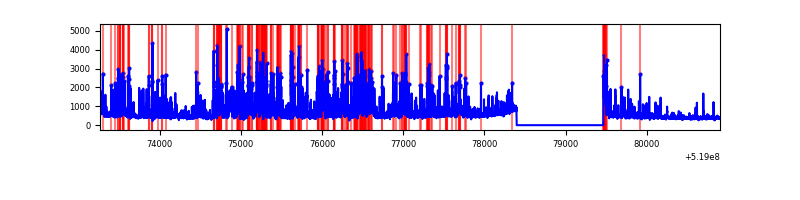

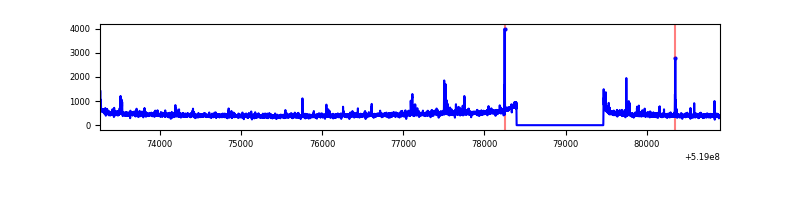

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7636 | 6567 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7636 | 6567 | 22 | 22 | 0.29% | 0.34% |  |
| C | 7636 | 6567 | 282 | 282 | 3.69% | 4.29% |  |
| D | 7635 | 6566 | 565 | 565 | 7.40% | 8.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 93590 | 520.9 | 723 | 705 | 178.3 |
| A | 3 | 14 | 21143 | 114.62 | 723 | 705 | 178.3 |
| A | 13 | 248 | 14831 | 79.22 | 723 | 705 | 178.3 |
| B | 3 | 238 | 71904 | 467.84 | 714 | 690 | 152.2 |
| B | 10 | 247 | 70102 | 456.01 | 714 | 690 | 152.2 |
| B | 7 | 252 | 52024 | 337.24 | 714 | 690 | 152.2 |
| C | 15 | 224 | 2102780 | 11182.43 | 685 | 679 | 188.0 |
| C | 1 | 16 | 154885 | 820.32 | 685 | 679 | 188.0 |
| C | 14 | 254 | 72258 | 380.77 | 685 | 679 | 188.0 |
| D | 12 | 110 | 1798620 | 9352.73 | 674 | 644 | 192.2 |
| D | 12 | 248 | 225434 | 1169.31 | 674 | 644 | 192.2 |
| D | 5 | 32 | 99108 | 512.19 | 674 | 644 | 192.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

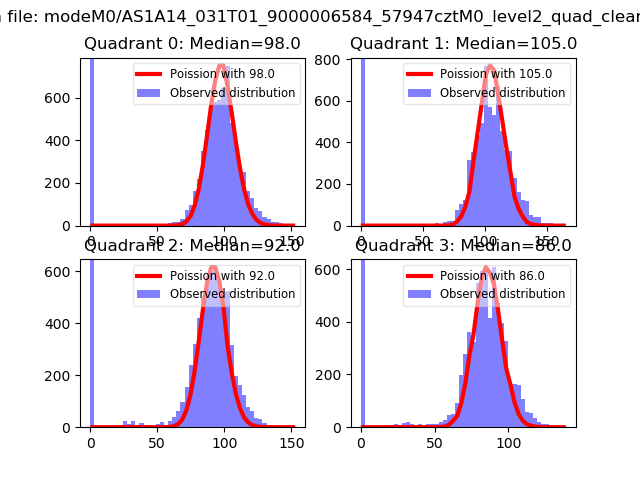

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

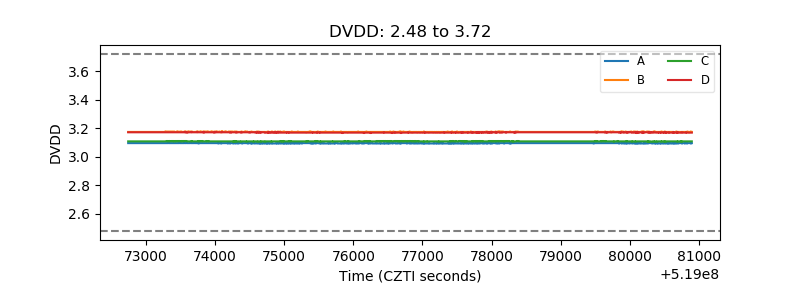

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

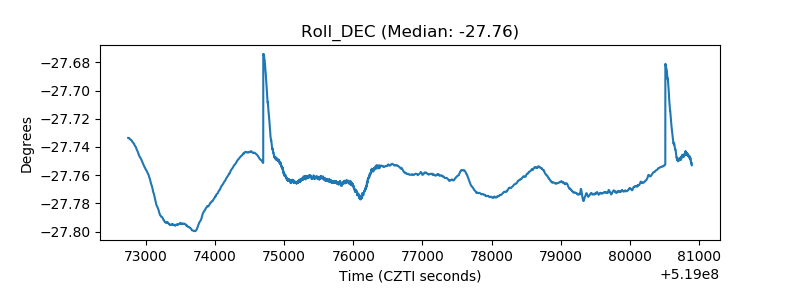

| _Roll_DEC |  |

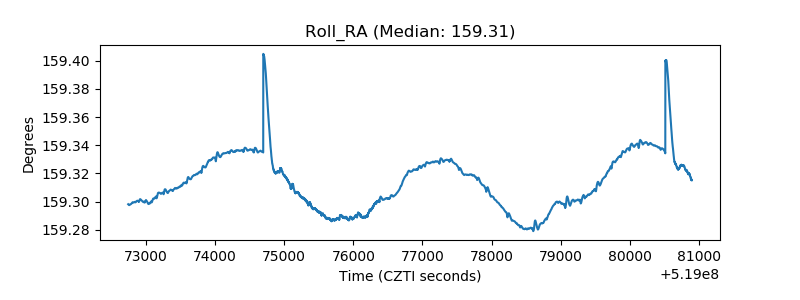

| _Roll_RA |  |

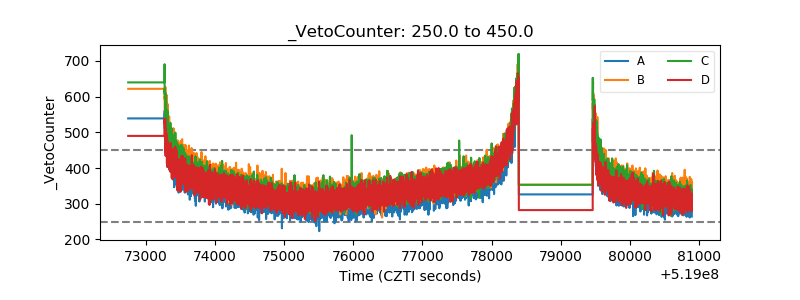

| Veto Counter |  |
