| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57948cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57948cztM0_level2_quad_clean.evt |
| Size (bytes) | 641,352,960 | 96,972,480 |
| Size | 611.6 MB | 92.5 MB |
| Events in quadrant A | 3,232,412 | 683,596 |
| Events in quadrant B | 4,226,923 | 711,490 |
| Events in quadrant C | 4,091,783 | 637,830 |
| Events in quadrant D | 11,642,920 | 412,576 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14786 | 3 |
| B | 0 | 17570 | 2 |
| C | 0 | 17250 | 2 |
| D | 0 | 39505 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7047 | 41 | 0.581808% |
| B | 7048 | 360 | 5.107832% |
| C | 7048 | 199 | 2.823496% |
| D | 7048 | 2475 | 35.116345% |

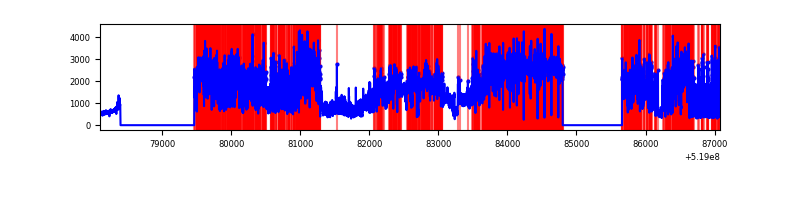

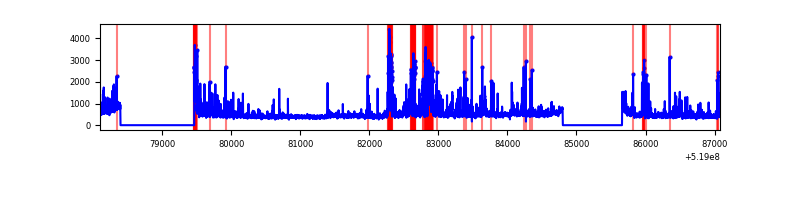

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8977 | 7049 | 7 | 7 | 0.08% | 0.10% |  |
| B | 8978 | 7050 | 163 | 163 | 1.82% | 2.31% |  |
| C | 8978 | 7050 | 143 | 143 | 1.59% | 2.03% |  |
| D | 8978 | 7049 | 2488 | 2488 | 27.71% | 35.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 69816 | 356.8 | 782 | 763 | 193.5 |
| A | 3 | 14 | 69607 | 355.72 | 782 | 763 | 193.5 |
| A | 13 | 248 | 24777 | 124.08 | 782 | 763 | 193.5 |
| B | 3 | 238 | 515225 | 3152.95 | 761 | 735 | 163.2 |
| B | 5 | 185 | 376906 | 2305.29 | 761 | 735 | 163.2 |
| B | 10 | 247 | 121598 | 740.69 | 761 | 735 | 163.2 |
| C | 15 | 224 | 964433 | 4729.07 | 749 | 741 | 203.8 |
| C | 14 | 254 | 70760 | 343.6 | 749 | 741 | 203.8 |
| C | 1 | 16 | 63906 | 309.97 | 749 | 741 | 203.8 |
| D | 12 | 110 | 8856557 | 49798.97 | 622 | 594 | 177.8 |
| D | 2 | 31 | 72496 | 404.32 | 622 | 594 | 177.8 |
| D | 8 | 240 | 62653 | 348.97 | 622 | 594 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

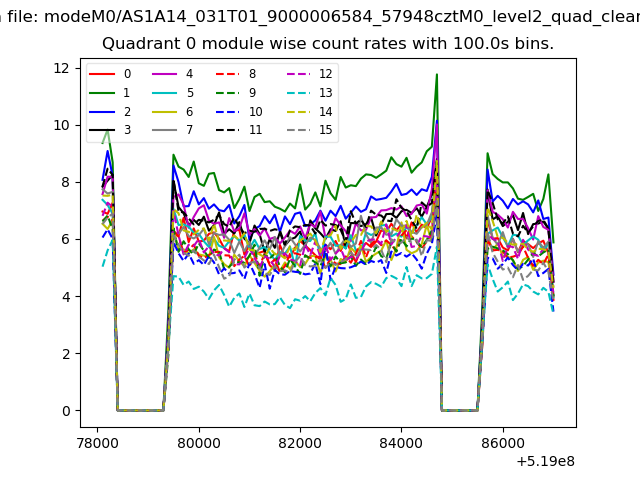

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

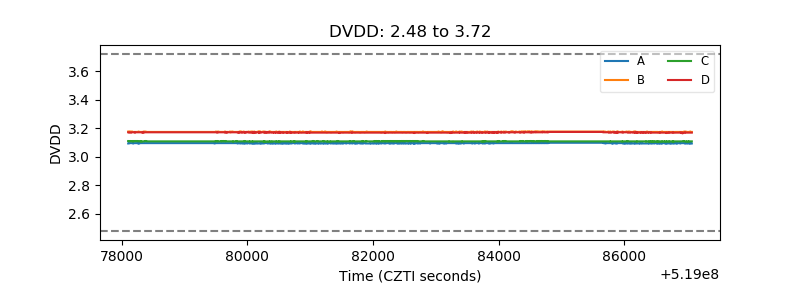

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

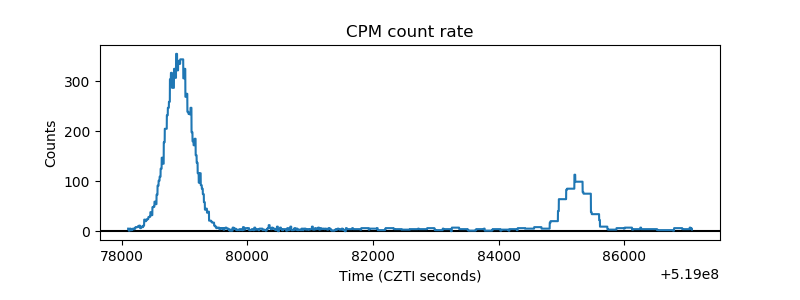

| _CPM_Rate |  |
| CZT Counter |  |

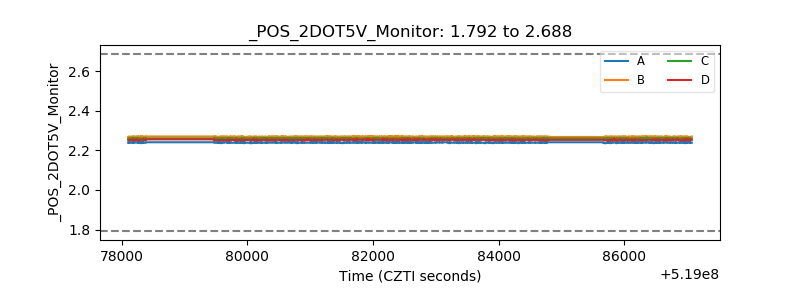

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

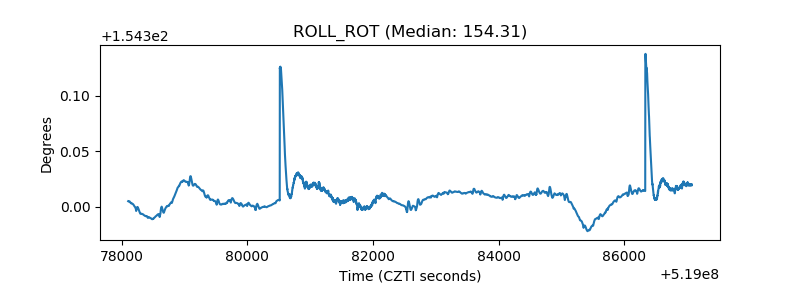

| _ROLL_ROT |  |

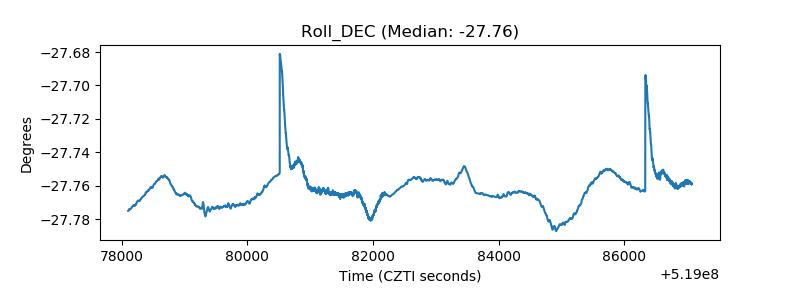

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
