| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_031T01_9000006584_57949cztM0_level2.fits | modeM0/AS1A14_031T01_9000006584_57949cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,731,200 | 101,128,320 |
| Size | 511.9 MB | 96.4 MB |
| Events in quadrant A | 3,252,141 | 682,903 |
| Events in quadrant B | 4,441,721 | 701,113 |
| Events in quadrant C | 3,879,678 | 642,034 |
| Events in quadrant D | 7,731,944 | 531,985 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15095 | 2 |
| B | 0 | 18467 | 2 |
| C | 0 | 16854 | 2 |
| D | 0 | 28172 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7243 | 67 | 0.925031% |
| B | 7243 | 459 | 6.337153% |
| C | 7243 | 130 | 1.794836% |
| D | 7243 | 1193 | 16.471076% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 7246 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7608 | 7246 | 188 | 188 | 2.47% | 2.59% |  |
| C | 7608 | 7246 | 89 | 89 | 1.17% | 1.23% |  |
| D | 7608 | 7246 | 1042 | 1042 | 13.70% | 14.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 52717 | 262.93 | 798 | 777 | 197.5 |
| A | 3 | 14 | 52694 | 262.81 | 798 | 777 | 197.5 |
| A | 6 | 161 | 30024 | 148.05 | 798 | 777 | 197.5 |
| B | 5 | 185 | 968147 | 5774.22 | 775 | 746 | 167.5 |
| B | 3 | 238 | 136273 | 808.93 | 775 | 746 | 167.5 |
| B | 10 | 247 | 86075 | 509.31 | 775 | 746 | 167.5 |
| C | 15 | 224 | 603323 | 2876.4 | 768 | 763 | 209.5 |
| C | 14 | 254 | 89381 | 423.03 | 768 | 763 | 209.5 |
| C | 14 | 246 | 61299 | 288.98 | 768 | 763 | 209.5 |
| D | 12 | 110 | 4534803 | 22380.57 | 721 | 689 | 202.6 |
| D | 8 | 240 | 142025 | 697.64 | 721 | 689 | 202.6 |
| D | 12 | 248 | 67782 | 331.17 | 721 | 689 | 202.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

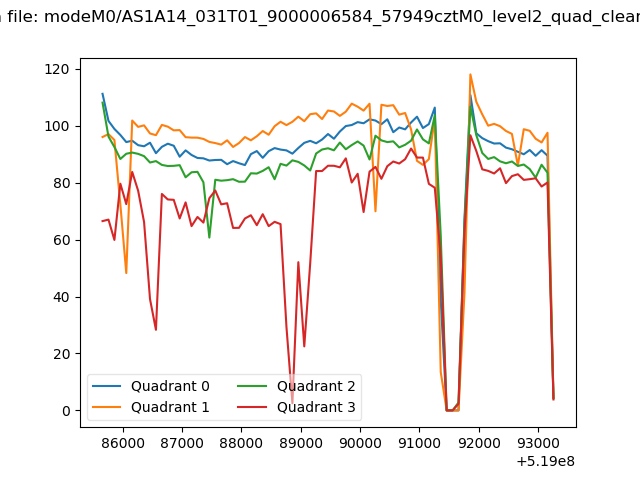

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

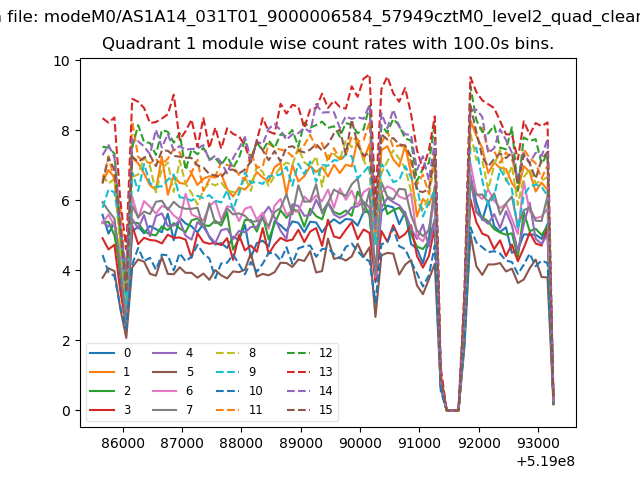

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

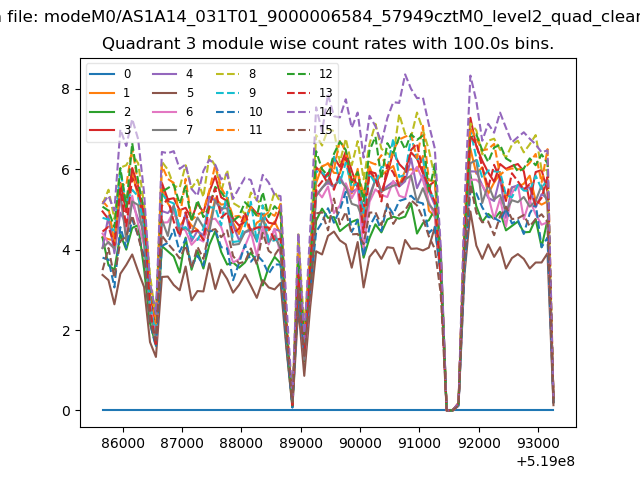

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

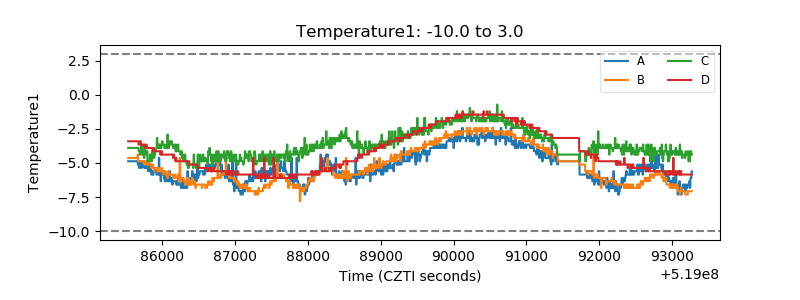

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

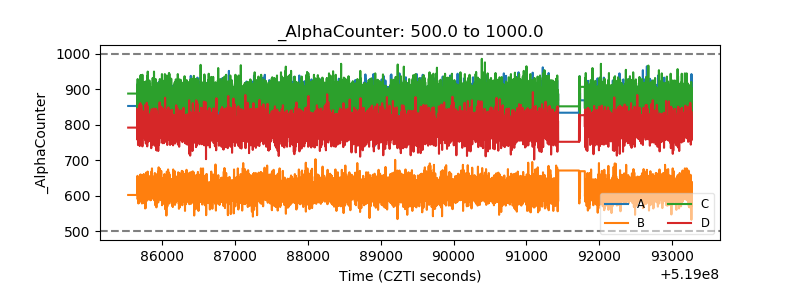

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

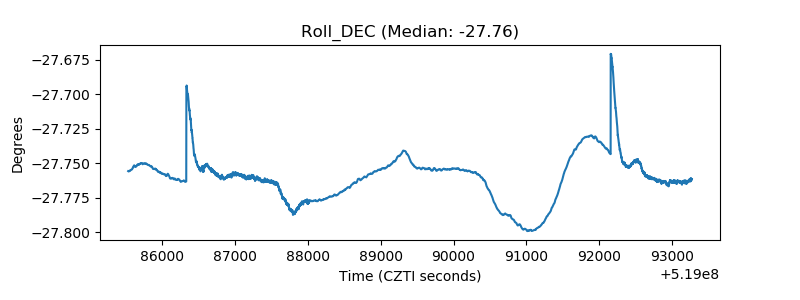

| _Roll_DEC |  |
| _Roll_RA |  |

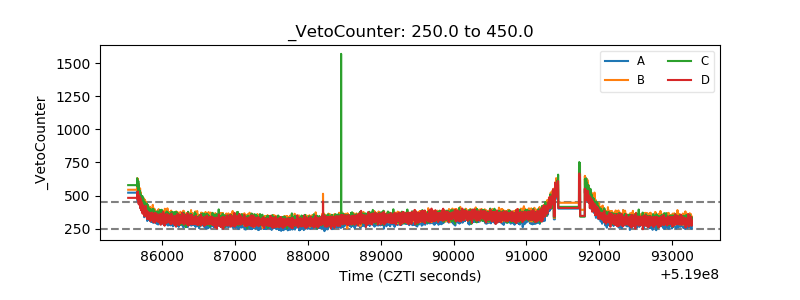

| Veto Counter |  |
